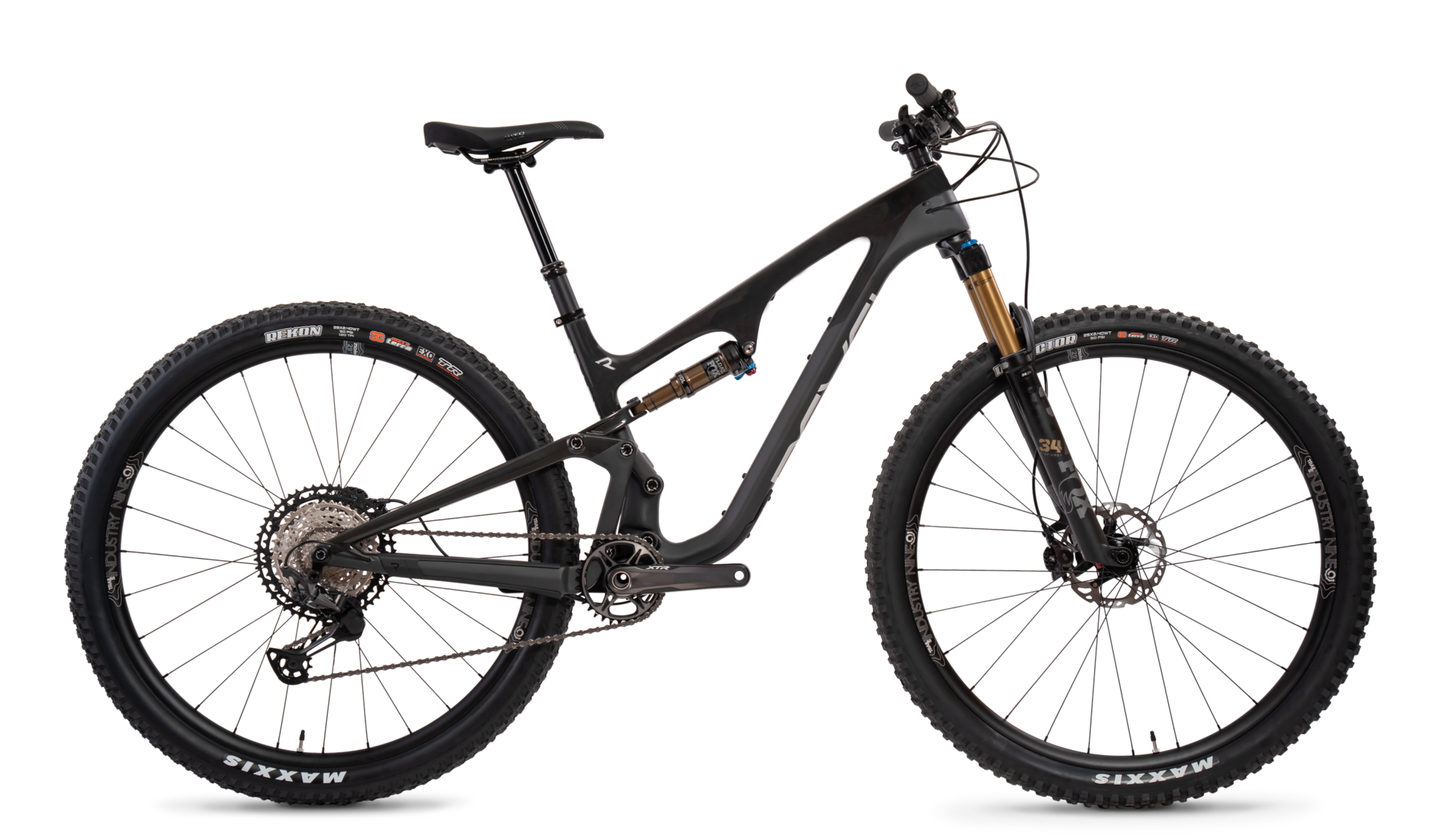

SPECIFICATIONS
GEOMETRY
MEASUREMENT |
SMALL |
MEDIUM |
LARGE |
XL |
|
A |
Effective Top Tube Length |
594mm |
616mm |
639mm |
667mm |
B |
Seat Tube Length |
373mm |
403mm |
439mm |
457mm |
C |
Seat Tube Angle |
75.3° |
75.3° |
75.3° |
75.3° |
D |
Chain Stay Length |
436mm |
436mm |
436mm |
436mm |
E |
Bottom Bracket Drop |
38mm |
38mm |
38mm |
38mm |
F |
Bottom Bracket Height |
338mm |
338mm |
338mm |
338mm |
G |
Head Tube Angle |
67.5° |
67.5° |
67.5° |
67.5° |
H |
Wheel Base |
1146mm |
1170mm |
1194mm |
1223mm |
I |
Head Tube Length |
95mm |
105mm |
116mm |
127mm |
J |
Axle to Crown |
531mm |
531mm |
531mm |
531mm |
K |
Fork Offset |
44mm |
44mm |
44mm |
44mm |
L |
Trail |
123mm |
108mm |
108mm |
108mm |
M |
Stack |
600mm |
609mm |
619mm |
629mm |
N |
Reach |
430mm |
453mm |
473mm |
498mm |
O |
Standover |
699mm |
699mm |
699mm |
700mm |
FRAME SPECIFICATIONS
| Wheel Size | 29" |
| Front Travel | 120mm |
| Rear Travel | 115mm |
| Shock Spec | 190 x 45 - 22.2 x 8 Mounting Hardware Spec |
| Axles | 177 x 12 x 1.0 |
| Seatpost Diameter | 31.6mm |
| Max Seatpost Insertion Depth | SM 260mm, MD 270mm, LG 300mm, XL 330mm |
| Rear Brake | Post Mount: 160mm direct / 180mm max |
| Rear Tire Clearance | 29" x 2.6" |
| Bottom Bracket | 73mm BSA Threaded |
| Max Chainring | 36T Round / 34T Oval |
| Tapered Headtube | IS42 Upper / IS52 Lower |
FAQ
DO YOU OFFER A LIGHT SHOCK TUNE FOR LIGHTER RIDERS?
We do not – We found the leverage curve of our bikes leaves the shock very tunable. We have successfully set up riders from 95 lbs. to well over 230 lbs.
CAN YOU MULLET THE RANGER?
We did not the design the Ranger to be ridden as a mullet so we do not recommend it!
HOW SHOULD I ROUTE THE CABLES AND HOSES UNDER THE BOTTOM BRACKET?
Our in-house builders prefer to cross the derailleur cable over the rear brake cable. That being said, there is no wrong way; You can run the brake line and derailleur housing to cross under the bottom bracket or not. Just be sure to leave enough slack under the bottom bracket so that the bike can fully cycle through its travel without binding. A good rule of thumb is for the cables to be level with the teeth of your chainring.
CAN I RUN A COIL ON THE RANGER?
We almost exclusively recommend the Push micro-coil for the Ranger. We tested every other coil shock on the market. you will love it.
CAN I BUY AN AFTER MARKET FOX REAR SHOCK FOR THE RANGER
You will need to order the shock directly from Fox and ensure you purchase the correct tune for our bikes. This is important to maximize how awesome your Revel can be! Fox has a tune guide for our bikes on file. Unfortunately due to our agreement with Fox, you are not able to buy Fox suspension directly from Revel unless is ships on your new bike.
WHAT CHAINLINE SHOULD I RUN ON THE RANGER?
52mm Chainline
WHAT IS THE LARGEST CHAINRING I CAN RUN ON THE RANGER?
36T round / 34T oval
WHAT BACKGUARD/CHAINRING PROTECTION CAN I FUN ON THE RANGER?
The Ranger is not compatible with any chainguides or bashguards currently on the market.
WHAT IS THE LARGEST WATER BOTTLE I CAN RUN ON THE RANGER?
22 ounces is the sweet spot. When using a side-loading water bottle cage, our frames fit a standard Revel 22-ounce water bottle. With a hands-free cap, these bottles are the best option around. Insulated bottles or larger sizes will need to be physically tested for clearance. The Ranger can fit an additional small bottle above the shock on the inside of the front triangle on large and extra large frames! For medium frames, the upper mount works for tool/accessory storage!

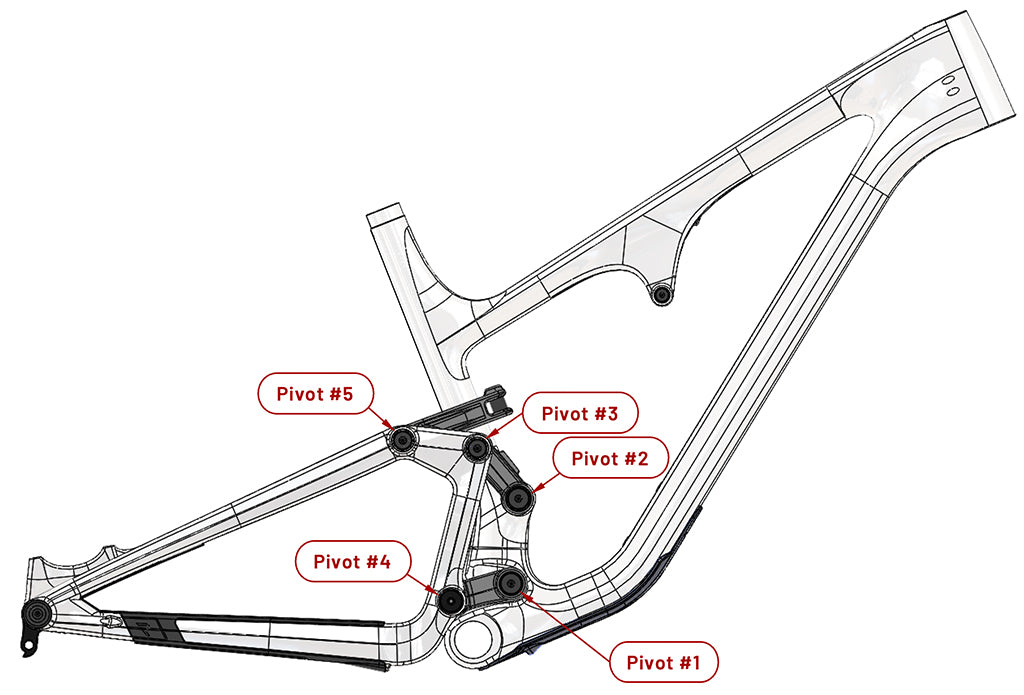

SERVICE MANUAL
