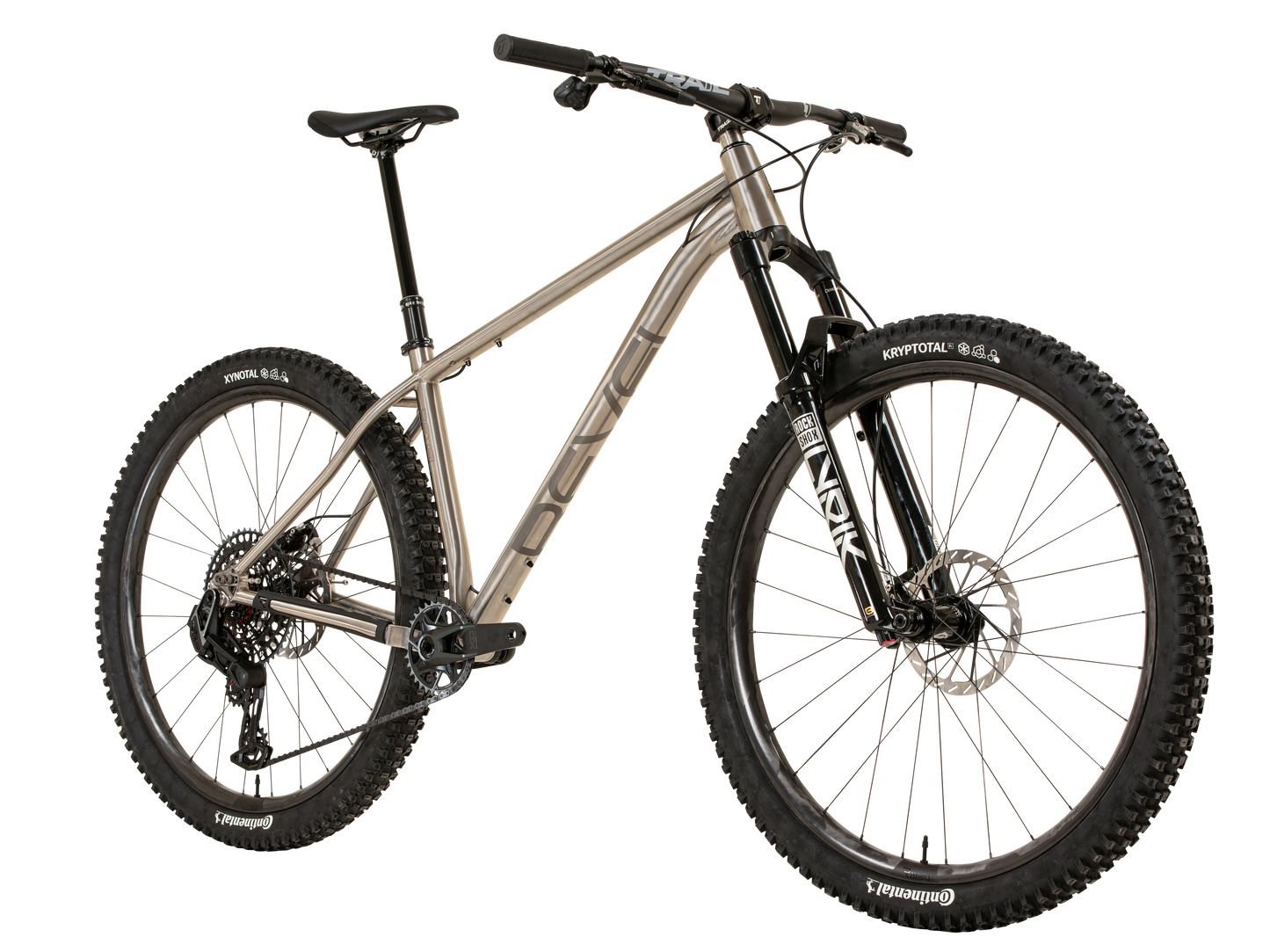

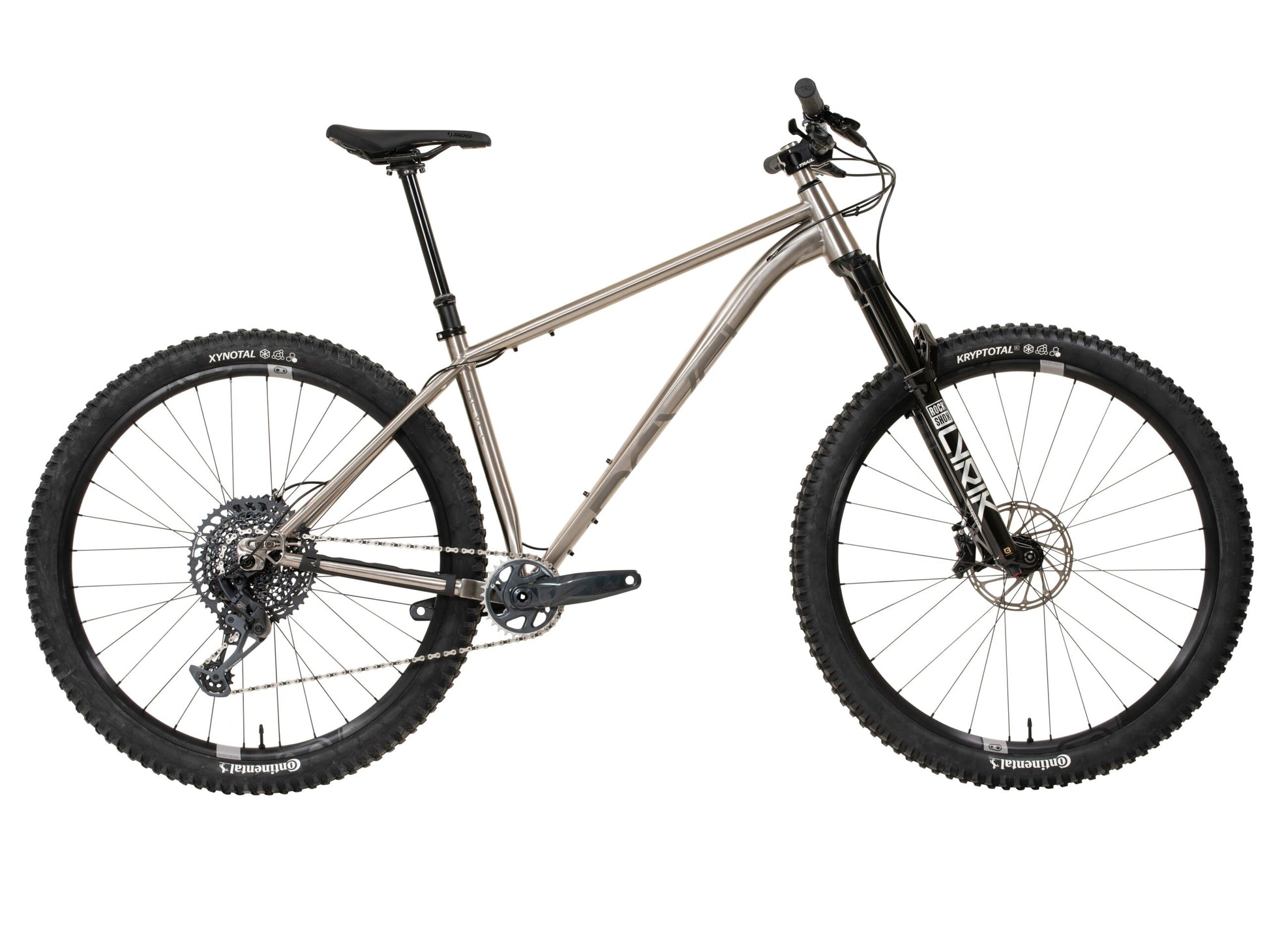

Tirade SRAM Eagle 90 Kit
Couldn't load pickup availability
Key Attributes
Key Attributes
Shipping and returns
Shipping and returns
Shipping and order processing times may fluctuate depending on order demand and the global shipping environment. Revel will notify the customer of our best estimated shipping lead time, however, these times are subject to change due to part availability and supply chain constraints. Complete bikes are fully assembled, test ridden, and then disassembled before they are carefully packed into our shipping cartons.
This process requires great attention to detail to ensure the best ride quality of our bikes right out of the box and we appreciate your patience with build timeframes.
Warranty
Warranty
Every Revel bicycle frame is covered by a limited warranty to the original owner and a lifetime crash replacement policy. Here’s the legal language:
The warranty covers defects in materials and craftsmanship, including manufacturing defects for the lifetime of the product. The warranty does not cover any damage or defects caused by abuse, accidents, or other incidents that are not the result of normal use of the product.
- 30 Days No-Questions-Asked Return Policy

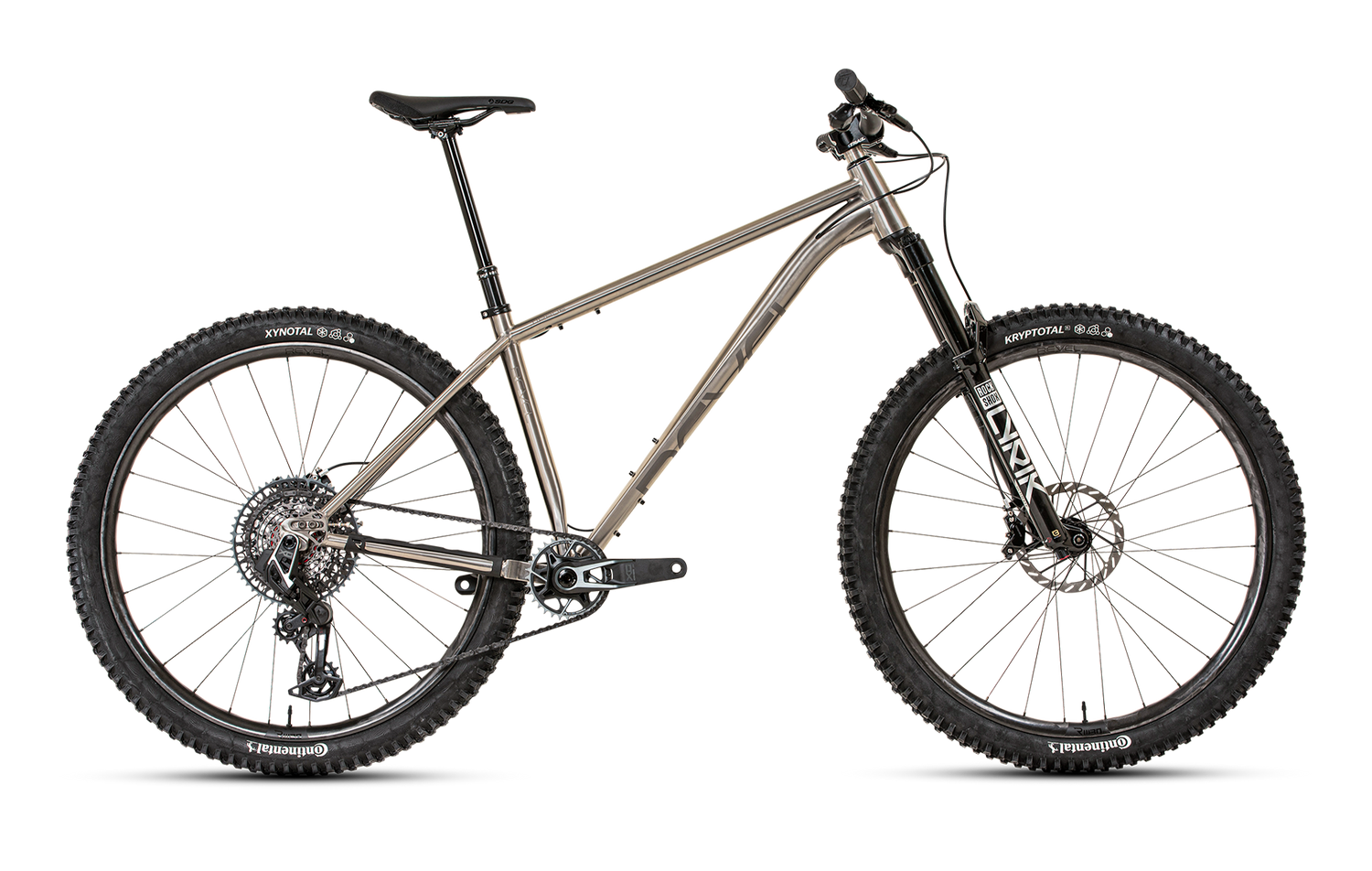

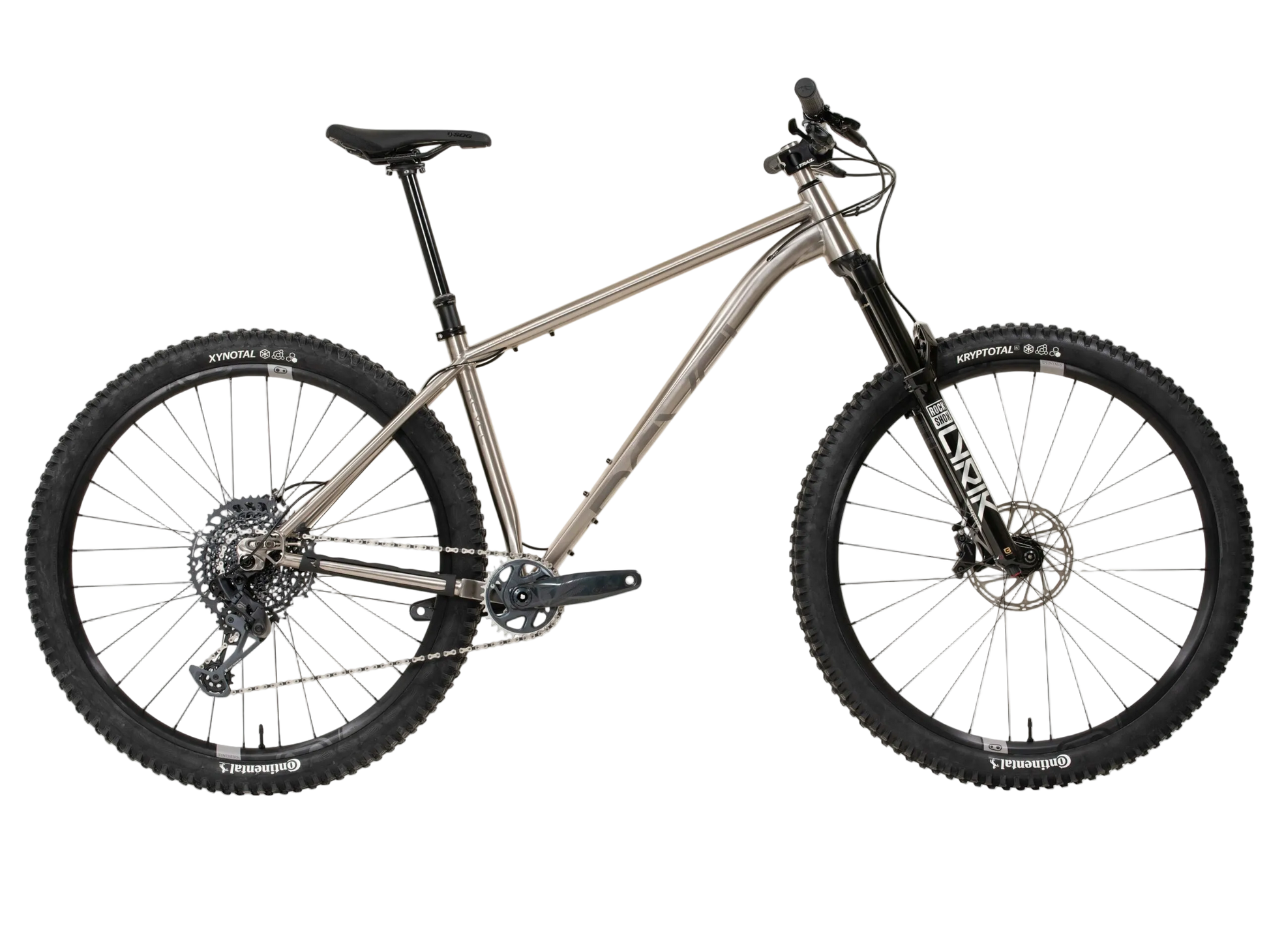

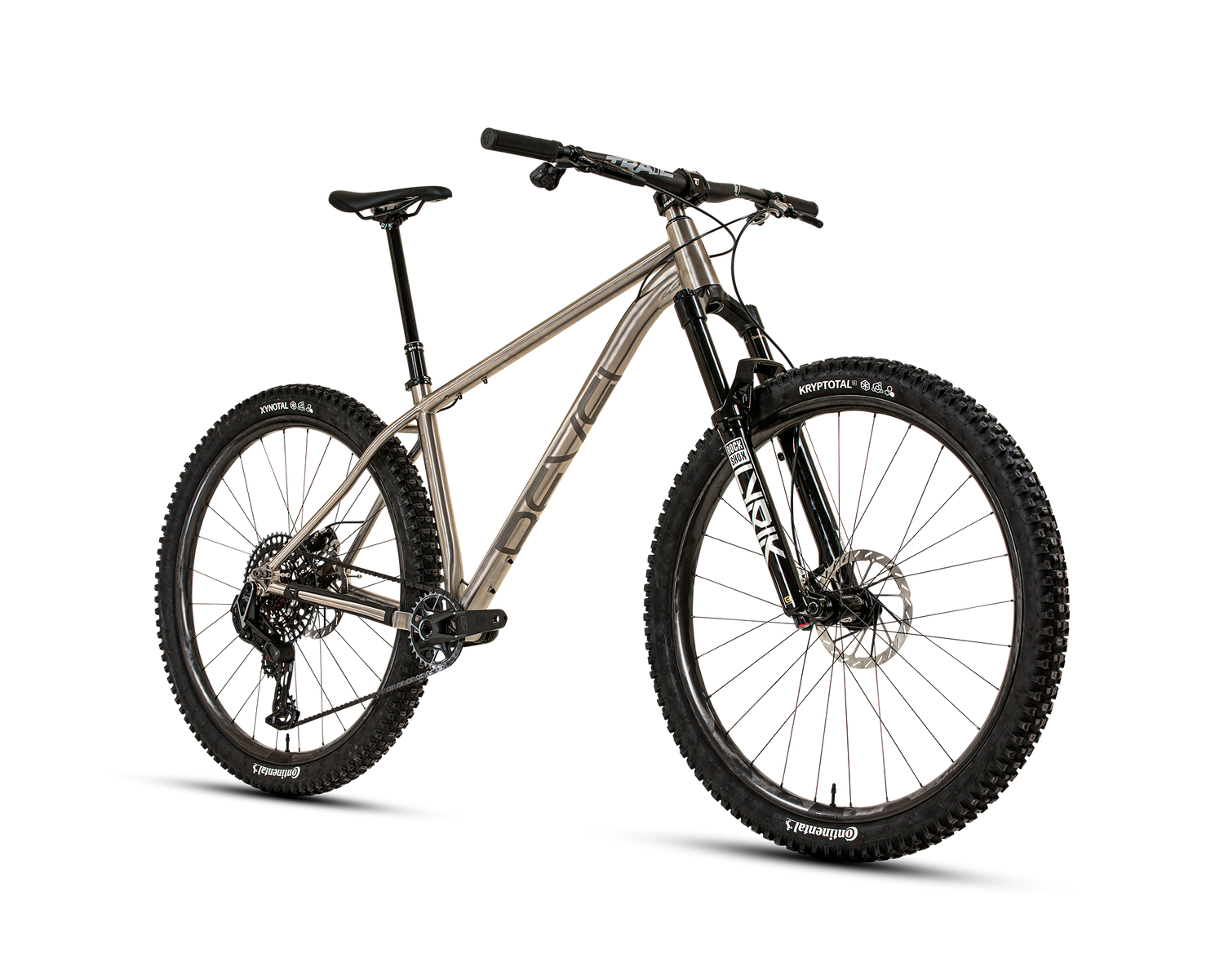

Rowdy titanium hardtail
140MM FRONT 29/29
Slack enough to handle the rough stuff and just steep enough to make pedaling a pleasure. The Tirade is incredibly balanced and a nod to our full suspension Rascal. The Tirade boasts a 140mm fork, progressive geometry, and adjustable chainstay lengths to adapt to your every whim.
The RAdavist says ABOUT the tirade:
"IT'S PERFECT"
FORK TRAVEL
140MM
FRAME
COLD-FORMED TITANIUM
CLEAN
INTERNAL CABLE ROUTING
FRAME MOUNTS
BOTTLE AND STORAGE
29X2.6
Tire Clearance
12X148
ADJUSTABLE DROPOUTS
FULL LENGTH
SEAT POSTS
BSA
THREADED BOTTOM BRACKET
TI IS FLY
ULTIMATE PARTY HARDTAIL

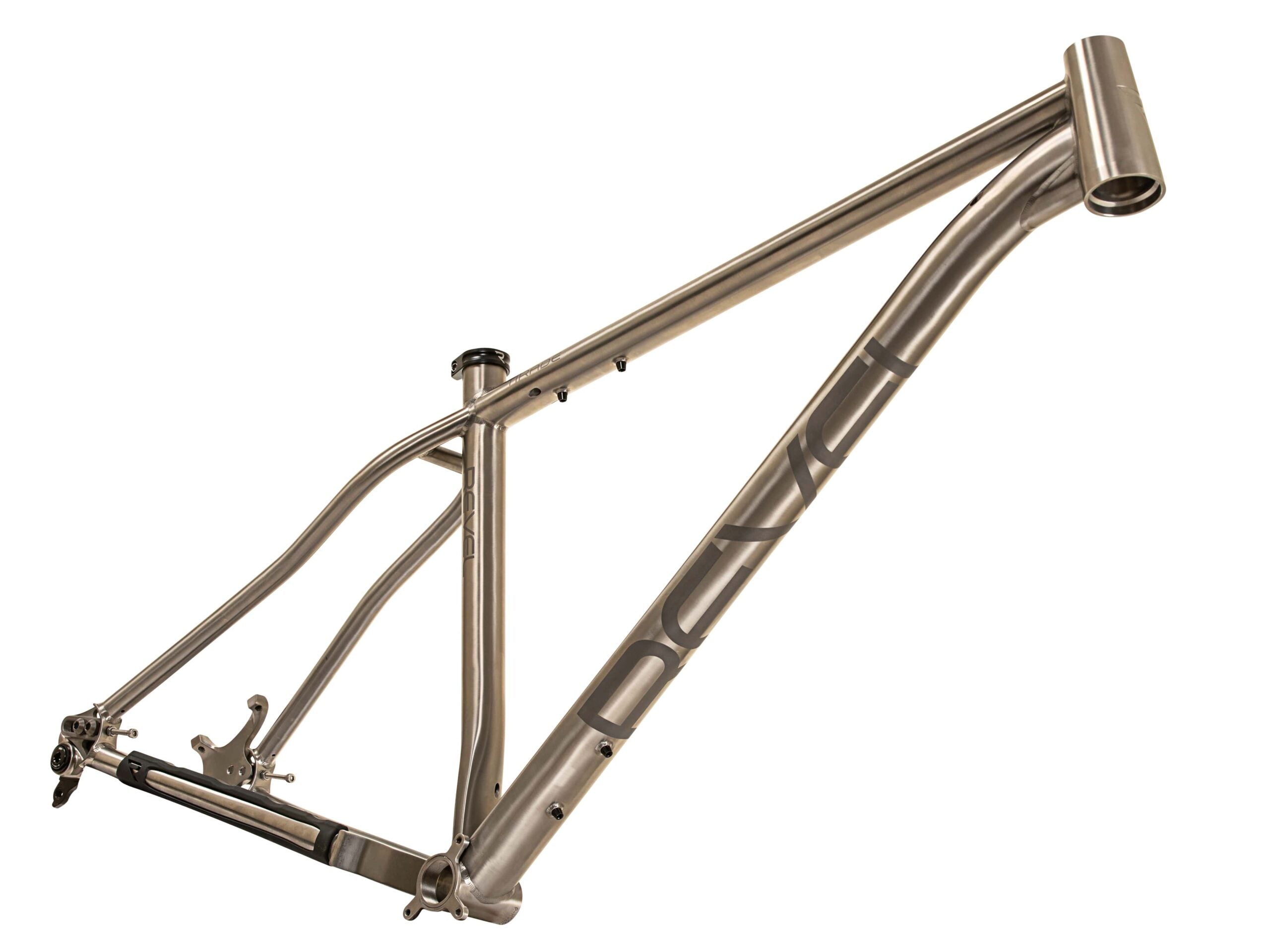

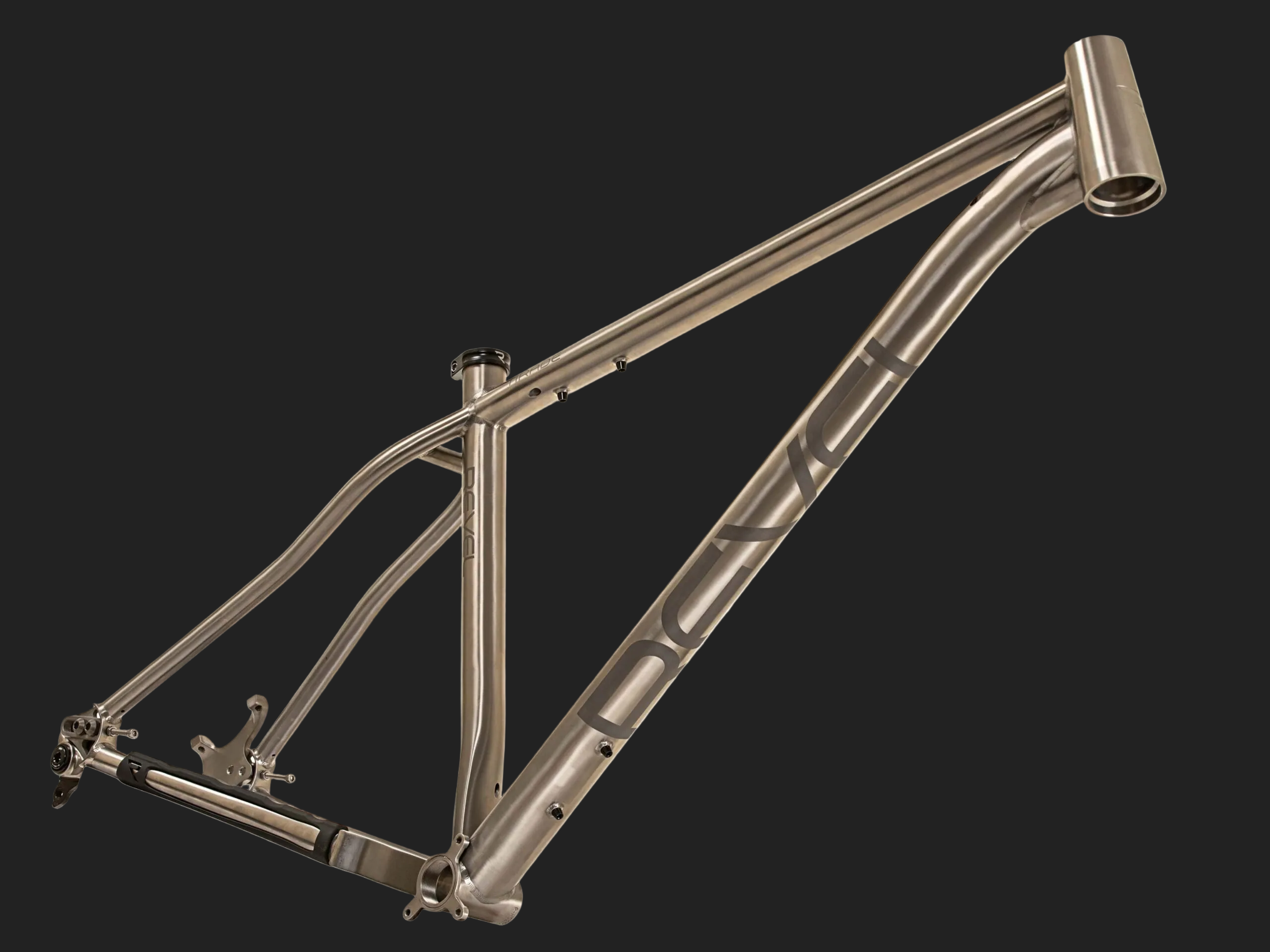

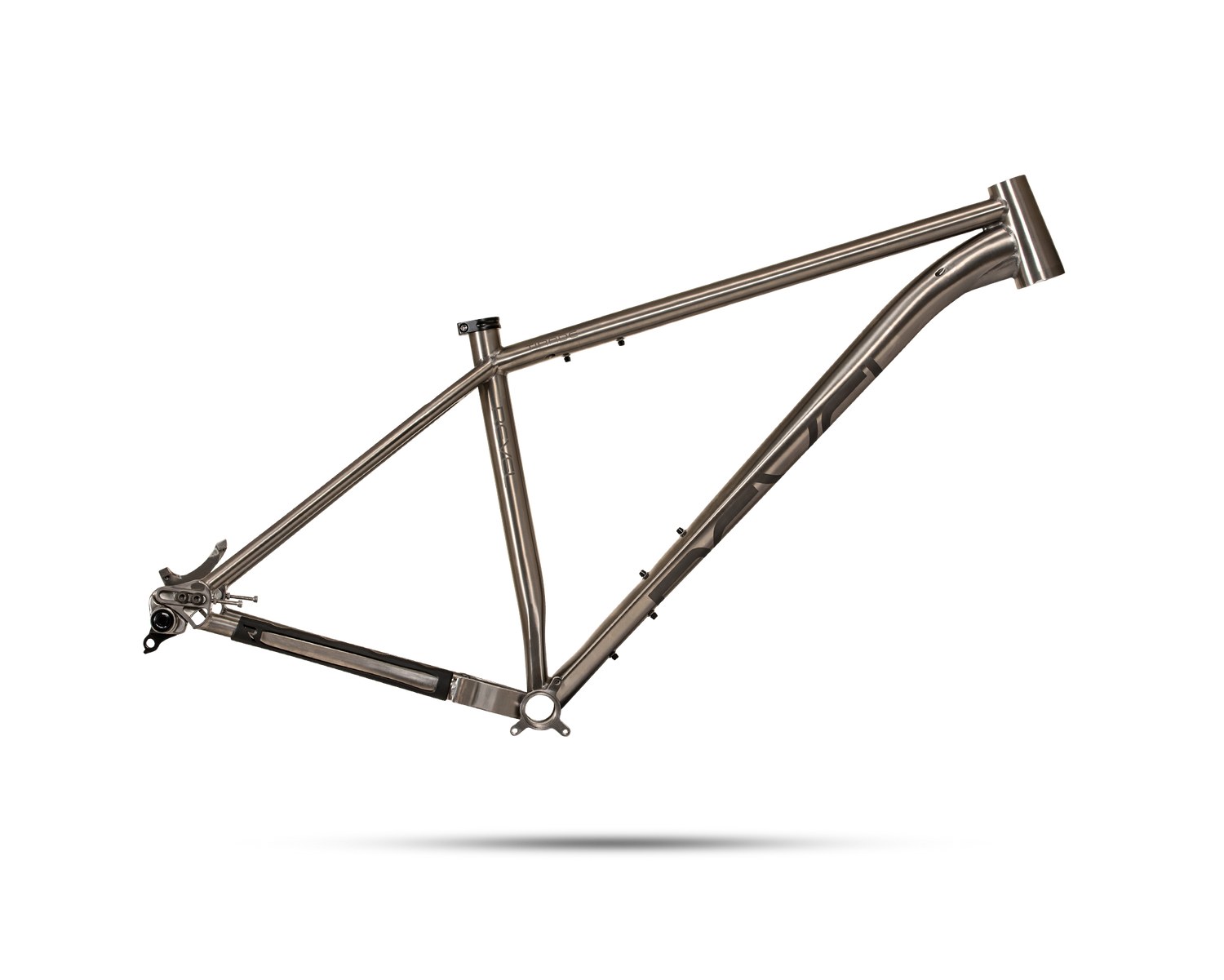

Crafted from cold-formed 3/2.5 titanium tubing, this frame is more than just eye candy, it’s a masterclass in strength and compliance. And with CNC machined headtube, bottom bracket shell, and dropouts, which make this a solid, ultra-durable, ultra-high end, and comfortable riding frame. Single speed or gears, it’s your call.

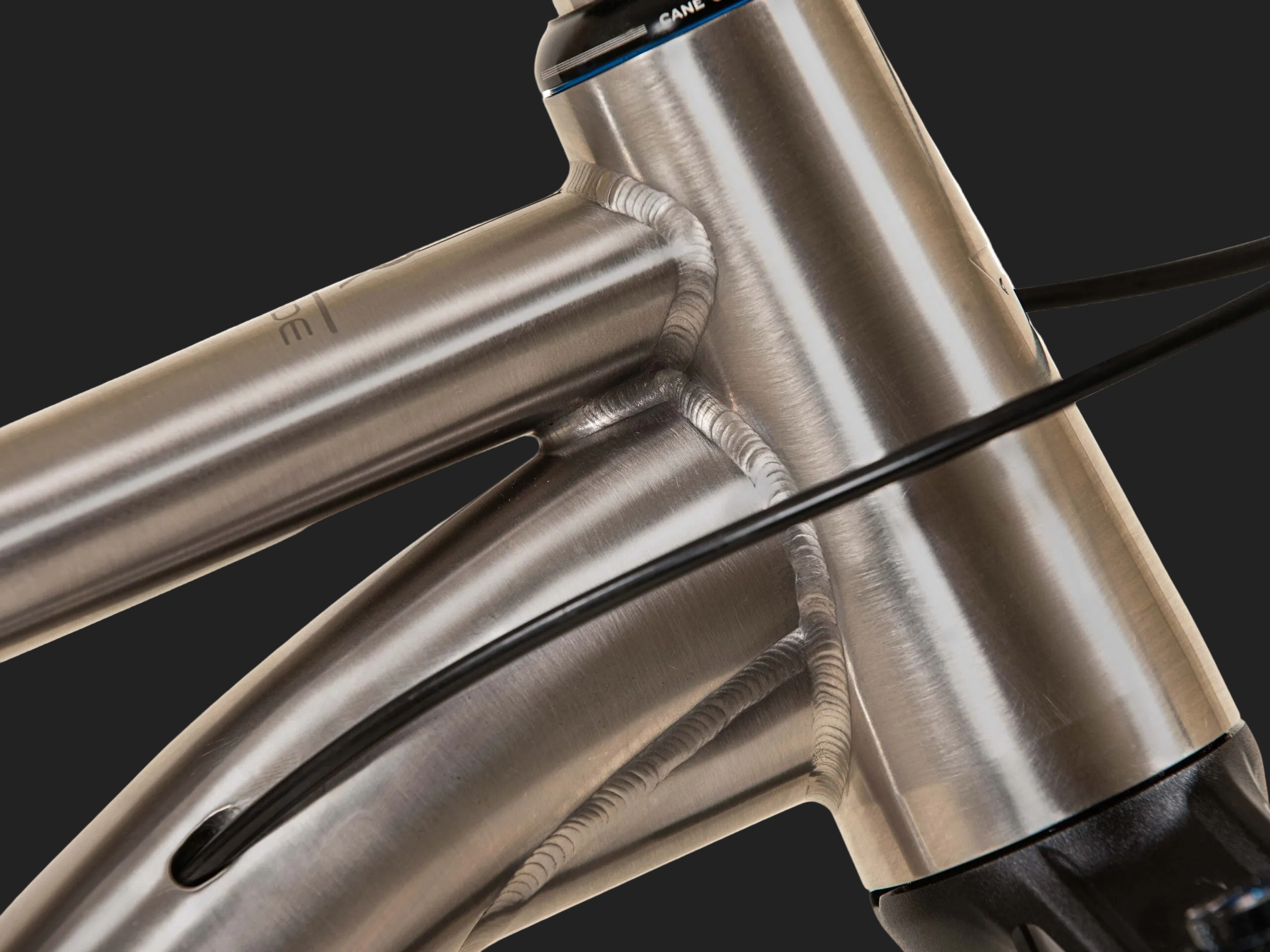

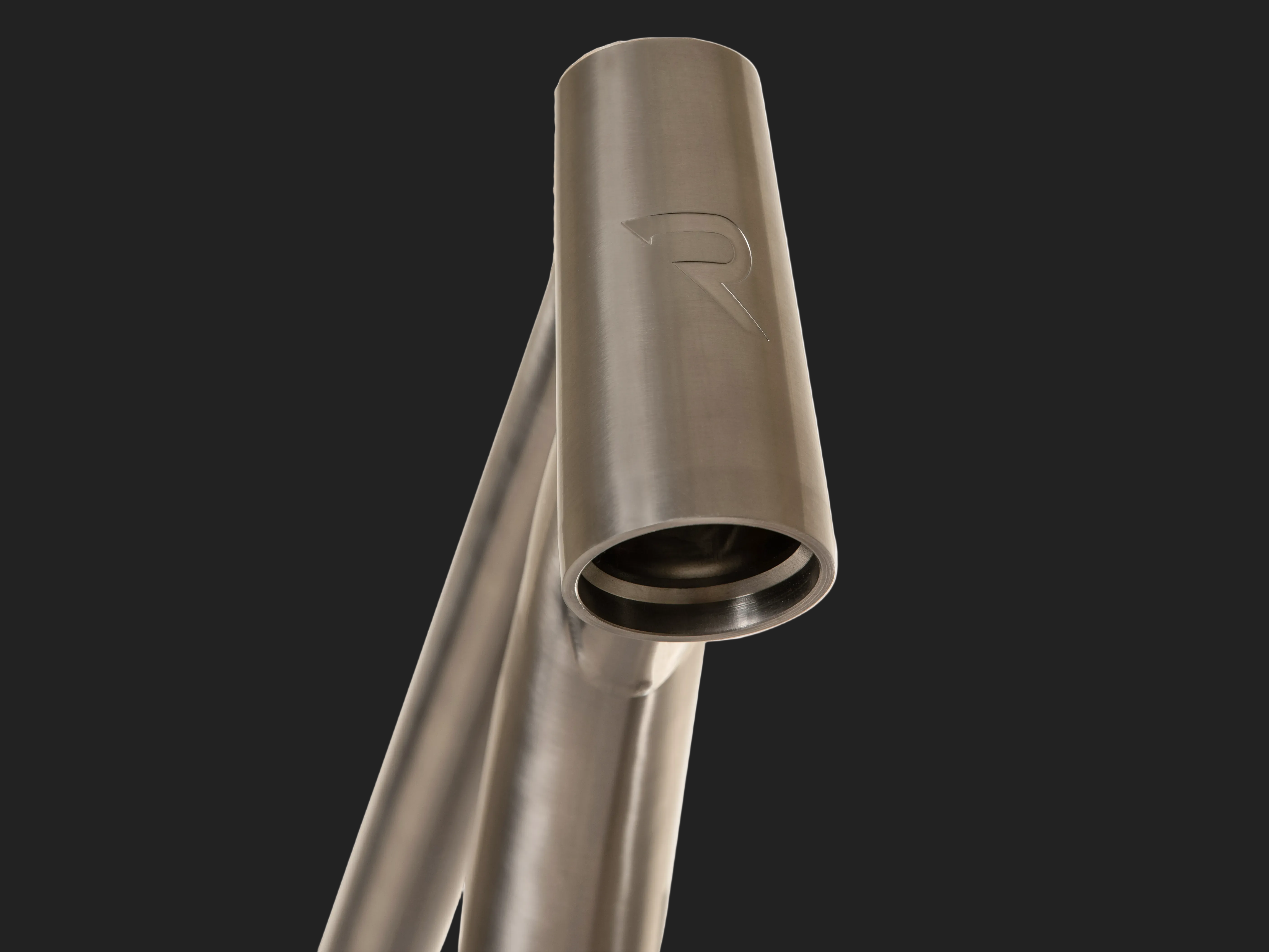

CNC Machined 6/4 Titanium
The headtube, bottom bracket shell, and dropouts require greater strength and are CNC machined from single pieces of 6/4 titanium.

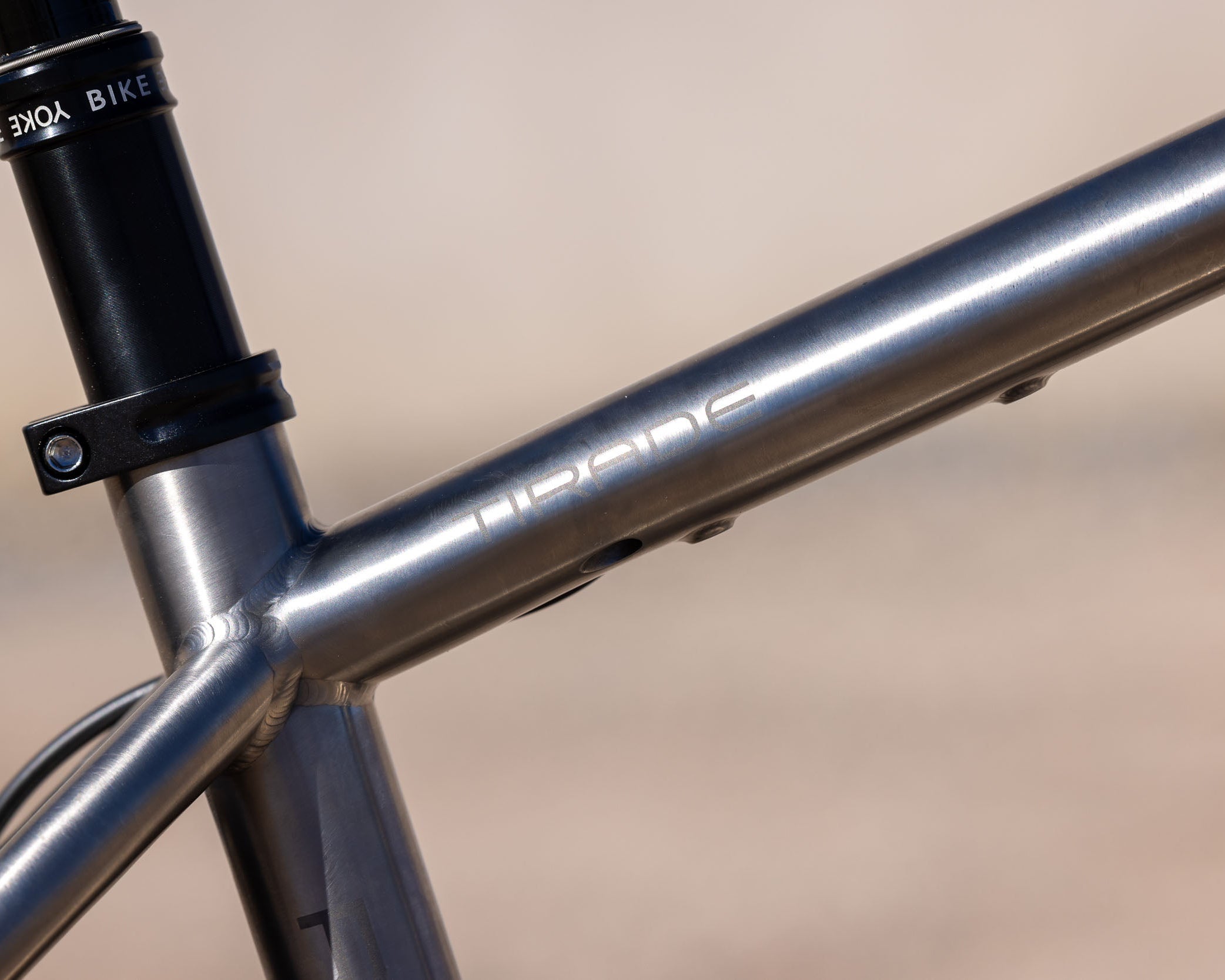

Cold-formed 3/2.5 Titanium Tubing
Our modern take on traditional titanium - these tube shapes optimize stiffness and compliance.
Internal Cable Routing
Clean, quiet, and simple.

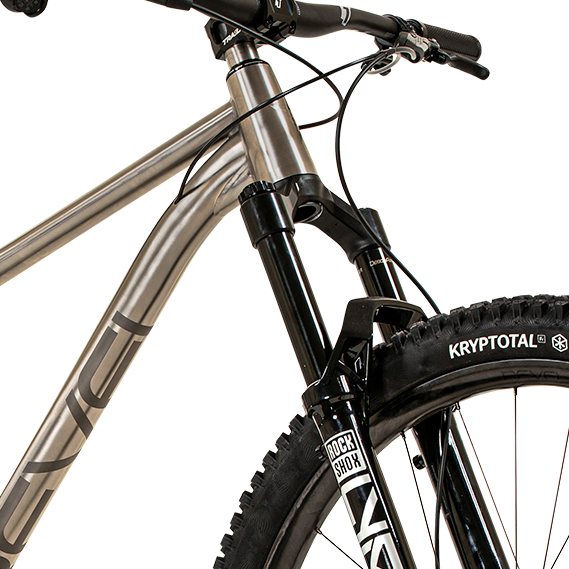

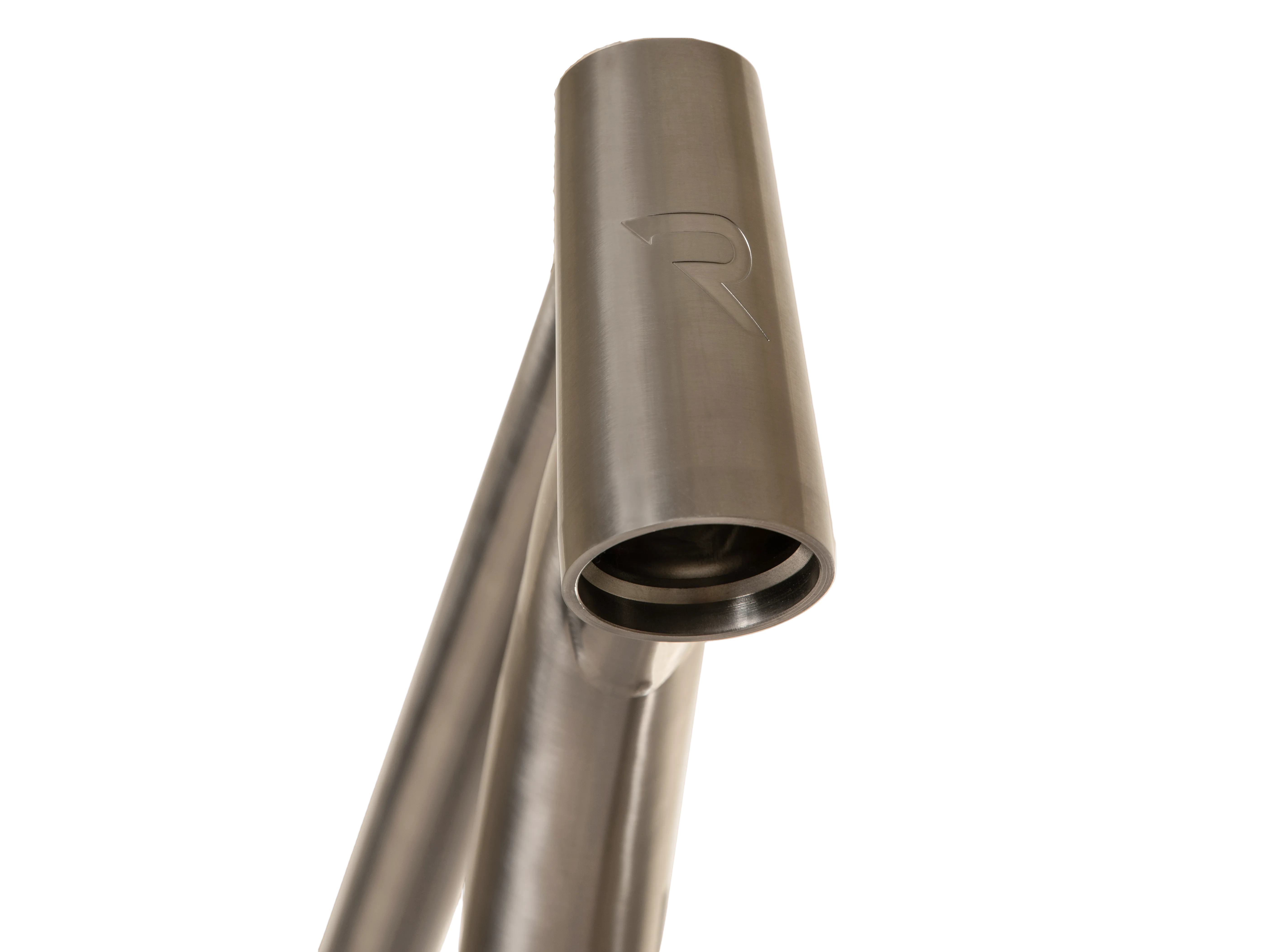

IS 42/52 Integrated Headset
IS 42/52 integrated headset for simple, easy maintenance with no need for fancy tools.

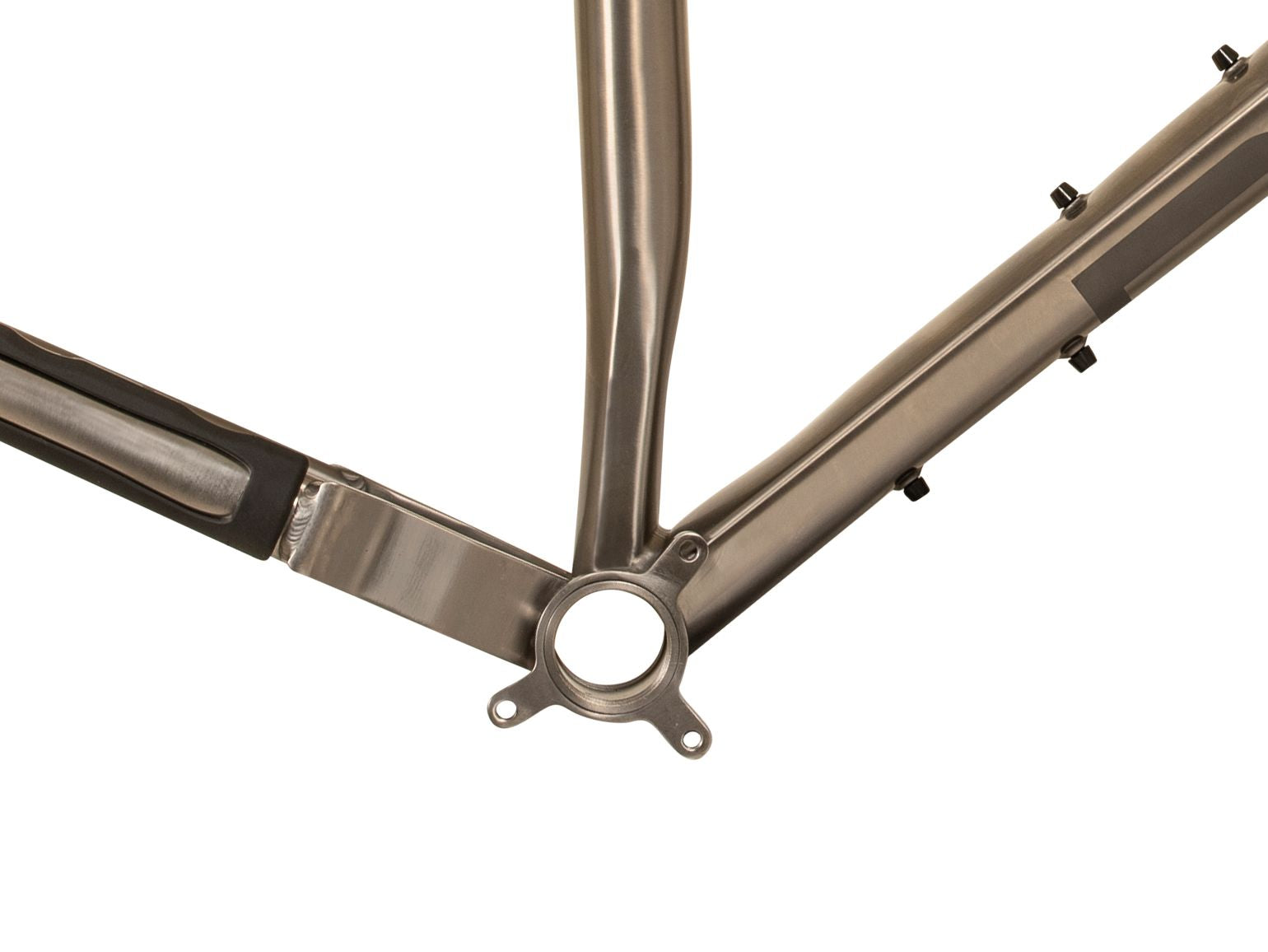

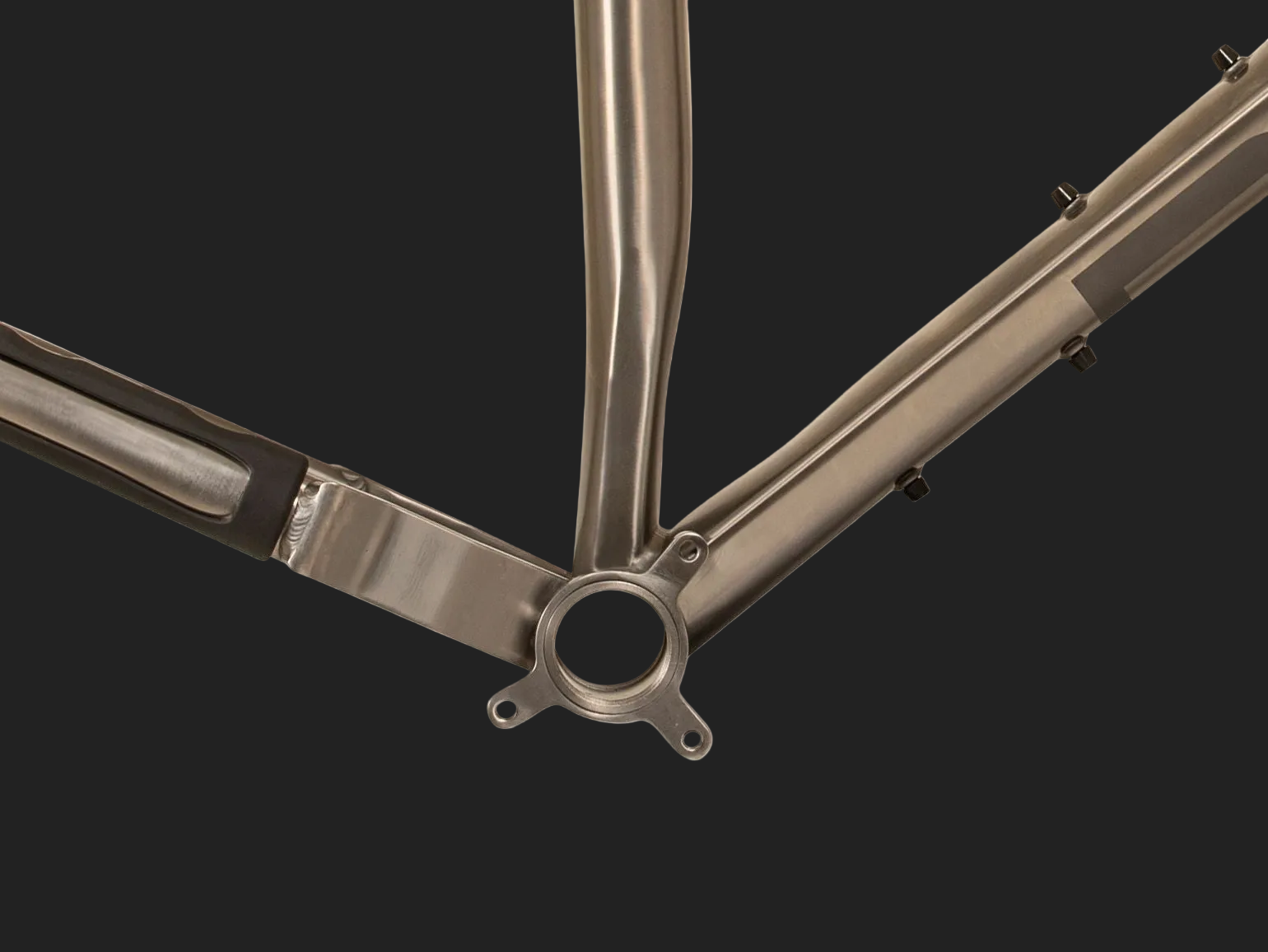

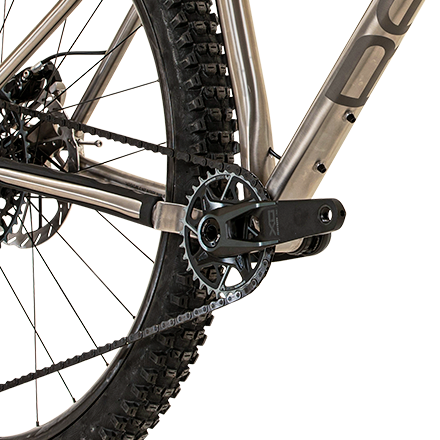

Threaded Bottom Bracket
Simple, easy, functional.

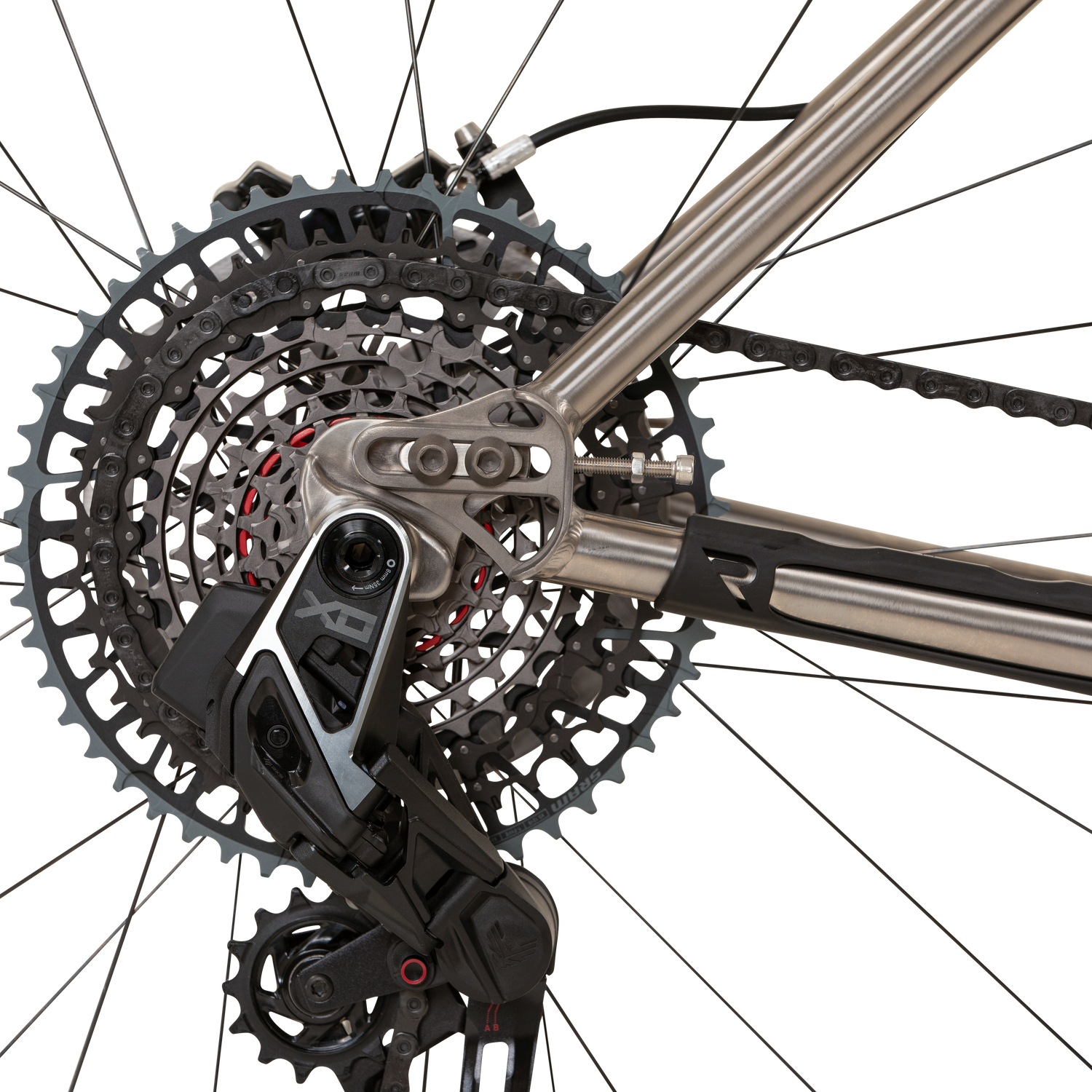

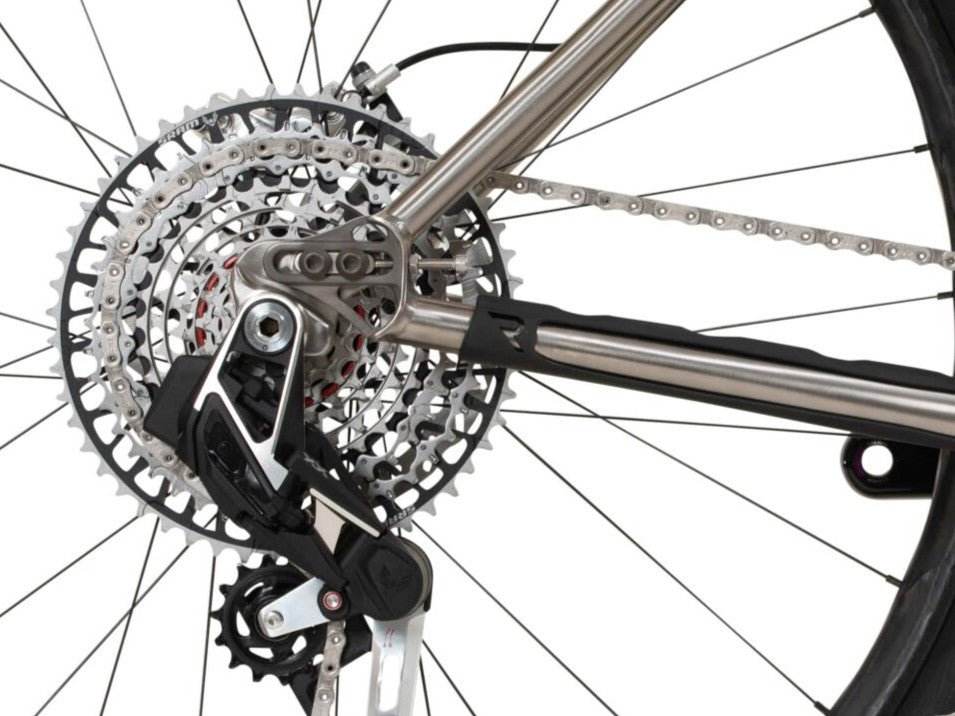

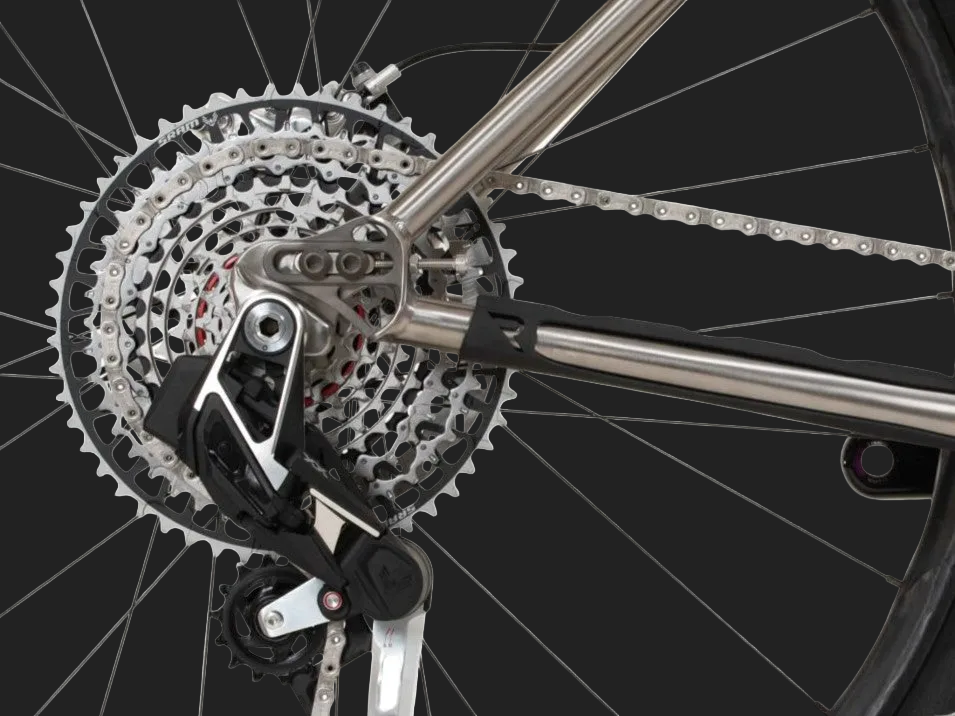

Sliding UDH Dropouts
Future proofed adjustability! Run any drivetrain, single speed or geared, and easily know your chainstay length.
BUILD KITS
|
Frame Only
$2,799 |
SRAM Eagle 90
$4,799 |
SRAM X0 Transmission
$7,299 |
SRAM XX Transmission
$10,199 | |
|---|---|---|---|---|
| Frame | Revel Tirade 29" Hardtail | Revel Tirade 29" Hardtail | Revel Tirade 29" Hardtail | Revel Tirade 29" Hardtail |
| Wheel Size | 29" | 29" | 29" | 29" |
| Headset | Cane Creek 40 Series | Cane Creek 40 Series | Cane Creek 40 Series | Wolf Tooth Premium |
| Seat Collar | Revel 34.9mmm Dia | Revel 34.9mmm Dia | Revel 34.9mmm Dia | Revel 34.9mmm Dia |
| Fork | RockShox Lyrik SEL+ 140mm | RockShox Lyrik Ultimate 140mm | RockShox Lyrik Ultimate 140mm | |
| Wheel Set | DT Swiss XM1700 Spline | DT Swiss XMC1501 Spline | Industry Nine Hydra2 | |
| Hubs | DT Swiss 350 XD 36t Ratchet | DT Swiss 240 XD Ratchet DEG 90 | Industry Nine Hydra 2 | |
| Tires | Continental Kryptotal-F Trail 29 x 2.4 Soft F Continental Xynotal Trail 29 x 2.4 Endurance R | Continental Kryptotal-F Trail 29 x 2.4 Soft F Continental Xynotal Trail 29 x 2.4 Endurance R | Maxxis DHF 29x2.5WT 3C MaxxTerra Front Maxxis DHR II 29x2.5WT 3C MaxxTerra Rear | |
| Handlebar | RaceFace Turbine 35 20mmx760mm | RaceFace Era 35 Carbon 20 x 780mm | OneUp Carbon 35x800 35mm Rise | |
| Stem | RaceFace Turbine R 35x50mm | RaceFace Turbine R 35x50mm | Revel CNC 35x40mm | |
| Seatpost | Crank Brothers Highline 7 SM: 125mm MD: 150mm LG: 170mm XL: 200mm | Bike Yoke 2.0 SM: 125mm MD: 160mm LG: 185mm XL: 213mm | RockShox Reverb AXS SM: 150mm MD: 200mm LG: 200mm XL: 225mm | |
| Dropper Lever | SRAM Dropper Lever | Wolf Tooth Dropper Lever | SRAM AXS Shifter Pod Left | |
| Saddle | SDG Bel-Air Lux-Alloy | SDG Bel-Air Lux-Alloy | SDG Bel-Air Lux-Alloy | |
| Brakes | SRAM Motive Silver | SRAM Motive Silver | SRAM Motive Ultimate | |
| Rotors | SRAM Centerline 6-Bolt 180mm F 160mm R | SRAM Centerline 6-Bolt 180mm F 160mm R | SRAM HS2 6-bolt 180mm | |
| Shifter | SRAM Eagle 90 | SRAM AXS Shifter Pod Ultimate | SRAM AXS Shifter Pod Right | |
| Rear Derailleur | SRAM Eagle 90 T-Type | SRAM X0 ET T-Type | SRAM XX Eagle AXS T-Type | |
| Chain | SRAM GX Eagle 116L T-Type | SRAM X0 116L T-Type | SRAM XX Eagle 116L T-Type | |
| Cassette | SRAM Eagle 90 XS1275 T-Type 10-52t | SRAM X0 XS1295 T-Type 10-52t | SRAM XX Eagle T-Type XG1297 10-52t | |
| Crankset | SRAM Eagle 90 T-Type 170mm 32t | SRAM X0 Eagle T-Type 170mm 32t | SRAM XX Eagle T-Type 170mm 32t | |
| Bottom Bracket | SRAM DUB BSA 73 MTB Wide | SRAM DUB BSA 73 MTB Wide | Wolf Tooth BSA 29mm DUB Raw Silver | |
| Grips | Trail 1 Farlow Gap Grip | Trail 1 Farlow Gap Grip | Trail 1 Farlow Gap Grip | |
| Disclaimer | ** Specifications subject to change without notice** | ** Specifications subject to change without notice** | ** Specifications subject to change without notice** |
GEOMETRY
SMALL |
MEDIUM |
LARGE |
XL |
XXL |
|
Effective Top Tube Length |
603mm |
627mm |
641mm |
671mm |
698mm |
Seat Tube Length |
370mm |
410mm |
440mm |
470mm |
510mm |
Seat Tube Angle |
74°/72° |
74.5°/72° |
74.5°/72° |
75°/73.5° |
75.5°/74° |
Chain Stay Length |
420-437mm |
420-437mm |
420-437mm |
420-437mm |
420-437mm |
Bottom Bracket Drop |
59mm |
59mm |
59mm |
59mm |
59mm |
Bottom Bracket Height |
317mm |
317mm |
317mm |
317mm |
317mm |
Head Tube Angle |
64.7° |
64.7° |
64.7° |
64.7° |
64.7° |
Wheel Base |
1163mm |
1190mm |
1215mm |
1240mm |
1280mm |
Head Tube Length |
95mm |
110mm |
122mm |
132mm |
149mm |
Axle to Crown |
551mm |
551mm |
551mm |
551mm |
551mm |
Fork Offset |
44mm |
44mm |
44mm |
44mm |
44mm |
Trail |
131mm |
131mm |
131mm |
131mm |
131mm |
Stack |
626mm |
640mm |
650mm |
660mm |
676mm |
Reach |
427mm |
446mm |
467mm |
492mm |
522mm |
Standover |
717mm |
720mm |
728mm |
742mm |
761mm |
FRAME SPECIFICATIONS
| Frame Material | Titanium |
| Wheel Size | 29" |
| Front Travel | 140mm min / 150mm max |
| Hub Spacing | Boost 148mm rear / 110mm front |
| Axles | 177mm x M12 x P1.0 |
| Seatpost Diameter | 31.6mm, 34.9mm Seat Clamp |
| Max Seatpost Insertion Depth | SM 230mm, MD 270mm, LG 300mm, XL 330mm, XXL 370mm |

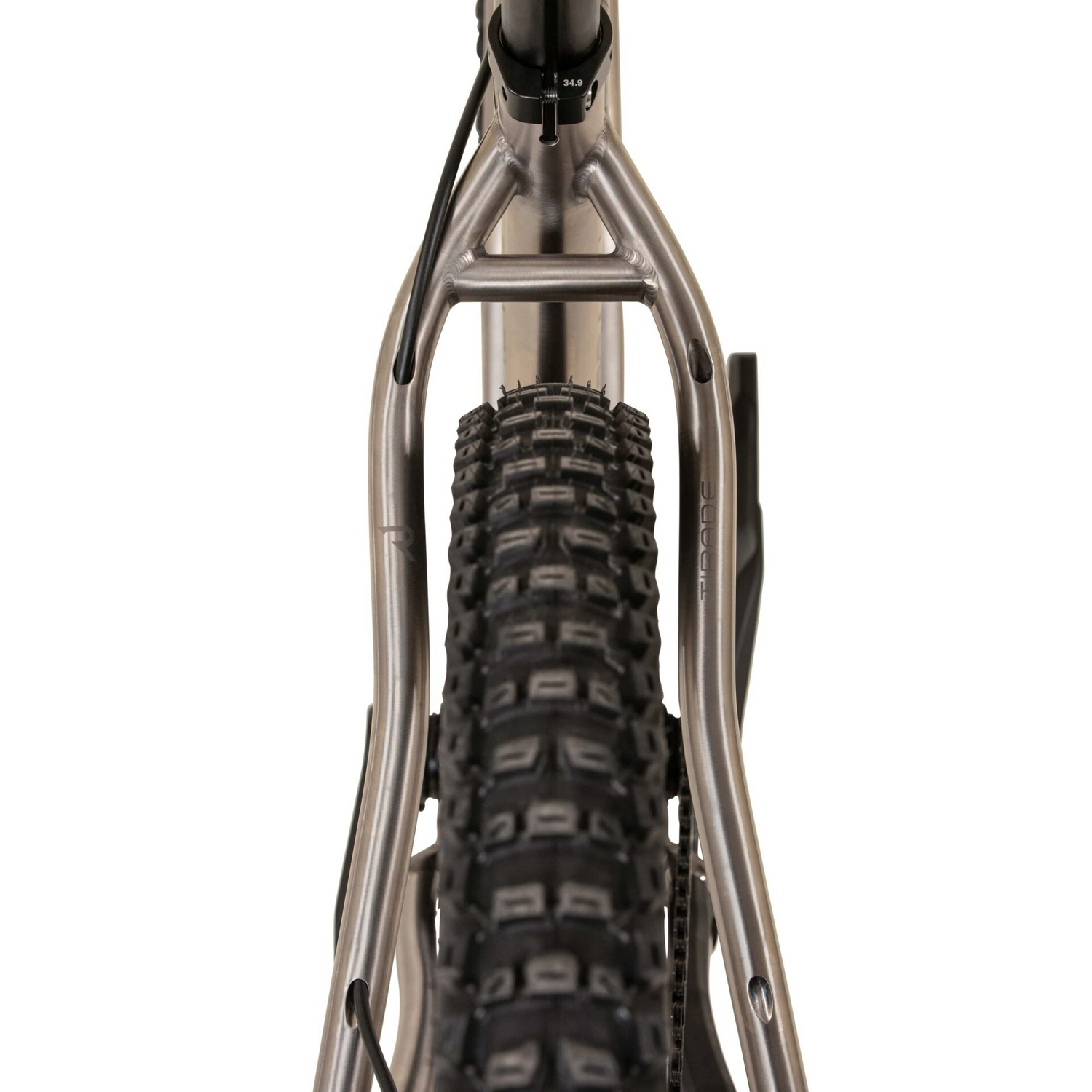

| Rear Tire Clearance | 29 x 2.6" max |
| Bottom Bracket | Threaded 73mm BSA Standard |
| Max Chainring | 36T Max, 55mm Chainline |
| Headset | IS42 Upper / IS52 Lower |
| Bottle Bosses | 3 sets total |
| Size | S / M / L / XL / XXL |
FAQ
REVEL MAKES TITANIUM BIKES?!
We do now! Well, in a way, we always have… our sister company, Why Cycles, has been manufacturing the most advanced titanium bikes in the world since 2016. We're retiring the Why Cycles brand, so now you can find the most advanced carbon and titanium bikes on the market under one name - Revel Bikes.
WHAT IS THE TIRADE DESIGNED FOR?
The Tirade was inspired from our most popular full suspension bike, the Rascal. This bike is built for those who want the capability of a longer travel bike, but the simple beauty of titanium hardtails. This bike can ride anything you put in front of it, with modern features to make it the most comfortable hardtail available.
UDH COMPATIBLE!? WHAT DOES THAT MEAN?
We've updated all Revel Ti bikes with SRAM UDH (Universal Derailleur Hanger), so replacement hangers are easier to find and your bike's drivetrain is more future-proof against manufacturer updates down the line.
IS THE TIRADE SINGLE SPEED COMPATIBLE?
Yes, the Tirade comes with our state of the art sliding dropout design ranging from 420-437.
DO YOU OFFER A SINGLE SPEED BUILD OPTION?
No, but we offer a frame-only option for you to build up in any way you please.
CAN I RUN A BASHGUARD ON MY TIRADE?
Yes! This is our first ever titanium bike with the ISCG 05 Tabs. Any bashguards that use this standard will work with your new bike.
WHAT IS THE MAX FORK LENGTH FOR THE TIRADE?
We have completed testing for +/- 10mm for all our models, so 150mm is the maximum travel.
WHAT IS THE MAX TIRE SIZE FOR THE TIRADE?
29" x 2.6" for desired tire clearance.
WHAT IS THE MAX CHAINRING?
Up to 36t round, or 34t oval.
WHAT IS THE MAX CHAINLINE?
Designed around a 55mm chainline for best use with SRAM Transmission drivetrains.
WHAT IS THE MAX ROTOR SIZE?
Designed around a 203mm max rotor size.
CAN I RUN OTHER FORKS ON THE TIRADE?
Yes, just get it as close to the desired 551mm Axle to Crown.
WHAT IS THE TORQUE FOR THE TI SLIDING DROPOUT BOLTS?
15-18Nm for the dropout bolts, 3-4Nm for the tensioner bolt.
WHAT IS THE SPECIFICATION OF THE LONGITUDINAL TENSIONER BOLT?
M5 x 0.8 x 35mm Stainless steel cap screw.
WHAT IS THE BEST WAY TO POLISH MY TITANIUM FRAME?
We recommend using some rubbing alcohol and a Scotch Brite pad and scrubbing gently in a "shoe-shine" motion (one direction or back and forth, not circular), then wiping down and finishing with a light coat of furniture polish like Pledge. This should work for both oxidation and light scratches. The graphics are sand-blasted into the frame, so you won't hurt them if you use a soft touch.

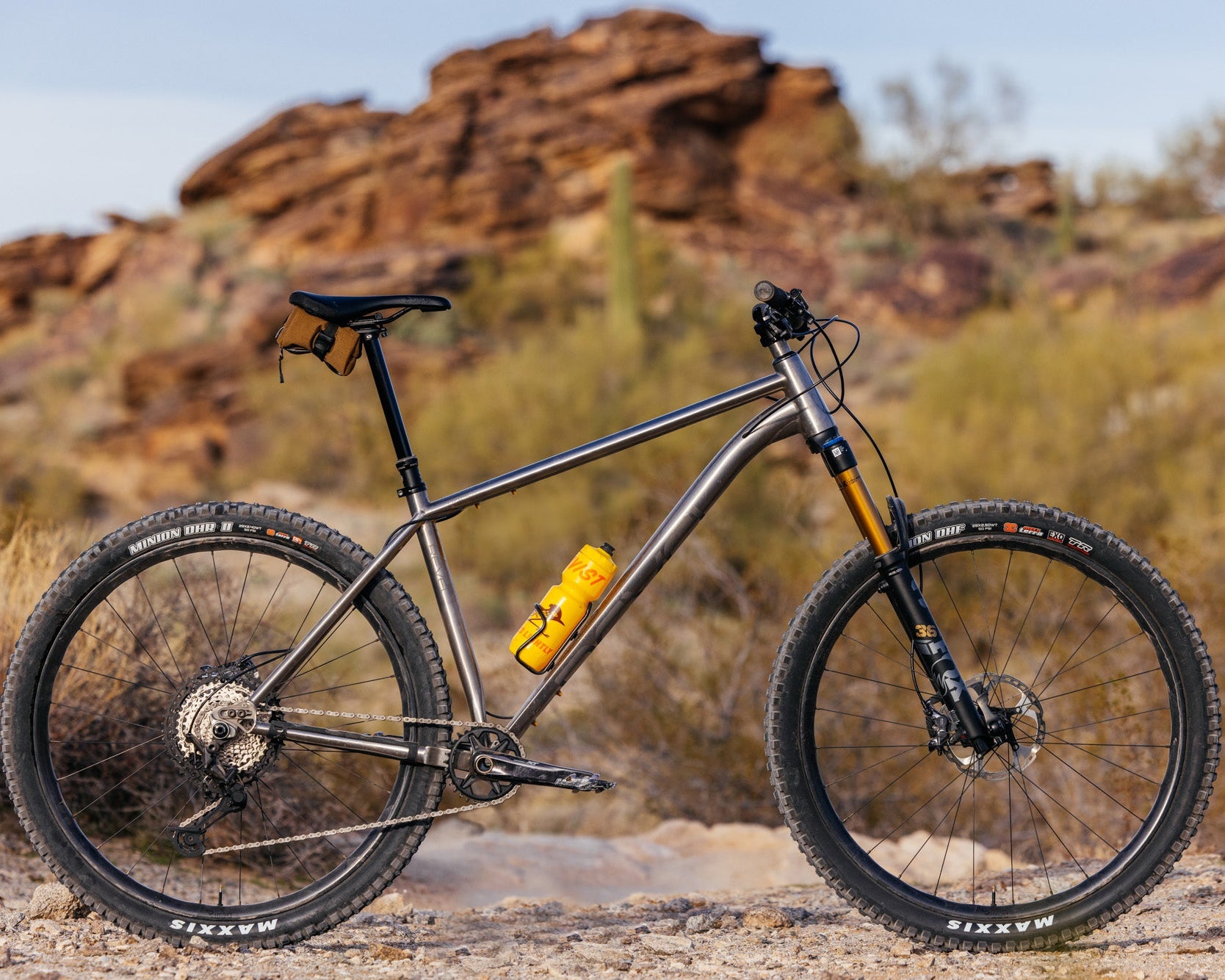

Radavist Tirade Review
I feel like I rarely say this but I have zero qualms about this bike. The Revel Tirade is an example of a bike that has evolved due to artificial selection; it’s a cross-pollinated genetic example of industrial perfection, sampling Revel’s all-mountain geometries and Why Cycles’ materiality and obsessive detailing.
Bikepacking Tirade Review
It takes a certain amount of experience and bike-handling skills to get the most out of bikes in this genre, but in reality, to say they don’t make sense for bikepacking or big long mixed-surface rides would be a massive miss—even if the Tirade’s sagged head tube angle is closer to 66.2°. If all-mountain or even enduro-esque riding are up your alley, a slack hardtail mountain bike gives you a fighting chance of bikepacking in that type of terrain. Pair that with a well-designed titanium frame optimized for downhill efficiency and comfort, and the Revel Tirade starts looking surprisingly versatile.
