Revel Bikes

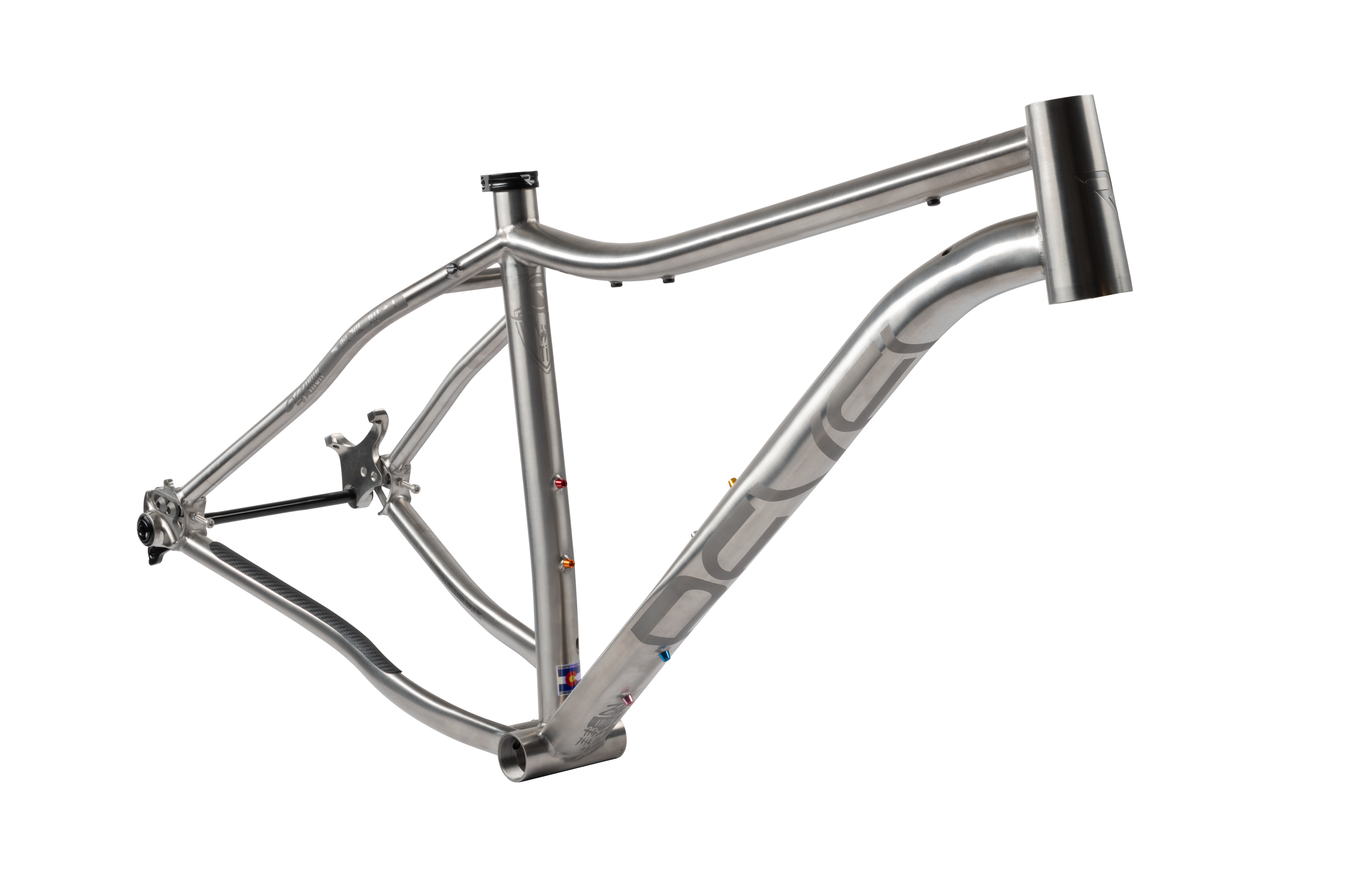

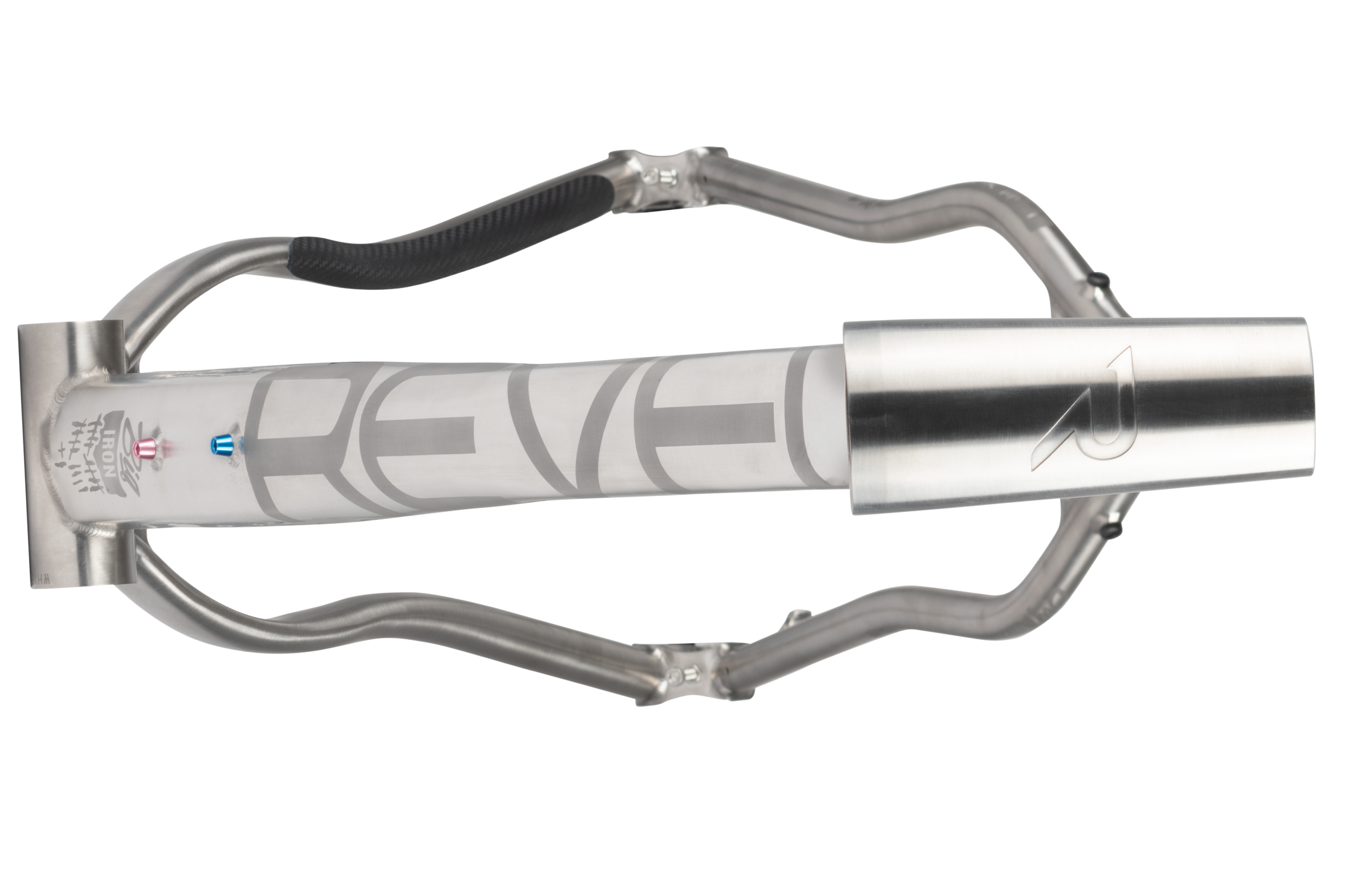

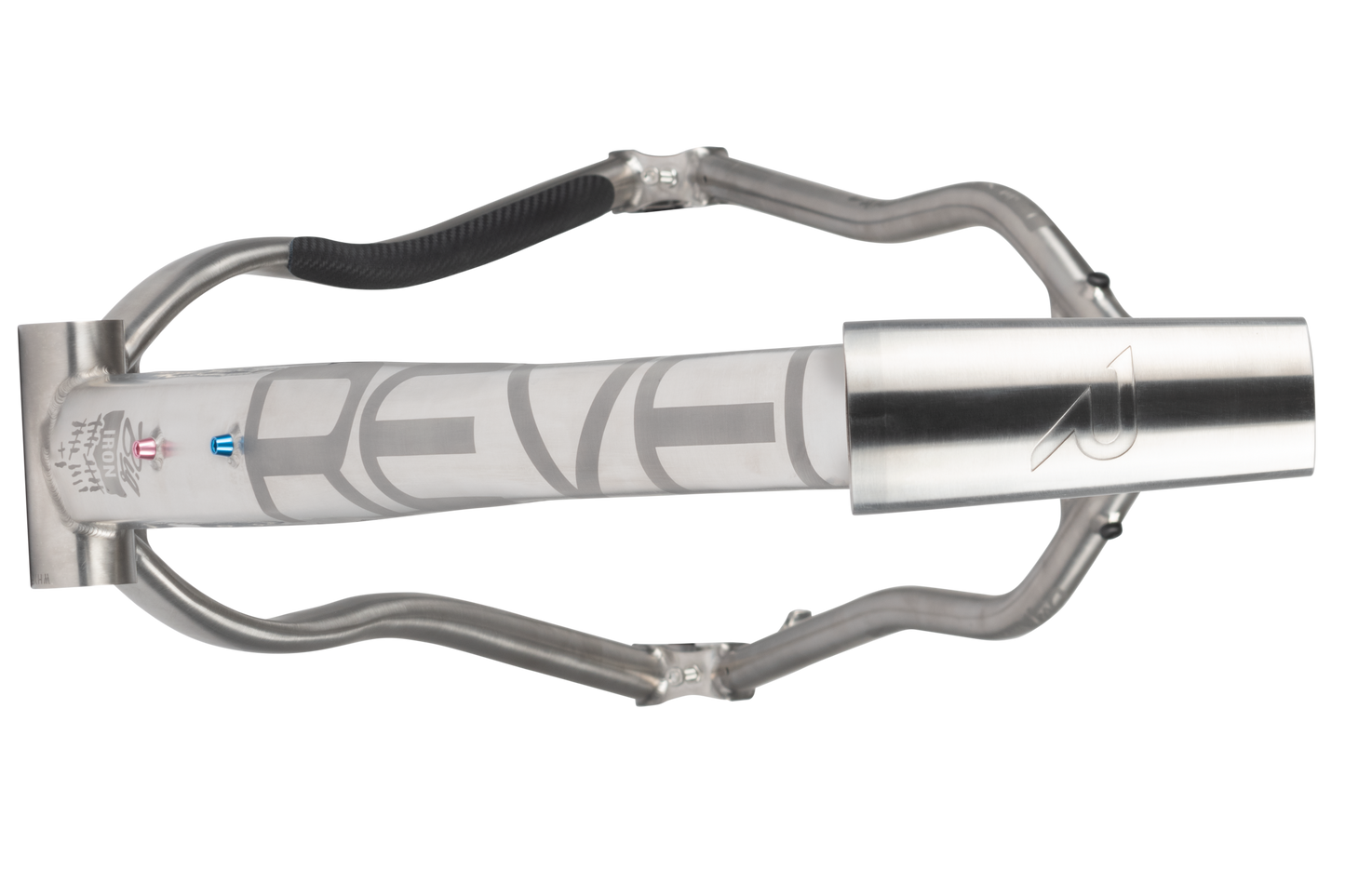

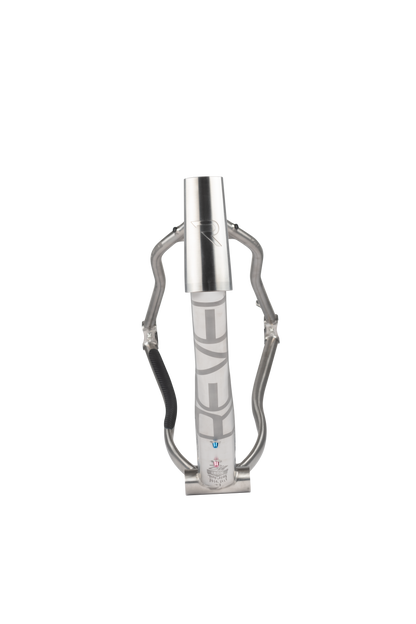

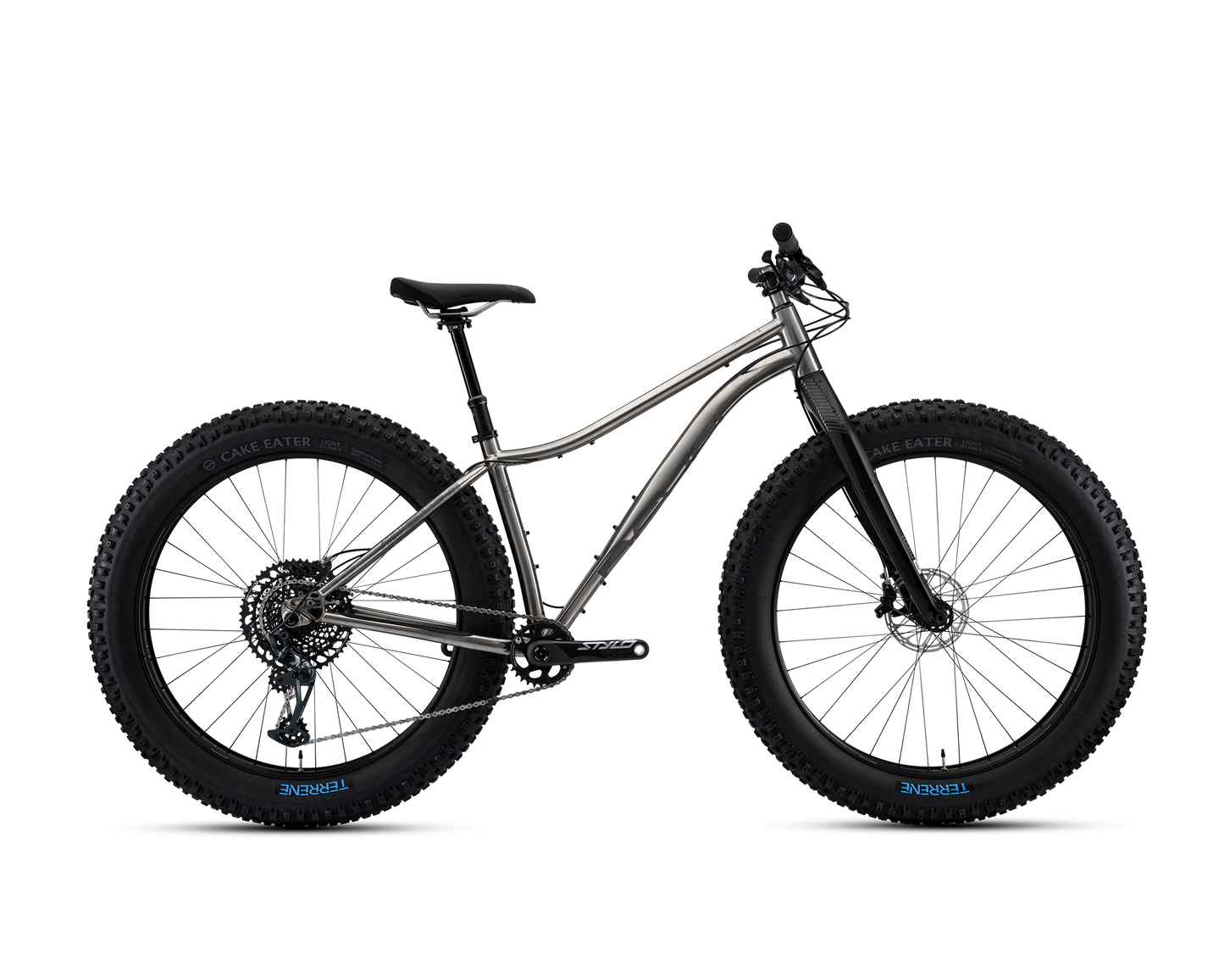

Big Iron Frame Only
Couldn't load pickup availability
Key Attributes
Key Attributes
KEY COMPONENTS:
HEADSET:
Cane Creek 40-Series
SEAT COLLAR:
Revel 34.9mm Seat Clamp
AXLE:
Revel Bolt on Thru Axle
*Want to build a custom Big Iron? Give us a call!! We'd be happy to curate a build.
Shipping and returns
Shipping and returns
Shipping and order processing times may fluctuate depending on order demand and the global shipping environment. Revel will notify the customer of our best estimated shipping lead time, however, these times are subject to change due to part availability and supply chain constraints. Complete bikes are fully assembled, test ridden, and then disassembled before they are carefully packed into our shipping cartons.
This process requires great attention to detail to ensure the best ride quality of our bikes right out of the box and we appreciate your patience with build timeframes.
Warranty
Warranty
Every Revel bicycle frame is covered by a limited warranty to the original owner and a lifetime crash replacement policy. Here’s the legal language:
The warranty covers defects in materials and craftsmanship, including manufacturing defects for the lifetime of the product. The warranty does not cover any damage or defects caused by abuse, accidents, or other incidents that are not the result of normal use of the product.
- 30 Days No-Questions-Asked Return Policy

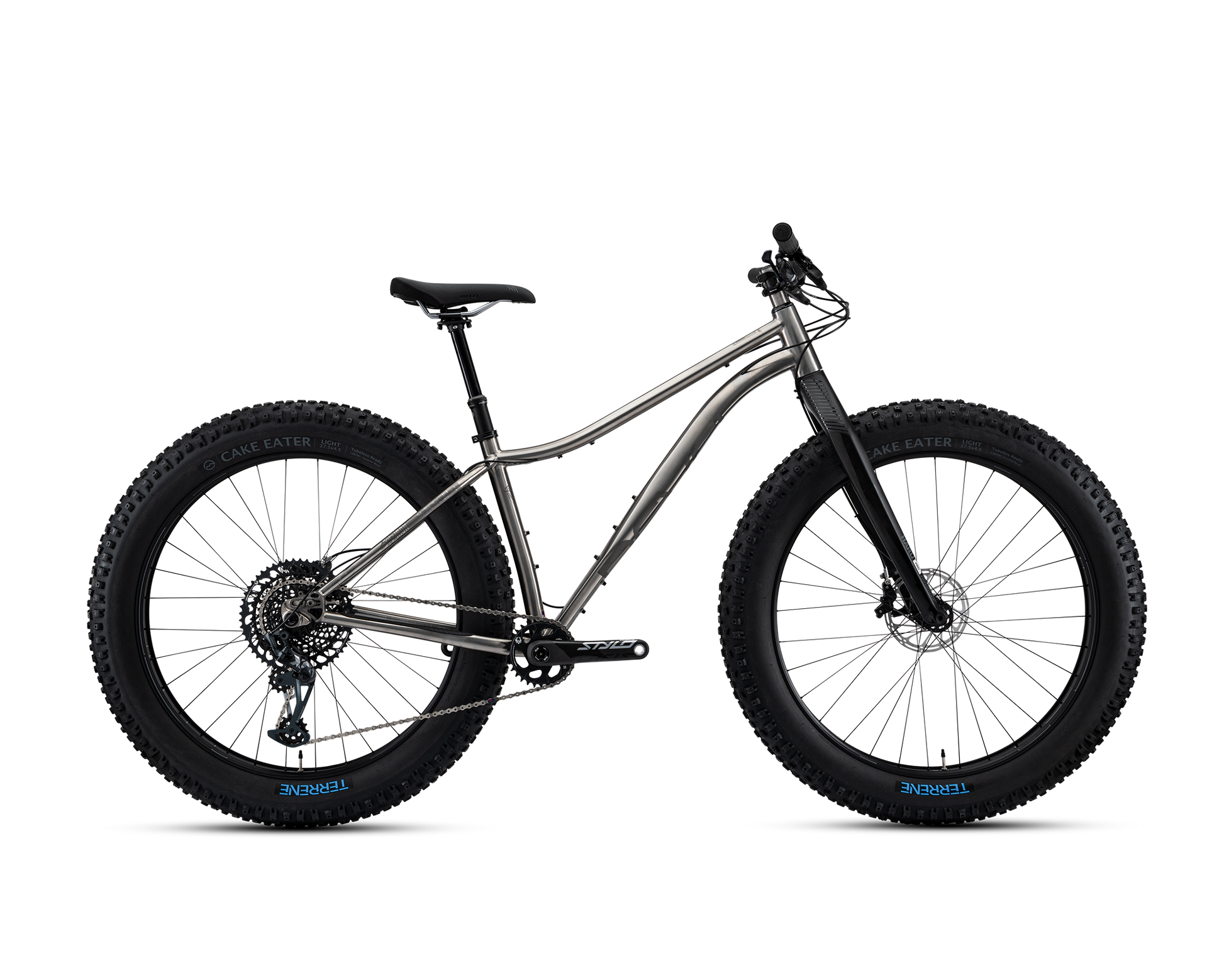

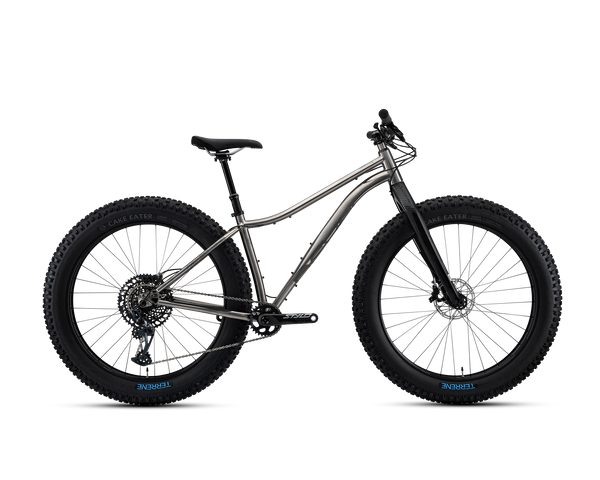

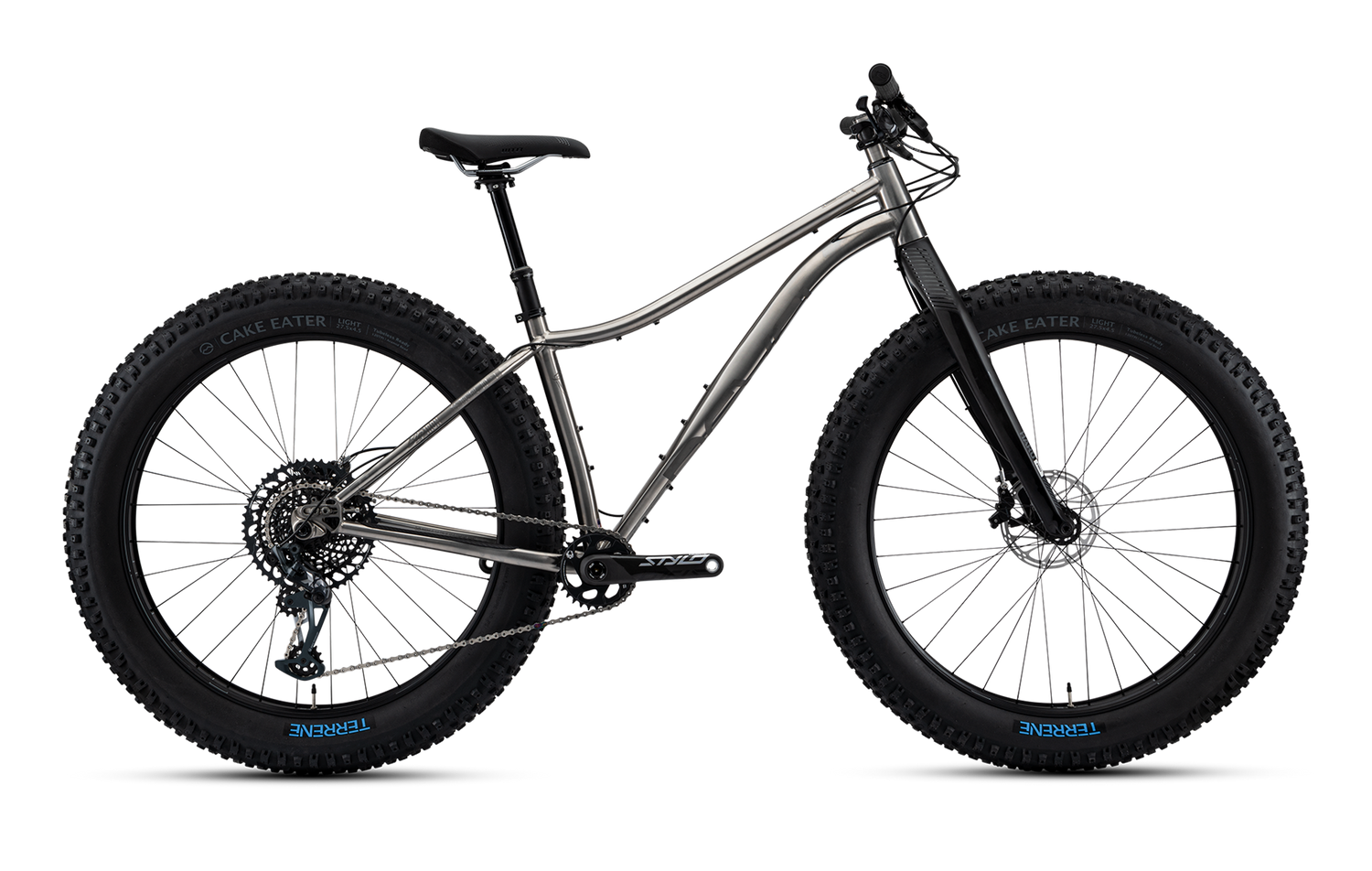

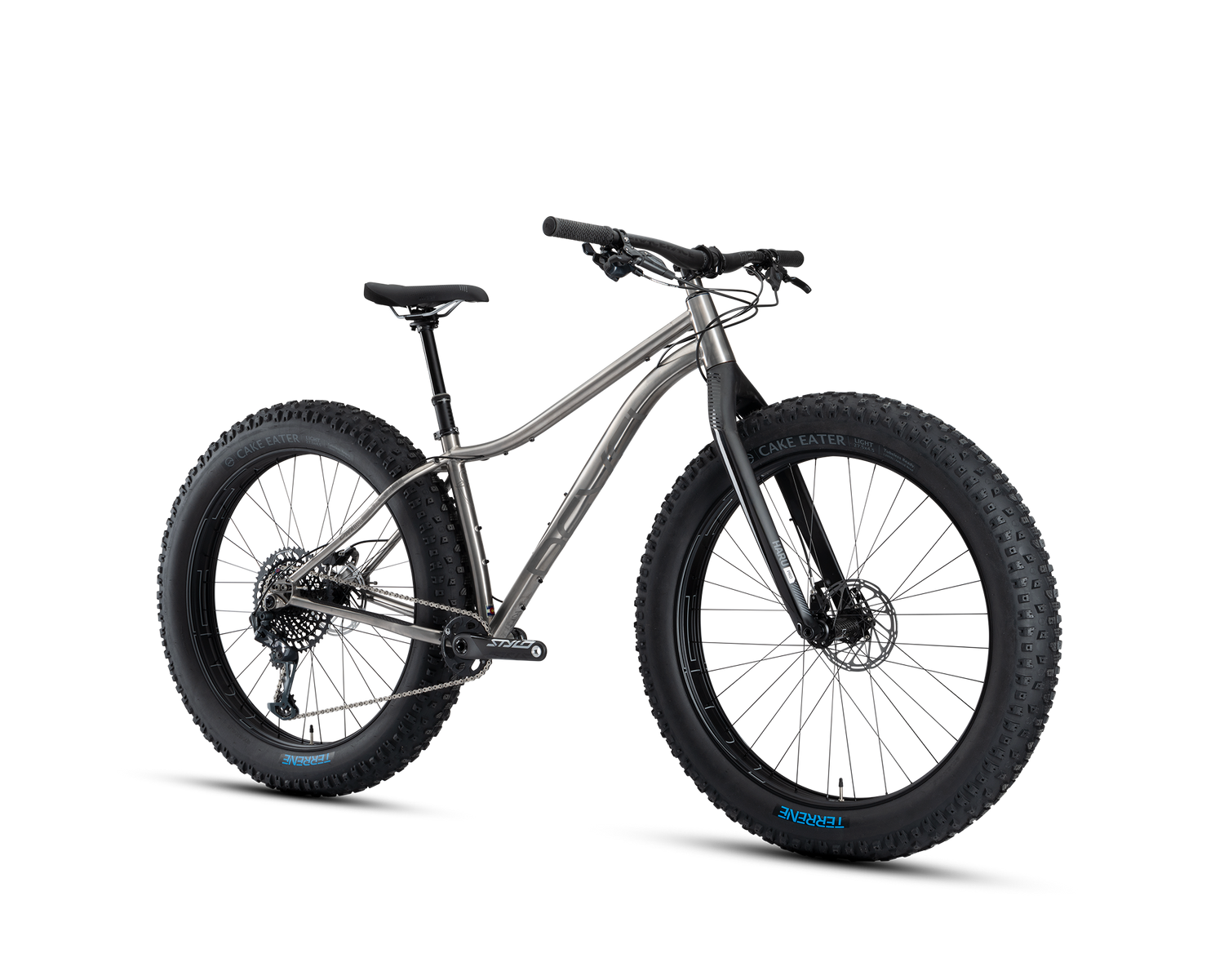

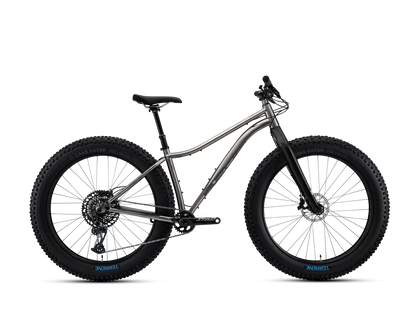

TITANIUM FAT BIKE
27.5" X 4.8"
Grab your Big Iron, throw on some Marty Robbins, and hit the snow or sand with this surprisingly fast and lightweight monster. Progressive geometry and UDH ready, this modern titanium steed will be your trusty companion on any snow or soft-surface endeavor. I It even won Outside Magazine’s best fat bike of the year in 2021, and we made it even better since then.
A Modern Ti Fatty built from our
ROOTS IN ALASKA
FAT BIKE FORK
BUILT AROUND STANDARD

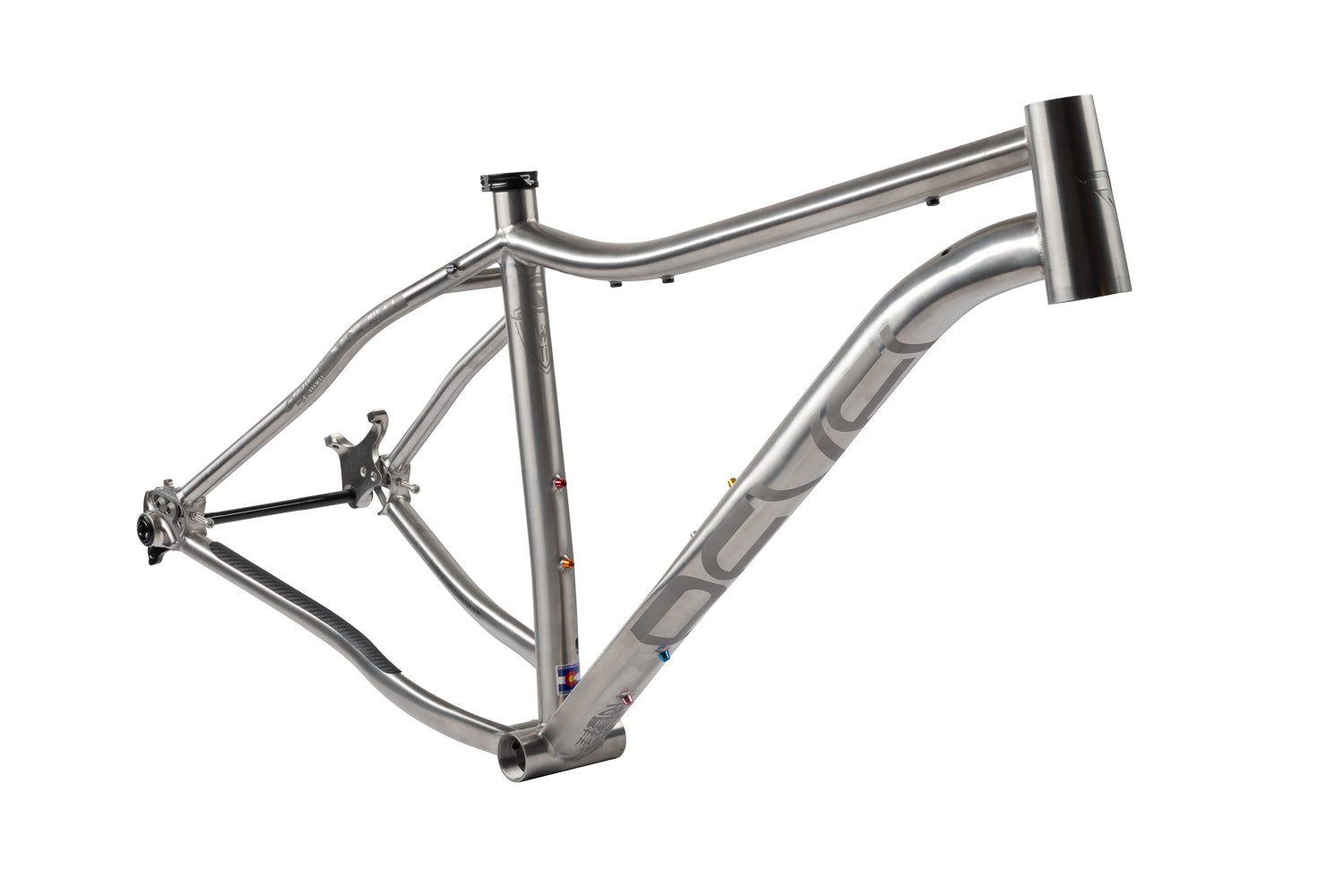

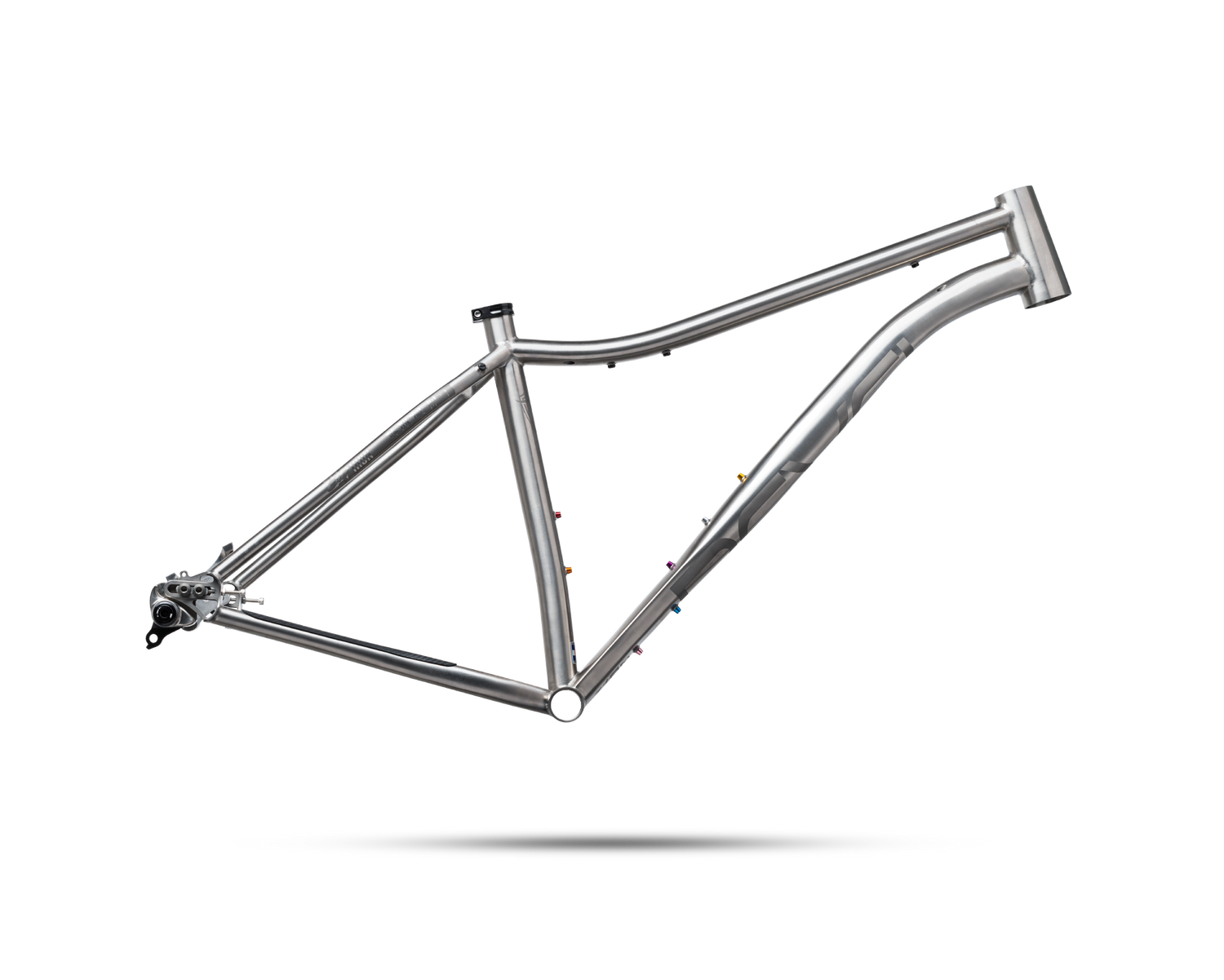

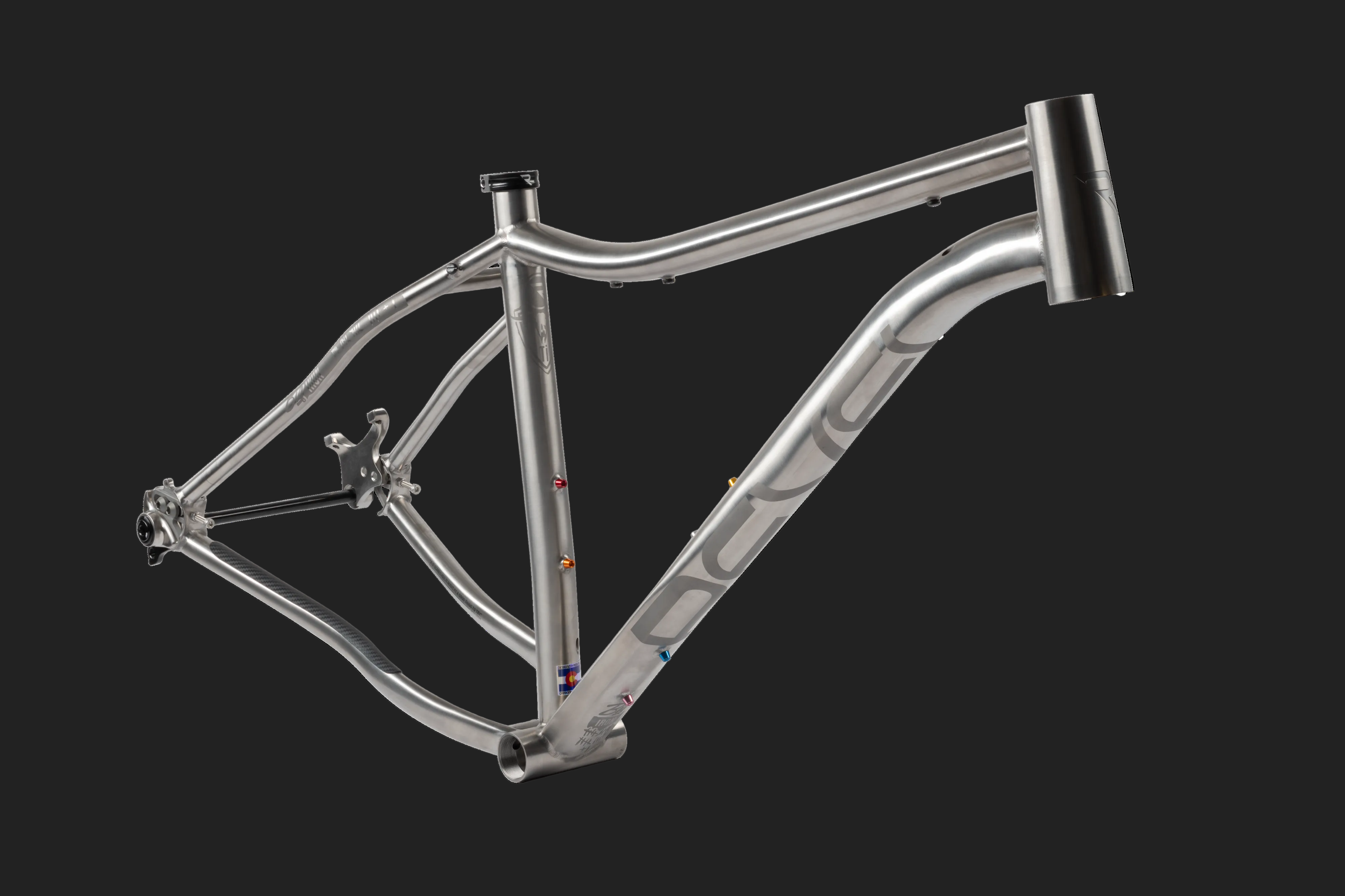

FRAME
COLD-FORMED TITANIUM
CLEAN
INTERNAL CABLE ROUTING
FRAME MOUNTS
BOTTLE AND STORAGE

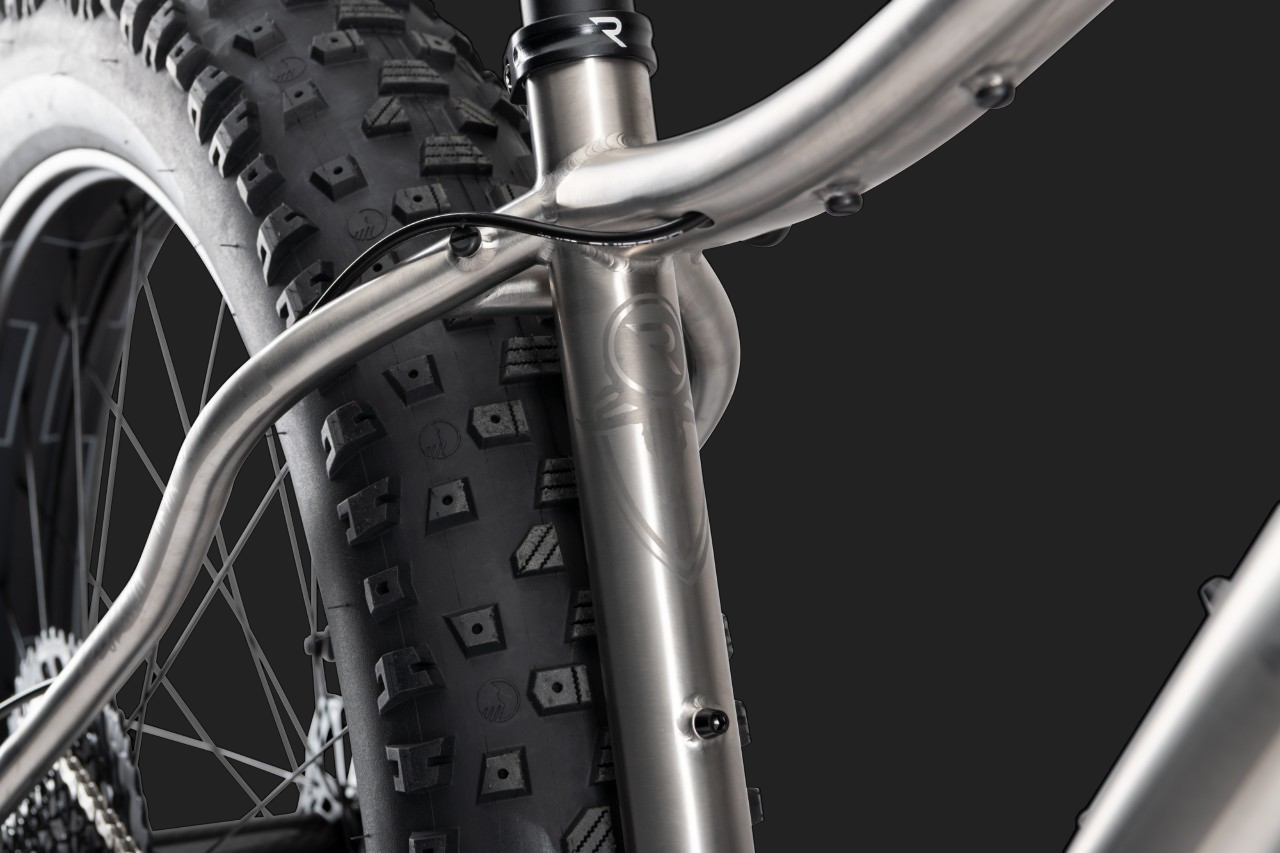

27.5 x 4.8"
Tire Clearance
12X148
ADJUSTABLE DROPOUTS

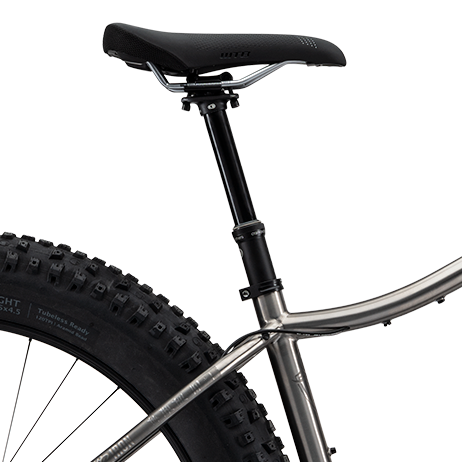

FULL LENGTH
SEAT POSTS
BSA
THREADED BOTTOM BRACKET
THE BEST MATERIAL FOR A FAT BIKE
TIMELESS SNOW-RIDING AWESOMENESS
It’s been on the full Iditarod Trail Invitation 1100 mile ride to Nome several times, and even set a record for a bicycle reaching the highest point in the world in 2023 when it was ridden to 22,615ft in the Andes. Named after the famous western tune “Big Iron”, this bike is designed to be the right tool to get the job done. Whether it’s a short weekend on groomed single track or you’re heading out on a multi-day journey, the modern geometry and stiff-yet-supple titanium frame make the Big Iron the perfect choice whenever you’re pulling out the fat bike.

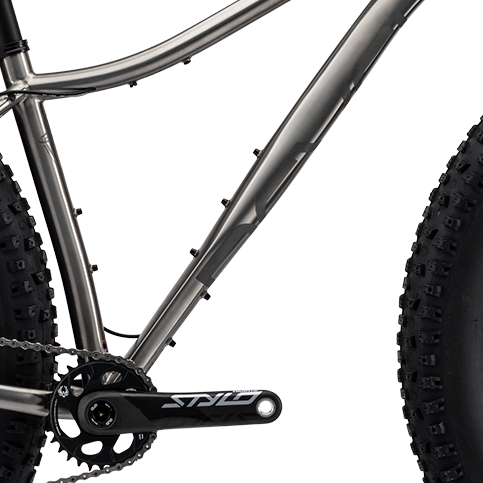

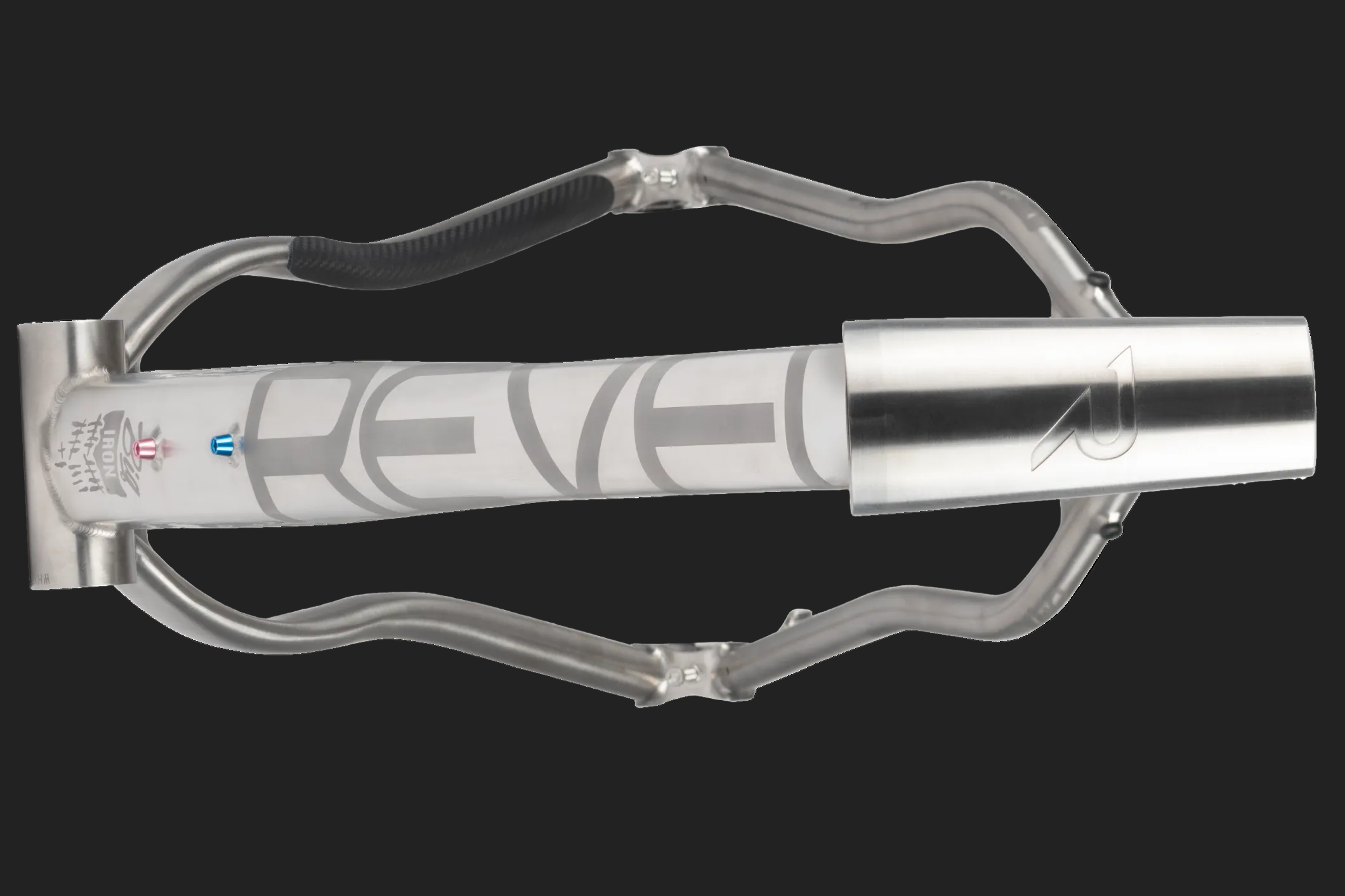

Cold-formed 3/2.5 Titanium Tubing
Our modern take on traditional titanium- these tube shapes optimize stiffness and compliance.
CNC Machined 6/4 Titanium
Headtube, BB, dropouts, and inserts.

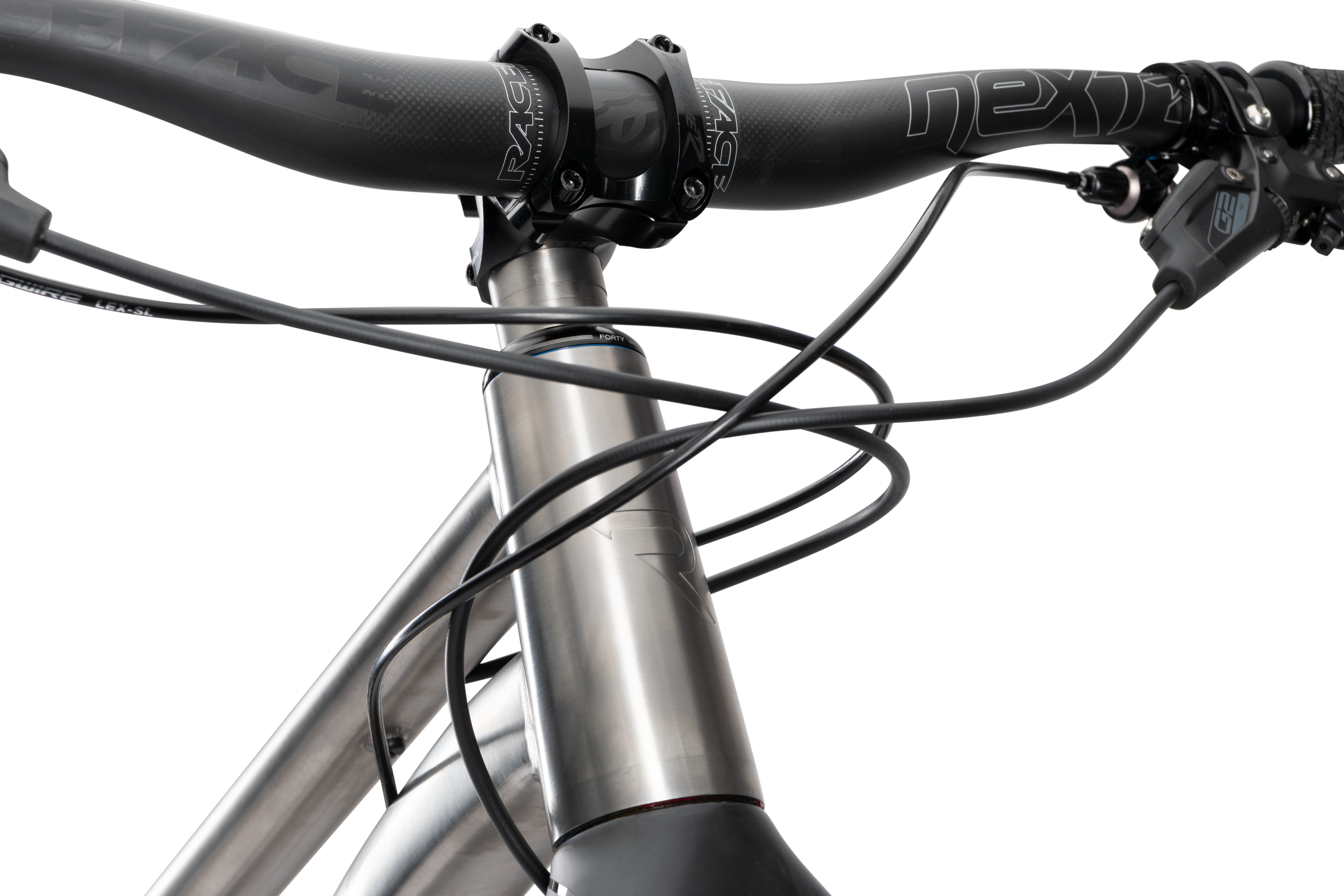

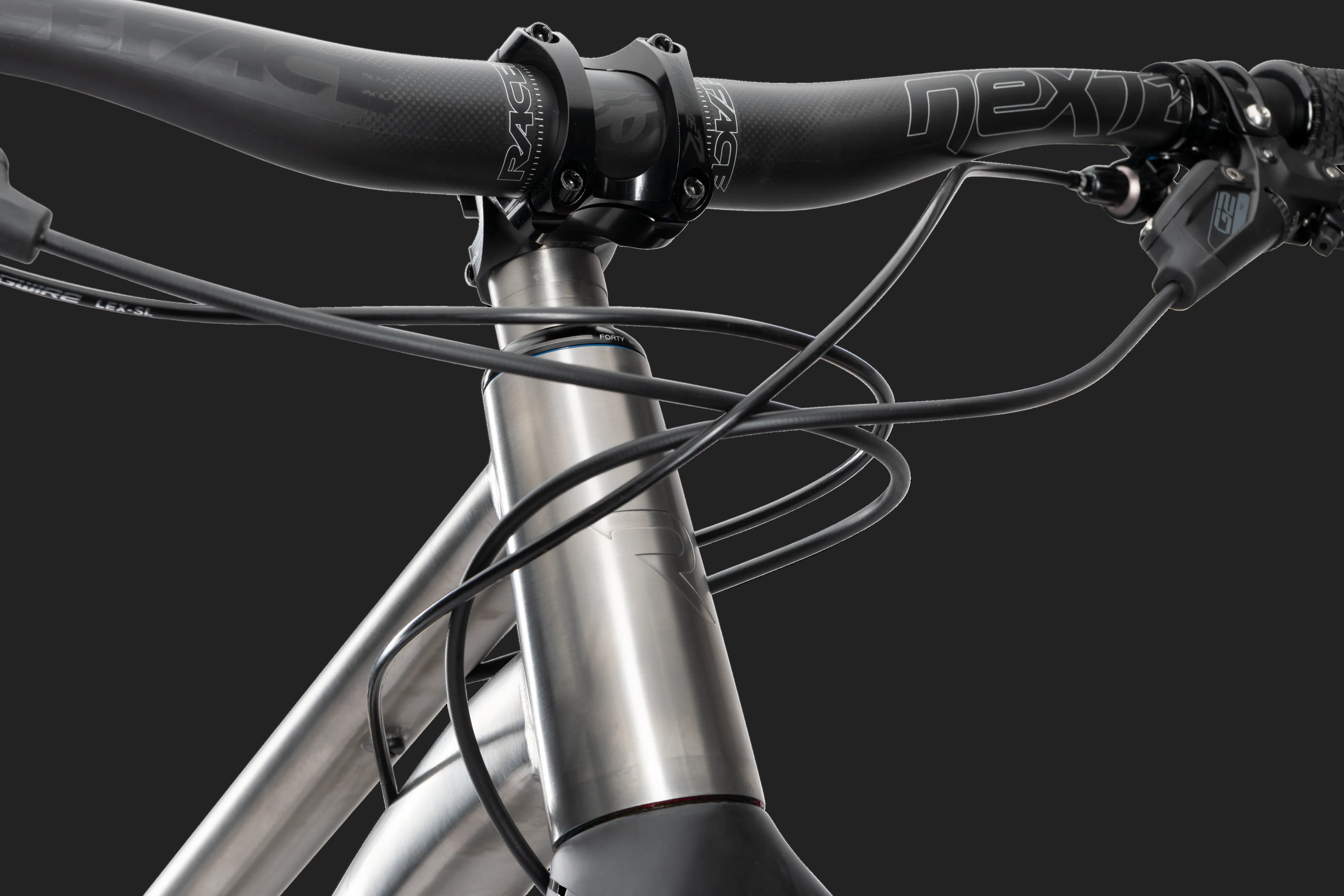

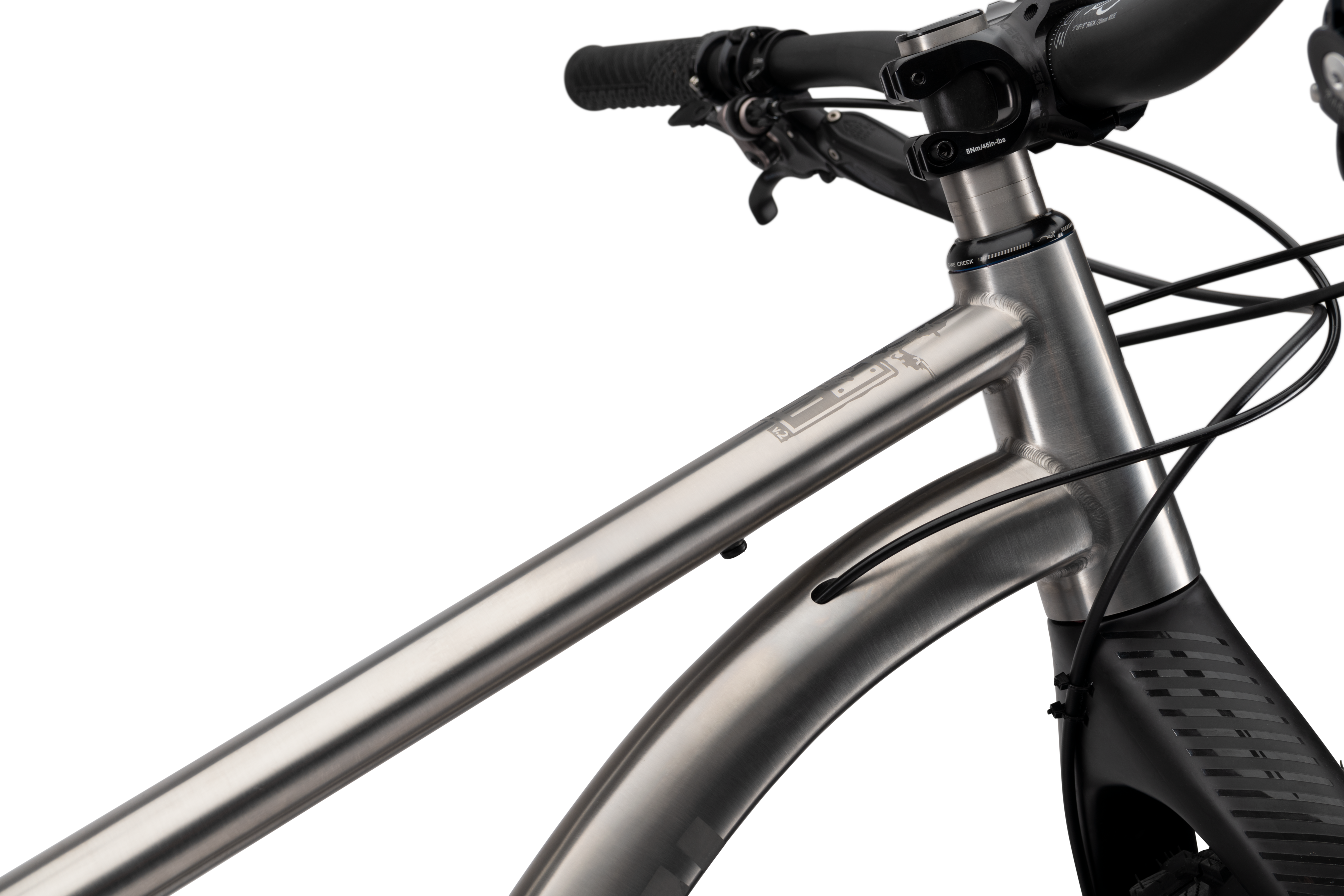

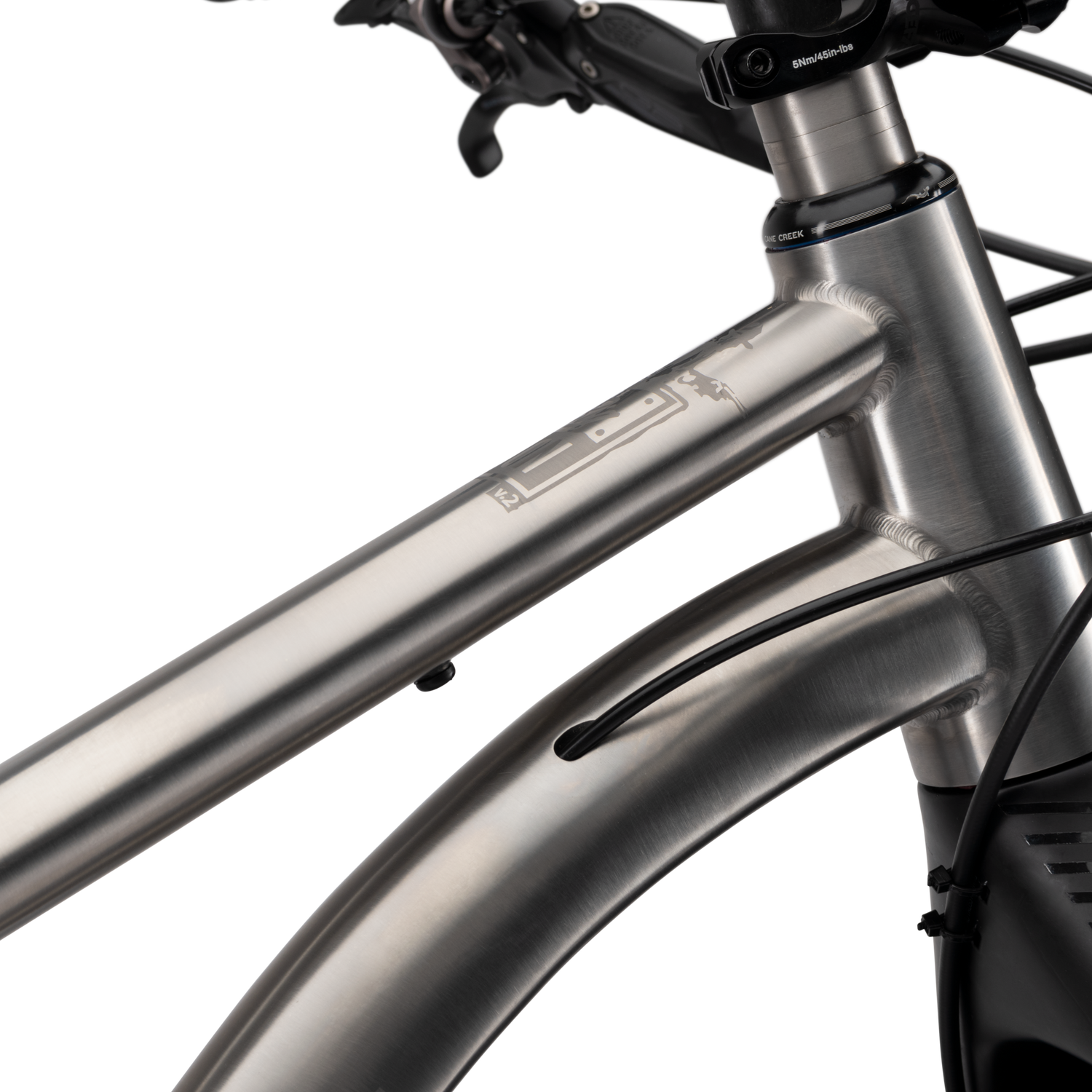

Internal Cable Routing
Clean, quiet, and simple.

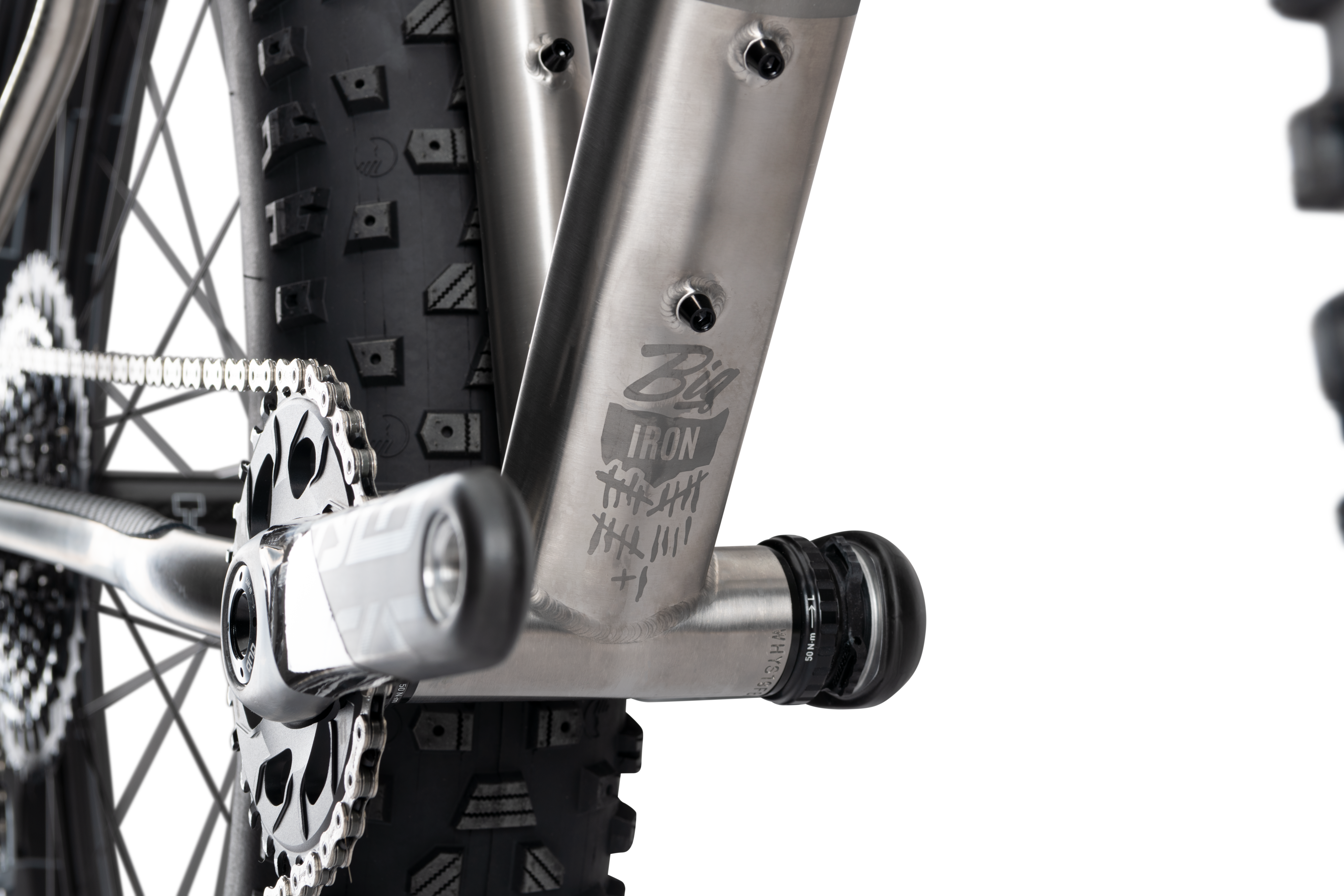

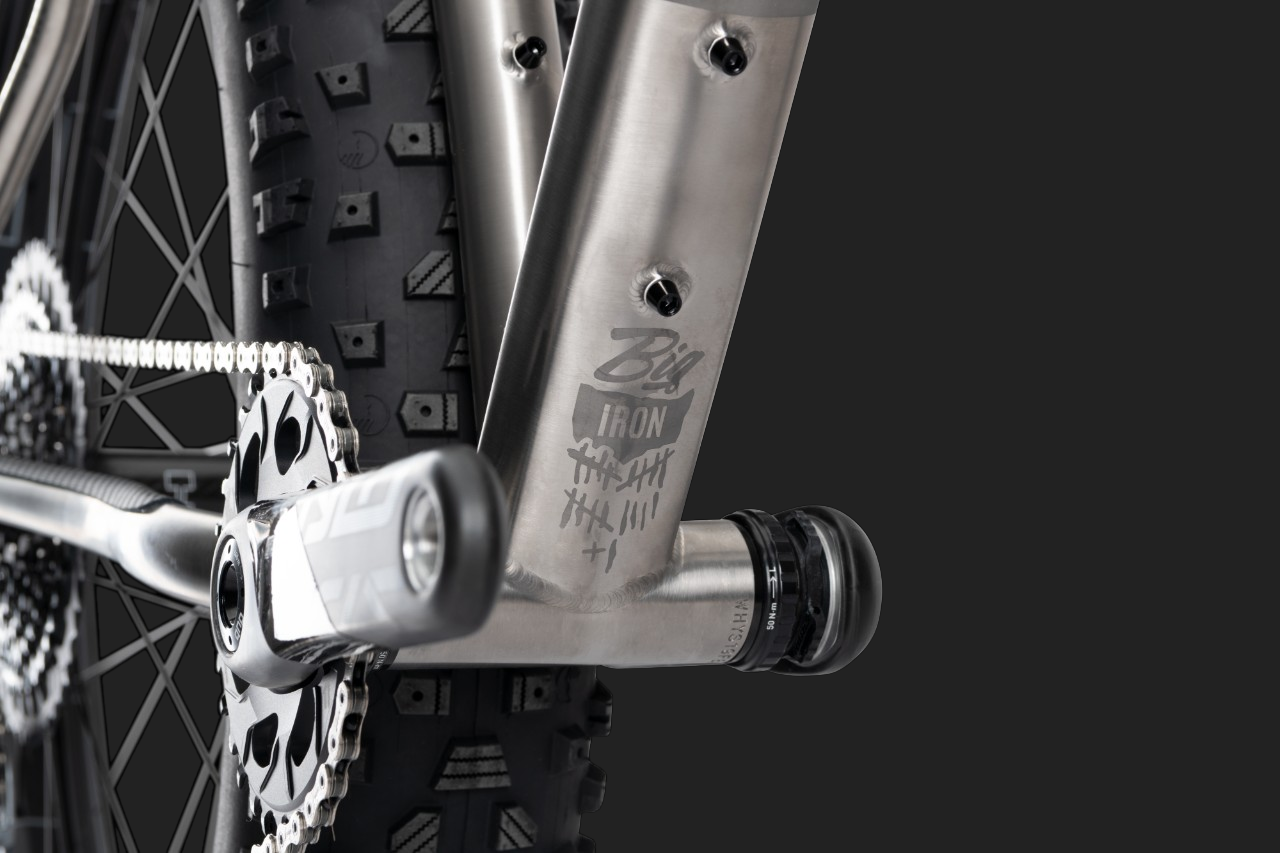

Threaded BB
100mm fat bike standard. Simple, easy, functional.

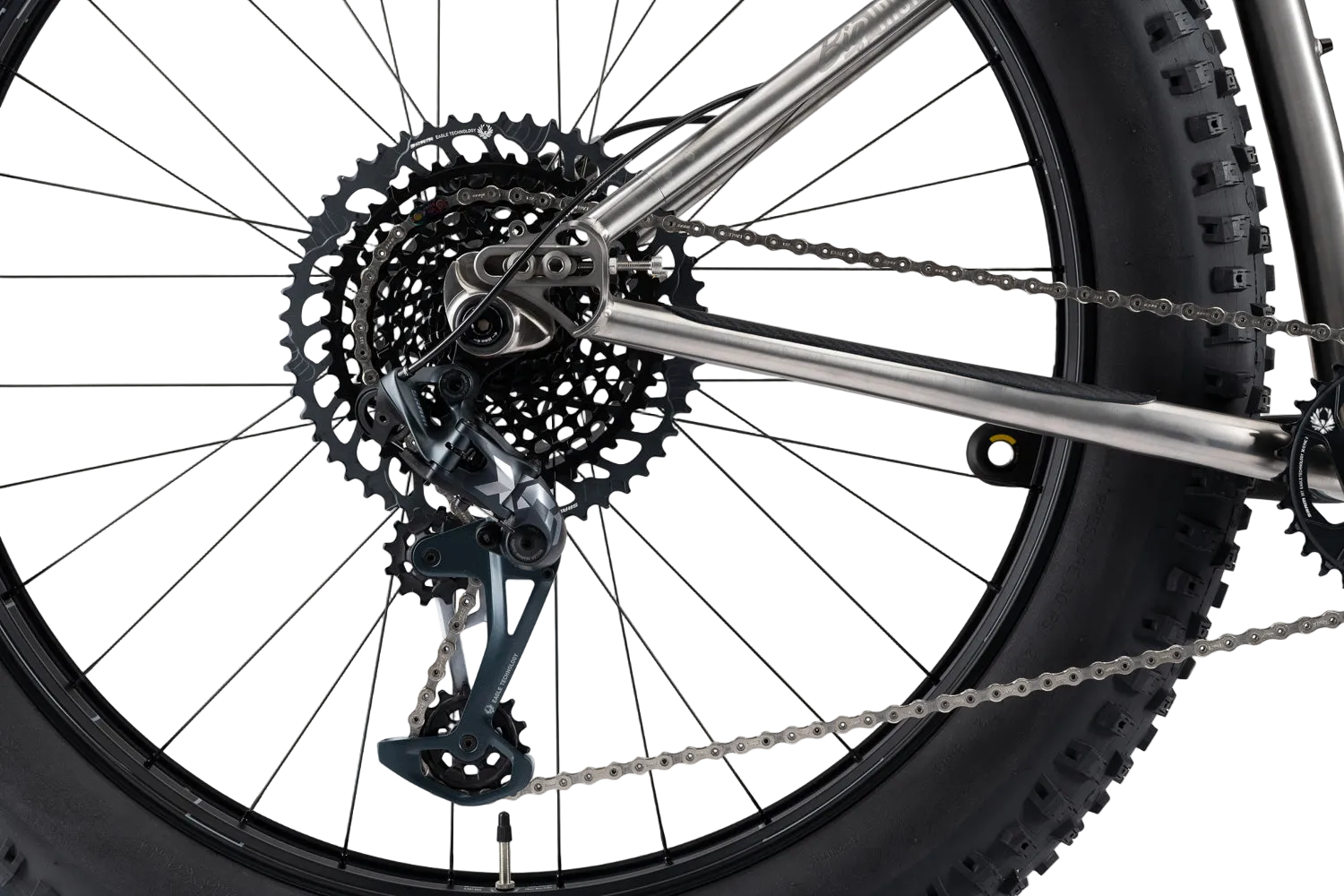

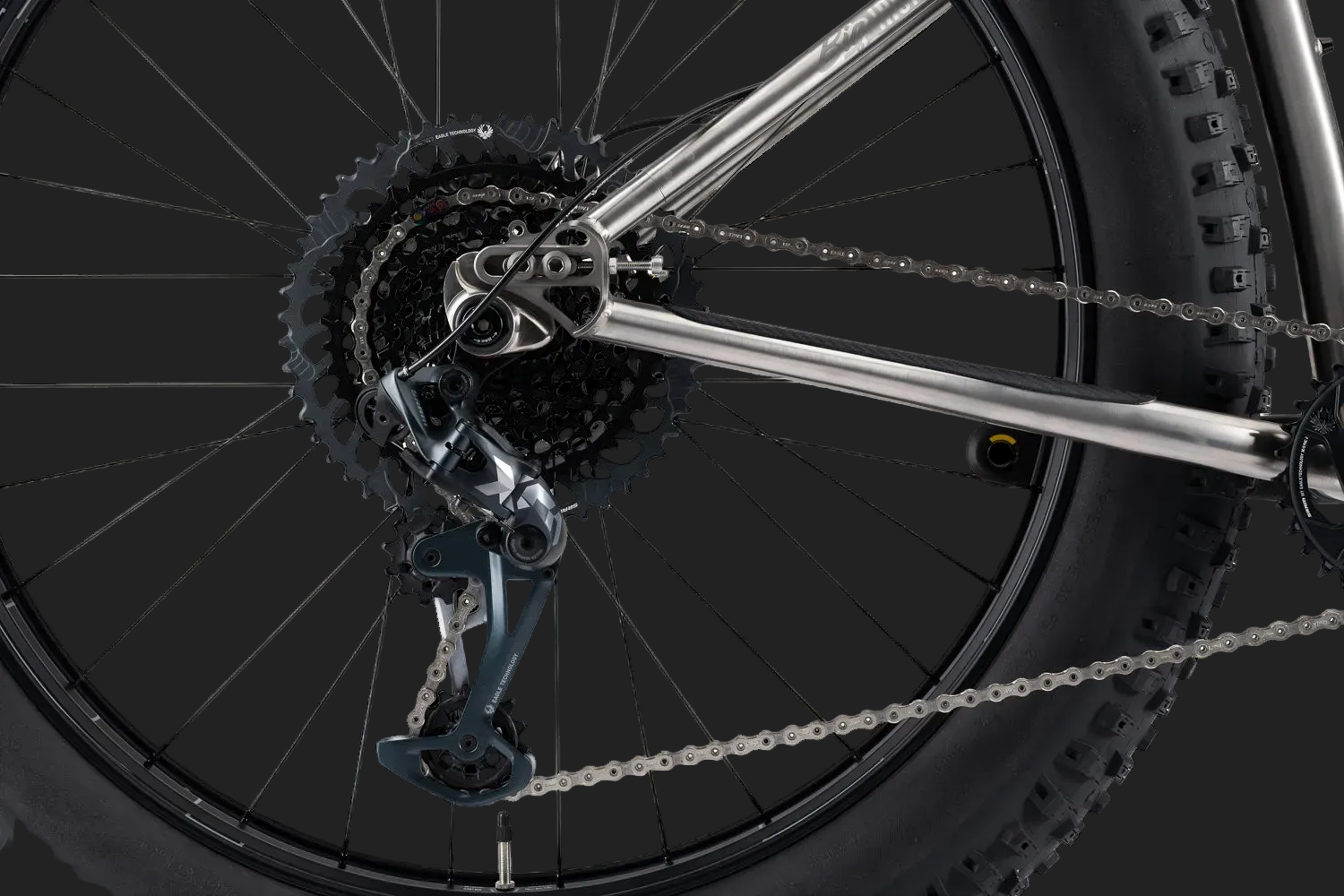

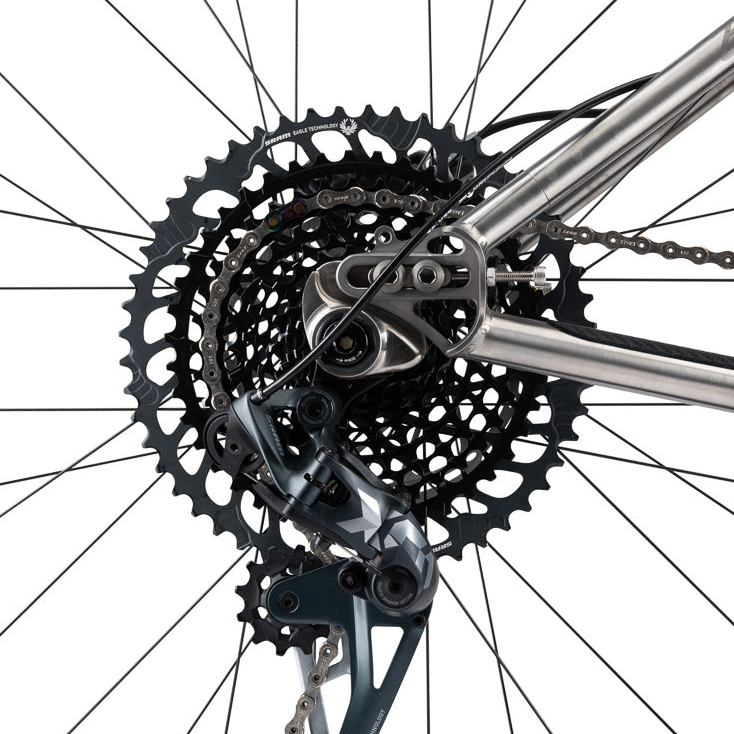

Sliding UDH Dropouts
UDH dropouts for drivetrain compatibility, with 17mm of chainstay length adjustability for tire size and ride feel tuning.
Rack Mounts
All standard rack and fender mounts.

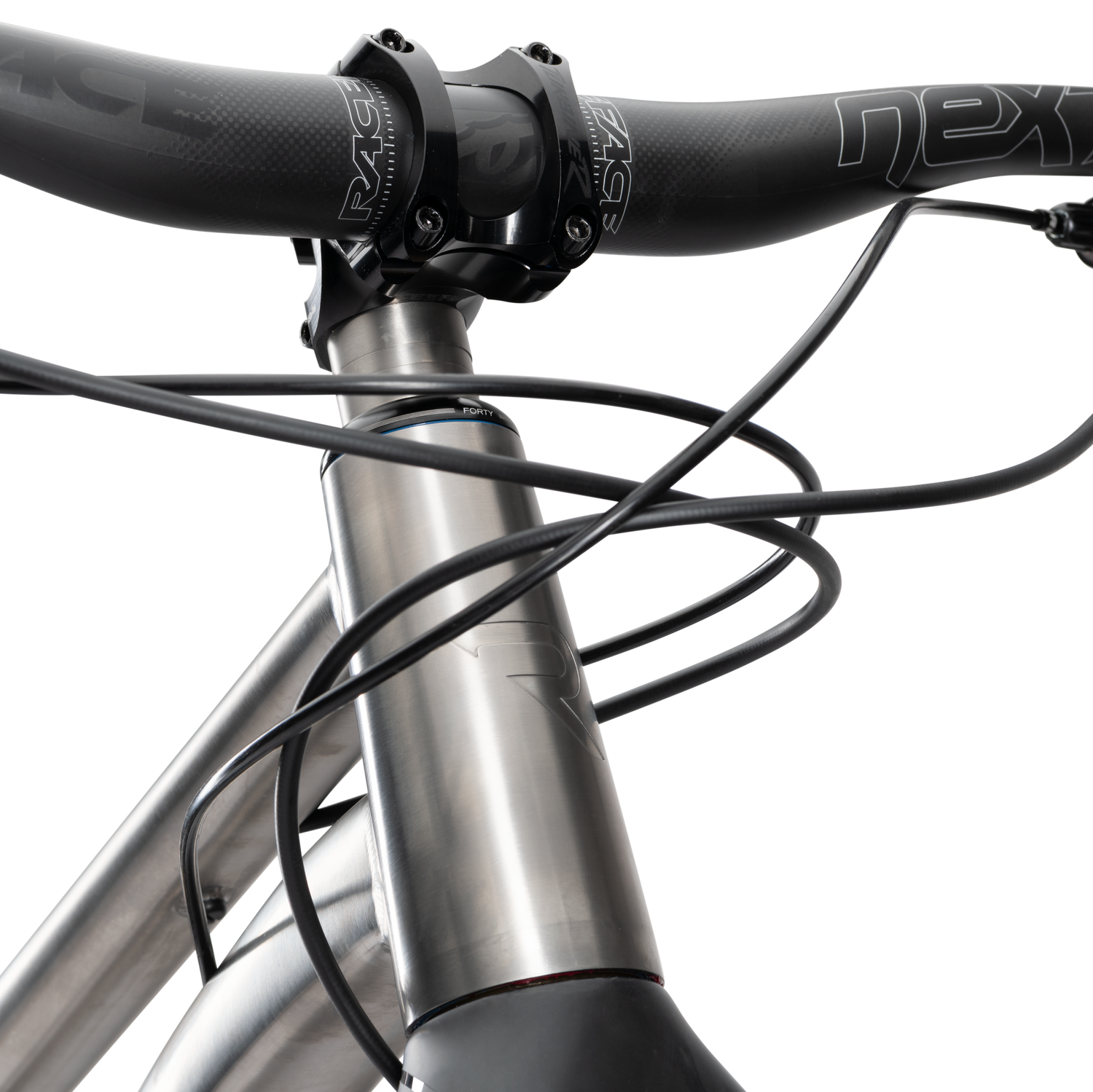

Tapered Headset
IS 42/52 integrated headset for easy installation.
BUILD KITS
|

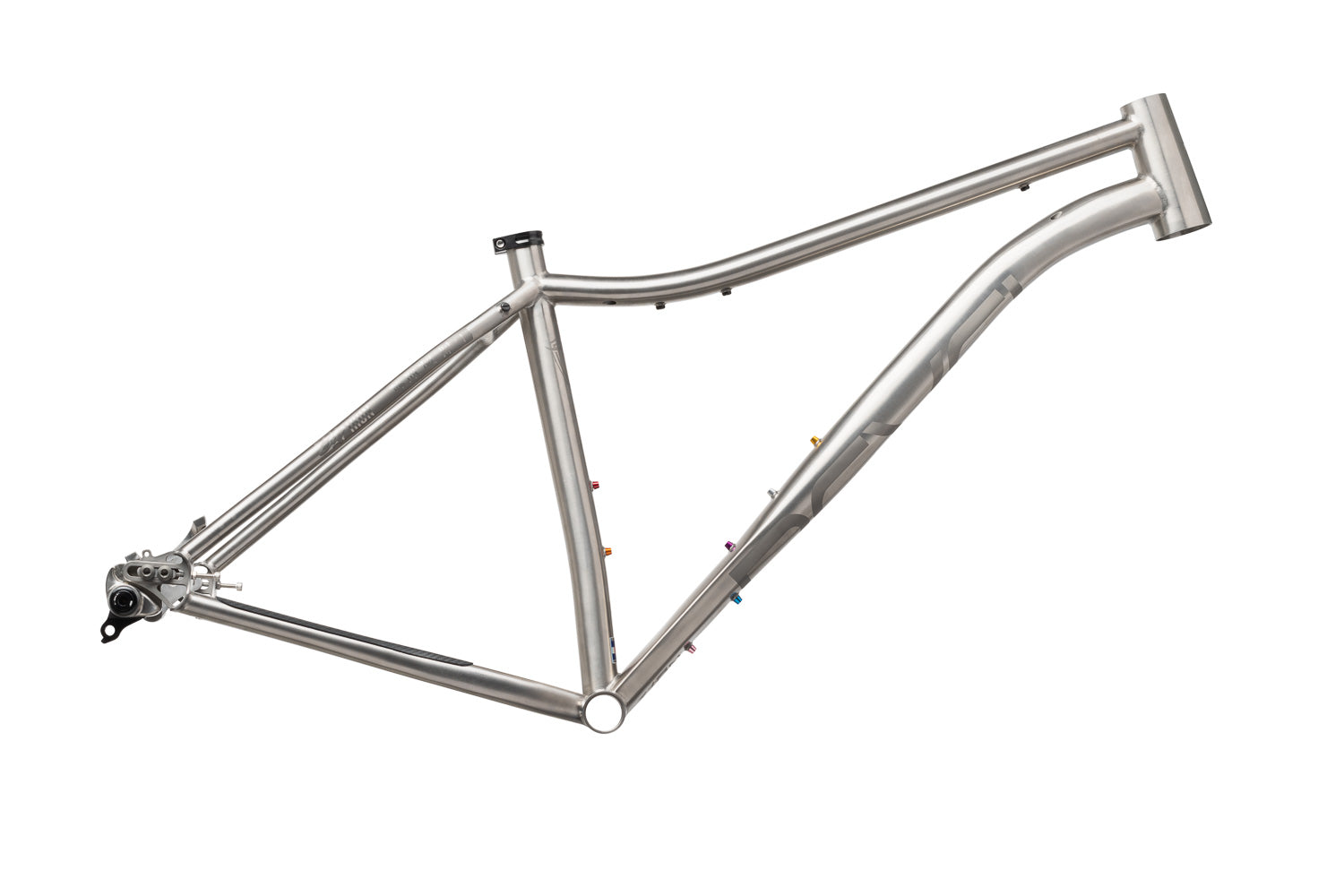

Frame Only
$2,799 | |
|---|---|
| Frame | Big Iron Titanium Fatbike Hardtail |
| Headset | Cane Creek 40-Series |
| Chainstay | Lizard Skin Custom Why CS Protector |
| Seat Clamp | Revel Seat Clamp 34.9 |
| Derailleur Hanger | SRAM UDH - Universal Derailleur Hanger |
| Bottle Bolts | Nylon Bottle Bolts |
| Rear Axle | Why Cycles UDH Rear Axle Fat Bike 22x226 |
GEOMETRY
MEASUREMENT |
SMALL |
MEDIUM |
LARGE |
XL |
|
A |
Effective Top Tube Length |
574mm |
614mm |
635mm |
660mm |
B |
Seat Tube Length |
355mm |
407mm |
457mm |
492mm |
C |
Seat Tube Angle |
73° |
73° |
73° |
73° |
D |
Chain Stay Length |
445-460mm |
445-460mm |
445-460mm |
445-460mm |
E |
Bottom Bracket Drop |
64mm |
64mm |
64mm |
64mm |
F |
Bottom Bracket Height |
332mm |
332mm |
332mm |
332mm |
G |
Head Tube Angle |
68.2° |
68.2° |
68.2° |
68.2° |
H |
Wheel Base |
1122mm |
1149mm |
1172mm |
1195mm |
I |
Head Tube Length |
116mm |
117mm |
132mm |
143mm |
J |
Axle to Crown |
490mm |
490mm |
490mm |
490mm |
K |
Fork Offset |
51mm |
51mm |
51mm |
51mm |
L |
Trail |
98mm |
98mm |
98mm |
98mm |
M |
Stack |
611mm |
622mm |
627mm |
637mm |
N |
Reach |
427mm |
442mm |
468mm |
484mm |
O |
Standover |
680mm |
720mm |
740mm |
775mm |
FRAME SPECIFICATIONS
| Wheel Size | 29" / 27.5" / 26" |
| Front Travel | 00mm min / 100mm max |
| Rear Travel | 00mm |
| Hub Spacing | 197 x 12mm spacing |
| Axles | 226mm x M12 x P1.0 Axle |
| Seatpost Diameter | 31.6mm, 34.9mm Seat Clamp |
| Max Seatpost Insertion Depth | SM 230, MD 220mm, LG 240mm, XL 280mm |
| Rear Tire Clearance | 29" x 3.0" max / 27.5" x 4.5" max / 26" x 5.0" max |
| Bottom Bracket | Threaded 100mm BSA Standard |
| Max Chainring | 34T max, 76.5 Chainline |
| Headset | IS42 Upper / IS52 Lower |
| Bottle Bosses | 3 sets for SM frame (no seatube bosses); 4 sets for MD - XL frames |
FAQ
REVEL MAKES TITANIUM BIKES?!
We do now! Well, in a way, we always have… our sister company, Why Cycles, has been manufacturing the most advanced titanium bikes in the world since 2016. We're retiring the Why Cycles brand, so now you can find the most advanced carbon and titanium bikes on the market under one name - Revel Bikes.
WHERE ARE REVEL TI BIKES MADE?
Revel titanium frames are lovingly hand-built in the same family-owned and operated factory in northern China used by Why Cycles for a half-decade. All Revel bikes are then assembled and shipped from our facility in Carbondale, CO.
UDH COMPATIBLE? WHAT DOES THAT MEAN?
We've updated all Revel Ti bikes with SRAM UDH (Universal Derailleur Hanger), so replacement hangers are easier to find and your bike's drivetrain is more future-proof against manufacturer updates down the line.
CAN I RUN A ROHLOFF INTERNAL HUB ON MY BIG IRON?
Yes! Check with Rohloff for specifications.
CAN I RUN A BELT DRIVE ON THE WAYWARD?
Yes! Check with the belt drive manufacturer for specifications.
WHAT WHEEL SIZE CAN I RUN ON THE BIG IRON?
Max Clearance: 27.5 x 4.5″, 26 x 5.0″, or 29 x 3.0″ tires.
WHAT IS THE TORQUE FOR THE TI SLIDING DROPOUT BOLTS?
15-18Nm for the dropout bolts, 3-4Nm for the tensioner bolt.
WHAT IS THE SPECIFICATION OF THE LONGITUDINAL TENSIONER BOLT?
M5 x 0.8 x 35mm Stainless steel cap screw.
WHAT OFFSET CHAINRING DO I NEED TO RUN TRANSMISSION ON THE BIG IRON
For a 76.5mm chainline using 197 rear spacing, use a -4mm offset chainring.
WHAT'S THE BEST FRAME BAG FOR MY BIG IRON?
We love the bags we've seen and used from companies like Rogue Panda, Oveja Negra and Good Busy Gear.
WHAT IS THE BEST WAY TO POLISH MY TITANIUM FRAME?
We recommend using some rubbing alcohol and a Scotch Brite pad and scrubbing gently in a "shoe-shine" motion (one direction or back and forth, not circular), then wiping down and finishing with a light coat of furniture polish like Pledge. This should work for both oxidation and light scratches. The graphics are sand-blasted into the frame, so you won't hurt them if you use a soft touch.
IS MY WHY CYCLES BIKE STILL COVERED UNDER WARRANTY?
Absolutely! All Why Cycles and Revel Bikes frames come with lifetime warranties and a generous crash replacement program for the original purchaser. If anything does happen and you need a replacement frame, it will most likely be replaced with a Revel branded titanium frame, but we’ll get you back to riding ASAP!
