Geometry

Measurement Small Medium Large XL
Rider Height 5'1"-5'7" 5'6"-5'10" 5'9"-6'2" 6'1"-6'7"
Effective Top Tube Length 588mm 610mm 633mm 660mm
Seat Tube Length 385mm 415mm 445mm 475mm
Seat Tube Angle 75°/66.3° 75°/66.3° 75°/66.3° 75°/66.3°
Chain Stay Length 433mm 433mm 433mm 433mm
Bottom Bracket Drop 33mm 33mm 33mm 33mm
Bottom Bracket Height 342mm 342mm 342mm 342mm
Head Tube Angle 66° 66° 66° 66°
Wheel Base 1155mm 1180mm 1203mm 1233mm
Head Tube Length 96mm 107mm 116mm 127mm
Axle to Crown 551mm 551mm 551mm 551mm
Fork Offset 44mm 44mm 44mm 44mm
Trail 120mm 120mm 120mm 120mm
Stack 600mm 610mm 618mm 628mm
Reach 424mm 444mm 464mm 489mm
Standover 682mm 692mm 716mm 736mm

Frame Specs

Wheel Size

29"

Front Travel

140mm

Rear Travel

130mm

Shock Spec

210 X 50 - 22.2 x 8 mounting hardware

Axles

174x12x1.75

Seatpost Diameter

31.6mm, 34.9mm Seat Collar

Max Seatpost Insertion Depth

SM 260mm, MD 275mm,
LG 290mm, XL 305mm

Rear Brake

Post Mount: 180mm direct / 203mm max

Tire Clearance

29" x 2.4" (rear)

Bottom Bracket

Threaded (73mm English threaded)

Max Chainring

34t Round / 32t Oval, 52mm Chainline

Tapered Headtube

IS42 upper / IS52 lower

Colors / Size

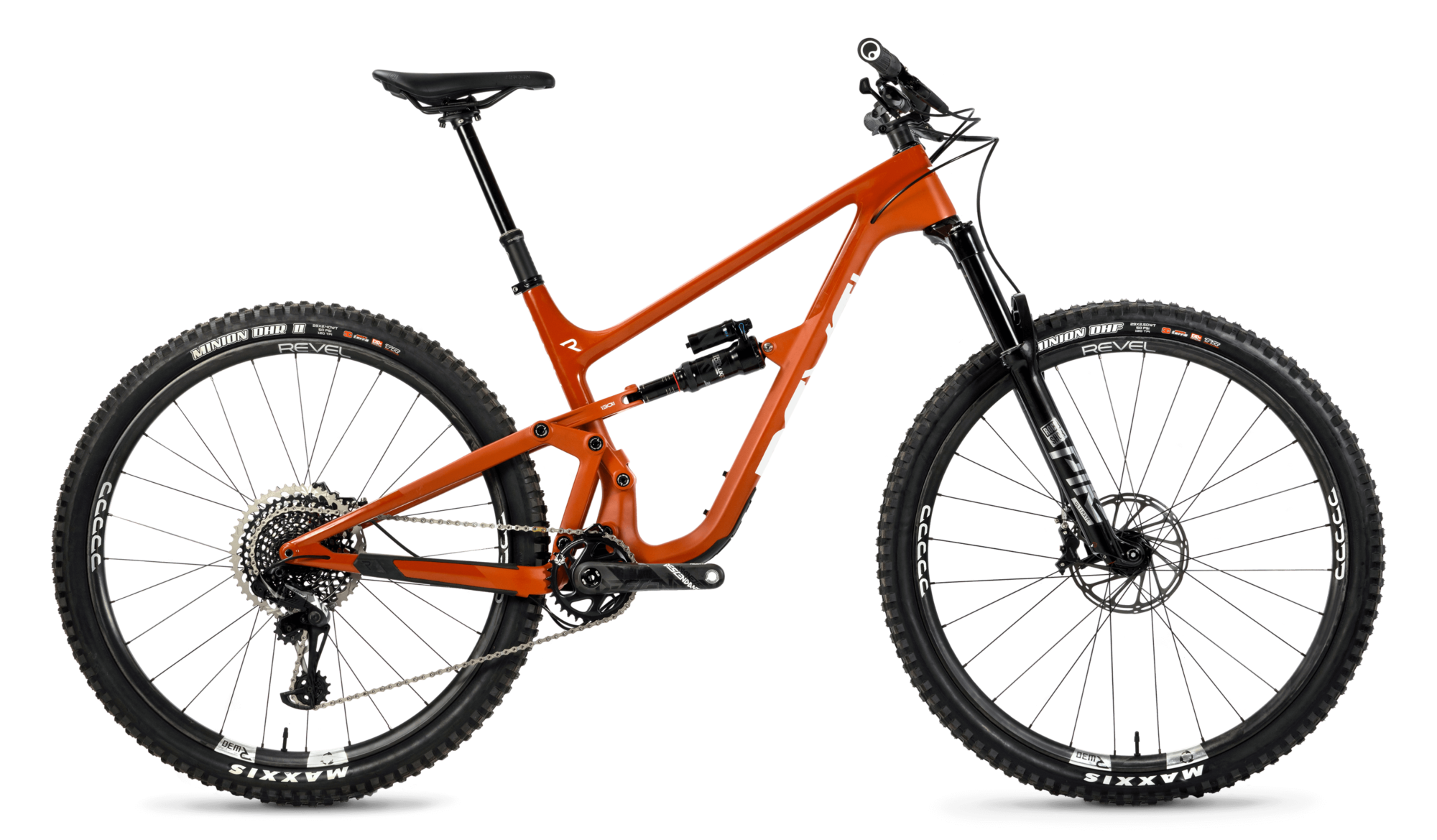

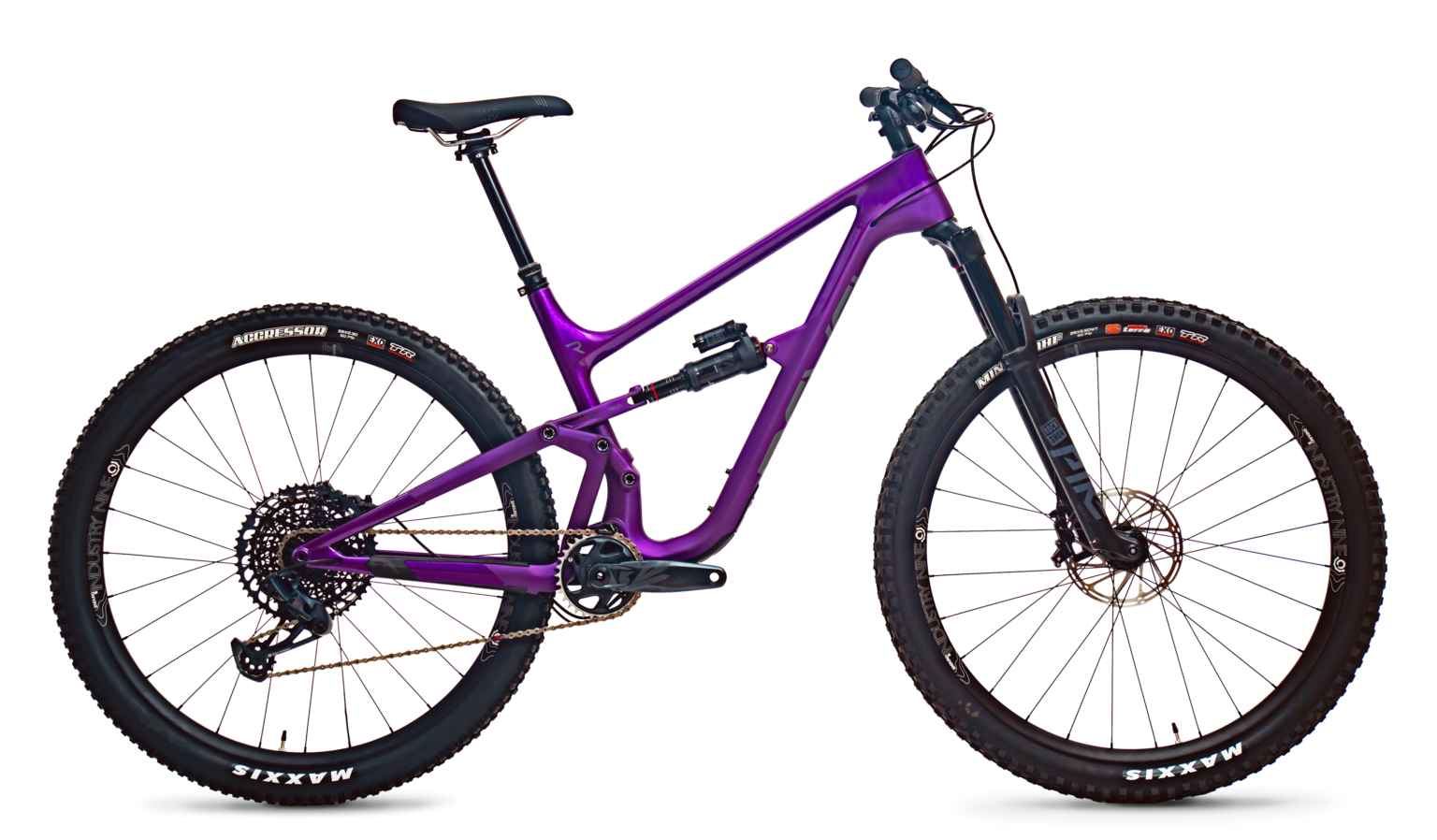

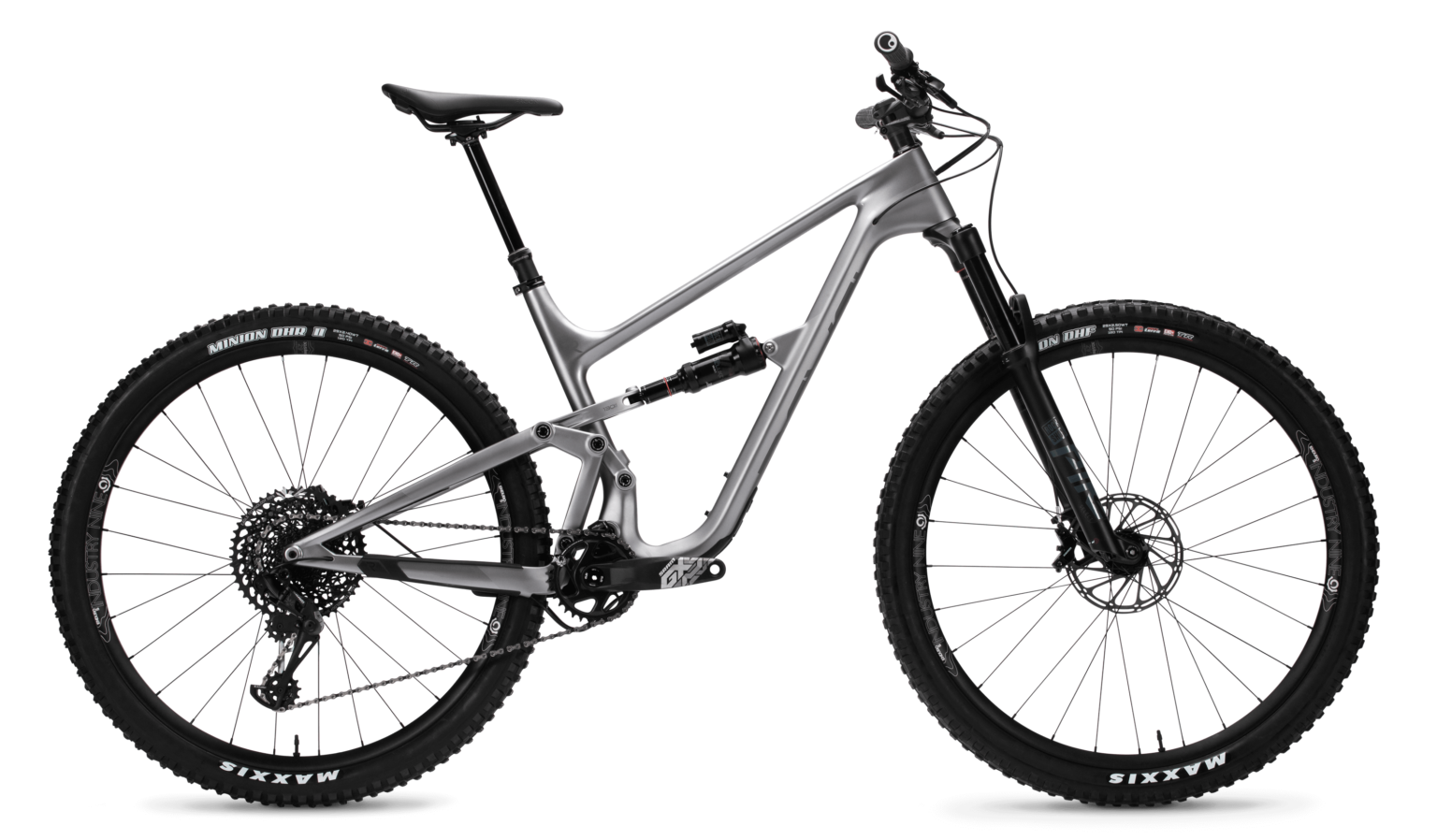

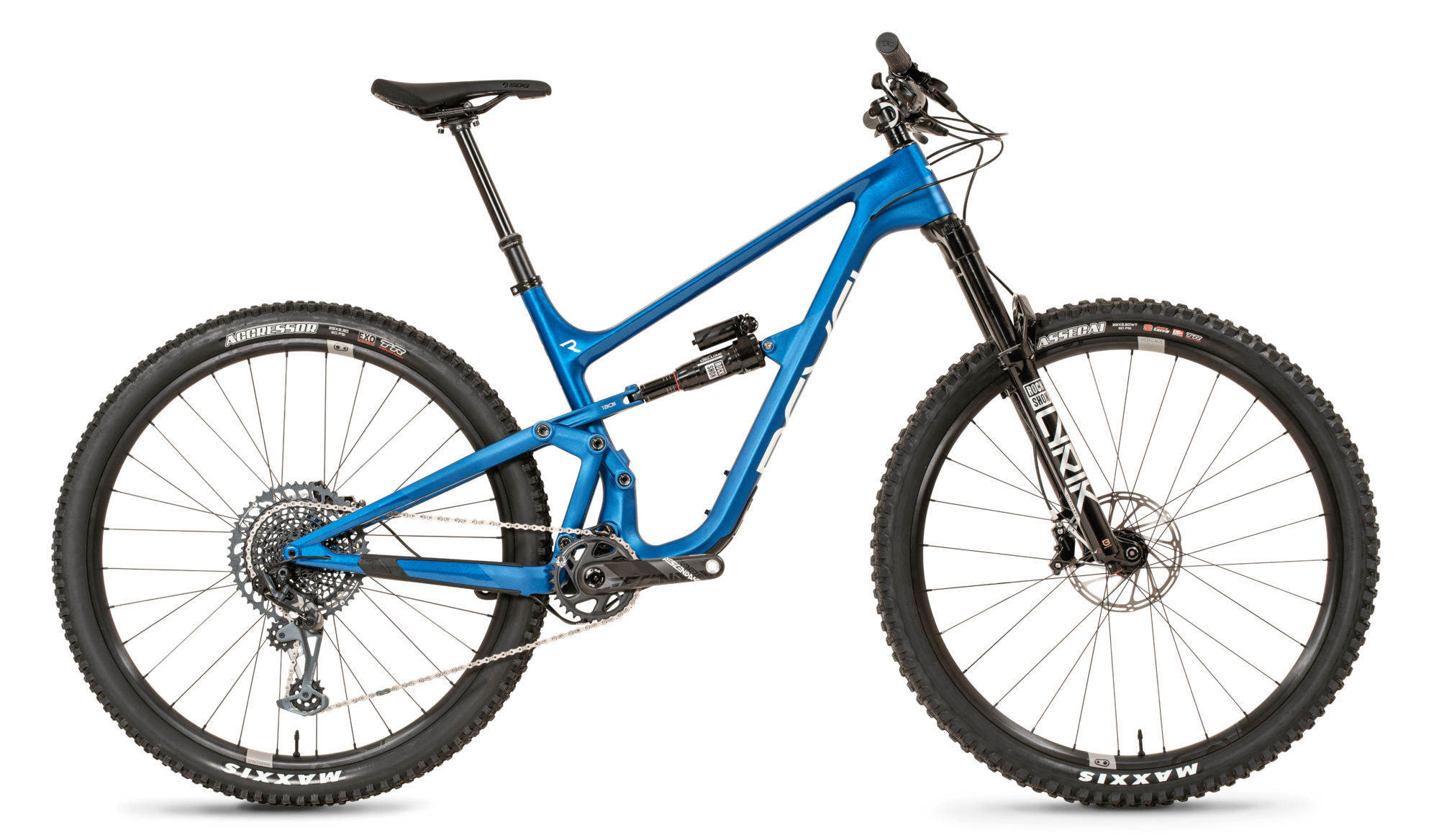

Sedona / T1000 / LYB Purple / Icy Blue
S / M / L / XL

Suspension

Leverage Curve
Upload leverage curve diagram
Anti-Rise
Upload anti-rise diagram
Anti-Squat
Upload anti-squat

Support

Do you offer a lighter shock tune for the lighter riders?

We do not – We found the leverage curve of our bikes leaves the shock very tunable. We have successfully set up riders from 95 lbs. to well over 230 lbs.

What bashguard/chainring protection can I run on the Rascal?

The RascalV1 is not compatible with any bash guard offerings.

Can I buy an aftermarket Fox reach shock for the Rascal?

You can – You will need to order the shock directly from Fox and ensure you purchase the correct tune for our bikes. This is important to maximize how awesome your Revel can be! Fox has a tune guide for our bikes on file. Unfortunately due to our agreement with Fox, you are not able to buy Fox suspension directly from Revel unless is ships on your new bike.

What is the largest water bottle I can run on the Rascal?

22 ounces is the sweet spot – When using a side-loading water bottle cage, our frames fit a standard Revel 22-ounce water bottle. With a hands-free cap, these bottles are the best option around. Insulated bottles or larger sizes will need to be physically tested for clearance. You can also use Fidlock bottles for extra space!

What chainline should I run on the Rascal

52mm chainline

What is the largest chainring I can run on the Rascal?

34t Round / 32t Oval

How should I route the cables and hoses under the bottom bracket?

Like this – Our in-house builders prefer to cross the derailleur cable over the rear brake cable. That being said, there is no wrong way; You can run the brake line and derailleur housing to cross under the bottom bracket or not. Just be sure to leave enough slack under the bottom bracket so that the bike can fully cycle through its travel without binding. A good rule of thumb is for the cables to be level with the teeth of your chainring.

Can I run a coil on the Rascal?

For sure! But we feel strongly about specifics– We almost exclusively recommend Push coil shocks for our bikes. We tested every other coil shock on the market, and this is the only one we want to sell. You will love it.

Can I buy touch-up paint for the Rascal?

Yes! We have touch-up paint available for select Rascal V1 colorways. Otherwise, we tend to find luck using good, old-fashioned nail polish.

Do you make a debris guard for the Rascal V1?

No, there is not a compatible debris guard offered for the V1

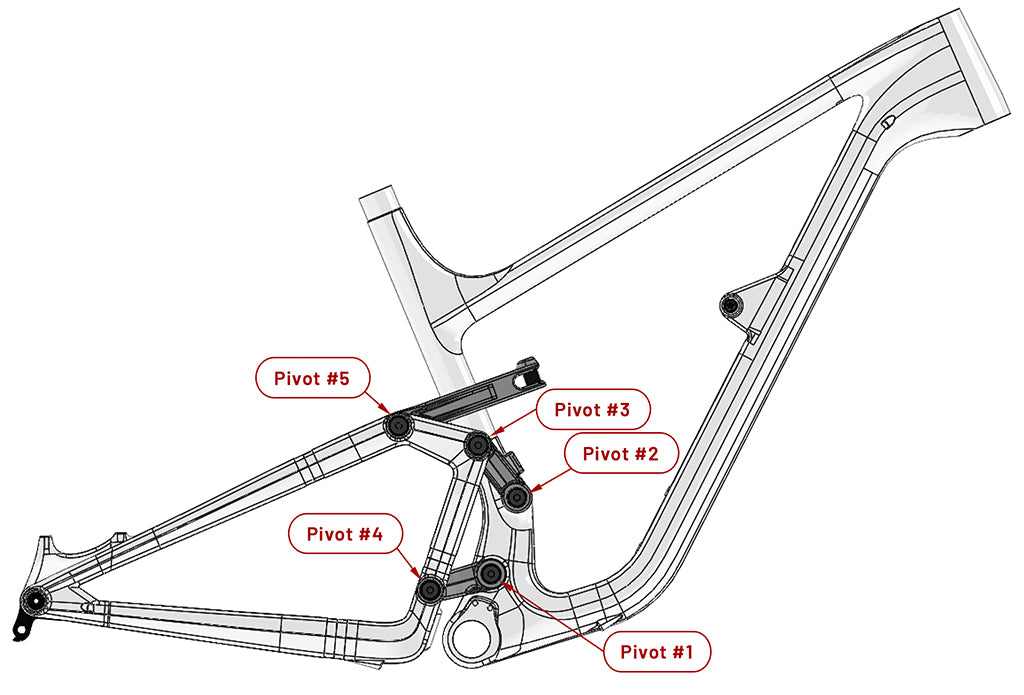

TOOLS, PIVOT NUMBERS & TORQUE SPECS
Torque Specifications
Pivot #1 10 Nm
Pivot #2 10 Nm
Pivot #3 10 Nm
Pivot #4 10 Nm
Pivot #5 10 Nm
Rear Shock Bolt 15 Nm
Forward Shock Bolt 10 Nm
Rear Axle 13 Nm (18 Nm Max)
Seat Clamp 5 Nm
Derailleur Hanger 5 Nm

Required Tools for Basic Service

» Torque Wrench

» 1x 4mm Hex Wrench

» 1x 4mm Hex Bit

» 1x 5mm Hex Bit

» 1x 6mm Hex Bit

» 1x 8mm Hex Bit

Pivot Assembly Overview
