R+

The Gravel Bike Quiver Killer
00mm
Rear Travel
700C
Wheel
00mm
Front Travel
Titanium
Frame Material

A Passport to Adventure

NEVER LOOK AT A DIRT ROAD THE SAME

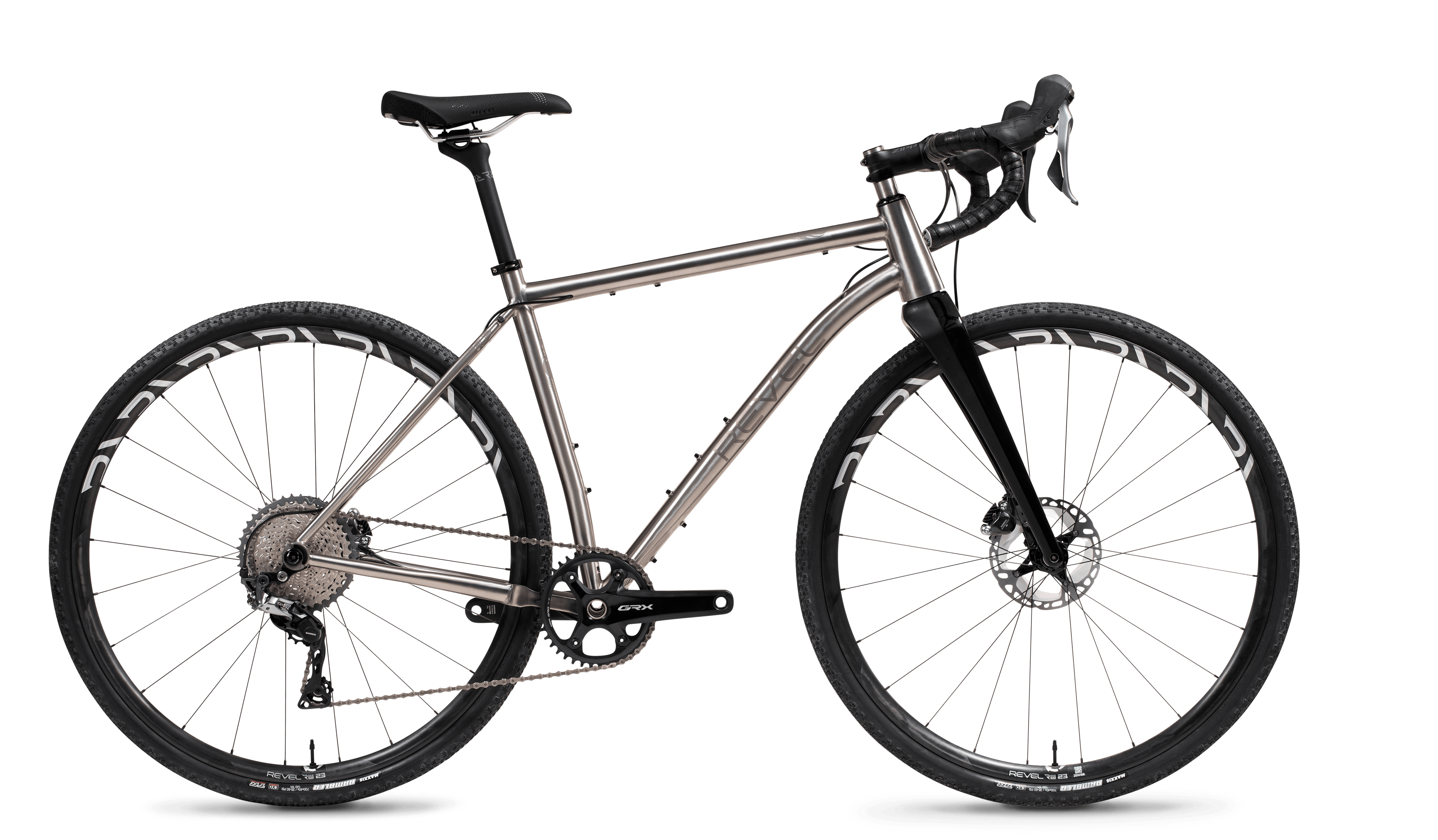

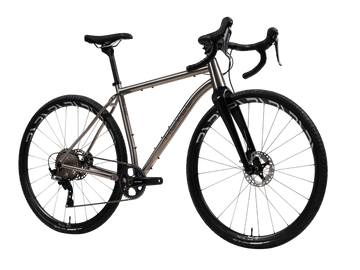

One of our original favorites, the R+ is more than just a bike – it’s a passport to adventure. It’s a huge part of our history here at Revel – we’ve made four iterations of this bike after our original launched in 2016, and we’re quite stoked with this dialed in versatile gravel bike. This bike is the perfect companion for big rides on any surface. With tire clearance of up to 700x50c or 27.5×2.1, the R+ is designed to tackle any terrain with comfort and style.  It even has rack and fender mounts and multiple mounting points inside the front triangle so you can carry gear, but don’t let that deter you for rides when speed is the priority. This bike can hold its own on the cyclocross race track or for 200 miles in the Kansas sun.

Versatility Perfected

WHERE WILL THE R+ TAKE YOU?

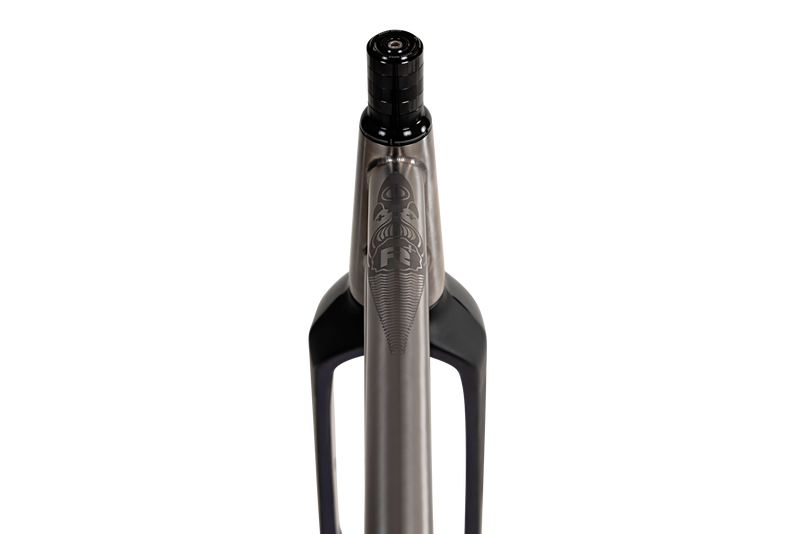

Equipped with SRAM Universal Derailleur Hanger (UDH), this is one of the few gravel bikes that is future proofed for drivetrain compatibility. It has an in-house, Revel-designed carbon fork that optimizes ride quality and tire clearance. And it even has dropper post compatibility – all these features and details make us confident that you’ll be blown away by how and where the R+ takes you.

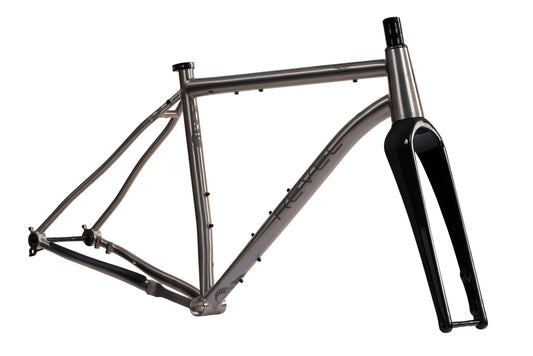

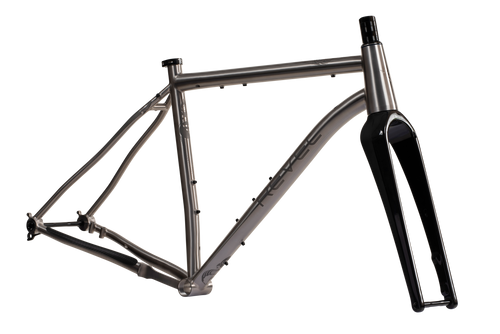

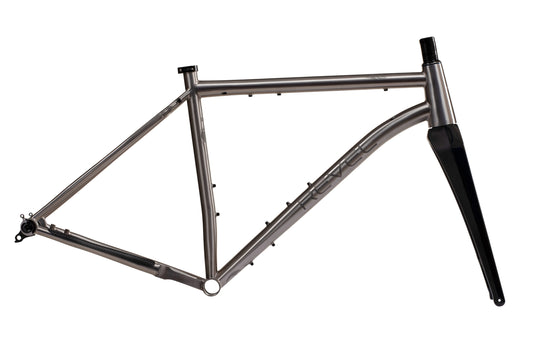

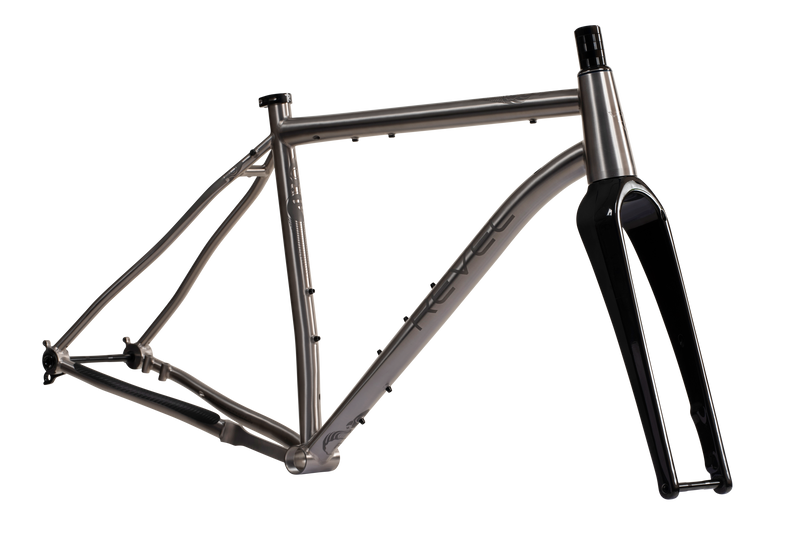

  • R+ Frame and Fork R+ Frame and Fork

    R+ Frame and Fork

    R+ Frame and Fork

    $2,799.00
    $2,799.00
  • R+ Shimano GRX 12 R+ Shimano GRX 12

    R+ Shimano GRX 12

    R+ Shimano GRX 12

    $4,099.00
    $4,099.00

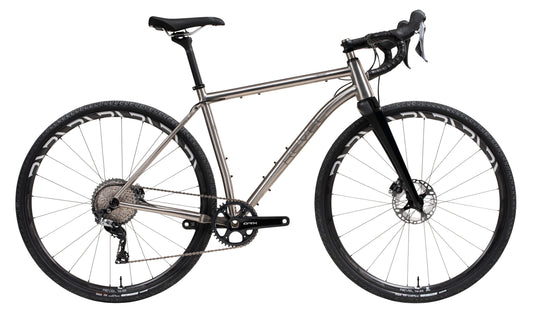

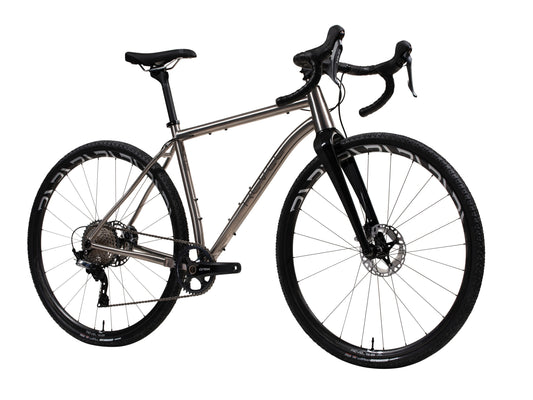

  • R+ SRAM Rival AXS R+ SRAM Rival AXS

    R+ SRAM Rival AXS

    Sold out

    R+ SRAM Rival AXS

    $4,499.00
    $4,499.00
    Sold out
  • R+ SRAM Force AXS R+ SRAM Force AXS

    R+ SRAM Force AXS

    Sold out

    R+ SRAM Force AXS

    $6,499.00
    $6,499.00
    Sold out

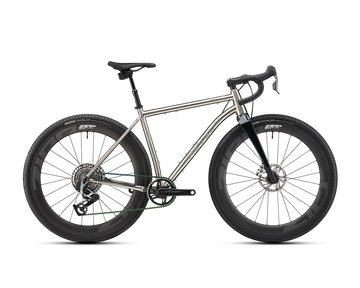

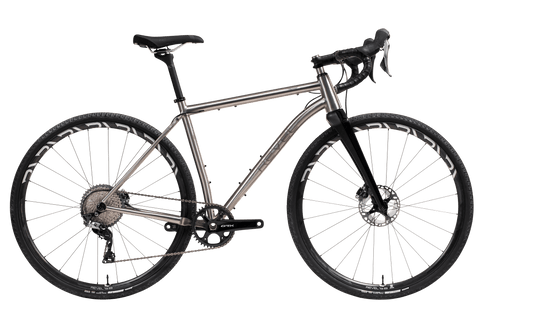

  • R+ SRAM RED AXS R+ SRAM RED AXS

    R+ SRAM RED AXS

    R+ SRAM RED AXS

    $8,499.00
    $8,499.00

Technical specifications

Shimano GRX 12
$4,099		 SRAM Rival XPLR AXS
$4,499		 SRAM Force XPLR AXS
$6,499		 SRAM RED XPLR AXS
$8,499
Frame R+ Titanium Ritual R+ Titanium R+ Titanium R+ Titanium
Fork Revel Gravel Fork 12×100 47mm Revel Gravel Fork 12×100 47mm Revel Gravel Fork 12×100 47mm Revel Gravel Fork 12×100 47mm
Headset Cane Creek 40-Series Cane Creek 40-Series Cane Creek 40-Series Wolf Tooth Premium IS42/52
Wheels Industry Nine 1/1 GRCX 700c Centerlock Crank Brothers Synthesis Carbon 700c Zipp 303 S Carbon Zipp 303 XPLR SW Carbon
Tubeless Stans No tubes Single shots x2 Stans No tubes Single shots x2 Stans No tubes Single shots x2 Stans No tubes Single shots x2
Tires Maxxis Rambler 700x40c Maxxis Rambler 700x40c Goodyear XPLR Intermediate 700x45c Maxxis Rambler 700x45c HYPER-X/EXO/TR
Handlebar Zipp Service Course SL 70 XPLR 44cm Zipp SL-70 XPLR Carbon Bar 42cm Zipp SL-70 XPLR Carbon Bar 42cm Zipp SL-70 XPLR Carbon Bar 42cm
Stem Zipp Service Course SL 90mm Zipp Service Course SL 90mm Zipp Service Course SL 90mm Zipp Service Course SL 90mm
Seatpost Revel Carbon 27.2x400 Revel Carbon 27.2x400 RockShox Reverb AXS 27.2x400 50mm RockShox Reverb AXS XPLR 27.2x400 75mm A1
Saddle SDG Bel-Air Lux-Alloy SDG Bel-Air Lux-Alloy SDG Bel-Air Lux-Alloy SDG Bel-Air Lux-Alloy
Brakes Shimano GRX RX820 SRAM Rival XPLR E1 SRAM Force XPLR E1 SRAM RED AXS HDR E1 F20
Rotors Shimano GRX RT-MT800 160mm Centerlock SRAM Paceline 160mm Centerlock SRAM Paceline 160mm Centerlock SRAM Paceline 160mm Centerlock
Sifter Shimano GRX RX820 12spd SRAM Rival XPLR E1 13spd SRAM Force XPLR E1 13spd SRAM RED AXS XPLR E1
Rear Derailleur Shimano GRX RX822 SRAM Rival XPLR E1 13spd SRAM Force XPLR E1 13spd SRAM RED AXS XPLR E1
Chain Shimano XT M8100 SRAM Rival XPLR E1 118L SRAM Force E1 118L Purple SRAM RED E1 116L Rainbow
Cassette Shimano XT M8100 10-51t 12spd SRAM XPLR XG1351 10-46t SRAM XPLR XG1371 10-46t SRAM XPLR XG1391 E1 10-46t
Crankset Shimano GRX Rx820 172.5mm 40t SRAM Rival XPLR E1 172.5 42t SRAM Force XPLR E1 172.5mm 42t SRAM RED XPLR E1 170mm 40t
Bottom Bracket Shimano GRX BBR60 68mm SRAM DUB Wide BSA 68mm Road SRAM DUB Wide BSA 68mm Road SRAM DUB Wide BSA 68mm Road
Bar Tape Lizard Skins Tape 2.5mm Black Zipp Service Course CX Zipp Service Course CX Velo Grip Tape
Seat Collar Revel 31.6 Dia Revel 31.6 Dia Revel 31.6 Dia Revel 31.6 Dia
Disclaimer ** Specifications subject to chance without notice** ** Specifications subject to chance without notice** ** Specifications subject to chance without notice** ** Specifications subject to chance without notice**
"What’s the R+ like for bikepacking? Immediately noticeable is all the free and clear space on the frame, thanks to neatly internal cable routing and the lack of front mech. And given the frame is made from titanium, there’s no need to protect it from abrasion, as these can be easily polished out in seconds. For me, this durability is one reason why such a material comes into its own for bikepacking."
BikePacking.com logo
Read the full review...
BikePacking.com
"Perhaps most impressively, Revel reworked the linkage hardware entirely. All bearings now sit in the CNC-finished linkage rather than the frame, improving stiffness, precision, and bearing life while minimizing unwanted creaks or play. It's a bike built to take a beating and keep charging!"
World Wide Cyclery logo
Read more...
World Wide Cyclery

Geometry

Measurement Small Medium Large XL XXL
Rider Height 5'1"-5'6" 5'5"-5'10" 5'9"-6'1" 6'0"-6'4" 6'3"-6'8"
Effective Top Tube Length 540mm 557mm 570mm 583mm 600mm
Seat Tube Length 450mm 490mm 520mm 550mm 580mm
Seat Tube Angle 75°/73° 75°/73° 75°/73° 75°/73° 75°/73°
Chain Stay Length 420mm 420mm 420mm 420mm 420mm
Bottom Bracket Drop 70mm 70mm 70mm 70mm 70mm
Bottom Bracket Height 285mm 285mm 285mm 285mm 285mm
Head Tube Angle 71.5° 71.5° 71.5° 71.5° 71.5°
Wheel Base 1016mm 1034mm 1049mm 1064mm 1082mm
Head Tube Length 110mm 136mm 157mm 178mm 205mm
Axle to Crown 395mm 395mm 395mm 395mm 395mm
Fork Offset 47mm 47mm 47mm 47mm 47mm
Trail 69mm 69mm 69mm 69mm 69mm
Stack 535mm 560mm 580mm 600mm 625mm
Reach 397mm 407mm 415mm 423mm 433mm
Standover 720mm 760mm 775mm 795mm 823mm

Frame Specs

Wheel Size

700c or 650b

Hub Spacing

142x12mm Rear/ 12x100 Front

Axle

166mm x M12 x P1.0 Axle

Seatpost Diameter

27.2mm (31.8mmm Seat Clamp required)

Max Seatpost Insertion Depth

SM 225mm, MD 265mm, LG 295mm, XL 320mm

Cable Routing

Internal (Including Dopper)

Rear Brake

Flat Mount Standard, 140mm min / 160mm max rotor size

Tire Clearance

700x50c or 27.5x2.1 Max

Bottom Bracket

BSA 68mm English Threaded

Max Chainring

50T with 45MM Chainline

BOTTLE BOSSES

4 sets total: 2 inside front triangle, 1 under downtube, 1 additional single boss under top tube for accessory mounting

Headset

IS42 upper / IS52 Lower
36 Degree Integrated Crown Race

Sizes

S / M / L / XL / XXL

Suspension

Leverage Curve
Upload leverage curve diagram
Anti-Rise
Upload anti-rise diagram
Anti-Squat
Upload anti-squat

Support

Revel makes Titanium bikes?!

We do now! Well, in a way, we always have… our sister company, Why Cycles, has been manufacturing the most advanced titanium bikes in the world since 2016. We're retiring the Why Cycles brand, so now you can find the most advanced carbon and titanium bikes on the market under one name - Revel Bikes.

Can I bikepack with my R+?

Yes! It's a great gravel-packer with frame mounts galore.

Does the R+ have rear rack mounts?

Yes!

Can I run a dropper post on my R+?

Sure can, as long as it's a 27.2mm diameter post.

Can I run a non-Revel fork on my R+?

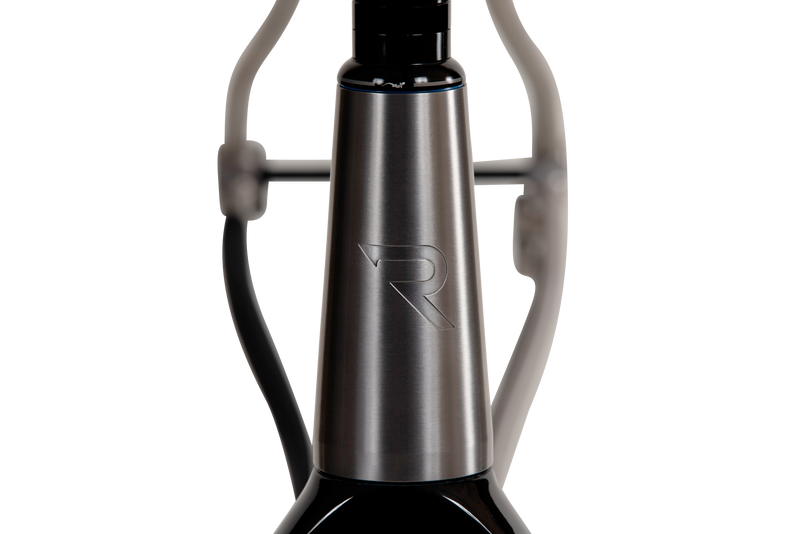

You can indeed. The Revel fork-to-headtube interface is designed to appear "seamless" aesthetically, but all other fork manufacturers should integrate with our head tube. It just may not look the best.

Does the R+ fork have rack/bag mounts?

Not currently.

Can I run a front derailleur on my R+?

No. The R+ is designed to be 1x drivetrain specific and is therefore not compatible with front derailleurs.

What is the best way to polish my titanium frame?

We recommend using some rubbing alcohol and a Scotch Brite pad and scrubbing gently in a "shoe-shine" motion (one direction or back and forth, not circular), then wiping down and finishing with a light coat of furniture polish like Pledge. This should work for both oxidation and light scratches. The graphics are sand-blasted into the frame, so you won't hurt them if you use a soft touch.

Can I run a gravel-specific suspension fork on the R+?

No - this will void the frame warranty. We haven't tested our R+ for the longer A-C of gravel suspension forks. But we prototyped our carbon frame and fork like crazy to settle on a really smooth, comfortable riding gravel bike, so we're confident you'll be extremely pleased with the ride quality!

What is the largest water bottle I can run on the R+?

The R+ was designed to fit 2 22oz water bottles inside the front triangle all sizes. We've included bosses under the down tube for additional bottle or storage carrying capacity on all sizes!

Can this be used as a cyclocross bike?

Of course it can, while it is not yet UCI Certified, we think this would make a great Cross bike if you do not want to have a specific bike for Gravel and Cross.

Can I put flat bars on an R+?

Sure can, not highly recommended based on Geometry, but it does not void warranty

Can I put flat bars on an R+?

Sure can, not highly recommended based on Geometry, but it does not void warranty

Can I put a mountainbike cassette on the R+?

Yes you can, just make sure the chain has enough length for the 52t in the rear! Currently only available with wireless shifting.

What is the crown race angle on the R+ fork?

36 degrees

What is the largest chainring I can run on an R+?

50t round chainring at a 45mm chainline

What chainline should I run on the R+?

The R+ is designed to accomodate either a 45mm chainline or 47.5mm chainline.

UDH COmpatible!? What does that mean?

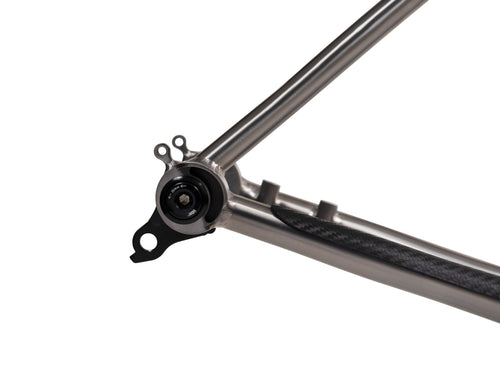

We've updated all Revel Ti bikes with SRAM UDH (Universal Derailleur Hanger), so replacement hangers are easier to find and your bike's drivetrain is more future-proof against manufacturer updates down the line.

Where are the Ti bikes made?

Revel titanium frames are lovingly hand-built in the same family-owned and operated factory in northern China used by Why Cycles for a half-decade. All Revel bikes are then assembled and shipped from our facility in Carbondale, CO.

Is my Why Cycles bike still covered under warranty?

Absolutely! All Why Cycles and Revel Bikes frames come with lifetime warranties and a generous crash replacement program for the original purchaser. If anything does happen and you need a replacement frame, it will most likely be replaced with a Revel branded titanium frame, but we’ll get you back to riding ASAP!
