Experience epic
THE ULTIMATE 29+ ADVENTURE MACHINE

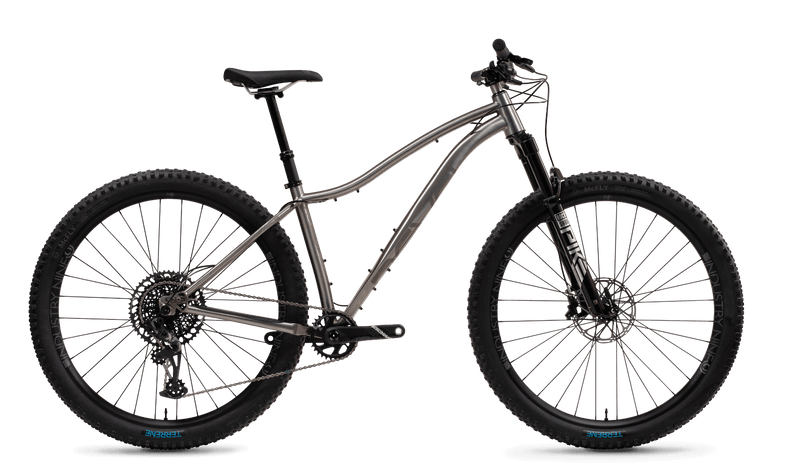

From the Baja Divide to the Colorado Trail and thousands of miles of singletrack all over the world, the Wayward sure has made a name for itself. And this is just a small sample of epic outings that this bike absolutely thrives on. The Wayward V2 leads the way as the ultimate 29+ adventure machine.
fully loaded or xc fast
DISCOVER YOUR NEXT ADVENTURE

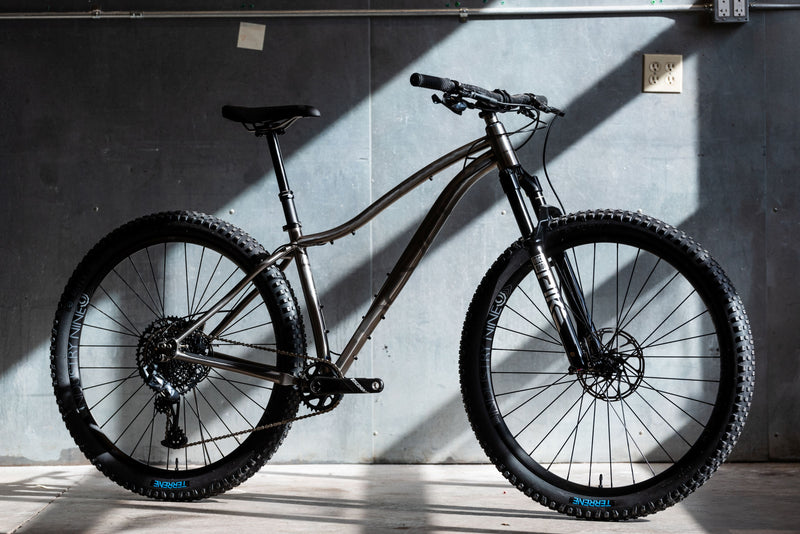

This bike was designed for epic bikepacking and adventures and it thrives fully loaded. Or, ride it as a normal XC/all-mountain hardtail, and the 29+ tires will have you smiling for miles with their capability and comfort. Belt drive split, sliding titanium dropouts, lots of mounting points, and perfect geometry for long days in the saddle make this a truly versatile adventure machine.
-

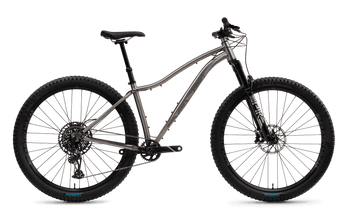

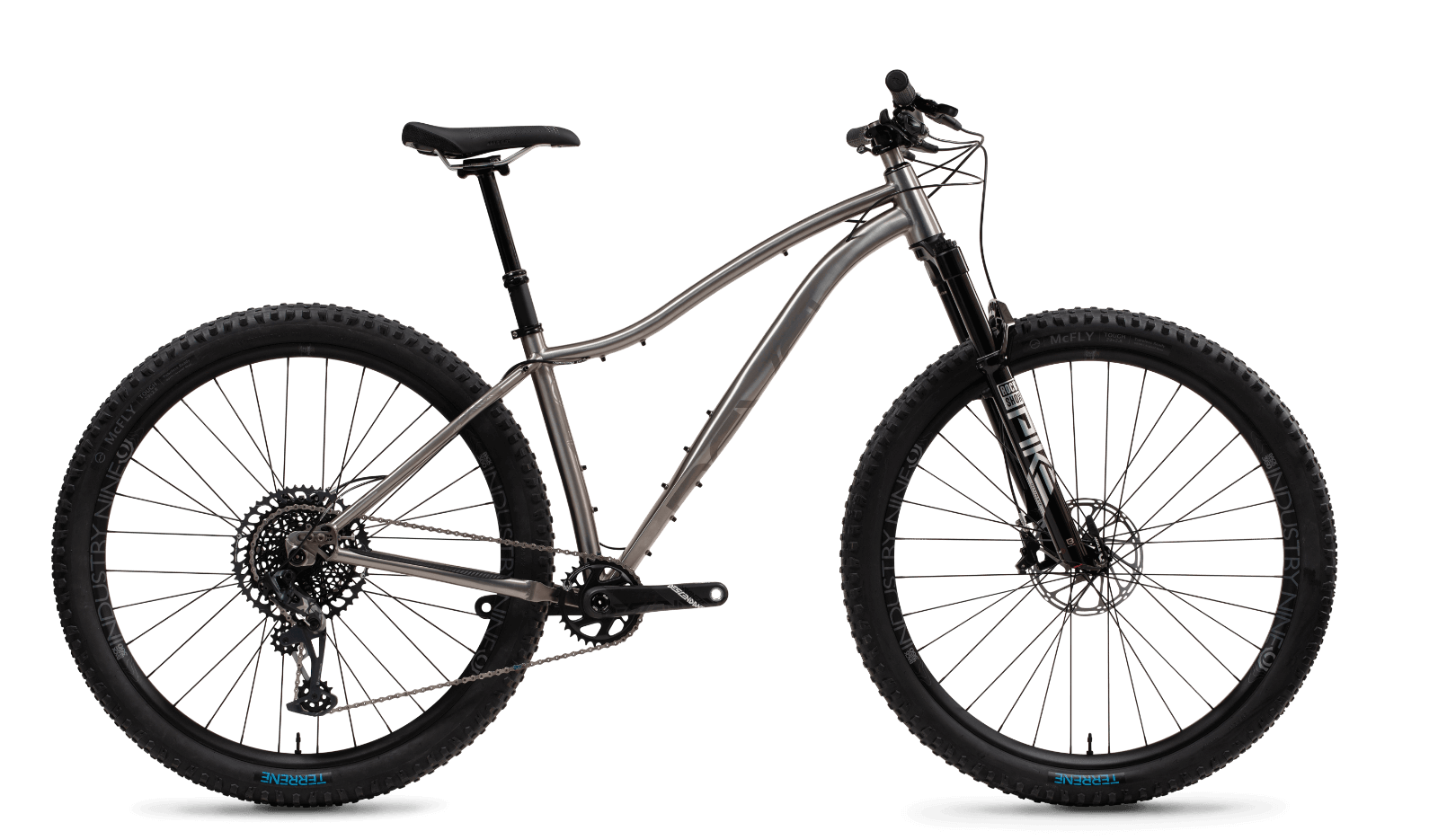

Wayward Frame Only
Regular price $2,499.00Regular priceUnit price per
Technical specifications
Geometry
| Medium | Large | XL | |
|---|---|---|---|
| Rider Height | 5'5"-5'10" | 5'9"-6'2" | 6'1"-6'6" |
| Effective Top Tube Length | 621mm | 643mm | 664mm |
| Seat Tube Length | 420mm | 460mm | 485mm |
| Seat Tube Angle | 74° | 74° | 74° |
| Chain Stay Length | 440-455mm | 440-455mm | 440-455mm |
| Bottom Bracket Drop | 75mm | 75mm | 75mm |
| Bottom Bracket Height | 307mm | 307mm | 307mm |
| Head Tube Angle | 68.5° | 68.5° | 68.5° |
| Wheel Base | 1160mm | 1183mm | 1203mm |
| Head Tube Length | 110mm | 116mm | 118mm |
| Axle to Crown | 510mm | 510mm | 510mm |
| Fork Offset | 51mm | 51mm | 51mm |
| Trail | 92mm | 92mm | 92mm |
| Stack | 636mm | 639mm | 642mm |
| Reach | 455mm | 475mm | 499mm |
| Standover | 720mm | 745mm | 760mm |
Frame Specs
Wheel Size |
29" |
Front Travel |
120mm min/max |
Rear Travel |
00mm |
Hub Spacing |
Boost 148mm rear / 110 front |
Axles |
177x12x1.0 |
Seatpost Diameter |
31.6mm, 34.9 seat clamp |
Max Seatpost Insertion Depth |
MD 220mm, LG 260mm, |
Rear Brake |
Post mount. Belt drive compatible |
Rear Tire Clearance |
29 x 3.0" (rear) |
Bottom Bracket |
73mm BSA English Threaded |
Max Chainring |
36T Round, 55mm chainline |
Tapered Headtube |
IS42 upper / IS52 Lower |

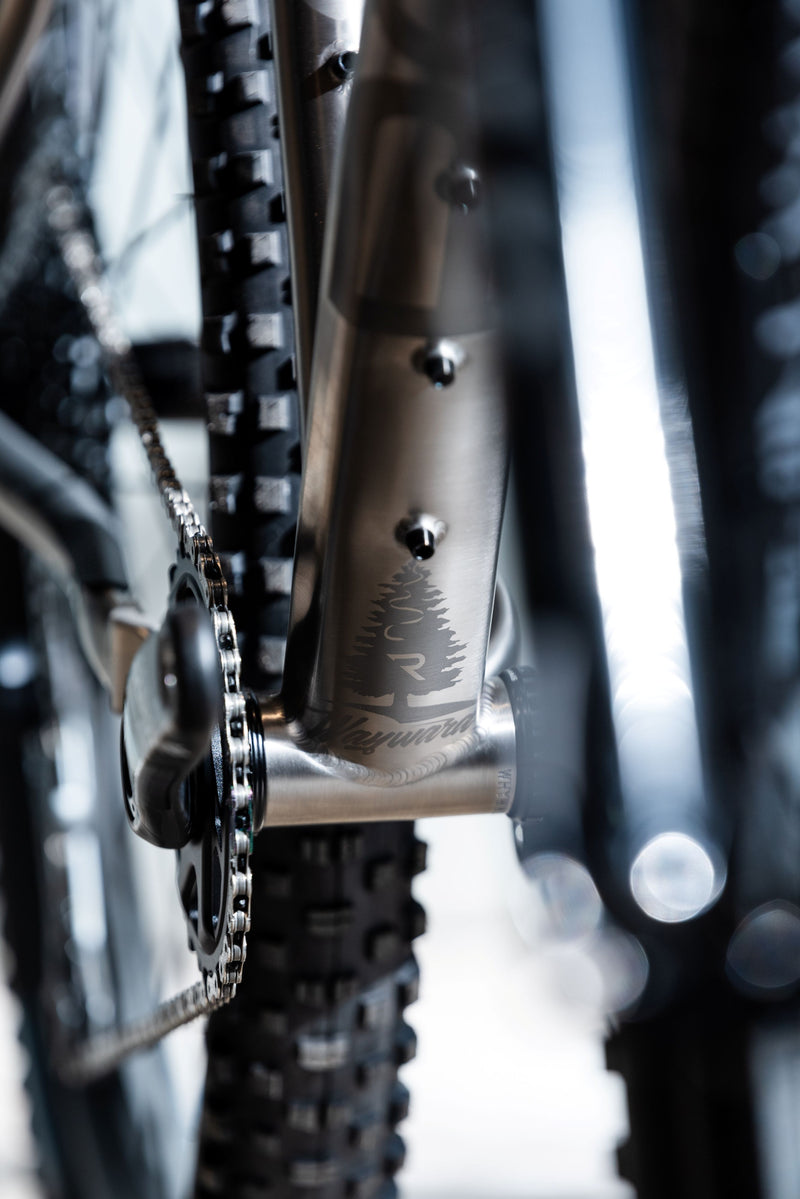

Bottle Bosses |
4 complete sets<br> |
Suspension
The Details
Design Features

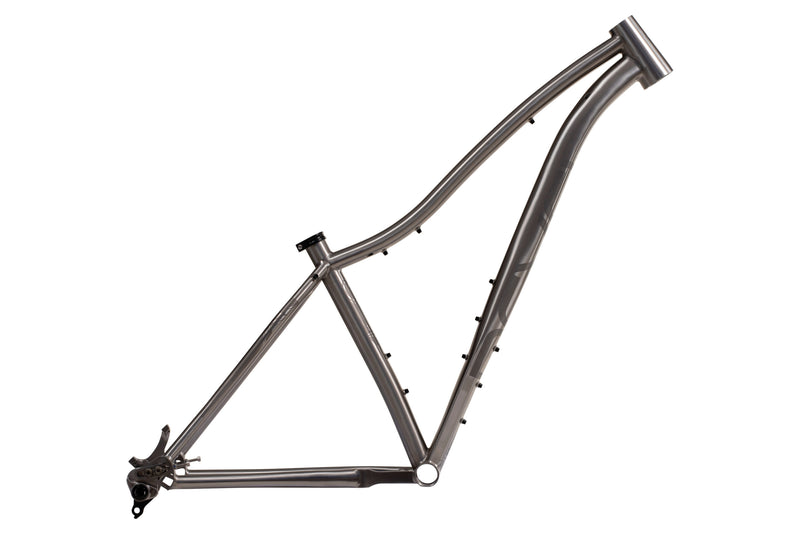

Cold-formed 3/2.5 titanium tubing
Our modern take on traditional titanium- these tube shapes optimize stiffness and compliance

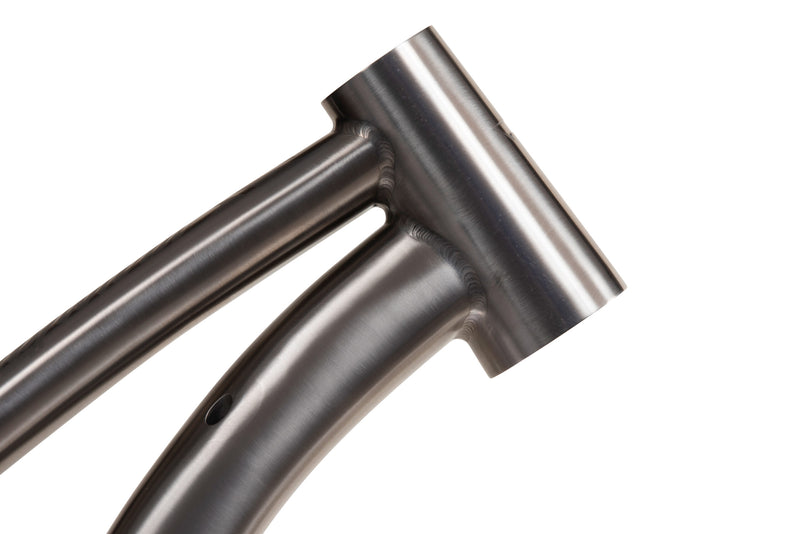

CNC machined 6/4 titanium

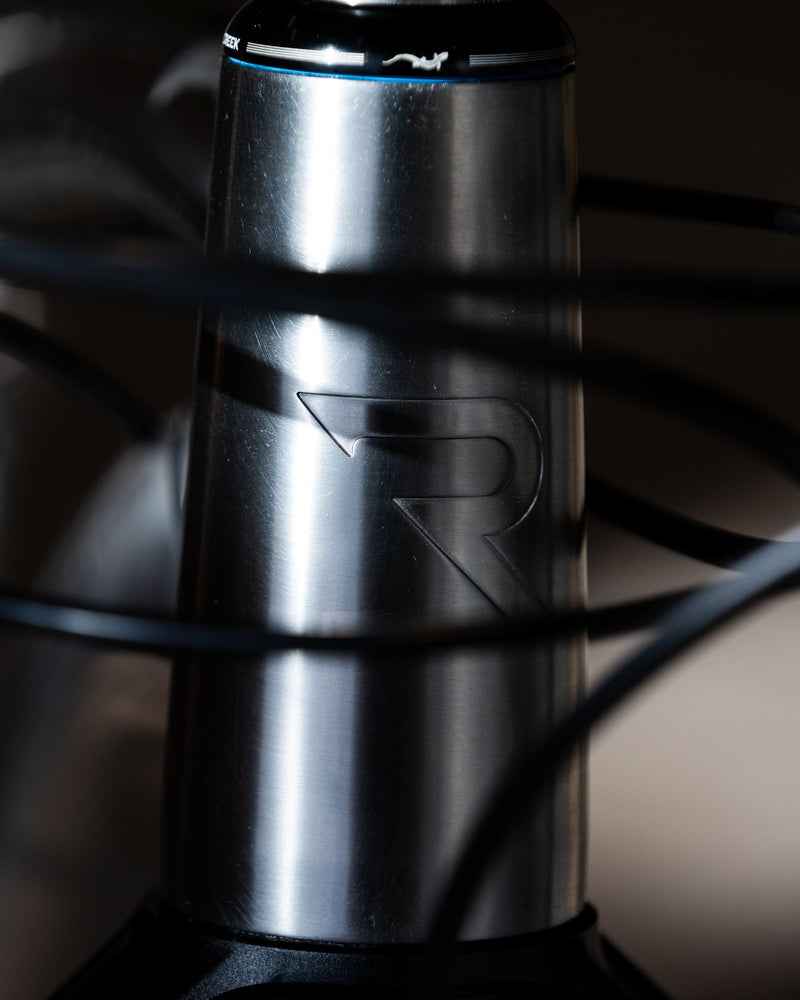

Headtube, BB, dropouts, and inserts

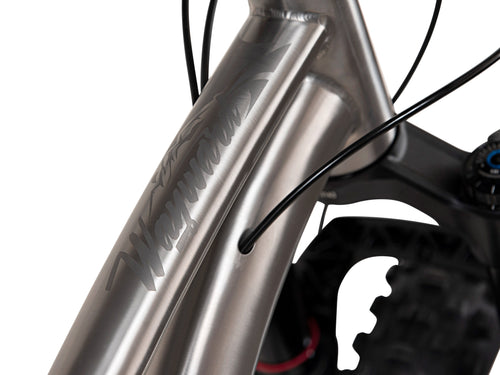

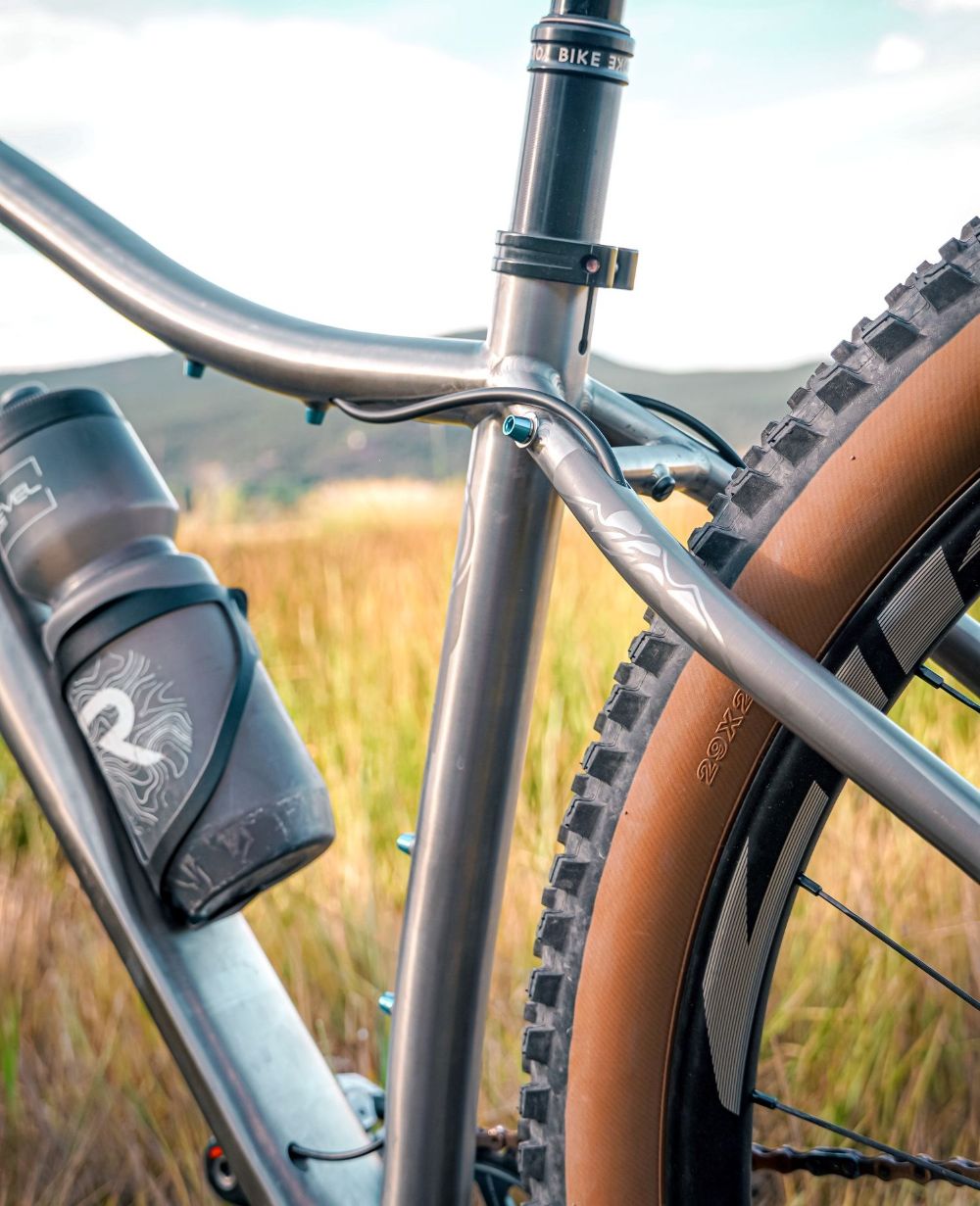

Internal Cable Routing
Clean, quiet, and simple
Threaded BB
Simple, easy, functional.

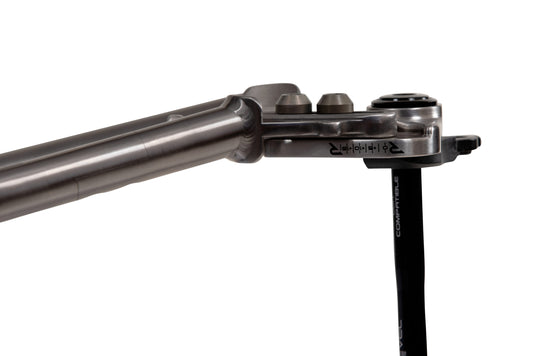

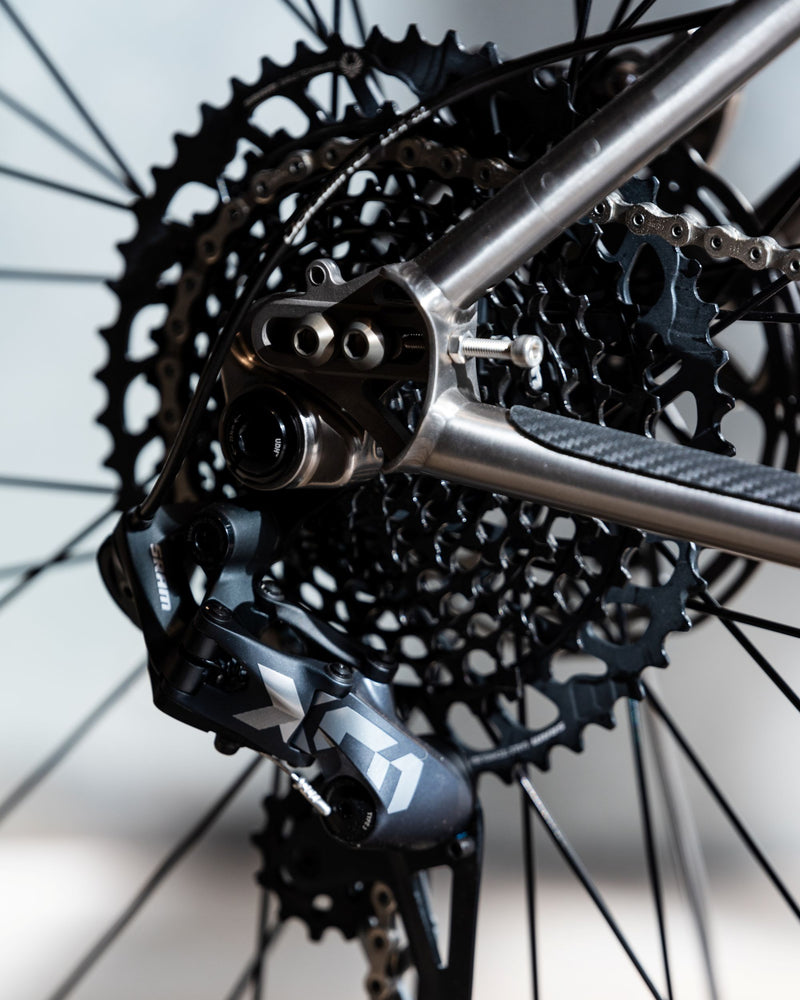

Sliding UDH Dropouts
Future proofing for all drivetrains and chainstay length adjustability.

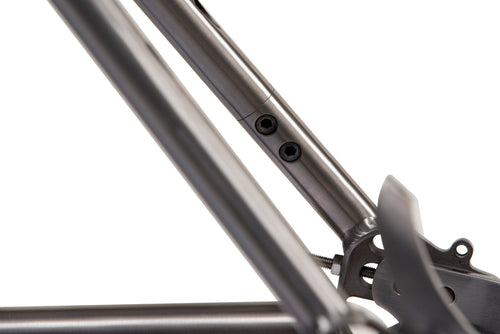

Belt Drive Split
Our unique 6/4 titanium machined puzzle-piece dropout makes for a stealthy, functional, and hidden design if you don't want to run chains.

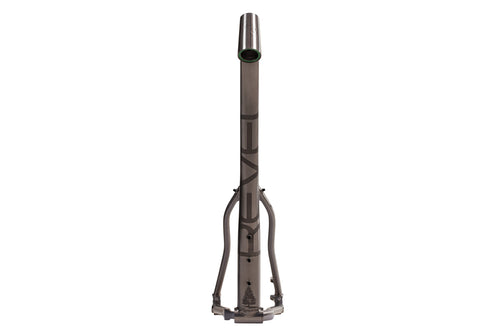

Tappered Headset
IS 42/52 integrated headset for easy installation.
Support
We do now! Well, in a way, we always have… our sister company, Why Cycles, has been manufacturing the most advanced titanium bikes in the world since 2016. We're retiring the Why Cycles brand, so now you can find the most advanced carbon and titanium bikes on the market under one name - Revel Bikes.
Revel titanium frames are lovingly hand-built in the same family-owned and operated factory in northern China used by Why Cycles for a half-decade. All Revel bikes are then assembled and shipped from our facility in Carbondale, CO.
The Wayward is an incredible platform for your ultimate custom adventure build. We've found that most riders going on epic rides with the Wayward prefer to build their bike up by selecting every part to suit their needs. If picking every part sounds daunting, just reach out to any Revel dealer for advice on parts or a pro mechanic to do the build.
Any 29" fork with clearance for plus tires will work. We recommend a minimum of 2.8" but it depends on the tires you'd like to run. The Rockshox Pike is a great choice that fits 29x3.0" tires. A suspension corrected rigid fork is a great option for more mounting and bikepacking features.
Depends - get the Wayward if you're looking for a bikepacking-first rig that can comfortably handle hefty loads on rugged backcountry excursions. Get the El Jefe if you're looking for a ripping fast hardtail that can bikepack when it needs to.
One that fits! We love the bags we've seen and used from companies like Rogue Panda, Oveja Negra and Good Busy Gear.
Up to 29" x 3.0
Yes!
Yes! Just make sure that you've got enough tire clearance and the axle-to-crown length is as close to 510mm as possible.
Yes! Check with the belt drive manufacturer for specifications.
We recommend using some rubbing alcohol and a Scotch Brite pad and scrubbing gently in a "shoe-shine" motion (one direction or back and forth, not circular), then wiping down and finishing with a light coat of furniture polish like Pledge. This should work for both oxidation and light scratches. The graphics are sand-blasted into the frame, so you won't hurt them if you use a soft touch.
15-18Nm for the dropout bolts, 3-4Nm for the tensioner bolt
M5x0.8x35mm Stainless steel cap screw
We've updated all Revel Ti bikes with SRAM UDH (Universal Derailleur Hanger), so replacement hangers are easier to find and your bike's drivetrain is more future-proof against manufacturer updates down the line.
Absolutely! All Why Cycles and Revel Bikes frames come with lifetime warranties and a generous crash replacement program for the original purchaser. If anything does happen and you need a replacement frame, it will most likely be replaced with a Revel branded titanium frame, but we’ll get you back to riding ASAP!
