Titanium

Overview

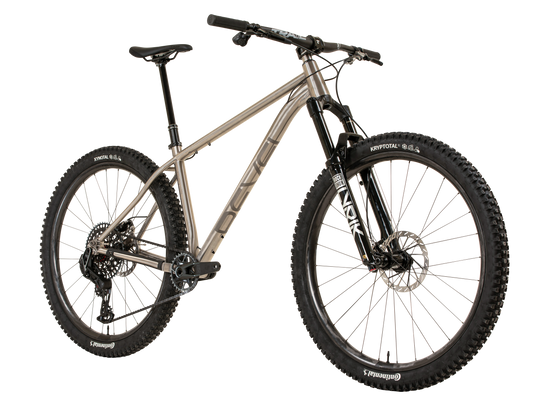

Full Metal Rocket: Meet the Tirade

Full Metal Rocket…Say goodbye to compromise and hello to everything you want in a hardtail. Slack enough to handle the rough stuff and just steep enough to make pedaling a pleasure, the Tirade is incredibly balanced with a nod to our full suspension Rascal. The Tirade boasts a 140mm fork, progressive geometry, and adjustable chainstay lengths to adapt to your every whim. Crafted from cold-formed 3/2.5 titanium tubing, this frame is more than just eye candy—it’s a masterclass in strength and compliance. And with CNC machined headtube, bottom bracket shell, and dropouts, you can bet your bottom dollar this bike means business. Single speed or gears, it’s your call. But one thing’s for sure: when you ride the Tirade, you’re not just riding a bike, you’re riding a whole new beast.

Key Attributes

00mm
Rear Travel
29"
Wheel
140mm
Front Travel
Titanium
Frame Material

The CBF™ focuses the center of curvature in a very finite area on the chainline/top of the chainring, pointing the pedaling forces directly where you want them.

Learn More »

Revel Titanium takes a modern approach to an already tried and true bike frame material. Strong and reliable, yet comfortable and easy on the eyes.

Learn More »

Build Your Bike

Build your bike below to see pricing and availability. Prefer to only see what is in-stock? Check out our Shop In-Stock page!

From: $100.00

Tirade

Build Specs

SRAM GX Eagle
$5,199
SHIMANO XT
$5,499
SRAM X0 Eagle Transmission
$6,999
SRAM XX Eagle Transmission
$9,599
FRAMERevel Tirade 29" Hardtail Revel Tirade 29" Hardtail Revel Tirade 29" Hardtail Revel Tirade 29" Hardtail
FORKRockShox Lyrik Ultimate 29 140MM Fox Float 36 Factory Series 29 140mm GRIP2 44RockShox Lyrik Ultimate 29 140MM RockShox Lyrik Ultimate 29 140MM
WHEELSCrank Bros. Synthesis Alloy Enduro
I9 1/1 Hubs
Crank Bros. Synthesis Alloy Enduro
I9 1/1 Hubs
Crank Bros. Synthesis Alloy Enduro
I9 1/1 Hubs
Revel Carbon RW30 V2
I9 Hydra Hubs
HEADSETCane Creek 40-seriesCane Creek 40-seriesCane Creek 40-seriesCane Creek 40-series
TUBELESSStans No tubes Single shots x2Stans No tubes Single shots x2Stans No tubes Single shots x2Stans No tubes Single shots x2
FRONT TIREContinental Kryptotal-F Trail 29 x 2.4 SoftContinental Kryptotal-F Trail 29 x 2.4 SoftContinental Kryptotal-F Trail 29 x 2.4 SoftContinental Kryptotal-F Trail 29 x 2.4 Soft
REAR TIREContinental Xynotal Trail 29 x 2.4 EnduranceContinental Xynotal Trail 29 x 2.4 EnduranceContinental Xynotal Trail 29 x 2.4 EnduranceContinental Xynotal Trail 29 x 2.4 Endurance
BARRaceFace Aeffect R 35
780mm x 20mm rise
RaceFace Aeffect R 35
780mm x 20mm rise
RaceFace NEXT R 35
800mm x 20mm rise
RaceFace NEXT R 35
800mm x 20mm rise
STEMRaceFace Aeffect R
35 x 40mm
RaceFace Aeffect R
35 x 40mm
RaceFace Aeffect R
35 x 40mm
RaceFace Aeffect R
35 x 40mm
POSTCrank Brothers Highline 7
SM (31.6mm x 150mm)
MD (31.6mm x 170mm)
LG (31.6mm x 200mm)
XL (31.6mm x 200mm)
XXL (31.6mm x 200mm)
Bike Yoke Revive 2.0
SM (31.6mm x 160mm)
MD (31.6mm x 185mm)
LG (31.6mm x 213mm)
XL (31.6mm x 213mm)
XXL (31.6mm x 213mm)
Bike Yoke Revive 2.0
SM (31.6mm x 160mm)
MD (31.6mm x 185mm)
LG (31.6mm x 213mm)
XL (31.6mm x 213mm)
XXL (31.6mm x 213mm)
Bike Yoke Revive 2.0
SM (31.6mm x 160mm)
MD (31.6mm x 185mm)
LG (31.6mm x 213mm)
XL (31.6mm x 213mm)
XXL (31.6mm x 213mm)
SADDLESDG Bel-Air Lux-AlloySDG Bel-Air Lux-AlloySDG Bel-Air Lux-AlloySDG Bel-Air Lux-Alloy
BRAKESSRAM Code RShimano XT M8120 4-PistonSRAM Code RSCSRAM Code Ultimate Stealth
ROTORSSRAM HS2 6-Bolt 180mm Front / 180mm RearShimano Rotor XT RT86 6-Bolt 160mm front & rearSRAM HS2 6-Bolt 180mm Front / 180mm RearSRAM HS2 6-Bolt 180mm Front / 180mm Rear
SHIFTERSRAM GX EagleShimano XT M8100 12spdSRAM AXS Shifter Pod UltimateSRAM AXS Shifter Pod Ultimate
REAR DERAILLEURSRAM GX EagleShimano XT M8100SRAM X0 ETSRAM XX ET
CHAINSRAM GX EagleShimano XT M8100 12spdSRAM GX ET T-TypeSRAM XX ET T-Type
CASSETTESRAM GX Eagle 10-52 Shimano XT M8100 10-51 12spdSRAM X0 ET T-TypeSRAM XX ET T-Type
CRANKSETSRAM GX Eagle alloy DUB 170mm 32tShimano XT M8120 170mm 32tSRAM X0 Eagle T-Type 170mm 32tSRAM XX Eagle T-Type 170mm 32t
BOTTOM BRACKETSRAM DUB BSAShimano XT MT800SRAM DUB BSA WideSRAM DUB BSA Wide
GRIPSTrail 1 Farlow Gap BlackTrail 1 Farlow Gap BlackTrail 1 Farlow Gap BlackTrail 1 Farlow Gap Black
SEAT COLLARRevel 34.9mm DiaRevel 34.9mm DiaRevel 34.9mm DiaRevel 34.9mm Dia
**Specifications subject to change without notice****Specifications subject to change without notice****Specifications subject to change without notice****Specifications subject to change without notice**

Revel selectively bred a whole new beast and pushed the brand's hardtail phenotype up the evolutionary ladder. By combining their expertise in designing really killer full-suspension bikes with Why's command of titanium engineering, Revel has artificially bred a new class of hardtail for its ever-expanding catalog.Read more...

The Revel Tirade is the Colorado-based brand’s heaviest-hitting hardtail yet. All it takes is some G-force-inducing riding to wake the Tirade up. I found the S7’s responsiveness in the Tirade when pushing into the enduro end of my riding limits. Popping off rocks and small ledges became mandatory, not voluntary, and pushing the bottom bracket into berms and natural banks along the Arizona Trail and others became an instinctive response.Read more...

S M L XL XXL
S M L XL XXL
RIDER HEIGHT (in.) 5'1"-5'6" 5'5"-5'10" 5'9"-6'1" 6'0"-6'4" 6'3"-6'8"
RIDER HEIGHT (cm.) 155-166cm 165-178cm 175-188cm 185-198cm 190cm-203cm
EFFECTIVE TOP TUBE LENGTH 603mm 627mm 641mm 671mm 698mm
SEAT TUBE LENGTH 370mm 410mm 440mm 470mm 510mm
SEAT TUBE ANGLE (EFFECTIVE/ACTUAL) 74°/72° 74.5°/72° 74.5°/72° 75°/73.5° 75.5°/74°
CHAIN STAY LENGTH 420-437mm 420-437mm 420-437mm 420-437mm 420-437mm
BOTTOM BRACKET DROP 59mm 59mm 59mm 59mm 59mm
BOTTOM BRACKET HEIGHT 317mm 317mm 317mm 317mm 317mm
HEAD TUBE ANGLE 64.7° 64.7° 64.7° 64.7° 64.7°
WHEEL BASE 1163mm 1190mm 1215mm 1240mm 1280mm
HEAD TUBE LENGTH 95mm 110mm 122mm 132mm 149mm
AXLE TO CROWN 551mm 551mm 551mm 551mm 551mm
FORK OFFSET 44mm 44mm 44mm 44mm 44mm
TRAIL 131mm 131mm 131mm 131mm 131mm
STACK 626mm 640mm 650mm 660mm 676mm
REACH 427mm 446mm 467mm 492mm 522mm
STANDOVER 717mm 720mm 728mm 742mm 760mm
FRAME MATERIAL
Titanium
WHEEL SIZE
29"
FRONT TRAVEL
140mm min / 150mm max
REAR TRAVEL
0mm
HUB SPACING
Boost 148mm rear / 110 mm front
AXLE SPEC
SEATPOST DIAMETER
31.6mm, 34.9mm Seat Clamp
SEATPOST INSERTION DEPTH
SM (230mm), MD (270mm),
LG (300mm), XL(330mm), XXL(370mm)
REAR BRAKE
160mm post mount / 203mm max rotor
REAR TIRE CLEARANCE
29x2.6" max
BOTTOM BRACKET
Threaded 73mm BSA Standard
MAX CHAINRING
36T Max, 55mm Chainline
HEADSET
IS42 upper / IS52 Lower
BOTTLE BOSSES
3 sets total
SIZES
S / M / L / XL / XXL
FRAME WARRANTY
Lifetime Warranty - View Details
title
val

The Details

Design Features

Tirade Logo

CNC Machined 6/4 Titanium

The headtube, bottom bracket shell, and dropouts require greater strength and are CNC machined from single pieces of 6/4 titanium.

Tirade Frame Side

Cold-formed 3/2.5 Titanium Tubing

Our modern take on traditional titanium - these tube shapes optimize stiffness and compliance.

Tirade Internal Cable Routing

Internal cable routing

Clean, quiet, and simple.

Tirade Frame Integrated Headset

IS 42/52 Integrated Headset

IS 42/52 integrated headset for simple, easy maintenance with no need for fancy tools.

Tirade Threaded Bottom Bracket

Threaded Bottom Bracket

Simple, easy, functional.

Tirade Sliding Dropouts

Sliding UDH dropouts

Future proofed adjustability! Run any drivetrain, single speed or geared, and easily know your chainstay length.

Support

The Tirade was inspired from our most popular full suspension bike, the Rascal. This bike is built for those who want the capability of a longer travel bike, but the simple beauty of titanium hardtails. This bike can ride anything you put in front of it, with modern features to make it the most comfortable hardtail available.

We do now! Well, in a way, we always have… our sister company, Why Cycles, has been manufacturing the most advanced titanium bikes in the world since 2016. We're retiring the Why Cycles brand, so now you can find the most advanced carbon and titanium bikes on the market under one name - Revel Bikes.

Yes! This is our first ever titanium bike with the ISCG 05 Tabs. Any bashguards that use this standard will work with your new bike.

Yes, the Tirade comes with our state of the art sliding dropout design ranging from 420-437.

We have completed testing for +/- 10mm for all our models, so 150mm is you maximum travel.

29x2.6 for desired tire clearance

Up to a 36t Round, or 34T Oval

Designed around a 55mm Chainline for best use with SRAM Transmission Drivetrains.

Designed around a 203mm Max Rotor Size.

Yes, just get it as close to the desired 551mm Axle to Crown.

Email [email protected] or give the fine Rider Support Team here at Revel a ring: 970-456-7336

Required Tools for Basic Service
Part Number Description Qty.
