STYLE AT SPEED
170/165MM ENDURO | CBF | BIG TRAVEL, NO TRADEOFFS

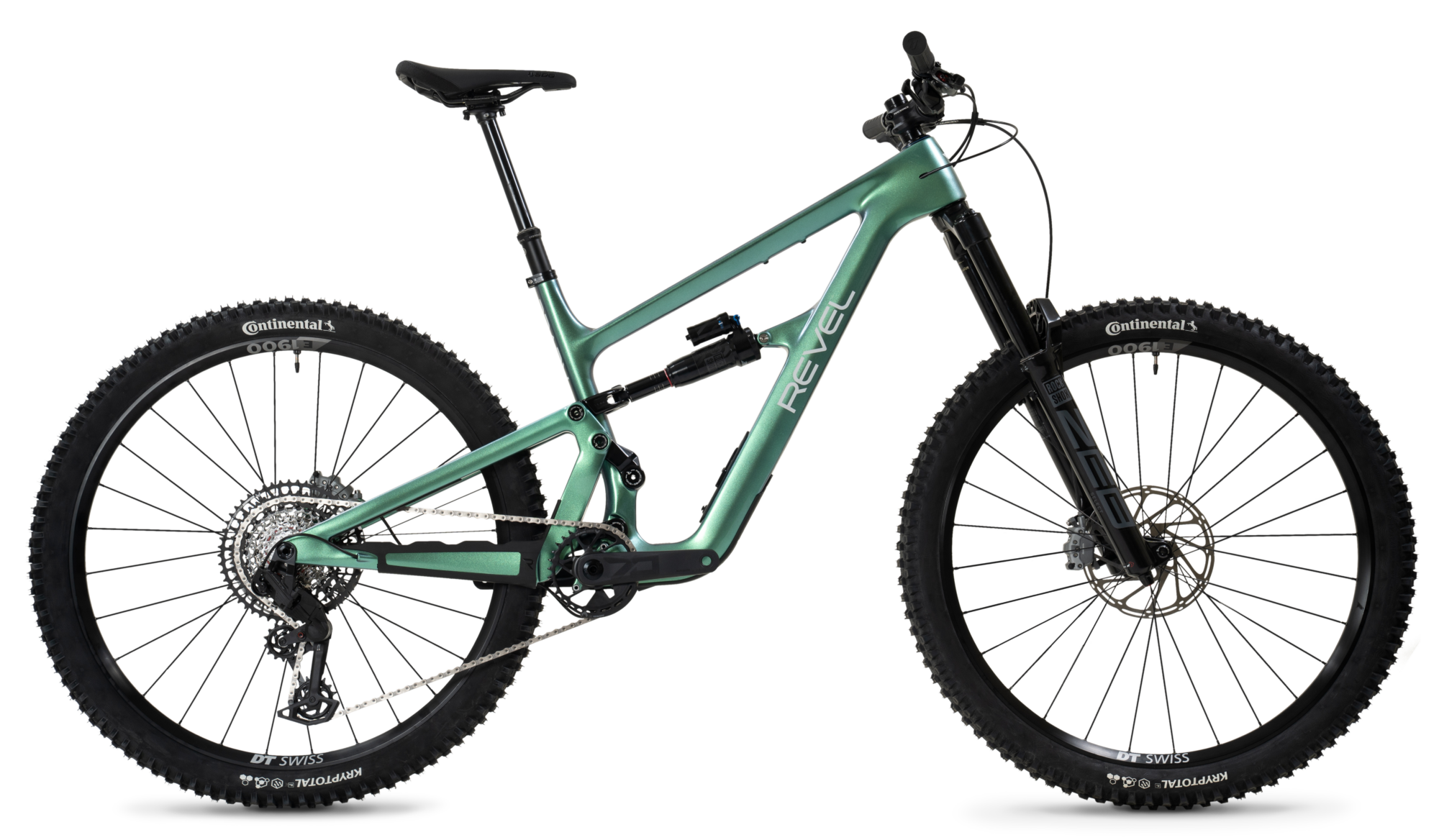

The Revel Ritual is a no-compromise enduro machine built for riders who live for speed, steep terrain, and all-day adventure. With 165mm of CBF-driven rear travel, a 170mm fork, and modern, aggressive geometry, the Ritual delivers a perfect blend of pedaling efficiency, downhill confidence, and all-out capability.
MILLIMETERS MATTER
THE RIDE FOR THOSE WHO EARN THEIR THRILLS THE HARD WAY
Built for chaos, crafted for control, and designed to thrive on big mountain lines, enduro tracks, and bike park laps, the Ritual backs up its bold performance with serious durability. All-new hardware shifts the bearings into CNC-machined links, offering tighter tolerances, a stiffer frame, longer bearing life, and reduced noise. In-frame downtube storage, full accessory mounts, and ample frame protection ensure the Ritual is as functional as it is fearless.
-

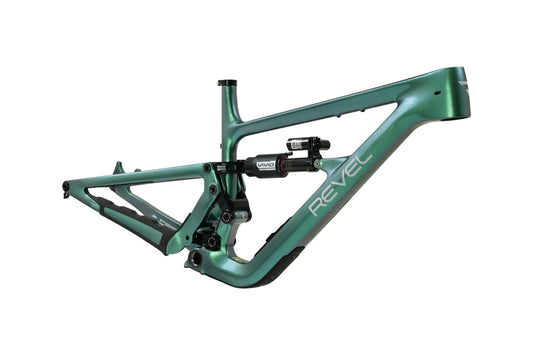

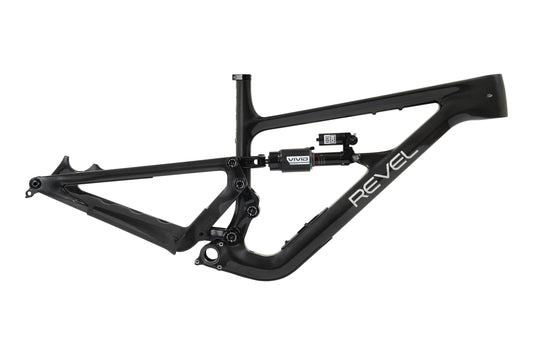

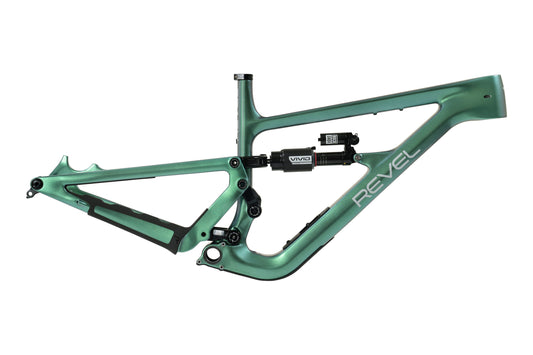

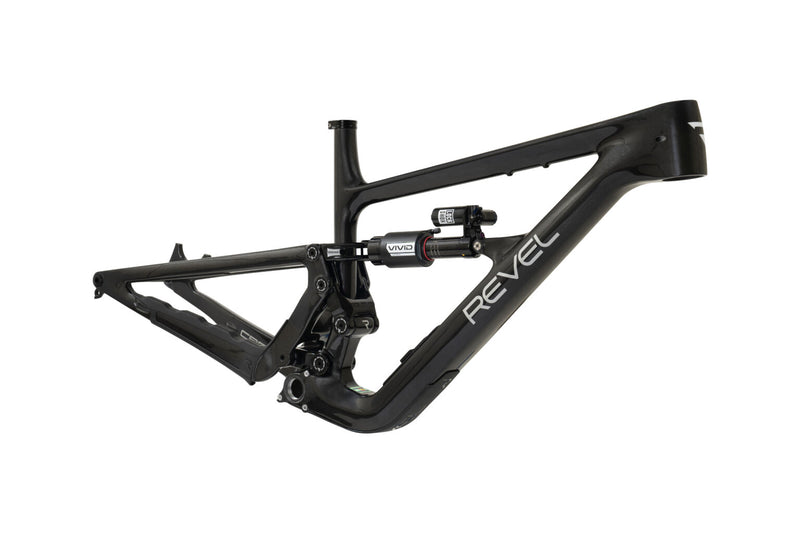

SaleRitual Frame Kit
Regular price $2,309.00 USDRegular priceUnit price per$3,299.00 USDSale price $2,309.00 USDSale -

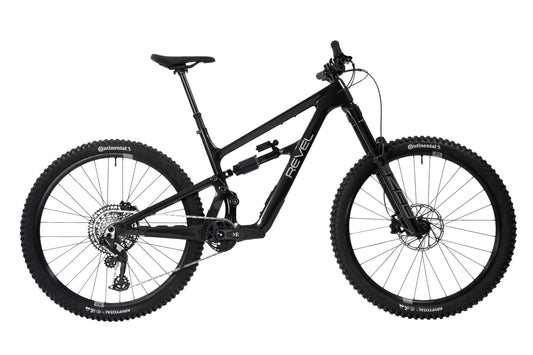

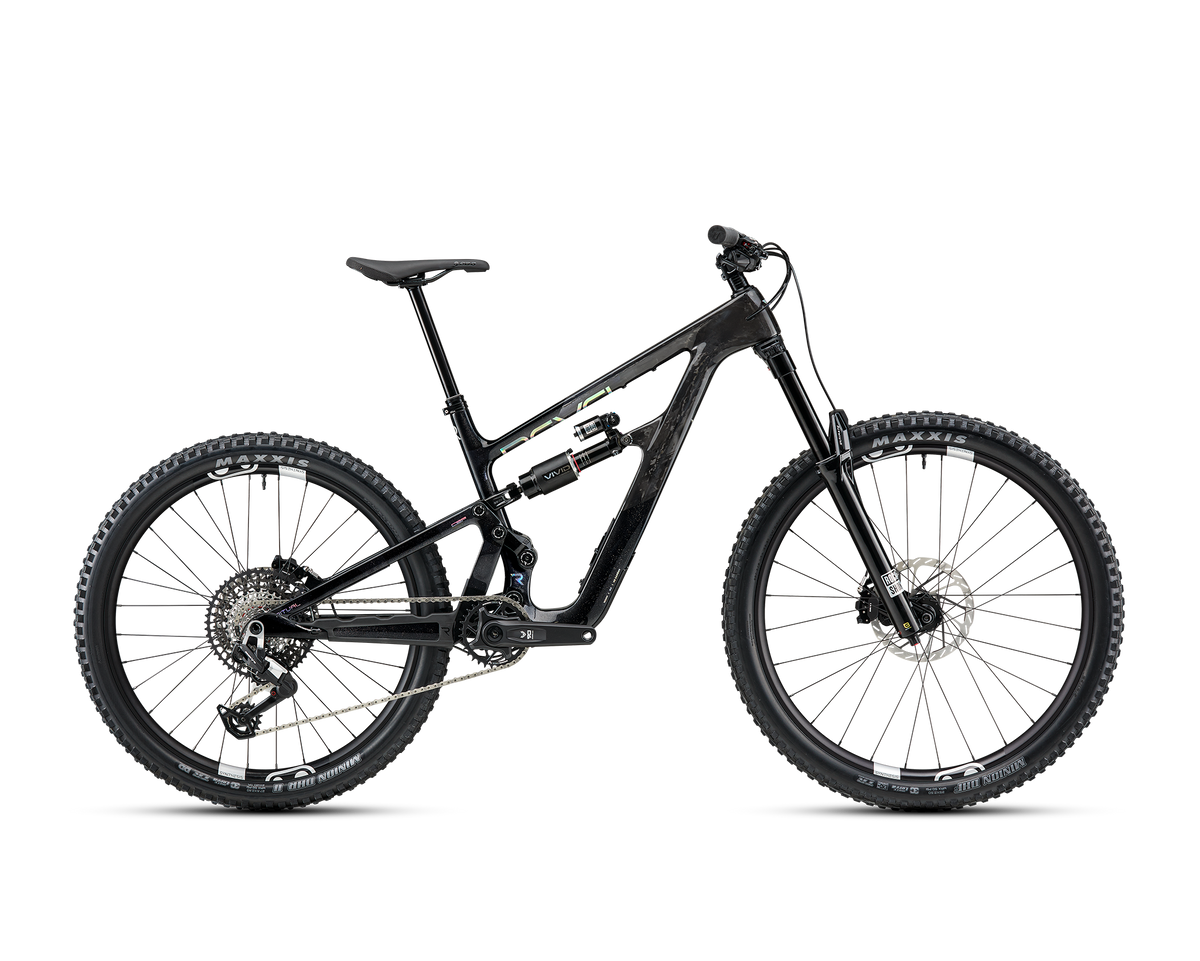

Ritual SRAM Eagle 90 Kit
Regular price $4,124.00 USDRegular priceUnit price per$5,499.00 USDSale price $4,124.00 USDSale -

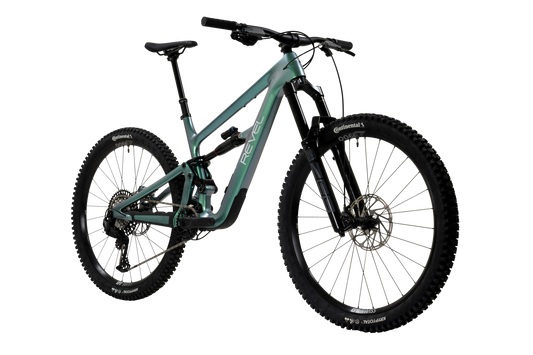

Ritual SRAM X0 Transmission Kit
Regular price $5,474.00 USDRegular priceUnit price per$7,299.00 USDSale price $5,474.00 USDSale -

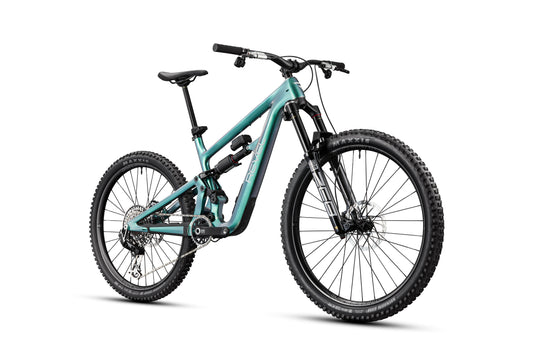

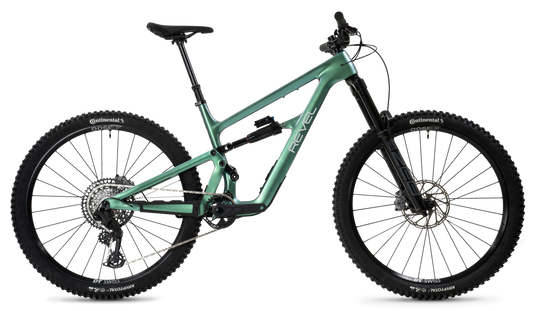

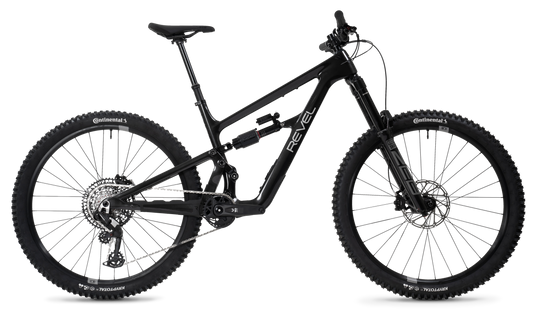

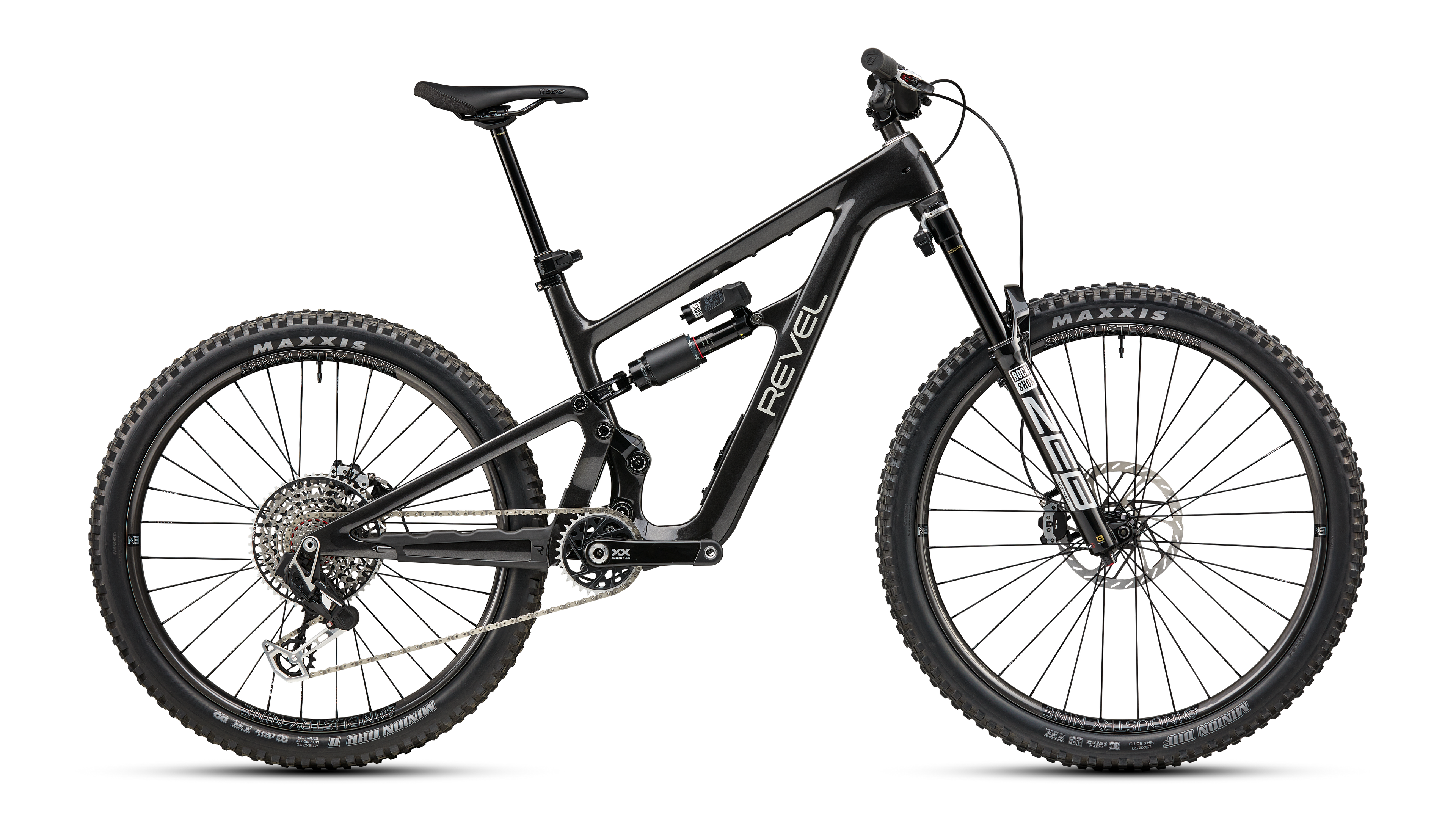

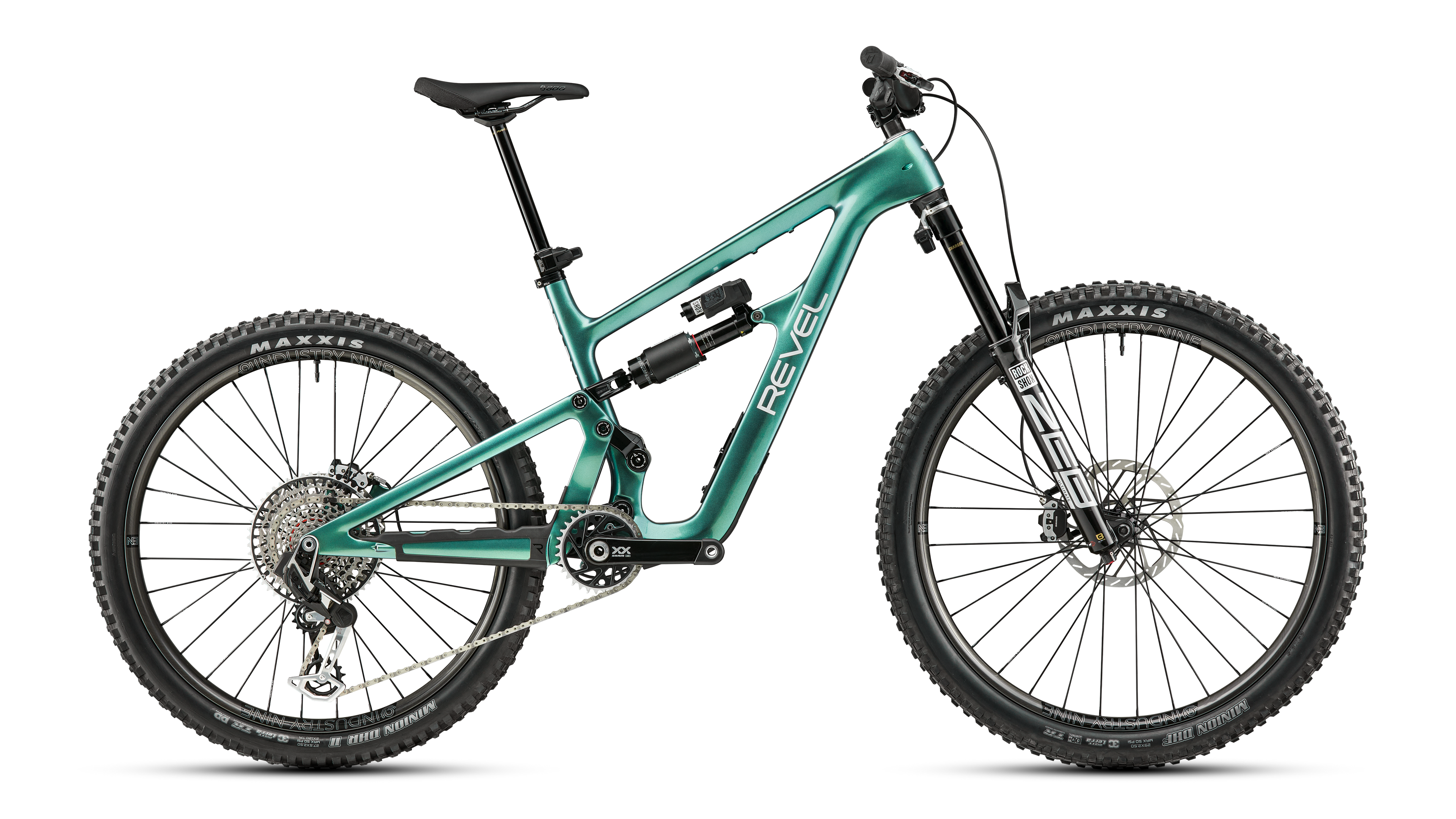

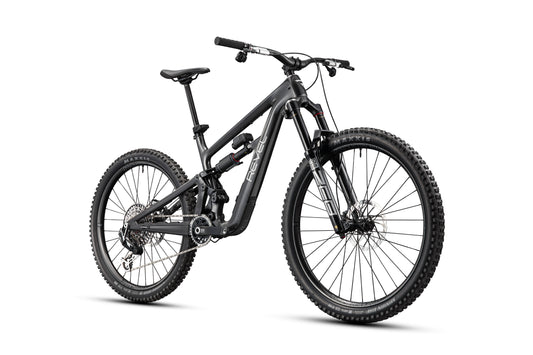

Ritual SRAM XX Transmission Kit
Regular price $7,724.00 USDRegular priceUnit price per$10,299.00 USDSale price $7,724.00 USDSale
Build Specifications
Geometry
| Measurement | Small | Medium | Large | XL |
|---|---|---|---|---|
| Rider Height | 5'1"-5'7" | 5'6"-5'10" | 5'9"-6'2" | 6'1"-6'7" |
| Effective Top Tube Length | 588mm | 606mm | 627mm | 657mm |
| Seat Tube Length | 415mm | 425mm | 445mm | 475mm |
| Seat Tube Angle | 76°/69.5° | 76.5°/70° | 77°/70.2° | 77°/70.5° |
| Chain Stay Length | 434mm | 436mm | 438mm | 441mm |
| Bottom Bracket Drop | 29/11mm | 29/11mm | 29mm | 29mm |
| Bottom Bracket Height | 348mm | 348mm | 348mm | 348mm |
| Head Tube Angle | 64° | 64° | 64° | 64° |
| Wheel Base | 1205mm | 1232mm | 1263mm | 1298mm |
| Head Tube Length | 90mm | 96mm | 104mm | 115mm |
| Axle to Crown | 586mm | 586mm | 586mm | 586mm |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Trail | 136mm | 136mm | 136mm | 136mm |
| Stack | 622mm | 628mm | 635mm | 645mm |
| Reach | 433mm | 455mm | 480mm | 508mm |
| Standover | 731mm | 731mm | 731mm | 731mm |
Frame Specs
Wheel Size |
MX - 29"/27.5"(S,M). 29" (L, XL) |
Front Travel |
170mm |
Rear Travel |
165mm |
Shock Spec |
230mm X 65mm |
Axles |
177x12x1.0 |
Seatpost Diameter |
31.6mm |
Max Seatpost Insertion Depth |
SM 260mm, MD 270mm, |
Rear Brake |
200mm post mount / 223mm max rotor size |
Rear Tire Clearance |
27.5” x 26 ” (SM&MD)/29" x 2.6" (LG&XL) |
Bottom Bracket |
73mm BSA Threaded |
Max Chainring |
35t Round / 34t Oval |
Tapered Headtube |
Zs44 Upper / ZS56 Lower |
Size / Color |
Quantum Race / Dark Matter |
Suspension
The Details
Design Features

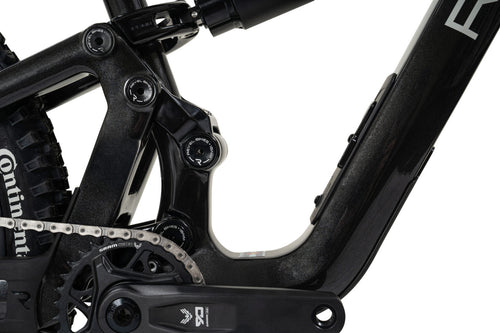

Ready for Rugged With Improved Pivot Design
Build for heavy-hitting enduro riding, the Ritual provides improved bombproof pivot design, enhanced bearing longevity, and better shielded bearings providing extra durability.
Bash Guard Ready
ISCG-05 Tabs for when your drivetrain need a little extra protection.

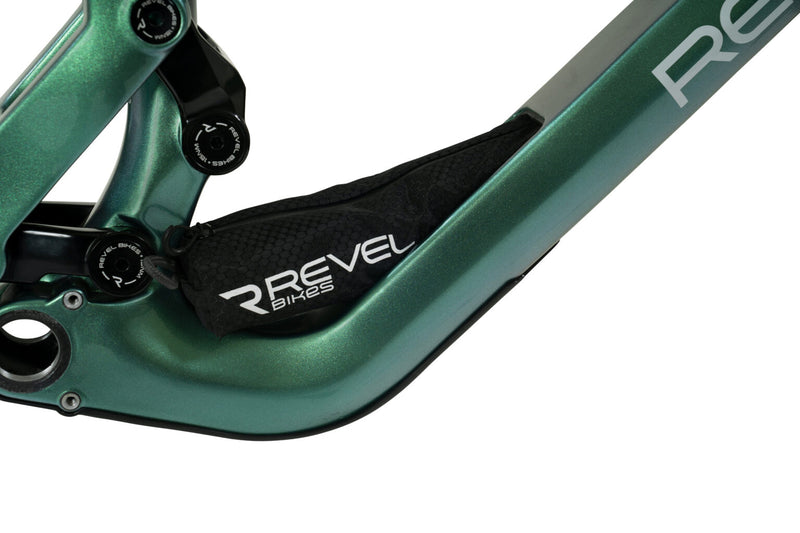

Easy Use In-Frame Storage
A modern convenience - Keep tools, snacks, layers and more right inside your frame without compromising ride quality. A perfect fit bag comes standard making storage use easy and organized.

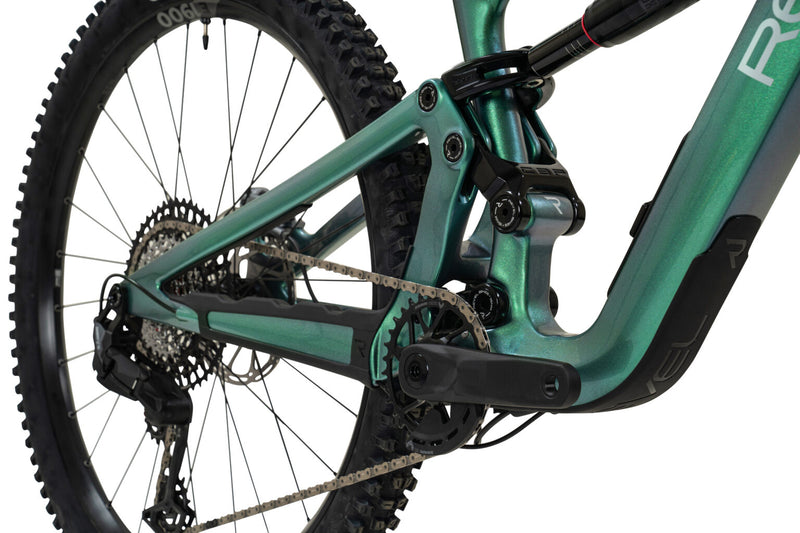

Loves a Lift Ride, Never Expects Them

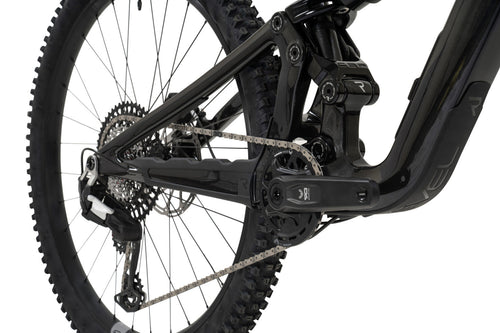

The Ritual blends cutting-edge CBF suspension with size-specific kinematics to deliver an efficient, responsive ride. It maintains exceptional pedaling abilities for climbing while preserving the confidence and control needed for aggressive downhill performance.

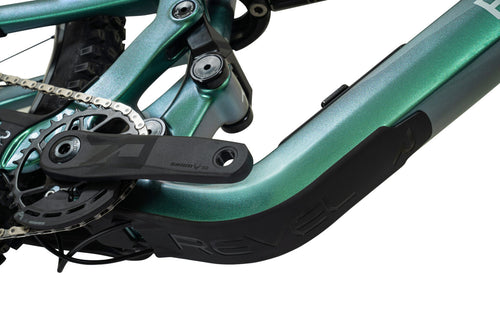

Custom Frame Protection
The Ritual features custom frame protection making sure your bike can go the distance. A chainstay protector provides a quieter ride and a rubber downtube guard provides added durability in the roughest terrain.

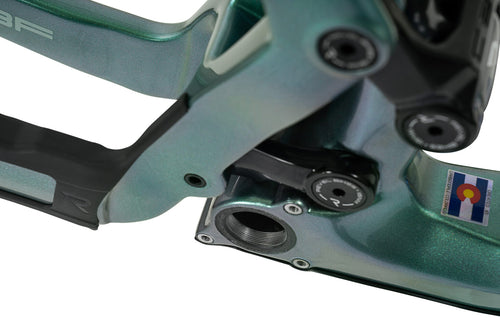

No Mess, No Stress Set-Up

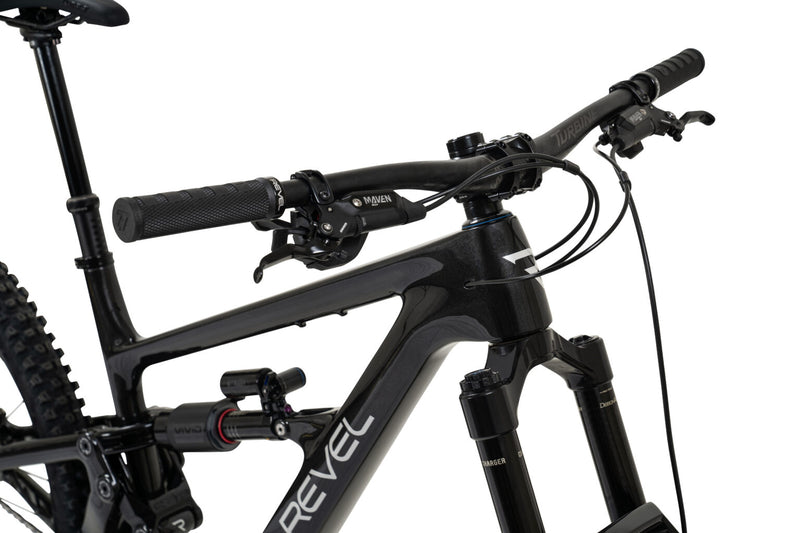

A threaded BB, fully guided internal cable routing, and a pressfit headset provide an easy set up so you can get riding. Internal cable routing limits noise , provides a clean look and added protection.
Support
NO, only the small and medium sizes use MX wheelsets. The large and XL sizes are 29" front and rear.
The shock size is 230x65mm. The mounting hardware is 25x8mm
Yes, the Ritual can fit coil shocks and large air can shocks like the Rockshox Vivid Air and the Fox X2 Air.
The Ritual is designed and optimized around a 32T chainring. 34T is the max chainring size on sizes small-large. XL can fit a 36T chainring.
The Ritual is designed with a 170mm fork with a 596mm axle to crown length. But it is compatible with a 180mm fork that does not exceed a 596mm axle to crown.
The large and XL frames are not designed for a mullet setup. Using a mixed wheel size configuration has not been tested and will void the frame warranty.
No you cannot as the Ritual frame was designed specifically for a 165mm travel shock. Changing this will void the warranty.
The Ritual is designed to perform optimally with its stock headset configuration. We have not tested it with angle-adjustable headsets, so we can’t guarantee proper fit or performance with those setups. Please note that installing an angle-adjustable headset will void the frame the frame warranty
The Ritual features ISCG-05 tabs. This is a common mounting standard for chainguides and bash guards that you can find from great companies like MRP, OneUp, and E13.
Yes, as long as the axle to crown measurement does not exceed 596mm

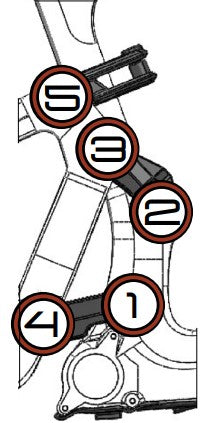

| Torque Specifications | |
|---|---|
| Pivot #1 | 15 Nm - Apply grease to axle shaft (DO NOT apply grease to threads) |
| Pivot #2 | 15 Nm - Apply grease to axle shaft (DO NOT apply grease to threads). |
| Pivot #4 | 15 Nm - Apply grease to axle shaft (DO NOT apply grease to threads). |
| Pivot #3 | 15 Nm - Apply grease to axle shaft (DO NOT apply grease to threads). Front triangle and rear triangle must be assembled before upper link is connected to rear triangle |
| Pivot #5 | 15 Nm - Apply grease to axle shaft (DO NOT apply grease to threads). Front triangle and rear triangle must be assembled before upper link is connected to rear triangle |
| Rear Shock Bolt | 15 Nm - Apply titanium anti-seize to threads on rear shock bolt. Ensure UDH hanger is rotated fully forward and resting on rotation stop. |
| Forward Shock Bolt | 10 Nm |
| Rear Axle | 13 Nm - DO NOT torque axle to torque spec without wheel installed. |
| Cable Clamp Bolt | 2 Nm |
| UDH Hanger | 25 Nm - UDH hanger is left-hand threaded |
Required Tools for Basic Service
» Torque Wrench
» 1x 4mm Hex Key
» 1x 5mm Hex Key
» 1x 6mm Hex Key
» 1x 8mm Hex Key
» Titanium Anti-Seize Compound
» Grease
» Bearing Puller (Slide Hammer) - 15mm
» Bearing Press
» Ensure all bolts are torqued to spec listed in this manual and on bolt head.
» All bolts are right hand threaded but some have hex profiles on either end. If turning the bolt from the threaded side, turning counter clockwise will tighten the bolt
» Bolts come with Nylock patch installed. This serves the function of thread looker and can be reused for multiple installations. Verify condition of patch before assembly. If patch looks worn or damaged add Blue Loctite 243.
» It is easier to tighten linkage assembly to torque once it has been fully assembled. Similarly it is easiest to break bolts free when linkage is fully assembled.
» All images shown in exploded views of pivots correspond to exploded view on Page 4 of Tech Manual
» For detailed view and part information on specific pivots, please download the tech manual.
