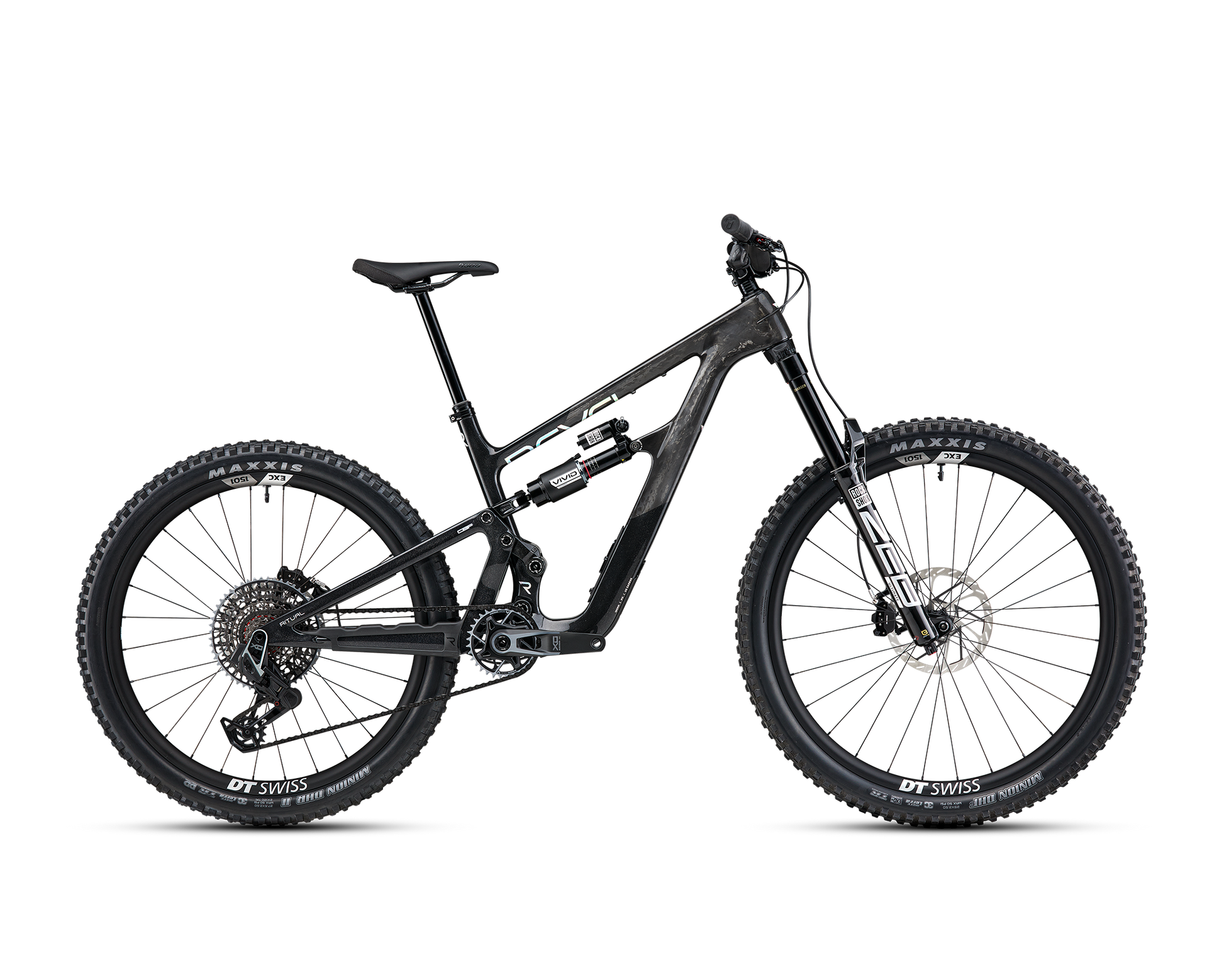

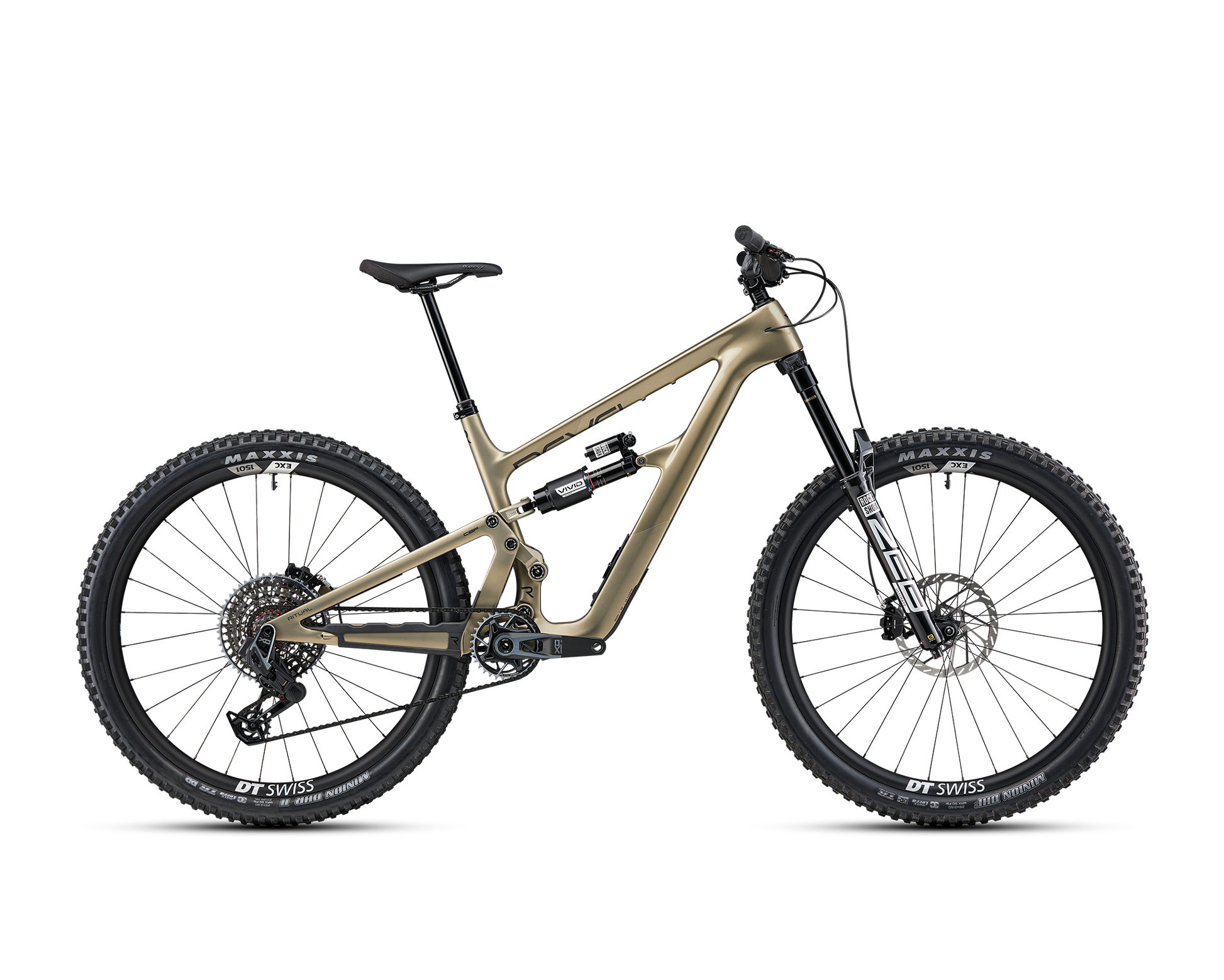

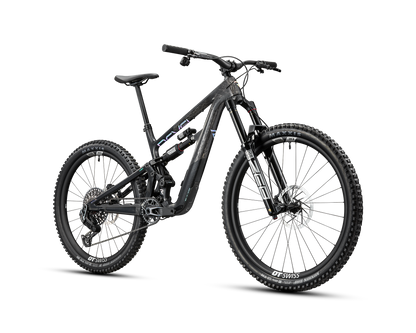

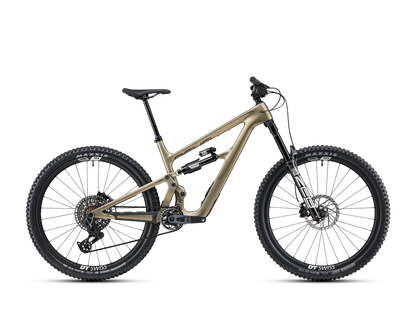

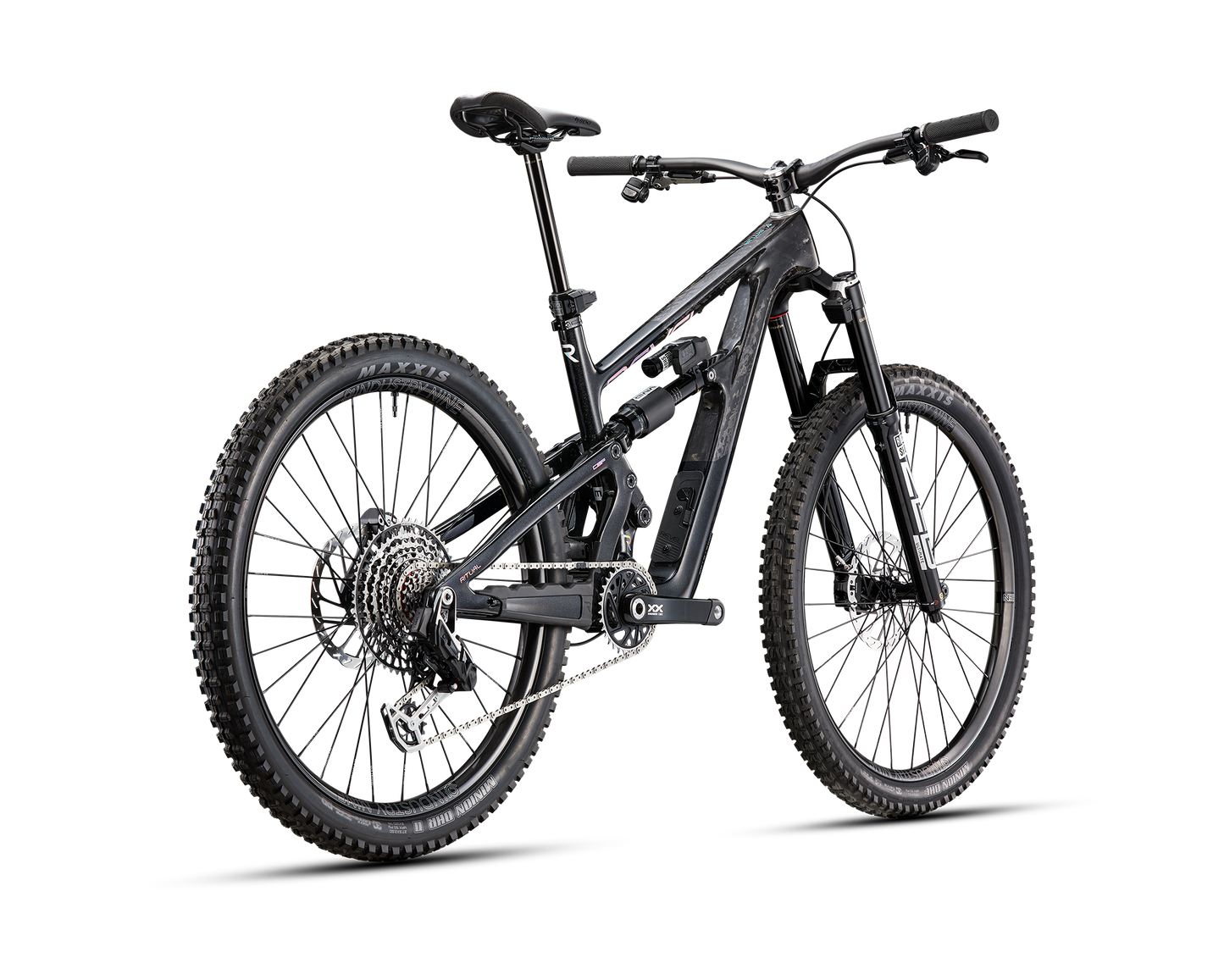

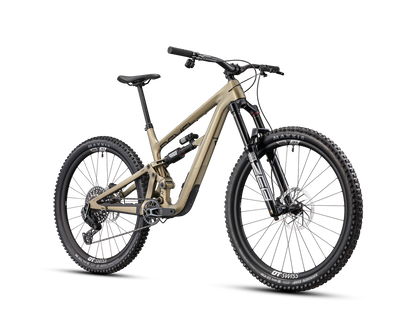

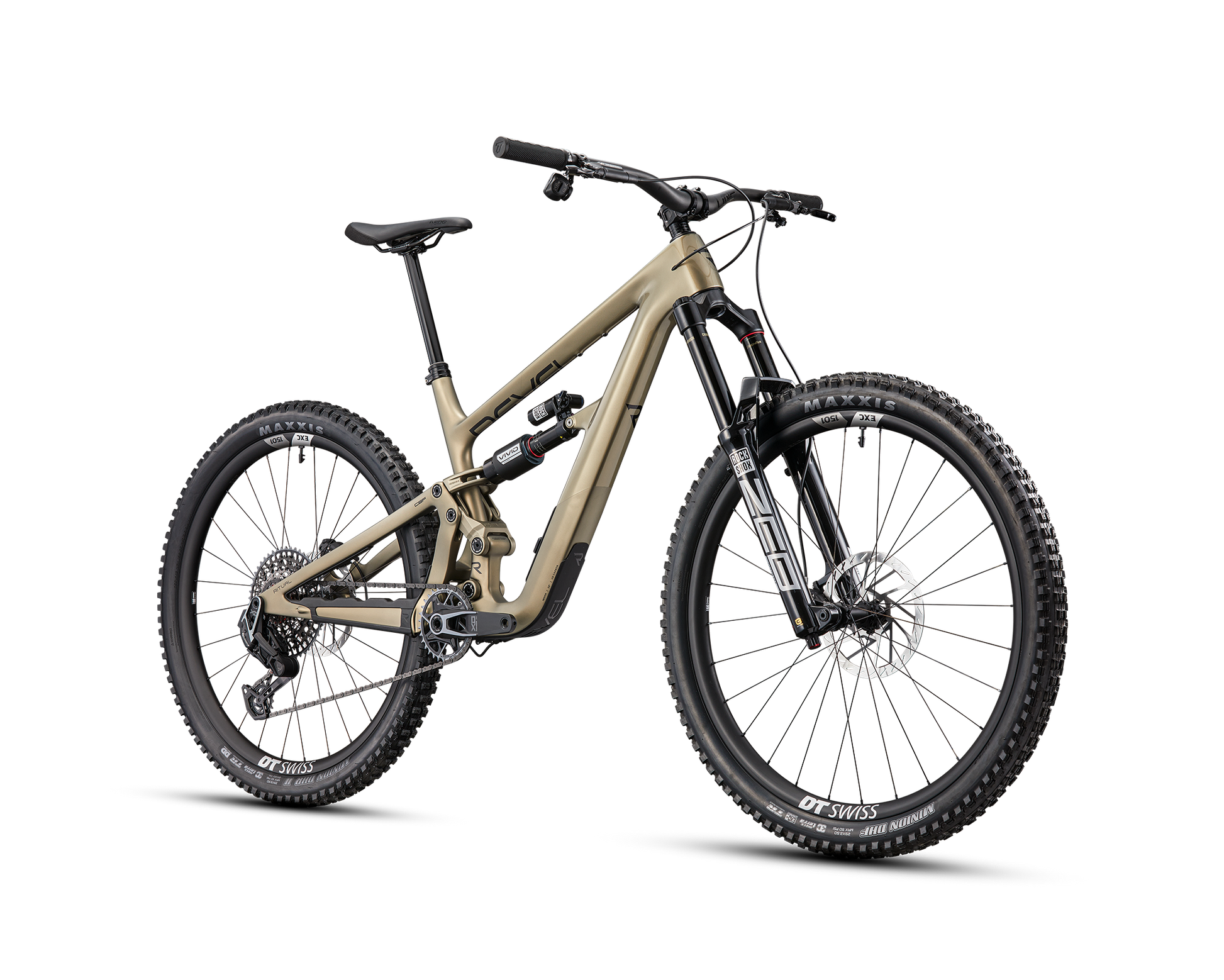

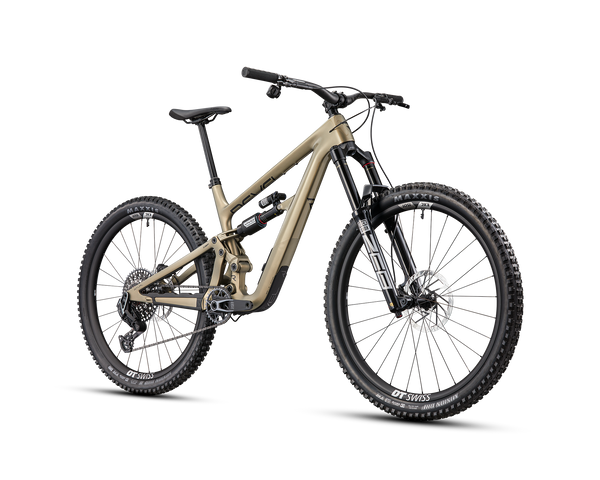

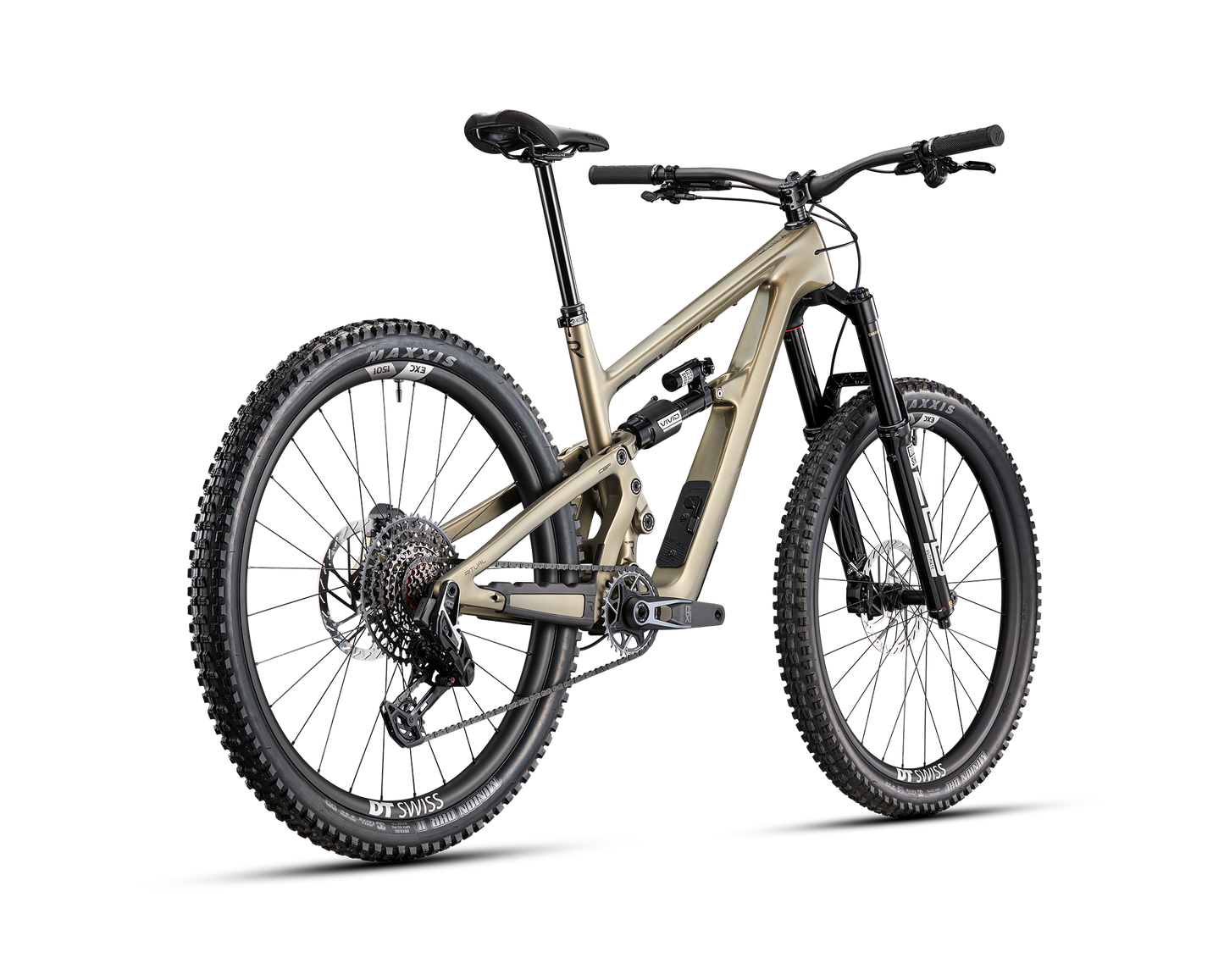

Ritual SRAM X0 Transmission Kit
Couldn't load pickup availability
Key Attributes
Key Attributes
For those who know exactly what they want and refuse to settle for anything less than the best.
KEY COMPONENTS:
FRAME: Ritual Carbon

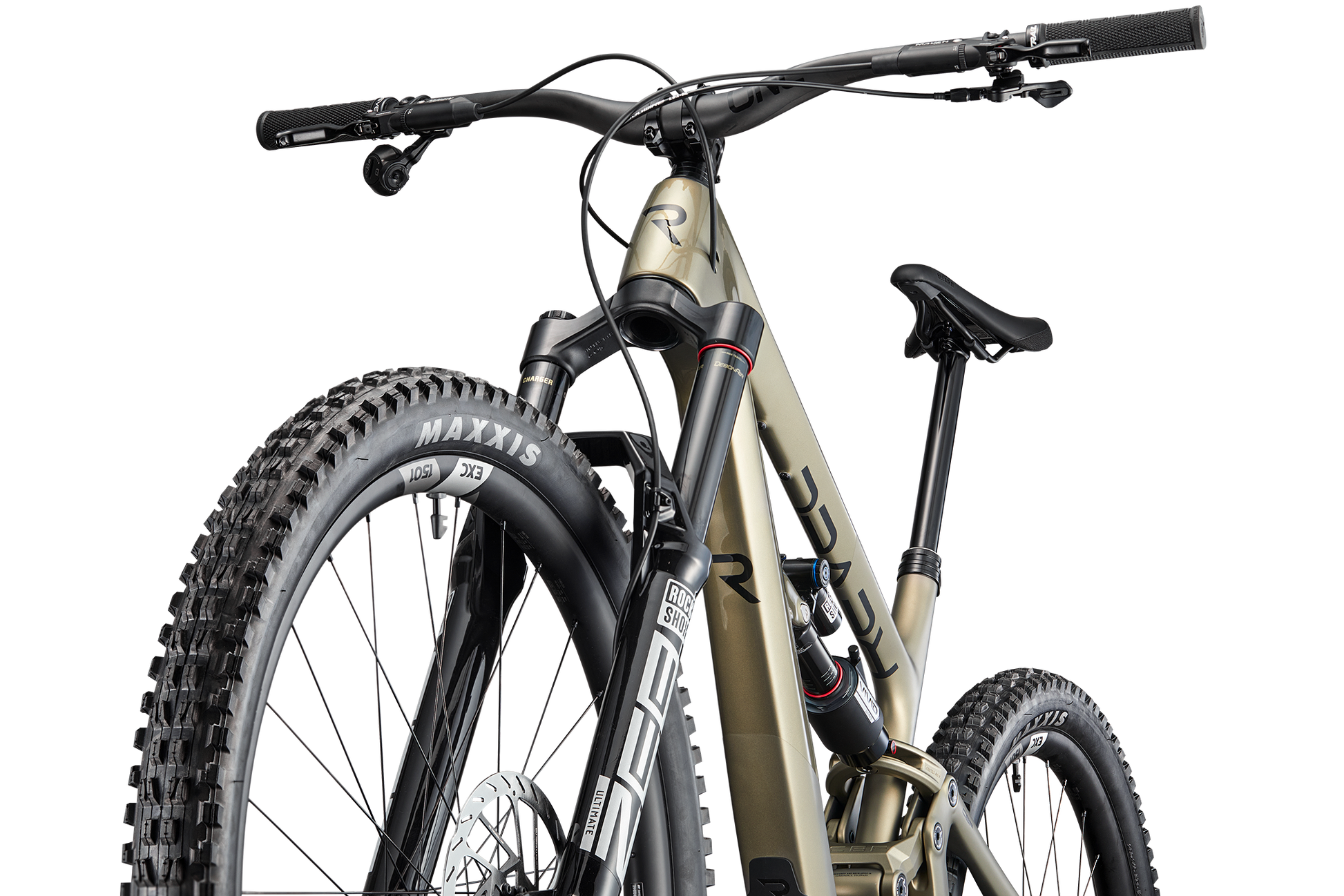

FORK: RockShox ZEB Ultimate 170mm

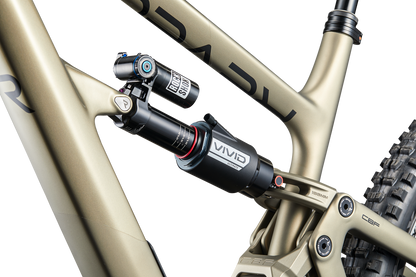

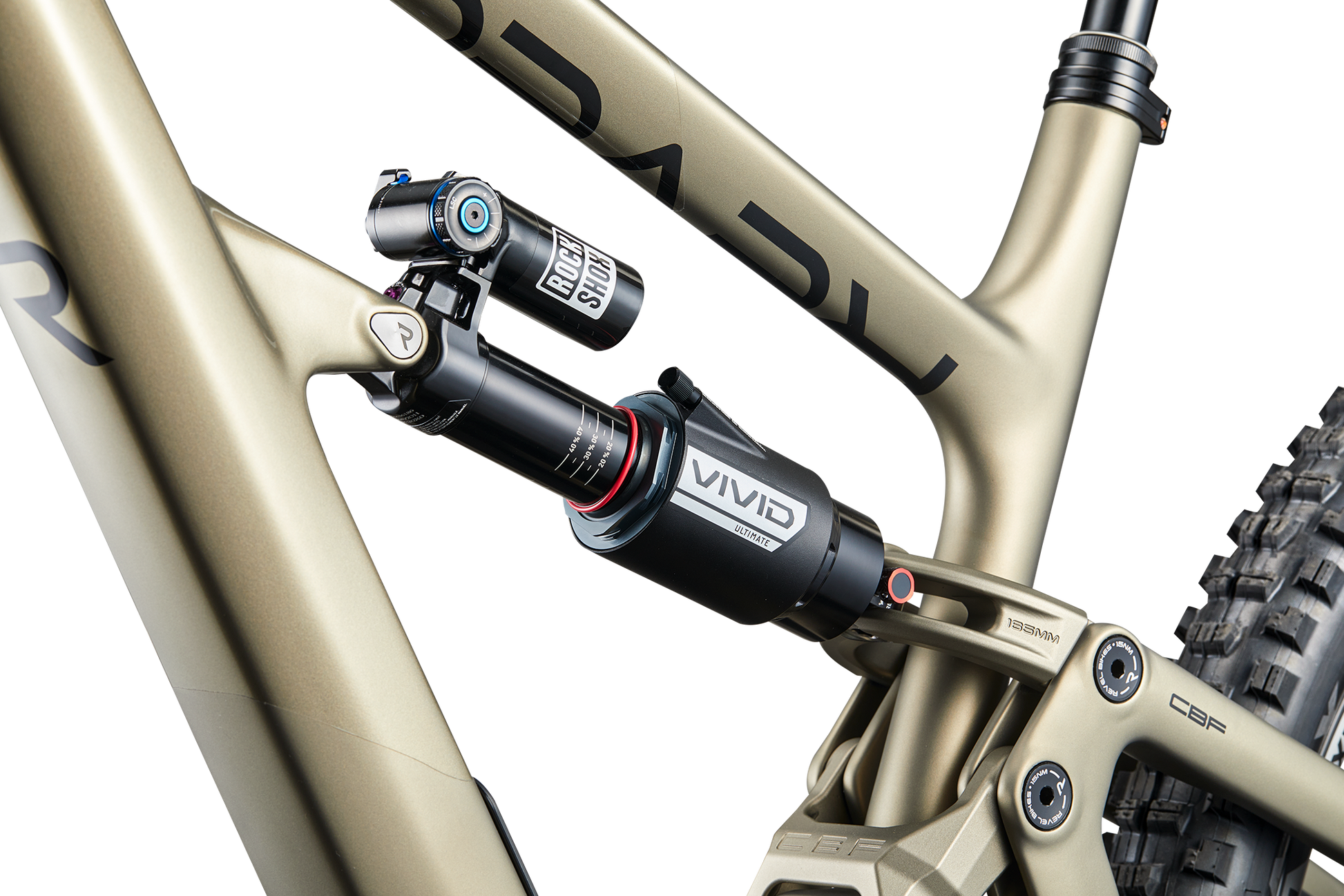

SHOCK: RockShox Vivid Ultimate 165

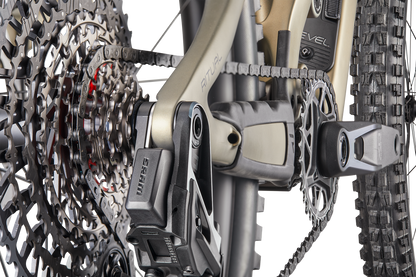

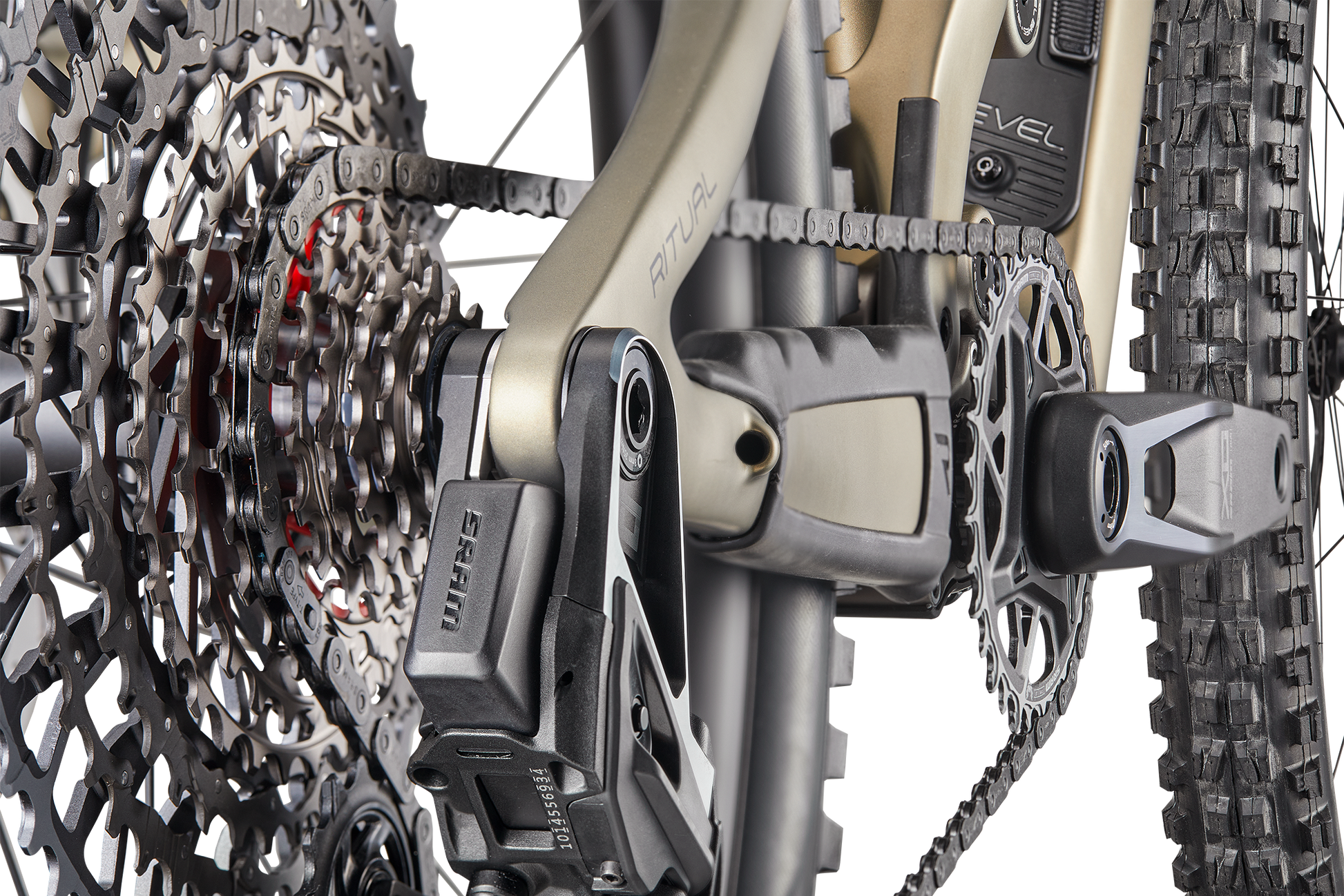

DRIVETRAIN: SRAM X0 Eagle Transmission
BRAKES: SRAM Maven Silver

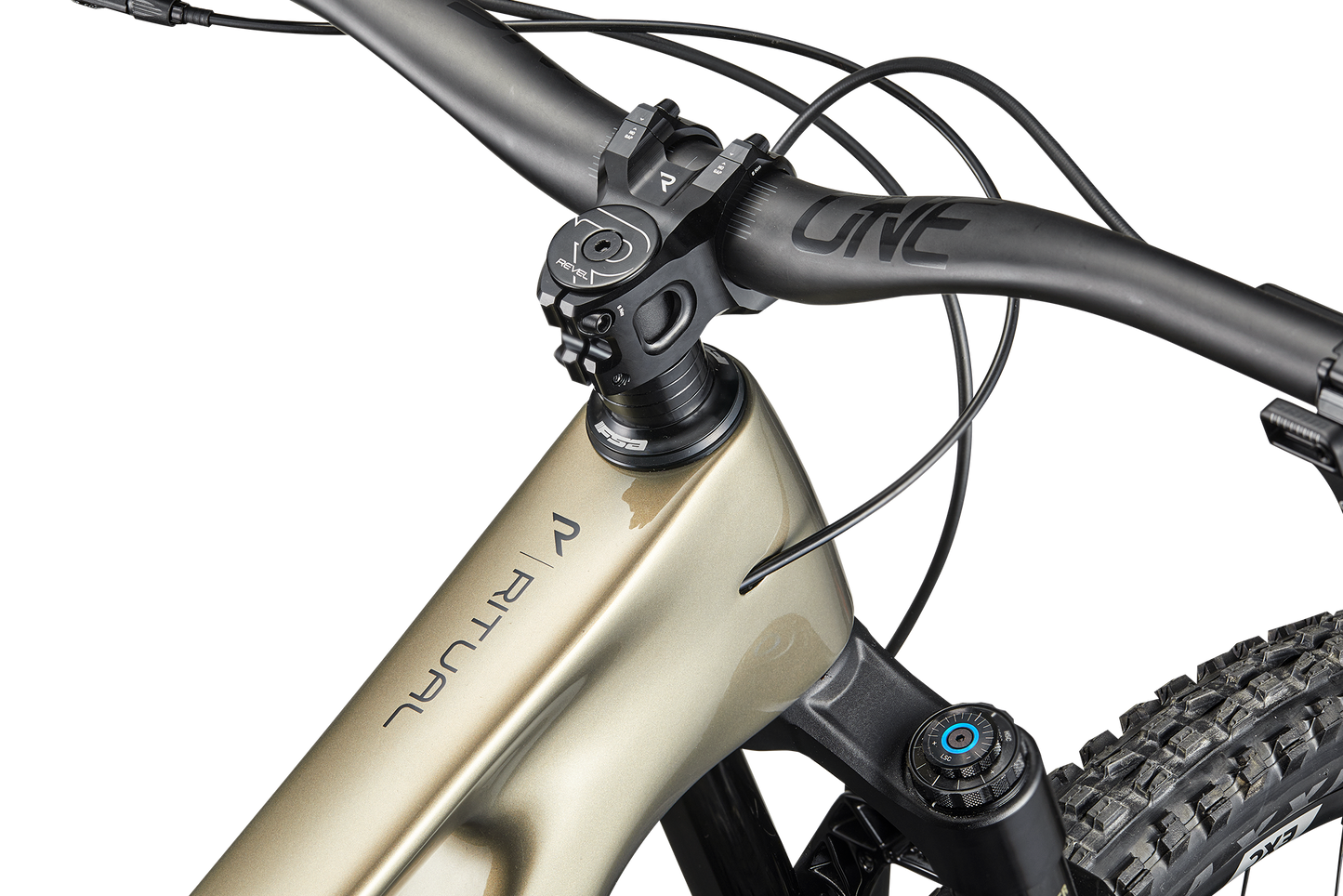

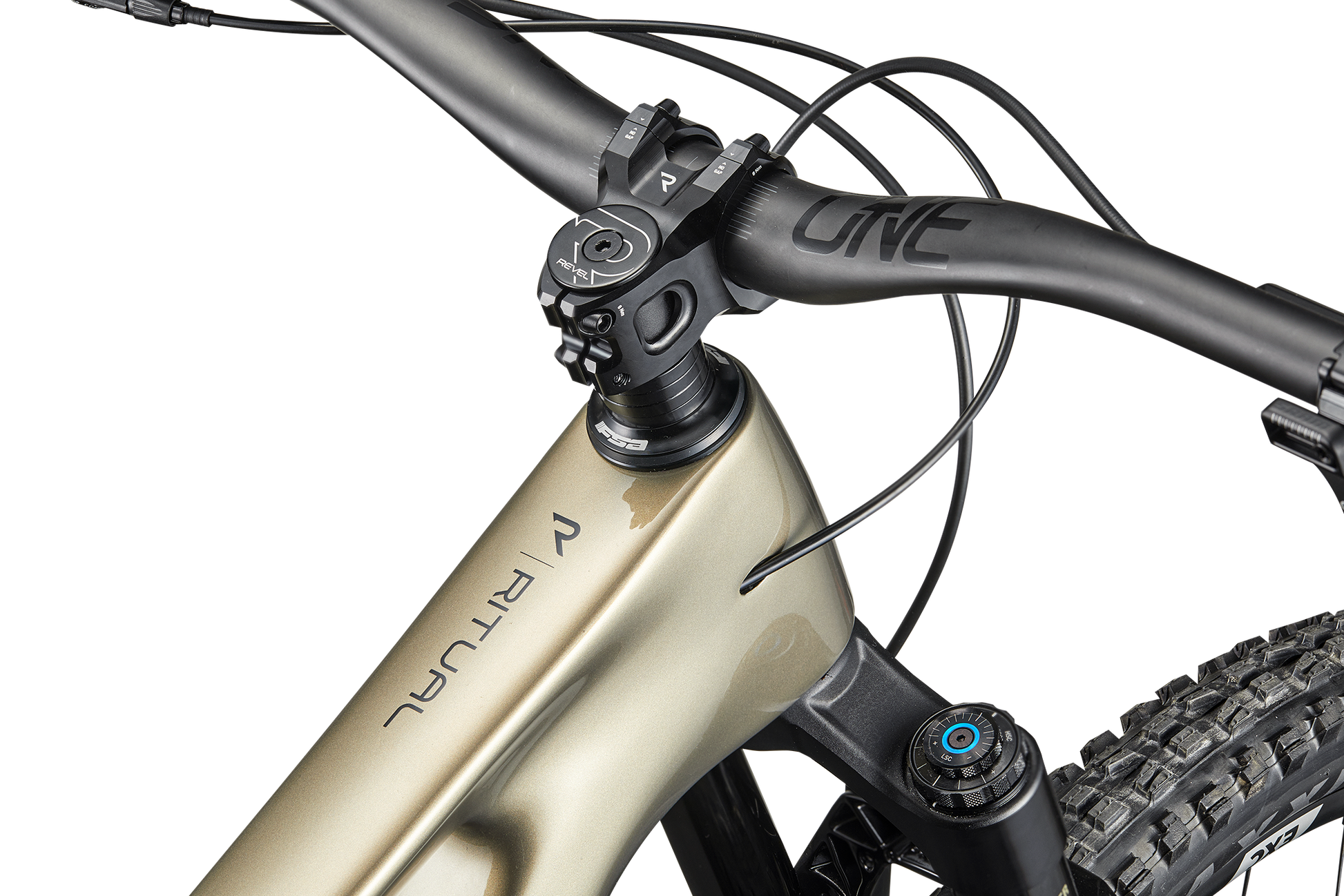

COCKPIT: OneUp Carbon Handlebar/Revel CNC Stem
DROPPER POST: OneUp Dropper Post
WHEELS: Crank Bros Synthesis Enduro Carbon
FRONT TIRE: Maxxis DHF 2.5WT 3C MaxxTerra/NEXO+/TR
REAR TIRE: Maxxis DHR II 2.5WT 3C MaxxTerra/DD/TR
Shipping and returns
Shipping and returns
Shipping and order processing times may fluctuate depending on order demand and the global shipping environment. Revel will notify the customer of our best estimated shipping lead time, however, these times are subject to change due to part availability and supply chain constraints. Complete bikes are fully assembled, test ridden, and then disassembled before they are carefully packed into our shipping cartons.
This process requires great attention to detail to ensure the best ride quality of our bikes right out of the box and we appreciate your patience with build timeframes.
Warranty
Warranty
Every Revel bicycle frame is covered by a limited warranty to the original owner and a lifetime crash replacement policy. Here’s the legal language:
The warranty covers defects in materials and craftsmanship, including manufacturing defects for the lifetime of the product. The warranty does not cover any damage or defects caused by abuse, accidents, or other incidents that are not the result of normal use of the product.
- 30 Days No-Questions-Asked Return Policy
Enduro Speed
165MM REAR 170MM FRONT 29/29 L/XL 29/27.5 S/M
The Ritual is Revel's long travel enduro speed machine. The perfect wheel size per frame size makes for an incredibly balanced, ultra capable feel that comes alive at speed and under big hits.
CBF Pedal Power
FAST UP, FAST DOWN
170mm
FORK TRAVEL
FRAME
UD CARBON
REAR SHOCK
230x65
INTERNAL
FRAME STORAGE
STIFF
ALLOY LINKS
12X148
BOOST SPACING
FULL LENGTH
DROPPER INSERTION
BSA
THREADED BOTTOM BRACKET
PROPORTIONAL
SIZE SPECIFIC SHAINSTAYS
BURLY CARBON, BIG BEARINGS
EFFICIENT AND BOMBER

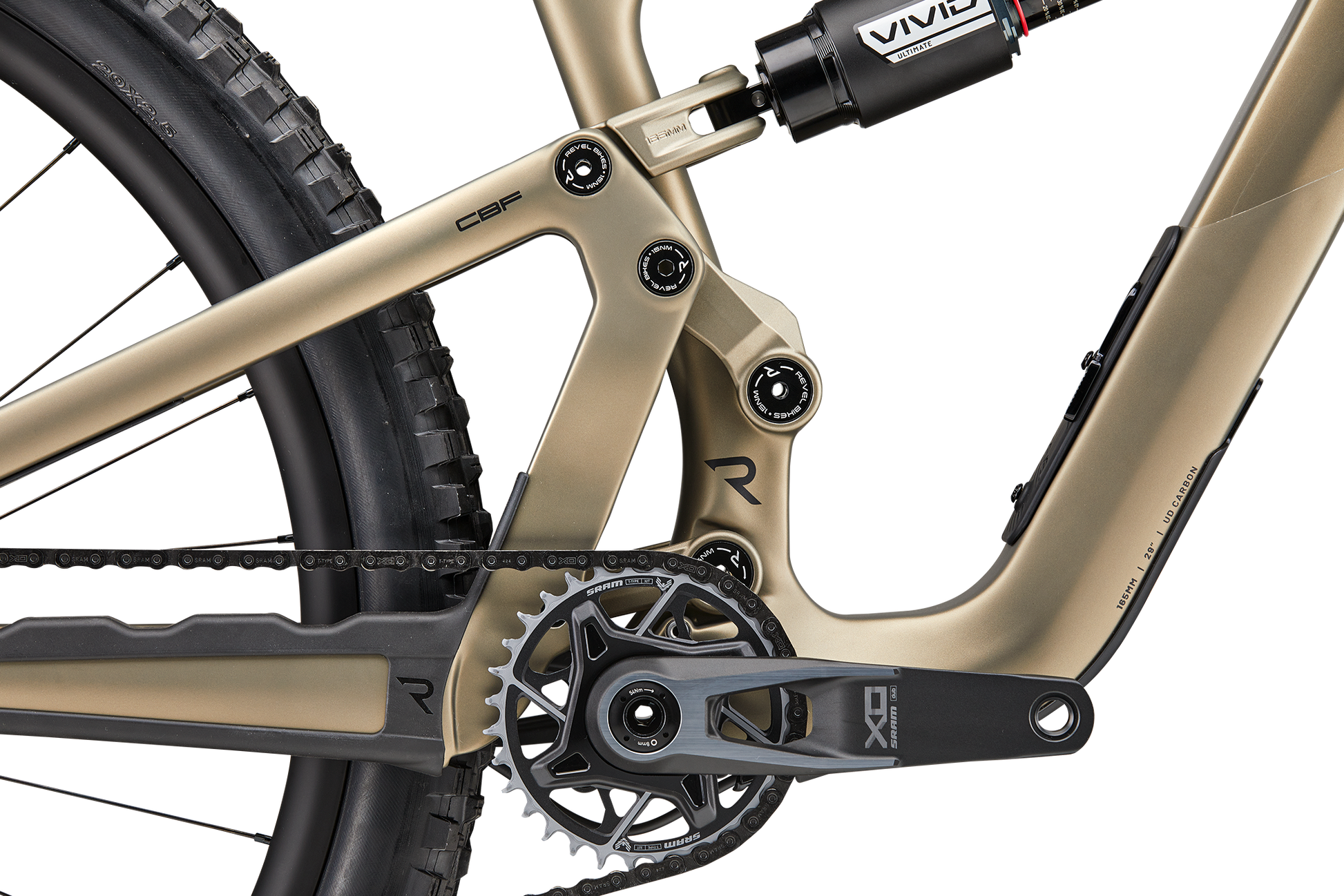

The Ritual's CBF platform pedals insanely good. It climbs like a bike with far less travel, and when you point it downhill, it wants to go fast. Ultra capable, built for big days, bike parks, and fast enduro racing.
OUR STRONGEST AND BURLIEST PIVOT DESIGN YET
Built for heavy-hitting enduro riding, the Ritual has an improved, super durable pivot design for increased stiffness, better bearing life, and easy maintenance.
Bash Guard Ready
ISCG-05 Tabs in case you want to run a bash guard.
Easy Use In-Frame Storage
Keep tools, snacks, layers, and pizza slices right inside your frame without compromising ride quality. A custom fit bag comes with every frame to make storage easy, organized, and quiet.
Loves a Lift Ride, Never Expects Them
The Ritual blends cutting-edge CBF suspension with size-specific kinematics to deliver an efficient, responsive ride. It maintains exceptional pedaling abilities for climbing while preserving the confidence and control needed for aggressive downhill performance.
SRAM UDH COMPATIBLE
The most common, easiest for service, best standard here.
Custom Frame Protection

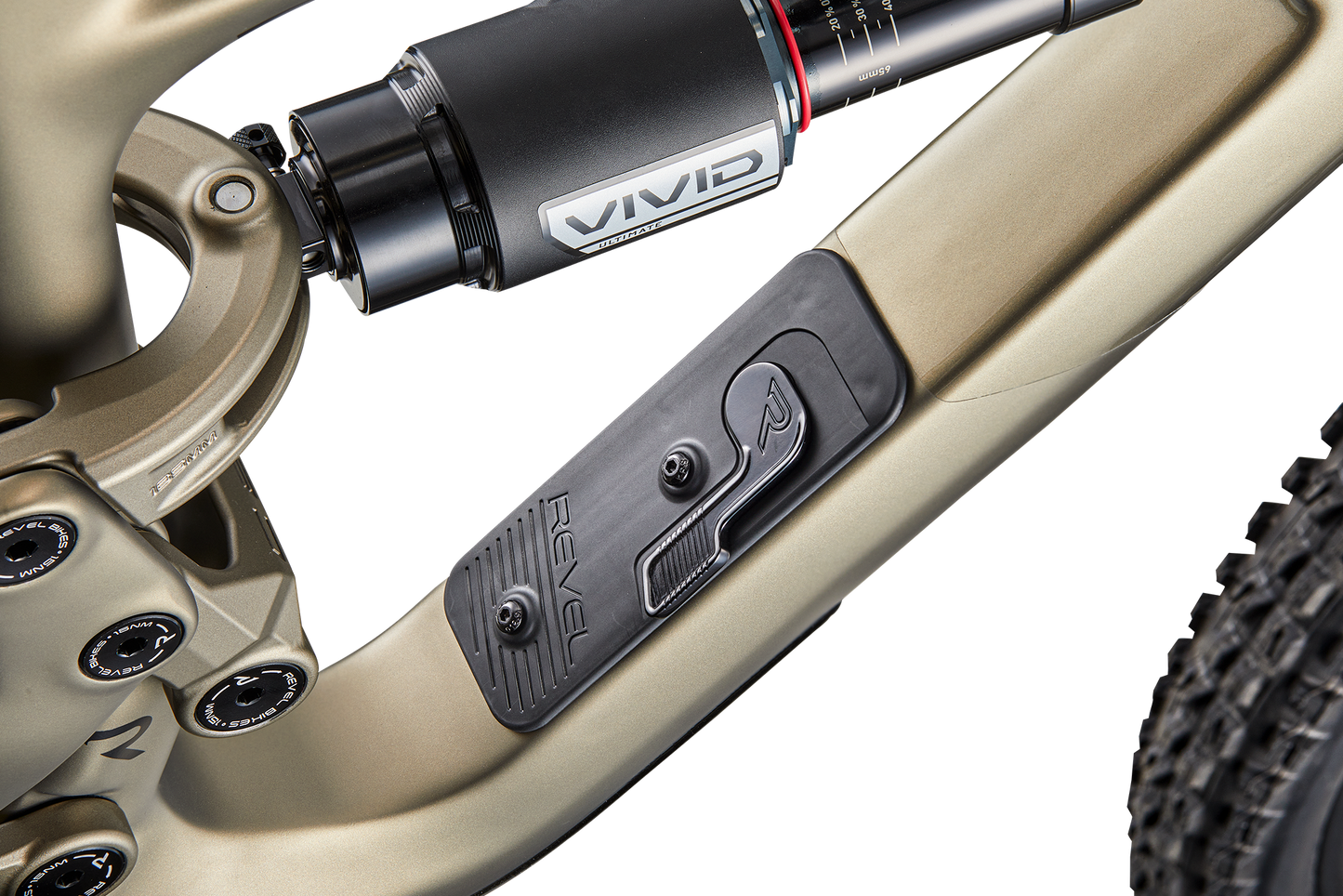

The Ritual has dialed frame protection! Our custom chainstay protector provides a quieter ride and a rubber downtube guard keeps rock strikes at bay.
Fully Carbon Guided Routing
A threaded bottom bracket, fully molded internal cable routing, and a press-fit headset provide easy assembly, maintenance, and a quiet ride.
BUILD KITS
|
Frame Kit
$3,299 |
SRAM Eagle 90
$5,499 |
SRAM X0 Transmission
$7,299 |
SRAM XX Transmission
$10,299 | |
|---|---|---|---|---|
| Frame | Ritual Carbon | Ritual Carbon | Ritual Carbon | Ritual Carbon |
| Wheel Size | SM & MD - Mixed 29 / 27.5 LG & XL - 29 F/R | SM & MD - Mixed 29 / 27.5 LG & XL - 29 F/R | SM & MD - Mixed 29 / 27.5 LG & XL - 29 F/R | SM & MD - Mixed 29 / 27.5 LG & XL - 29 F/R |
| Headset | FSA Orbit 1.5 ZS, NO.57, ZS44/ZS56 | FSA Orbit 1.5 ZS, NO.57, ZS44/ZS56 | FSA Orbit 1.5 ZS, NO.57, ZS44/ZS56 | Wolf Tooth Premium ZS44/56 |
| Shock | RockShox Vivid Ultimate 230x65 165mm | RockShox Vivid Ultimate 230x65 165mm | RockShox Vivid Ultimate 230x65 165mm | RockShox Vivid Ultimate 230x65 165mm |
| Seat Collar | Revel 34.9mm Dia | Revel 34.9mm Dia | Revel 34.9mm Dia | Revel 34.9mm Dia |
| Fork | RockShox ZEB Ultimate 170mm | RockShox ZEB Ultimate 170mm | RockShox ZEB Ultimate 170mm | |
| Wheelset | Crank Bros Synthesis Enduro Alloy | DT Swiss EXC1501 SPLINE | Industry Nine Enduro Carbon | |
| Hubs | Crank Bros Ratchet 36t XD | DT Swiss 240 Ratchet DEG 90 | Industry Nine Hydra2 XD | |
| Tires | Maxxis DHF 2.5WT 3C MaxxTerra/EXO+/TR Maxxis DHR II 2.5WT 3C MaxxTerra/DD/TR | Maxxis DHF 2.5WT 3C MaxxTerra/EXO+/TR Maxxis DHR II 2.5WT 3C MaxxTerra/DD/TR | Maxxis DHF 2.5WT 3C MaxxTerra/EXO+/TR Maxxis DHR II 2.5WT 3C MaxxTerra/DD/TR | |
| Handlebar | OneUp Alloy 35x780 35mm Rise | OneUp Alloy 35x780 35mm Rise | OneUp Carbon 35x780 35mm Rise | |
| Stem | Revel CNC Stem 35mmx40mm | Revel CNC Stem 35mmx40mm | Revel CNC Stem 35mmx40mm | |
| Grips | Trail 1 x Revel Farlow Gap | Trail 1 x Revel Farlow Gap | Trail 1 x Revel Farlow Gap | |
| Saddle | SDG Bel-Air 3 LUX | SDG Bel-Air 3 LUX | SDG Bel-Air 3 LUX | |
| Seat Post | OneUp V3 150mm (SM), 190mm (MD) 210mm (LG), 240mm (XL) | OneUp V3 150mm (SM), 190mm (MD) 210mm (LG), 240mm (XL) | RockShox Reverb AXS 31.6mm 150mm (SM) 200m (MD/LG) 225mm (XL) | |
| Dropper Lever | SRAM Dropper Lever | Wolf Tooth Remote Pro | SRAM AXS Shifter Pod Left | |
| Brakes | SRAM Maven Silver | SRAM Maven Silver | SRAM Maven Ultimate | |
| Rotors | SRAM Centerline 200mm 6-bolt | SRAM HS2 200mm 6-bolt | SRAM HS2 200mm 6-bolt | |
| Shifter | SRAM Eagle 90 | SRAM AXS Shifter Pod | SRAM AXS Shifter Pod | |
| Rear Derailleur | SRAM Eagle 90 T-Type | SRAM Eagle X0 T-Type | SRAM Eagle XX AXS T-Type | |
| Chain | SRAM Eagle 90 T-Type 118L | SRAM X0 T-Type 118L | SRAM XX Eagle 118L T-Type | |
| Cassette | SRAM Eagle 90 T-Type XS1275 10-52t Black | SRAM X0 T-Type XS1295 10-52t | SRAM XX T-Type XG-1297 10-52 | |
| Crankset | SRAM Eagle 90 T-Type 170mm 32t | SRAM X0 Eagle T-Type 170mm 32t | SRAM XX Eagle T-Type 170mm 32t | |
| Bottom Bracket | SRAM DUB 73mm MTB WIDE threaded | SRAM DUB 73mm MTB WIDE threaded | Wolf Tooth BSA 29 DUB - Raw Silver | |
| Disclaimer | **Specifications subject to change without notice** | **Specifications subject to change without notice** | **Specifications subject to change without notice** | **Specifications subject to change without notice** |
GEOMETRY
MEASUREMENT |
SMALL |
MEDIUM |
LARGE |
XL |
|
A |
Effective Top Tube Length |
588mm |
606mm |
627mm |
657mm |
B |
Seat Tube Length |
415mm |
425mm |
445mm |
475mm |
C |
Seat Tube Angle |
76°/69.5° |
76.5°/70° |
77°/70.2° |
77°/70.5° |
D |
Chain Stay Length |
434mm |
436mm |
438mm |
441mm |
E |
Bottom Bracket Drop |
29/11mm |
29/11mm |
29mm |
29mm |
F |
Bottom Bracket Height |
348mm |
348mm |
348mm |
348mm |
G |
Head Tube Angle |
64° |
64° |
64° |
64° |
H |
Wheel Base |
1205mm |
1232mm |
1263mm |
1298mm |
I |
Head Tube Length |
90mm |
96mm |
104mm |
115mm |
J |
Axle to Crown |
586mm |
586mm |
586mm |
586mm |
K |
Fork Offset |
44mm |
44mm |
44mm |
44mm |
L |
Trail |
136mm |
136mm |
136mm |
136mm |
M |
Stack |
622mm |
628mm |
635mm |
645mm |
N |
Reach |
433mm |
455mm |
480mm |
508mm |
O |
Standover |
731mm |
731mm |
731mm |
731mm |
FRAME SPECIFICATIONS
| Wheel Size | MX - 29"/27.5"(S,M). 29" (L, XL) |
| Front Travel | 170mm |
| Rear Travel | 165mm |
| Shock Spec | 230mm X 65mm |
| Axles | 177 x 12 x 1.0 |
| Seatpost Diameter | 31.6mm |
| Max Seatpost Insertion Depth | SM 260mm, MD 270mm, LG 300mm, XL 330mm |
| Rear Brake | 200mm post mount/223mm max rotor size |
| Rear Tire Clearance | 27.5” x 2.6” (SM&MD) / 29" x 2.6" (LG&XL) |
| Max Chainring | 36T Round / 34T Oval |
| Tapered Headtube | ZS44 Upper / ZS56 Lower |

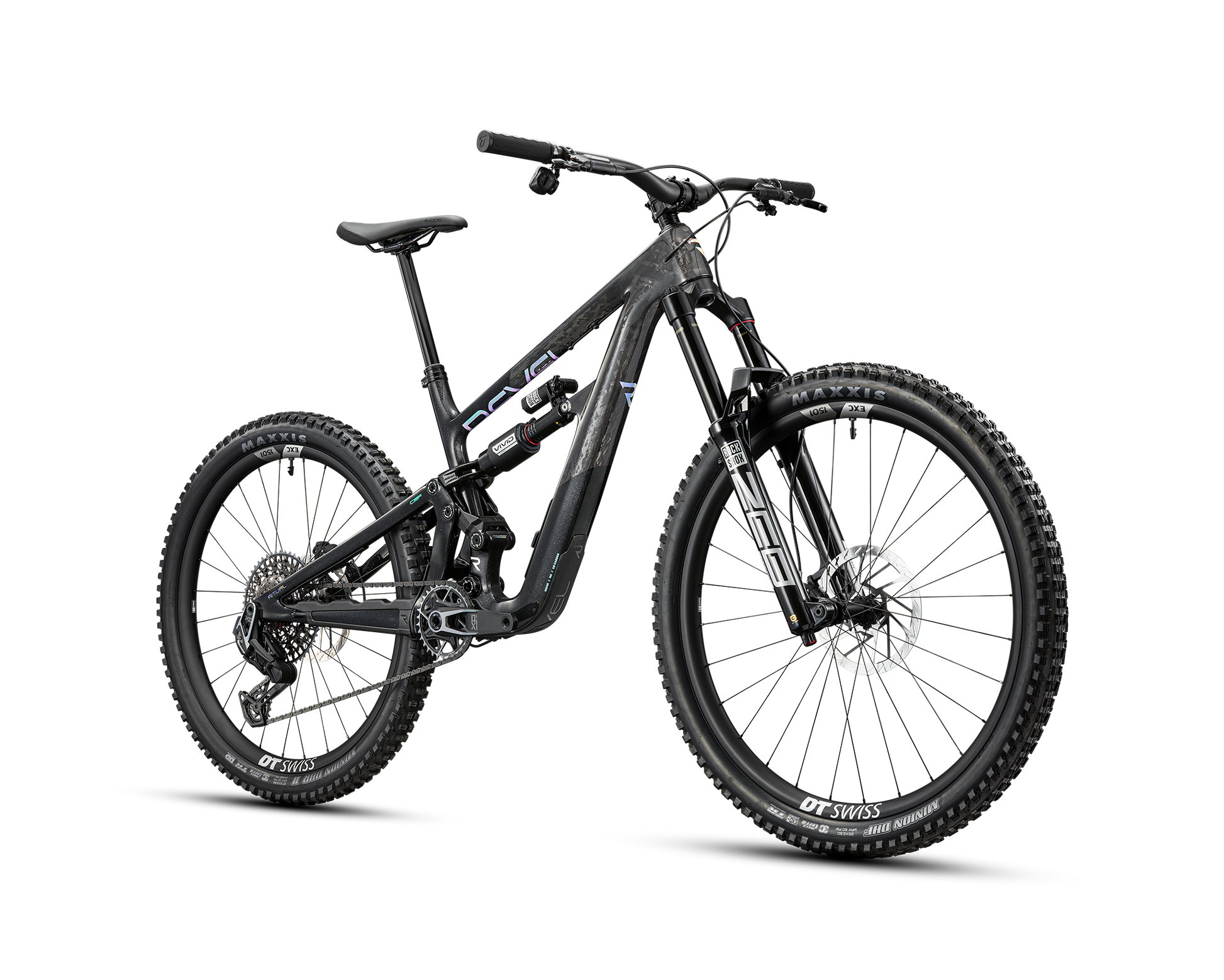

| Color | Pewter Pan / Space-X |
| Size | S / M / L / XL |
FAQ
DO ALL SIZES USE MX WHEELS?
No. Only the small and medium sizes use MX wheelsets. The large and XL sizes are 29" front and rear.
WHAT SHOCK SIZE AND MOUNTING HARDWARE ARE USED ON THE RITUAL?
The shock size is 230x65mm. The mounting hardware is 25x8mm.
CAN I USE A COIL SHOCK ON THE RITUAL?
Yes, the Ritual can fit coil shocks and large air can shocks like the Rockshox Vivid Air and the Fox X2 Air.
WHAT CHAINRING SIZE DOES THE RITUAL ACCOMODATE?
The Ritual is designed and optimized around a 32T chainring. 34T is the max chainring size on sizes small-large. XL can fit a 36T chainring.
WHAT IS THE MAX TRAVEL FORK THAT I CAN PUT ON MY RITUAL?
The Ritual is designed with a 170mm fork with a 596mm axle to crown length. It is compatible with a 180mm fork that does not exceed a 596mm axle to crown.
CAN I "MULLET" MY LARGE OR XL RITUAL?
The large and XL frames are not designed for a mullet setup. Using a mixed wheel size configuration has not been tested and will void the frame warranty.
CAN I USE A LONGER SHOCK TO GET MORE TRAVEL OUT OF THE RITUAL?
No you cannot as the Ritual frame was designed specifically for a 165mm travel shock. Changing this will void the warranty.
CAN I USE AN ANGLE-ADJUSTABLE STYLE HEADSET WITH THE RITUAL?
The ReRun is designed to perform optimally with its stock headset configuration. We have not tested it with angle-adjustable headsets, so we can’t guarantee proper fit or performance with those setups. Please note that installing an angle-adjustable headset will void the frame the frame warranty.
WHAT BASHGUARD/CHAINRING PROTECTION WILL FIT ON THE RITUAL?
The Ritual features ISCG-05 tabs. This is a common mounting standard for chainguides and bash guards that you can find from great companies like MRP, OneUp, and E13.
CAN I USE A DUAL CROWN FORK ON THE RITUAL?
Yes, as long as the axle to crown measurement does not exceed 596mm.
