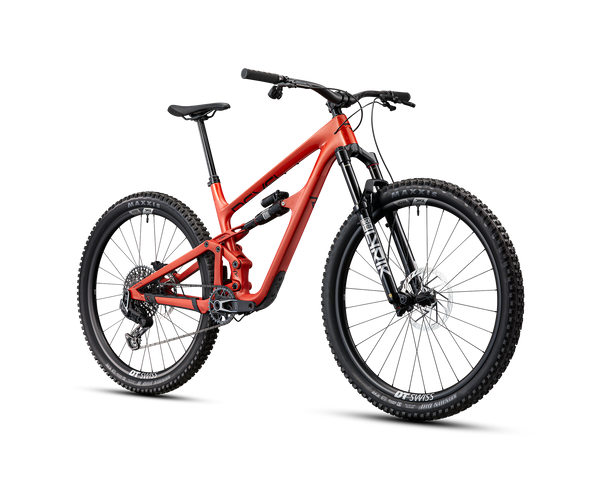

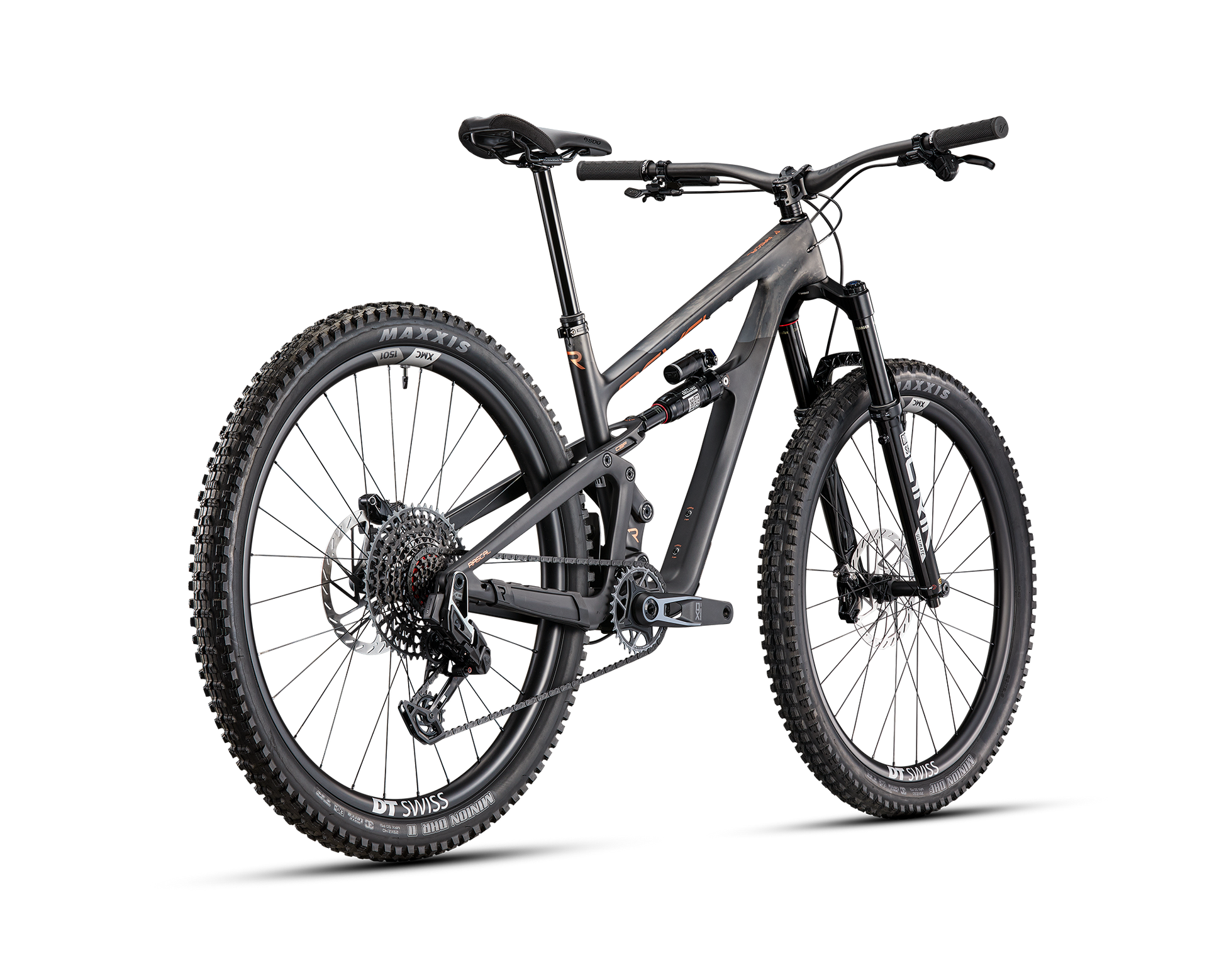

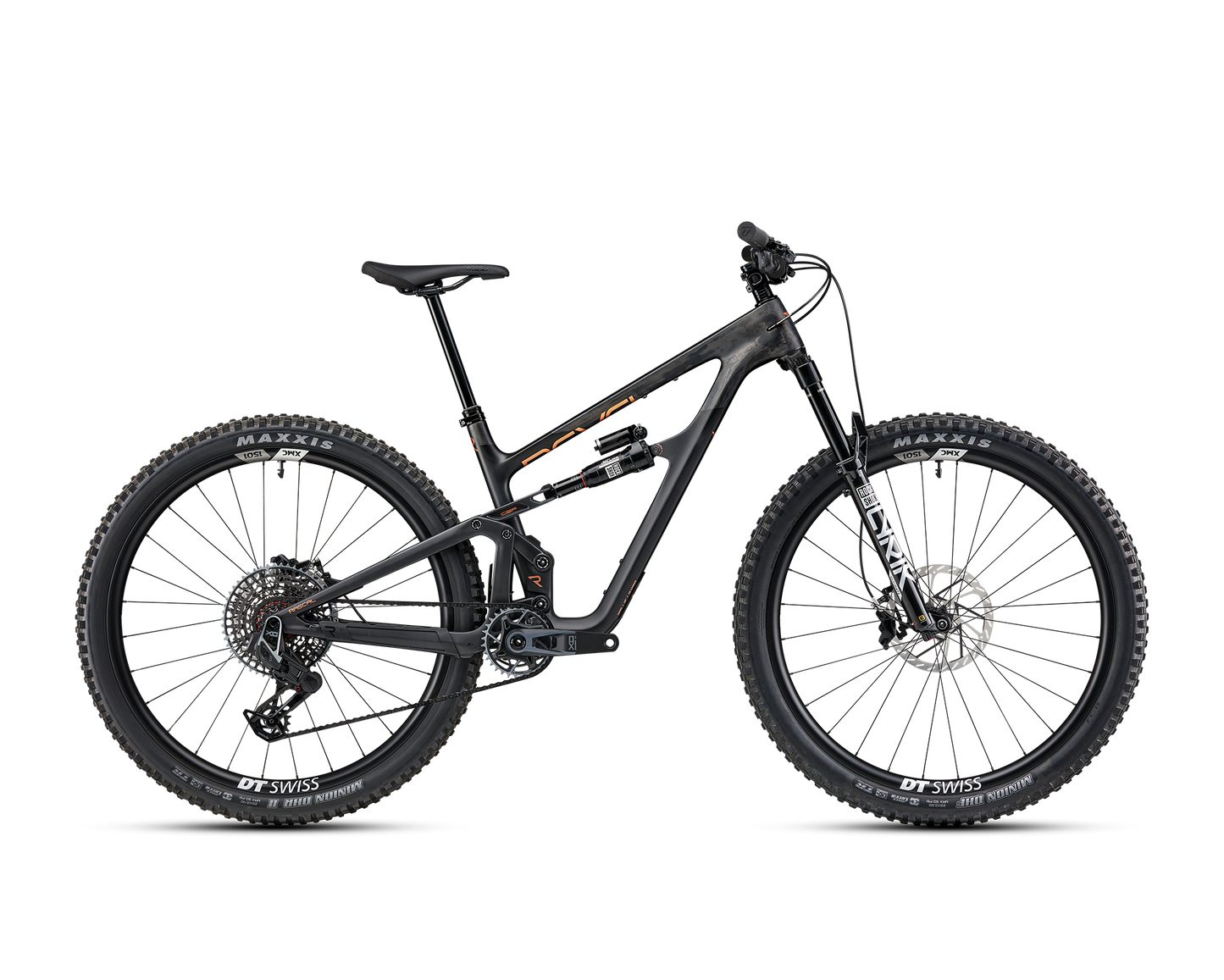

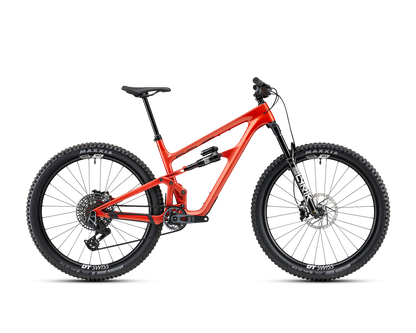

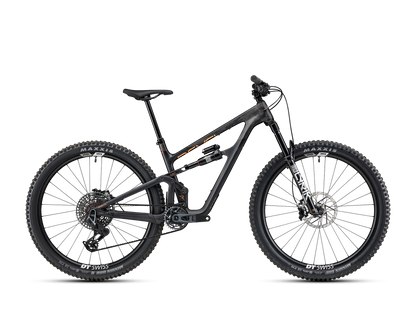

Rascal SRAM X0 Transmission Kit
Estimated ship date: starts Estimated ship date: starts March 15, 2026
Reserve now with a $500 deposit. We'll reach out for the remaining balance 7 days before ship date.
Couldn't load pickup availability
Key Attributes
Key Attributes
No compromises, no weak links - just trail-tested reliability
KEY COMPONENTS:
FRAME:
Rascal Carbon SL

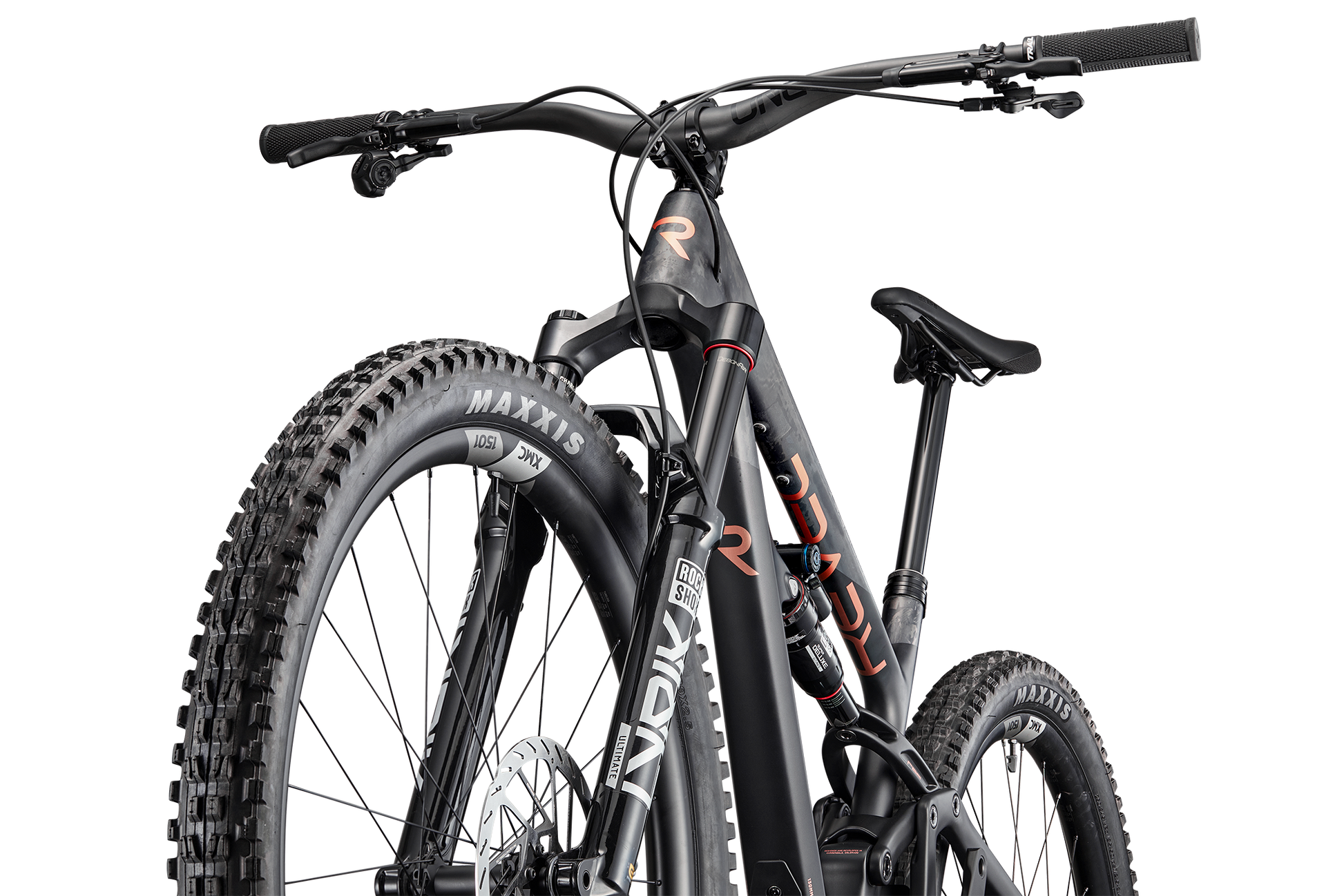

FORK:
RockShox Lyrik SEL Ultimate 150mm

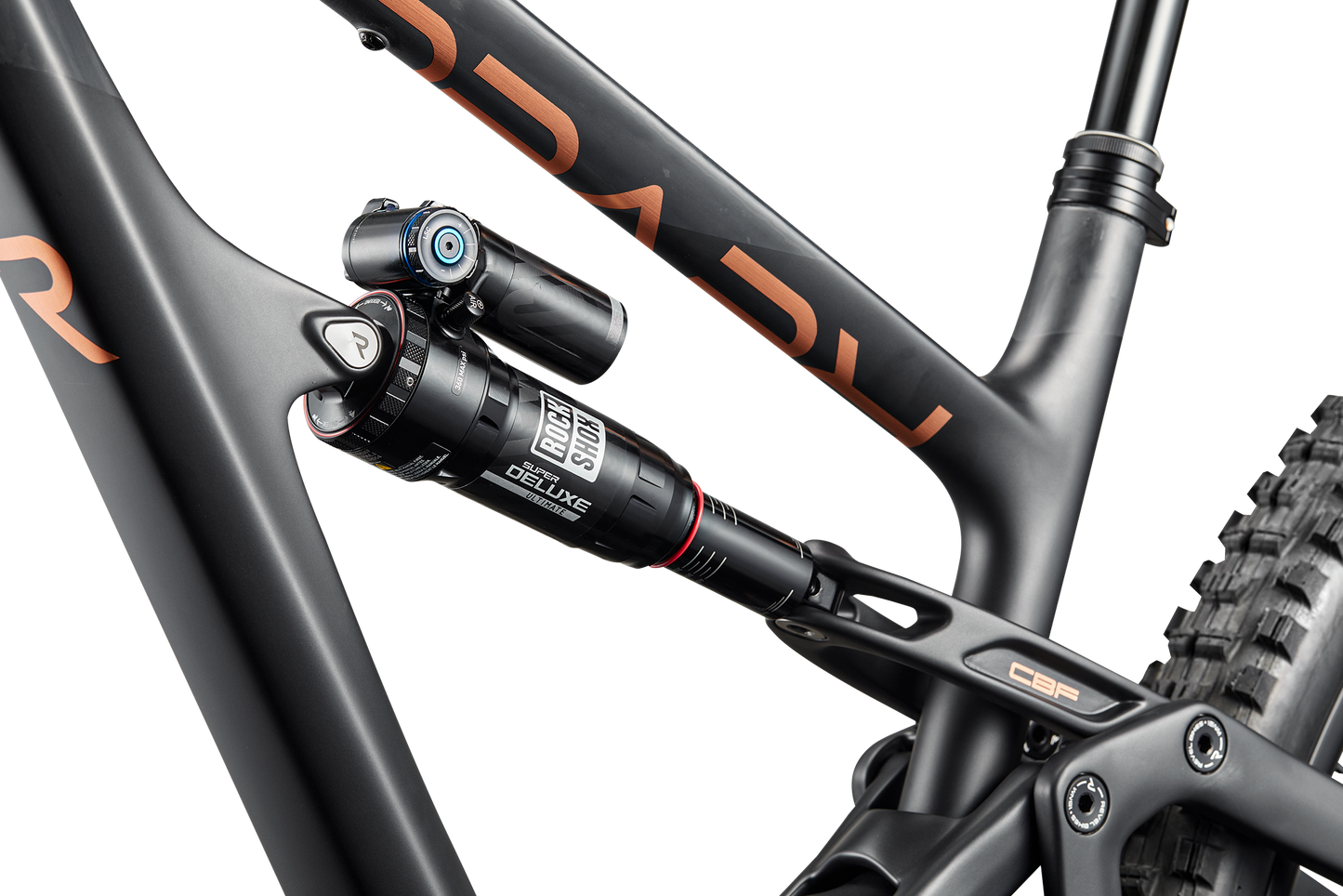

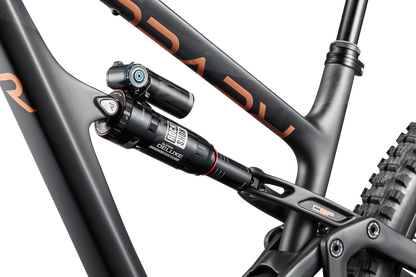

SHOCK:
RockShox SDLX SEL Ultimate

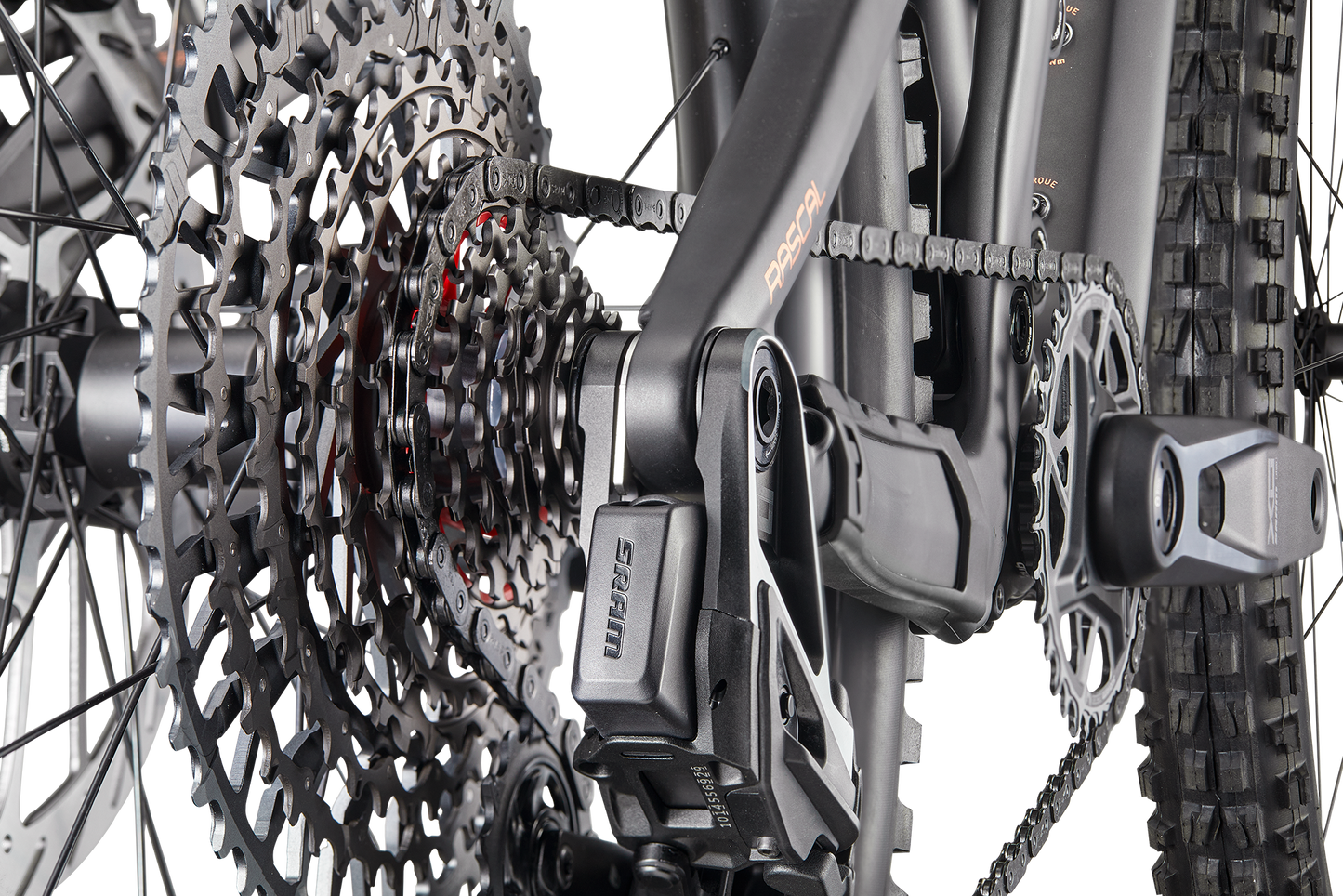

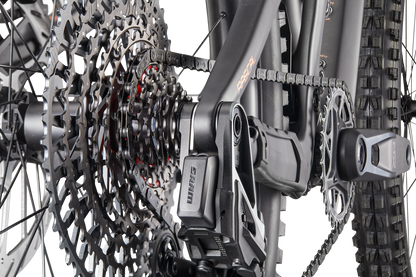

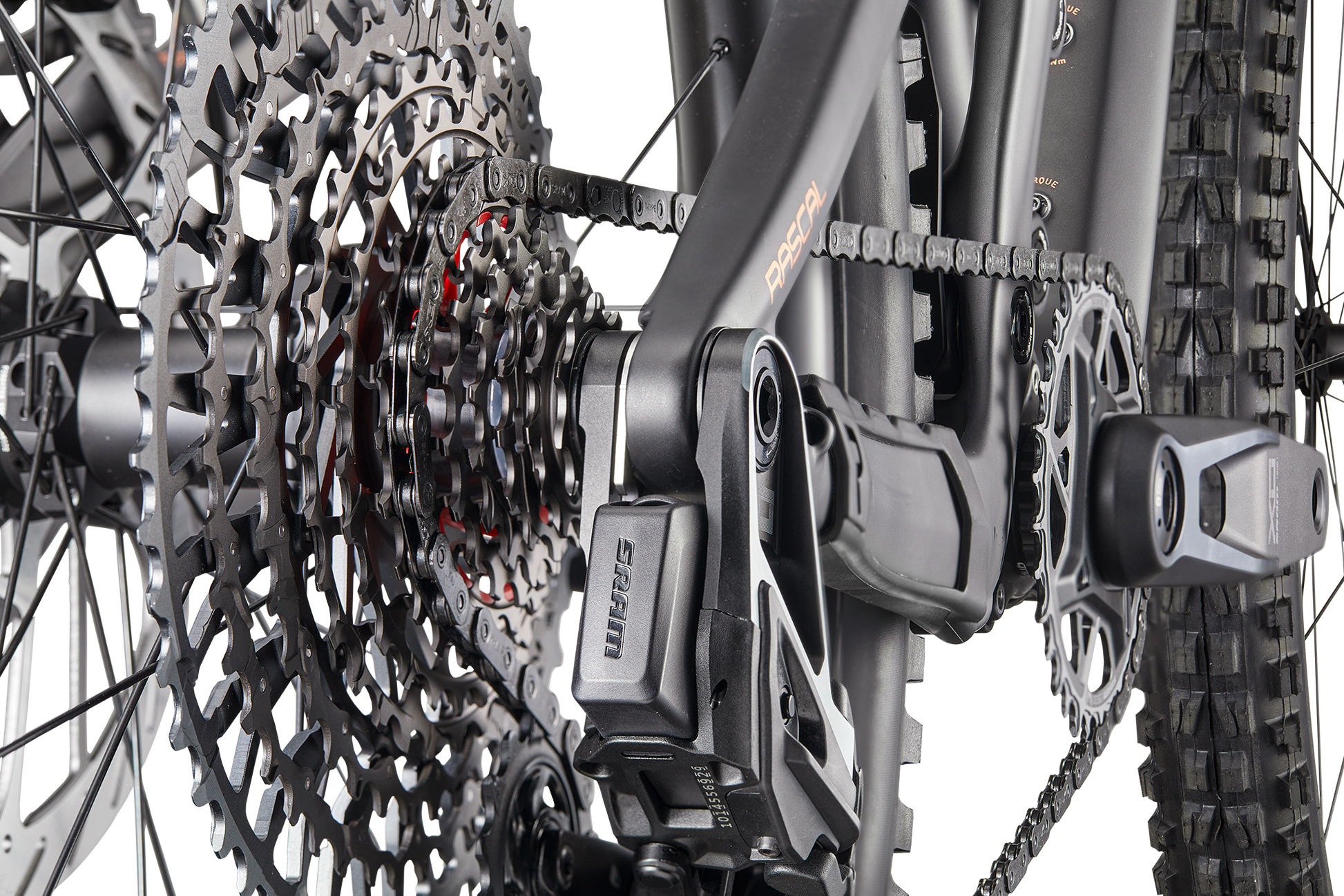

DRIVETRAIN:
SRAM X0 Transmission
BRAKES:
SRAM Motive Silver

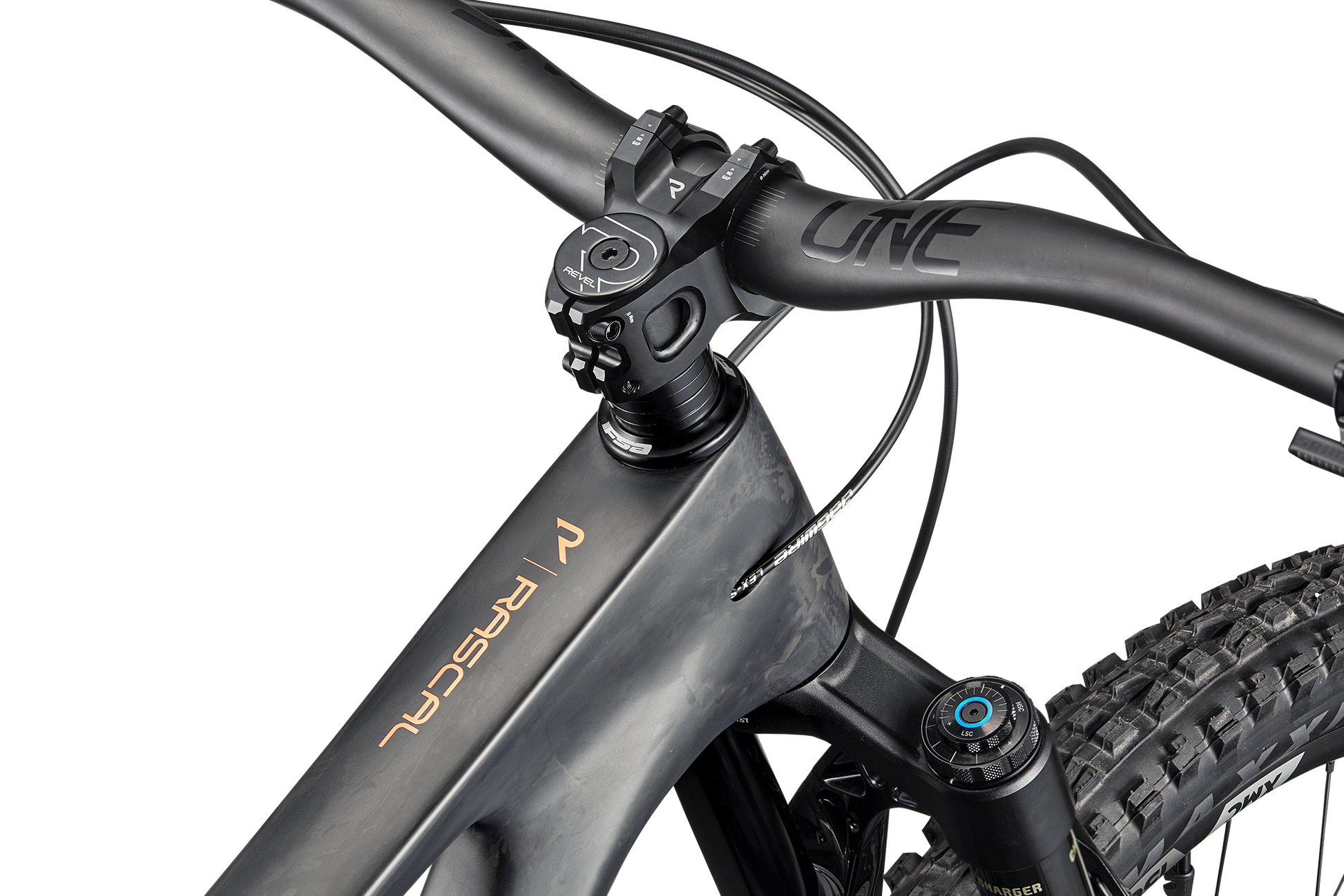

COCKPIT:
OneUp Carbon Handlebar
Revel CNC Stem
DROPPER POST:
OneUp Dropper
WHEELS:
DT Swiss XMC1501
TIRES:
Maxxis DHF 29 x 2.5 Front
Maxxis DHR II 29 x 2.4 Rear
Shipping and returns
Shipping and returns
Shipping and order processing times may fluctuate depending on order demand and the global shipping environment. Revel will notify the customer of our best estimated shipping lead time, however, these times are subject to change due to part availability and supply chain constraints. Complete bikes are fully assembled, test ridden, and then disassembled before they are carefully packed into our shipping cartons.
This process requires great attention to detail to ensure the best ride quality of our bikes right out of the box and we appreciate your patience with build timeframes.
Warranty
Warranty
Every Revel bicycle frame is covered by a limited warranty to the original owner and a lifetime crash replacement policy. Here’s the legal language:
The warranty covers defects in materials and craftsmanship, including manufacturing defects for the lifetime of the product. The warranty does not cover any damage or defects caused by abuse, accidents, or other incidents that are not the result of normal use of the product.
- 30 Days No-Questions-Asked Return Policy
ONE BIKE TO RULE THEM ALL
130MM REAR 150MM FRONT 29"/29"
The Rascal put Revel on the map when we launched in 2019. Now in its third iteration, we've improved every aspect of geometry, CBF kinematics, and uses the best quality carbon layup in the biz. Making the Rascal the ultimate do-everything, ride-everywhere trail bike.
Award Winning
PINKBIKE'S 2026 TRAIL BIKE OF THE YEAR
150MM
FORK TRAVEL
FRAME
UD CARBON
REAR SHOCK
210X50
FRAME MOUNTS
BOTTLE AND STORAGE
DIALED COMPOSITE
CARBON LINKS
12X148
BOOST SPACING
FULL LENGTH
DROPPER INSERTION
BSA 73MM
STANDARD BB

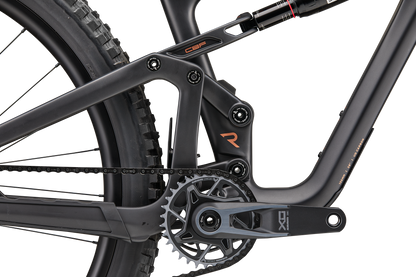

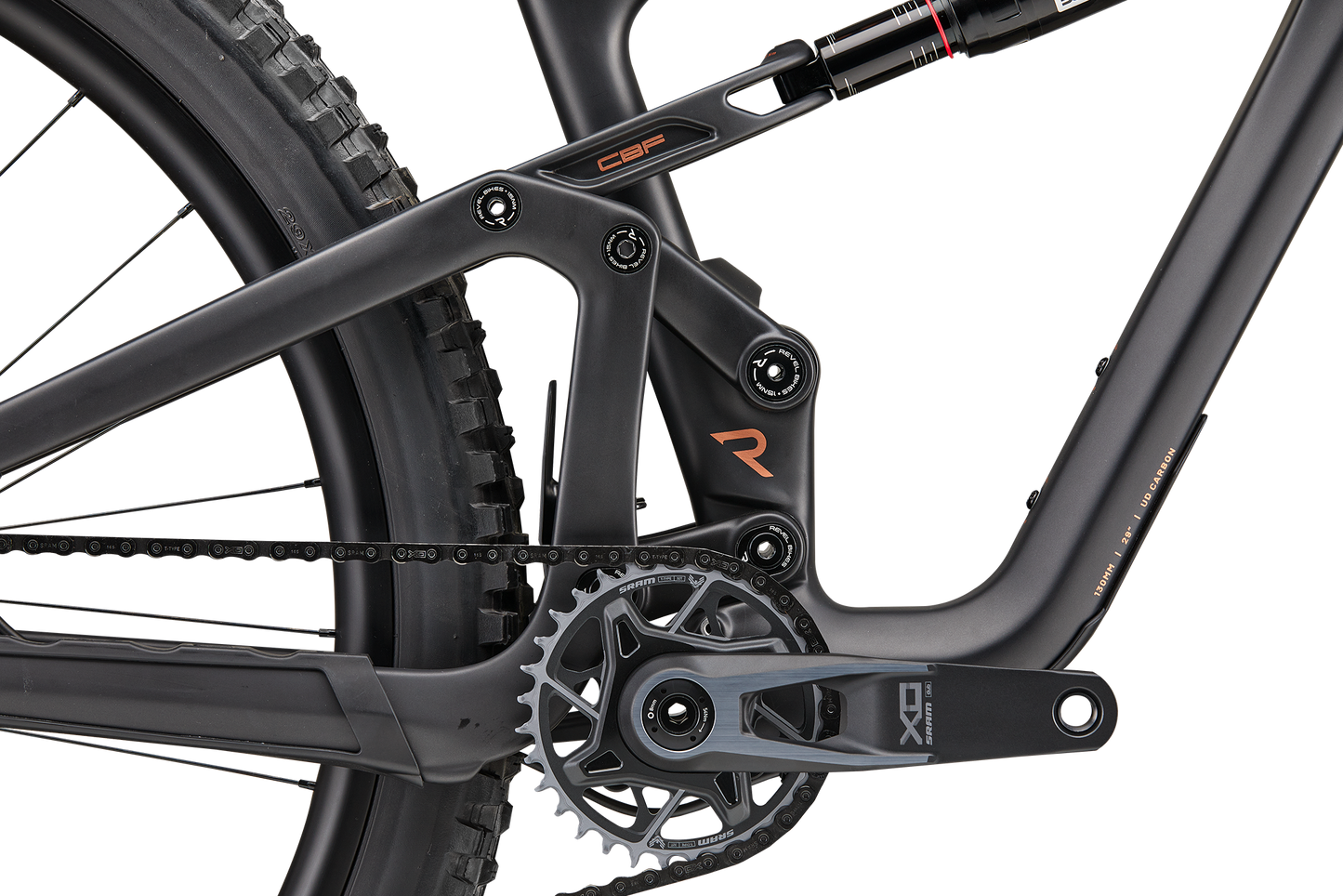

CBF Trail Magic
ALL TRAILS ALL THE TIME
This 130mm trail bike is mind-boggling. Riders around the world are blown away by it's bottomless feel. From ledgy desert tech to fast flowy trail, it descends like a much bigger bike and climbs with incredible efficiency.
A whole new look for 2026
Back to our matte/gloss split, but reimagined in a whole new way.
Best of the best carbon
We've invested in making the absolute best, highest quality carbon fiber frames in the world. No fancy acronyms needed here- just a ride quality that is unmatched, a comfortable, fast, and lightweight frame. All with a lifetime warranty.
Lunch Laps to All Day Epics
The most versatile bike in our lineup, proven by awards like Pinkbike's 2026 Trail Bike of the Year, Bike Mag's 2026 bike of the year, and an earlier iteration even won Outside Magazine's Best Overall Bike of the Year in 2021. You can't go wrong.
Thoughtful Design for Easy Maintenance
In-house engineering allows for meticulous frame design featuring carefully selected specifications that prioritize longevity and easy maintenance: A Threaded bottom bracket, drop-set headset, internally guided cable routing, and SRAM's Universal Derailleur Hanger all make life easier when working on this bike.
Debris Guard
The Rascal's snazzy clip-on debris guard extend the life of bearings by protecting them from unwanted intrusions while keeping your frame protected and fresher longer.
Durable, Well-Designed Hardware
Precision alloy pivot bolts ensure easy bearing removal and service with only one tool, thanks to our captured nut design. Bolu's full complement bearings handle higher loads, and dual lip seals provide excellent protection against water and dust.
BUILD KITS
|
Frame Kit
$3,199 |
SRAM Eagle 90
$5,199 |
SRAM X0 Transmission
$7,199 |
SRAM XX Transmission
$10,299 | |
|---|---|---|---|---|
| Frame | Rascal SL Carbon | Rascal SL Carbon | Rascal SL Carbon | Rascal SL Carbon |
| Wheel Size | 29" | 29" | 29" | 29" |
| Headset | Cane Creek 40 Series IS42/52 | Cane Creek 40 Series IS42/52 | Cane Creek 40 Series IS42/52 | Wolf Tooth Premium IS42/52 |
| Shock | RockShox SDLX Ultimate 210x50 130mm | RockShox SDLX Ultimate 210x50 130mm | RockShox SDLX Ultimate 210x50 130mm | RockShox SDLX Ultimate 210x50 130mm |
| Seat Collar | Revel 34.9mm Dia | Revel 34.9mm Dia | Revel 34.9mm Dia | Revel 34.9mm Dia |
| Fork | RockShox Lyrik Ultimate 150mm | RockShox Lyrik Ultimate 150mm | RockShox Lyrik Ultimate 150mm | |
| Wheelset | Crank Brothers Synthesis Enduro Alloy | DT Swiss XMC1501 Spline ONE Carbon | Industry Nine Hydra2 Trail Carbon | |
| Hubs | Industry Nine 1/1 | DT Swiss 240 XD Ratchet DEG 90 | Industry Nine Hydra2 XD | |
| Tires | Maxxis DHF 29x2.5WT 3C MaxxTerra/EXO+/TR Maxxis DHR II 29x2.4WT 3C MaxxTerra/EXO+/T | Maxxis DHF 29x2.5WT 3C MaxxTerra/EXO+/TR Maxxis DHR II 29x2.4WT 3C MaxxTerra/EXO+/T | Maxxis DHF 29x2.5WT 3C MaxxTerra/EXO+/TR Maxxis DHR II 29x2.4WT 3C MaxxTerra/EXO+/T | |
| Handlebar | OneUp Alloy Bar 35x800mm 35mm Rise | OneUp Carbon Bar 35x800mm 35mm Rise | OneUp Carbon Bar 35x800mm 35mm | |
| Stem | Revel CNC 35mmx40mm Alloy | Revel CNC 35mmx40mm Alloy | Revel CNC 35mmx40mm Alloy | |
| Grips | Trail 1 x Revel Farlow Gap | Trail 1 x Revel Farlow Gap | Trail 1 x Revel Farlow Gap | |
| Saddle | SDG Bel-Air 3 LUX | SDG Bel-Air 3 LUX | SDG Bel-Air 3 LUX | |
| Seat Post | Oneup V3 125mm (SM), 190mm (MD) 210mm (LG), 240mm (XL) | Oneup V3 125mm (SM), 190mm (MD) 210mm (LG), 240mm (XL) | RockShox Reverb AXS 31.6mm 150mm (SM) 200mm (MD/LG) 225mm (XL) | |
| Dropper Lever | SRAM Dropper Lever | Wolf Tooth Remote Pro | SRAM AXS Shifter Pod Left | |
| Brakes | SRAM Motive Silver | SRAM Motive Silver | SRAM Motive Ultimate | |
| Rotors | SRAM Centerline 200mm 6-bolt | SRAM HS2 200mm 6-bolt | SRAM HS2 200mm 6-bolt | |
| Shifter | SRAM Eagle 90 | SRAM AXS Shifter Pod | SRAM AXS Shifter Pod | |
| Rear Derailleur | SRAM Eagle 90 T-Type | SRAM Eagle X0 T-Type | SRAM Eagle XX AXS T-Type | |
| Chain | SRAM Eagle 90 T-Type 116L | SRAM X0 T-Type 116L | SRAM XX Eagle 116L T-Type | |
| Cassette | SRAM Eagle 90 T-Type XS1275 10-52t | SRAM X0 T-Type XS1295 10-52t | SRAM XX Eagle XG-1297 10-52 T-Type | |
| Crankset | SRAM Eagle 90 T-Type 170mm 32t | SRAM X0 Eagle T-Type 170mm 32t | SRAM XX Eagle T-Type 170mm 32t | |
| Bottom Bracket | SRAM DUB 73mm MTB WIDE threaded | SRAM DUB 73mm MTB WIDE threaded | Wolf Tooth BSA 29 DUB - Raw Silver |
GEOMETRY
SMALL |
MEDIUM |
LARGE |
XL |
XXL |
|
Effective Top Tube Length |
582mm |
603mm |
625mm |
650mm |
678mm |
Seat Tube Length |
385mm |
415mm |
445mm |
475mm |
505mm |
Seat Tube Angle |
76°/71° |
76°/71° |
76°/71° |
76.5°/71° |
77°/72° |
Chain Stay Length |
436mm |
436mm |
436mm |
436mm |
436mm |
Bottom Bracket Drop |
34.2mm |
34.2mm |
34.2mm |
34.2mm |
34.2mm |
Bottom Bracket Height |
345mm |
345mm |
345mm |
345mm |
345mm |
Head Tube Angle |
65.5° |
65.5° |
65.5° |
65.5° |
65.5° |
Wheel Base |
1175mm |
1198mm |
1222mm |
1256mm |
1293mm |
Head Tube Length |
90mm |
96mm |
104mm |
115mm |
145mm |
Axle to Crown |
551mm |
551mm |
551mm |
551mm |
551mm |
Fork Offset |
44mm |
44mm |
44mm |
44mm |
44mm |
Trail |
123mm |
123mm |
123mm |
123mm |
123mm |
Stack |
604mm |
610mm |
618mm |
635mm |
650mm |
Reach |
431mm |
451mm |
471mm |
498mm |
528mm |
Standover |
717mm |
720mm |
728mm |
742mm |
760mm |
FRAME SPECIFICATIONS
| Wheel Size | 29" |
| Front Travel | 140mm |
| Rear Travel | 130mm |
| Shock Spec | 210mm X 50mm |
| Axles | 177 x 12 x 1.0 |
| Seatpost Diameter | 31.6mm, 34.9mm Seat Collar |
| Max Seatpost Insertion Depth | 300mm ALL SIZES |
| Rear Brake | 180mm post mount/203mm max rotor size |
| Rear Tire Clearance | 29" x 2.6" |
| Bottom Bracket | 73mm BSA English Threaded |
| Max Chainring | 36T Round / 34T Oval, 55mm Chainline |
| Tapered Headtube | IS42 Upper / IS52 Lower |
| Bottle Bosses | 2 Sets of bosses. 1 set located along top of down tube. 1 set located along bottom of down tube. Size XXL has an additional set underneath the top tube. |
FAQ
WHAT SHOCK SIZE AND MOUNTING HARDWARE ARE USED ON THE RASCAL?
The shock size is 210x50mm. The mounting hardware size is 25x8mm.
CAN I RUN A COIL SHOCK ON THE RASCAL?
We only recommend the Push ELEVENSIX coil shock.
CAN I USE A LONGER SHOCK TO GET MORE TRAVEL OUT OF THE RASCAL?
No you cannot. While we love experimenting and innovation, doing so will void the warranty.
DO YOU OFFER A LIGHT SHOCK TUNE FOR LIGHTER RIDERS?
We do not. We found the leverage curve of our bikes leaves the shock very tunable. We have successfully set up riders from 95 lbs. to well over 230 lbs.
HOW MUCH REAR SHOCK SAG SHOULD I RUN ON THE RASCAL?
30% is the recommended amount of sag to run on the Rascal. Start with 30% then you can adjust +/- 5% for a slightly softer or firmer ride.
WHAT IS THE RECOMMENDED FORK TO USE ON THE RASCAL?
The Rascal was designed to use a 140mm fork with a 44mm offset and an axle-to-crown length of 547-551mm. You may use a 150mm fork with a maximum axle-to-crown length of 561mm.
HOW MANY VOLUME SPACERS COME IN THE STOCK FORK AND SHOCK?
RockShox Super Deluxe Shock has 2 spacers.
Rockshox Lyrik Fork has 1 volume spacer.
Fox Float X has a 0.4 volume spacer.
Fox Float 36 fork has 2 volume spacers.
CAN I USE A 27.5" REAR WHEEL TO RIDE THE RASCAL IN A "MULLET" CONFIGURATION?
No we do not recommend doing this. The Rasal was designed to be ridden as a full 29er and performs at its best in this configuration.
WHAT TYPE OF BOTTOM BRACKET DOES THE RASCAL USE?
The Rascal uses a BSA 73mm threaded bottom bracket.
WHAT BASHGUARD / CHAINRING PROTECTION CAN I RUN ON THE RASCAL?
The Rascal features ISCG-05 tabs. This is a common mounting standard for chainguides and bash guards that you can find from great companies like MRP, OneUp, and E13.
WHAT IS THE LARGEST CHAINRING I CAN RUN ON THE RASCAL?
36T ROUND / 34T OVAL.
