CHOOSE YOUR BUILD
Revel Bikes

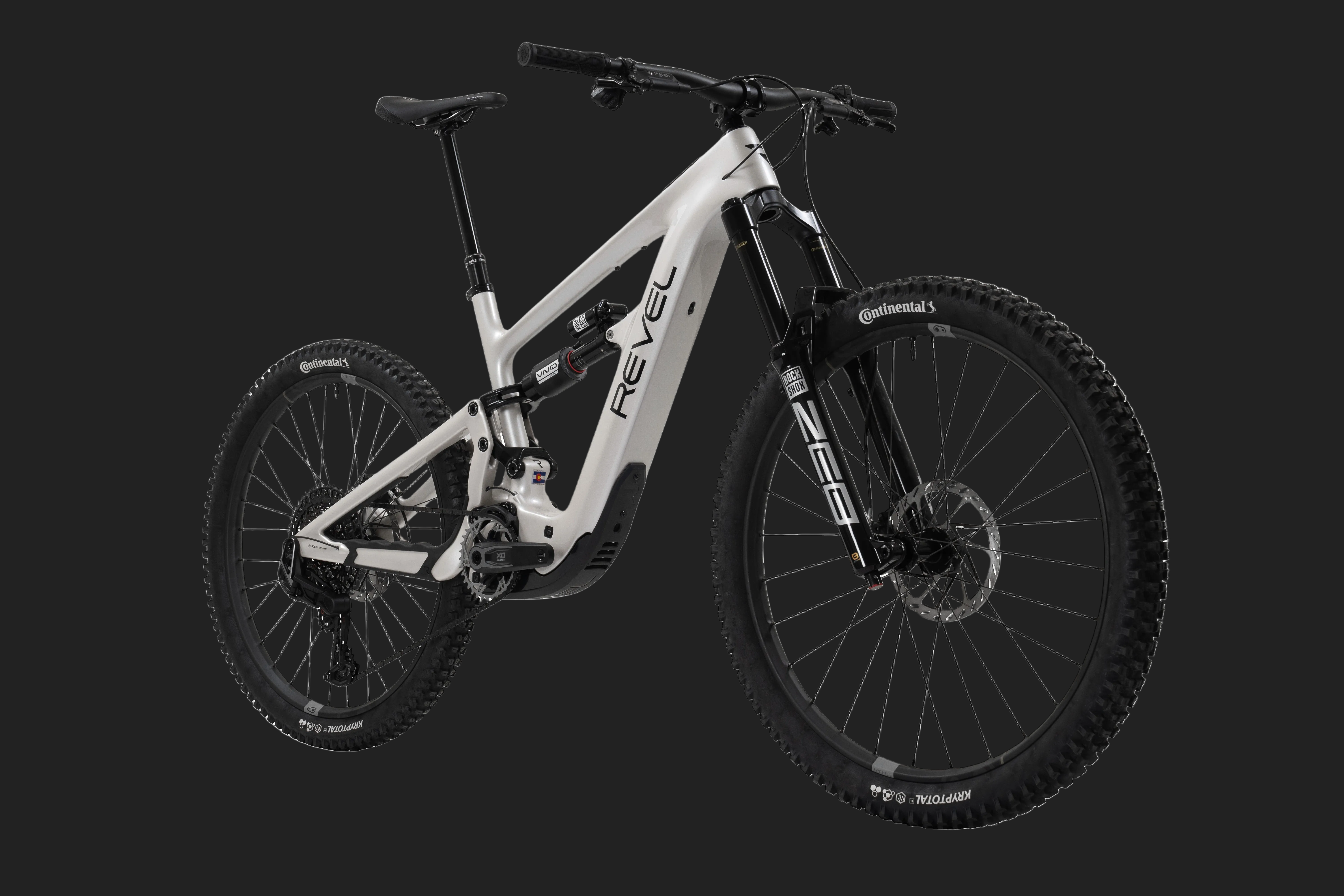

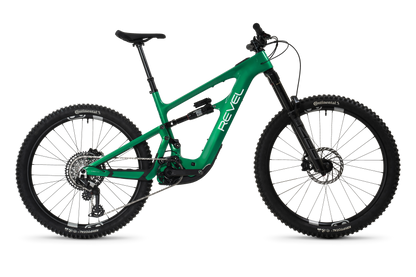

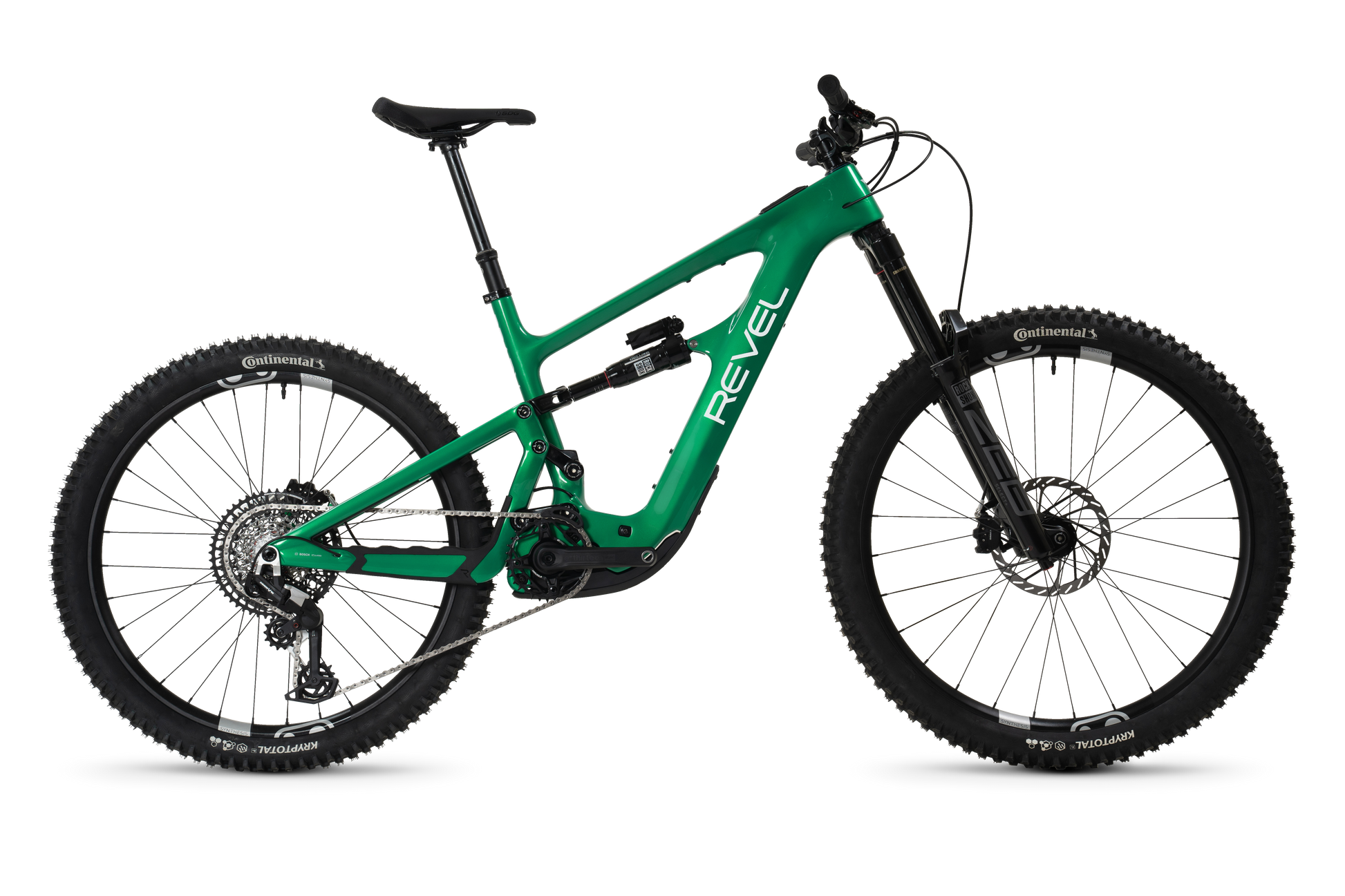

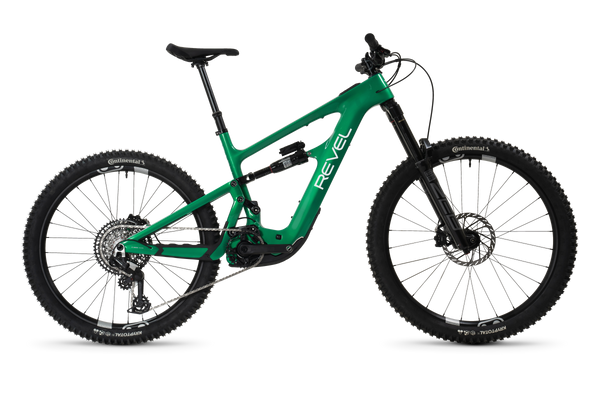

ReRun SRAM Eagle 90
Couldn't load pickup availability
Key Attributes
Key Attributes
KEY COMPONENTS:
FRAME: ReRun Carbon

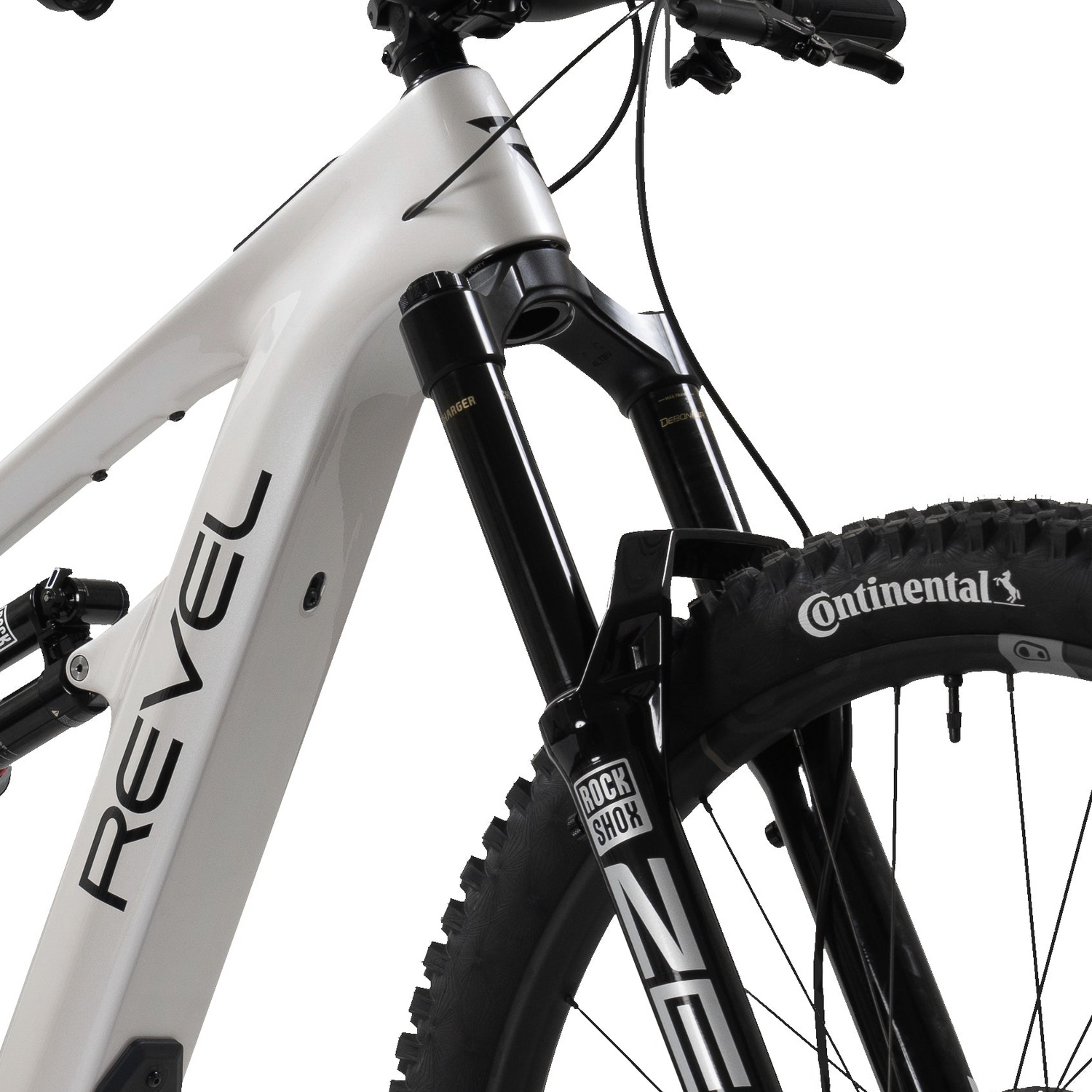

FORK: RockShox ZEB SEL+ 170mm
SHOCK: RockShox SDLX SEL+
DRIVETRAIN: SRAM Eagle 90
BRAKES: SRAM Maven Silver

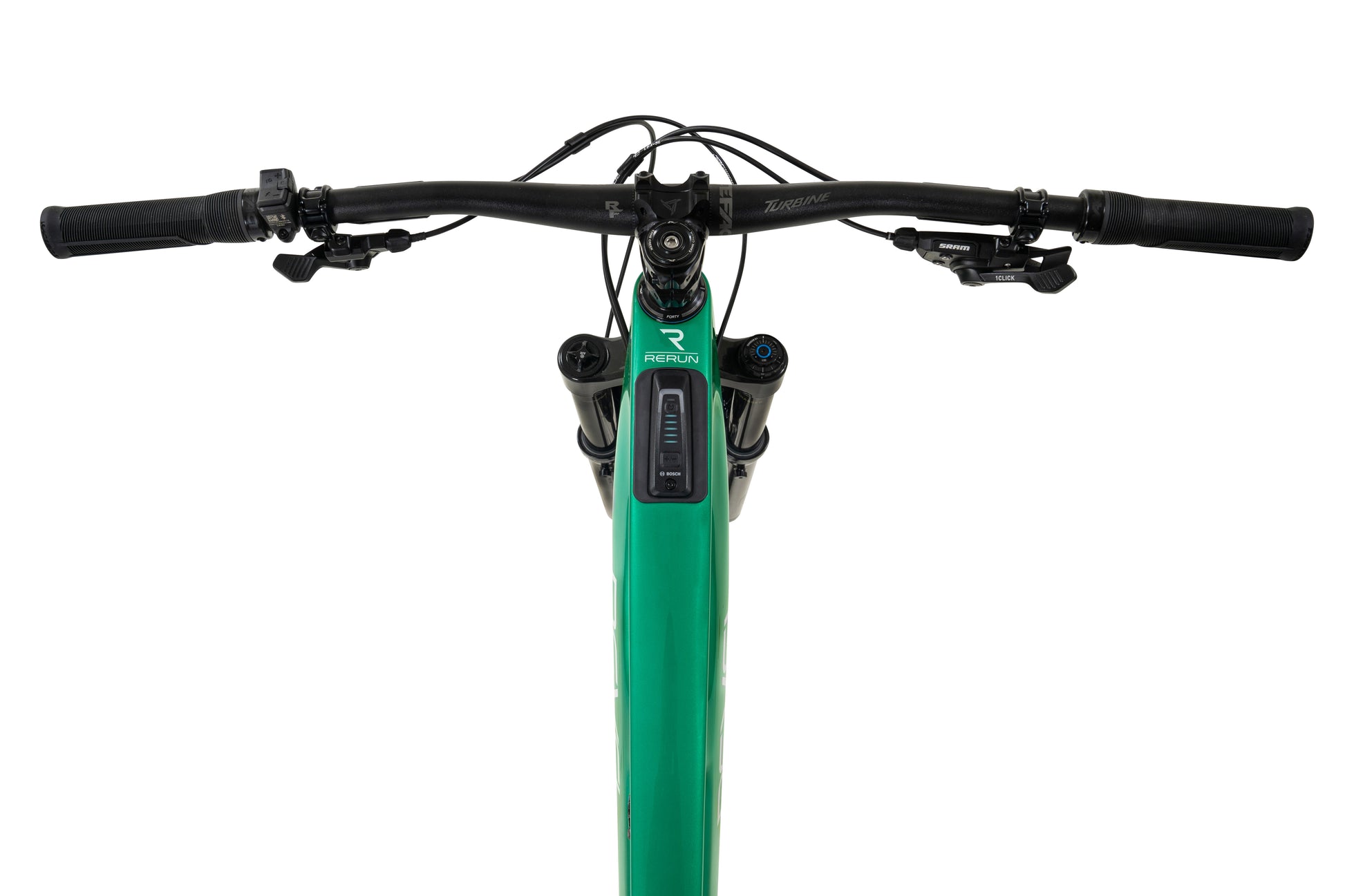

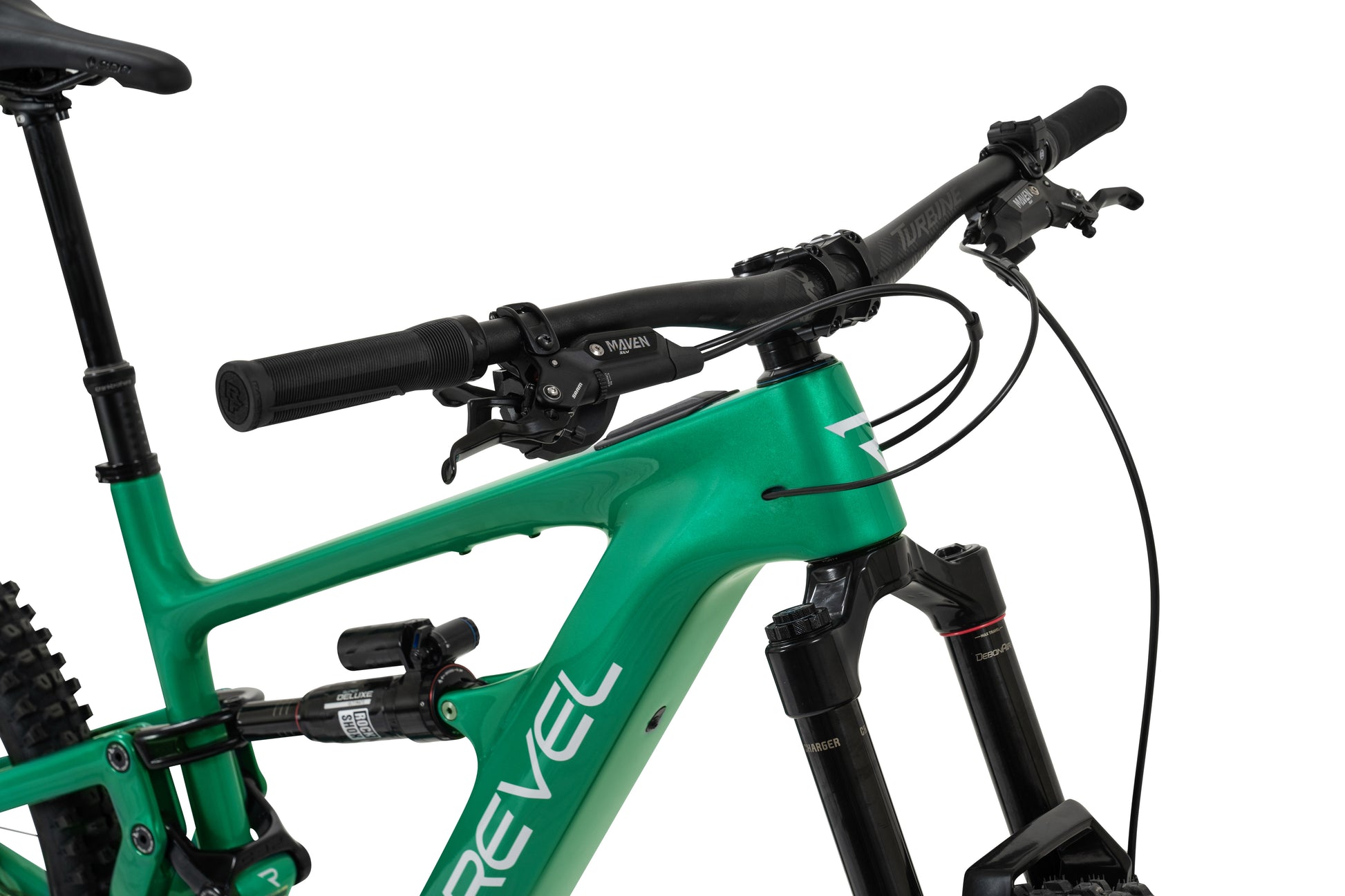

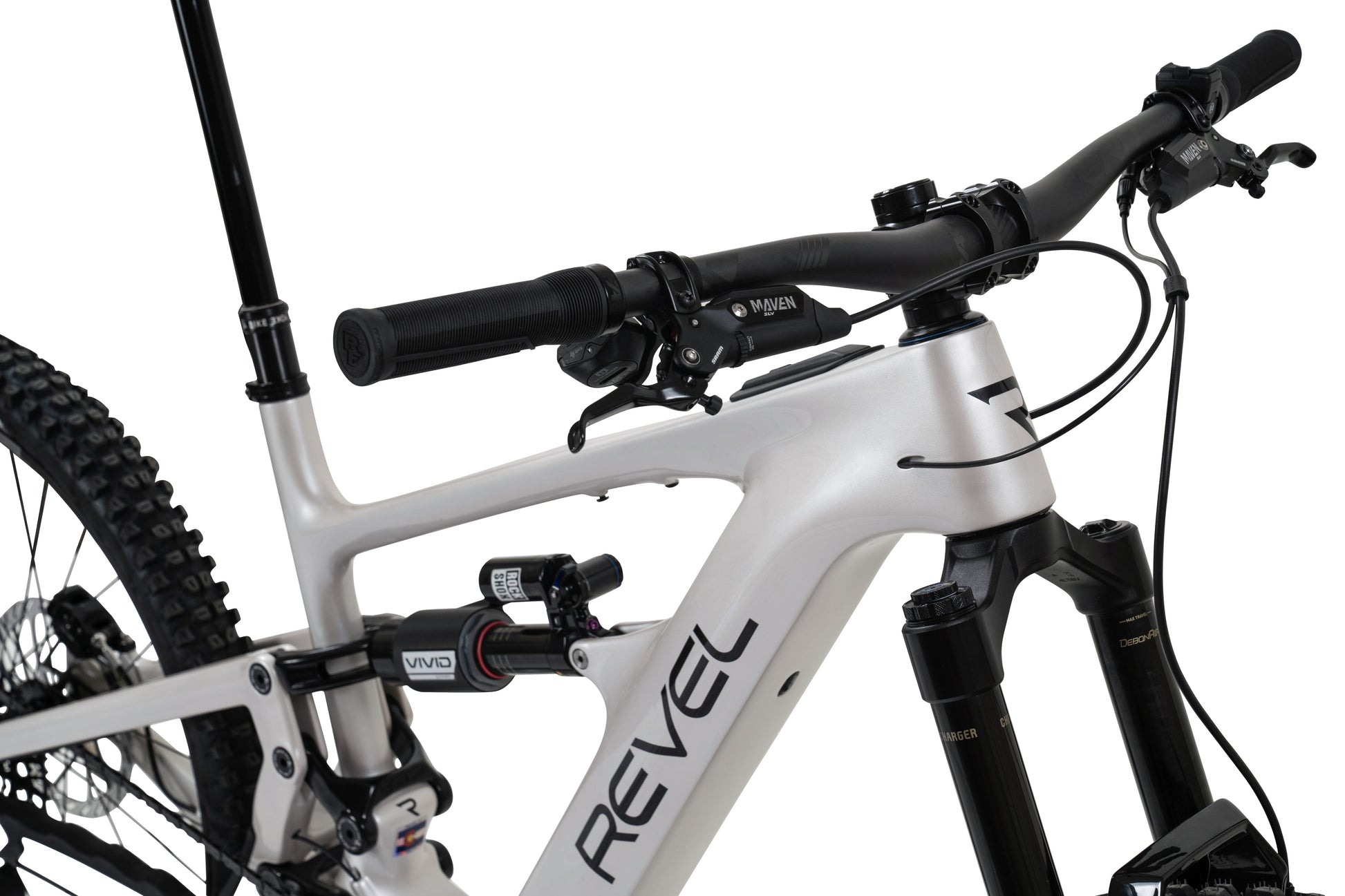

COCKPIT: RaceFace Turbine
DROPPER POST: Crank Brothers Highline 7
WHEELS: Crank Bros Synthesis Enduro Alloy
TIRES: Continental Kryptotal-F Enduro 2.4 Soft Front Continental Kryptotal R Enduro 2.4 Rear
Shipping and returns
Shipping and returns
Shipping and order processing times may fluctuate depending on order demand and the global shipping environment. Revel will notify the customer of our best estimated shipping lead time, however, these times are subject to change due to part availability and supply chain constraints. Complete bikes are fully assembled, test ridden, and then disassembled before they are carefully packed into our shipping cartons.
This process requires great attention to detail to ensure the best ride quality of our bikes right out of the box and we appreciate your patience with build timeframes.
Warranty
Warranty
Every Revel bicycle frame is covered by a limited warranty to the original owner and a lifetime crash replacement policy. Here’s the legal language:
The warranty covers defects in materials and craftsmanship, including manufacturing defects for the lifetime of the product. The warranty does not cover any damage or defects caused by abuse, accidents, or other incidents that are not the result of normal use of the product.
- 30 Days No-Questions-Asked Return Policy

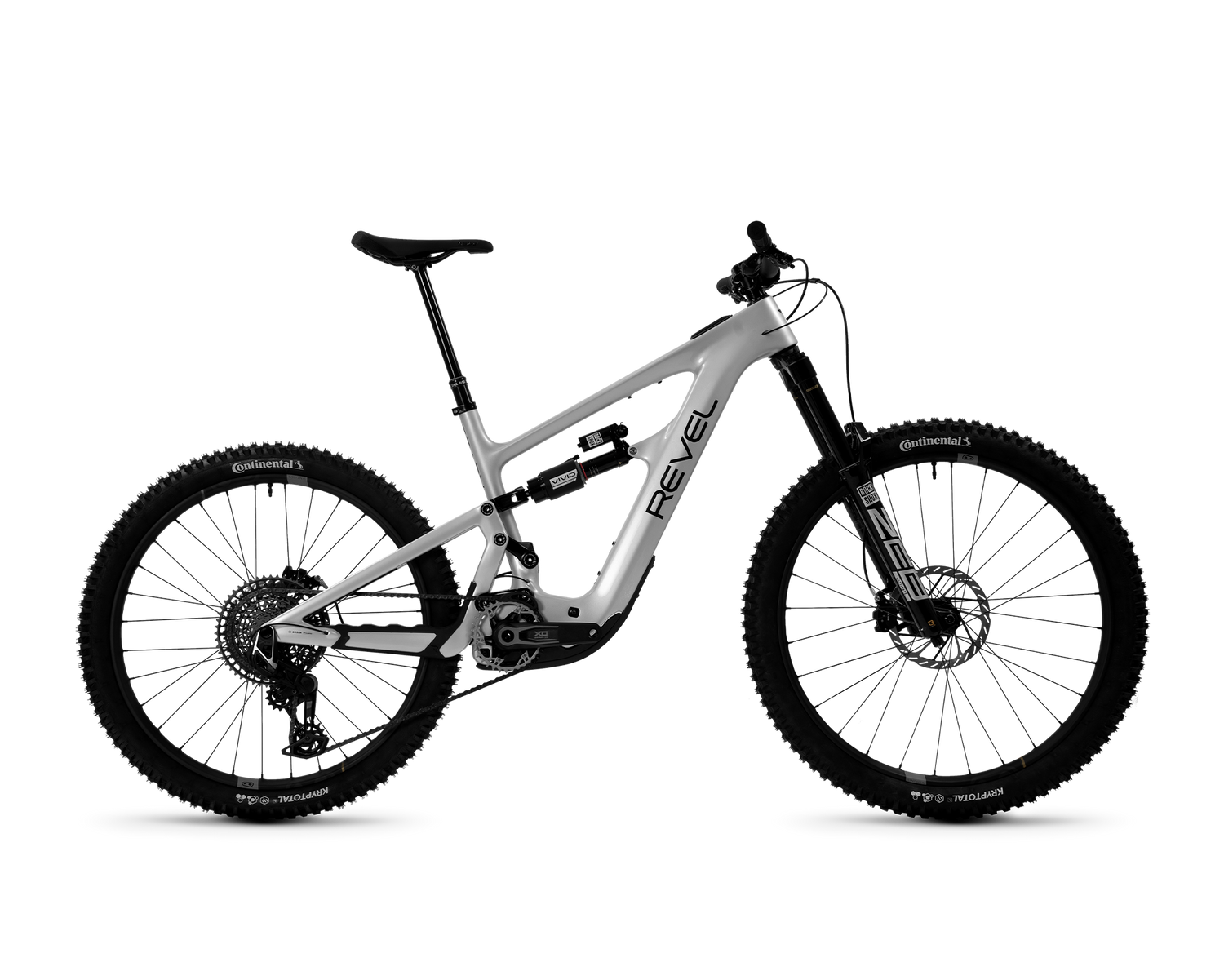

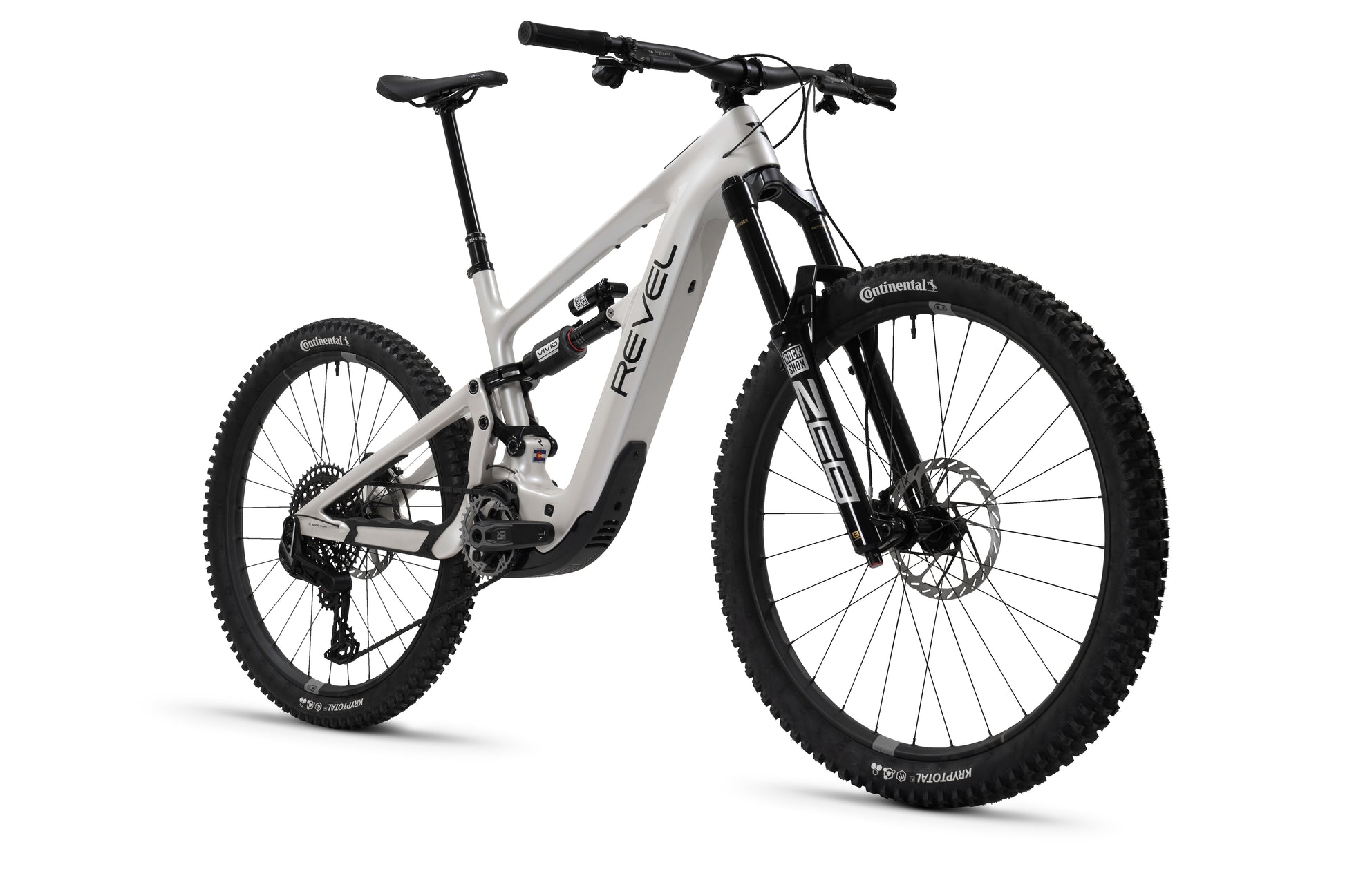

Enduro Electrified
165MM REAR 170MM FRONT 27"/29"

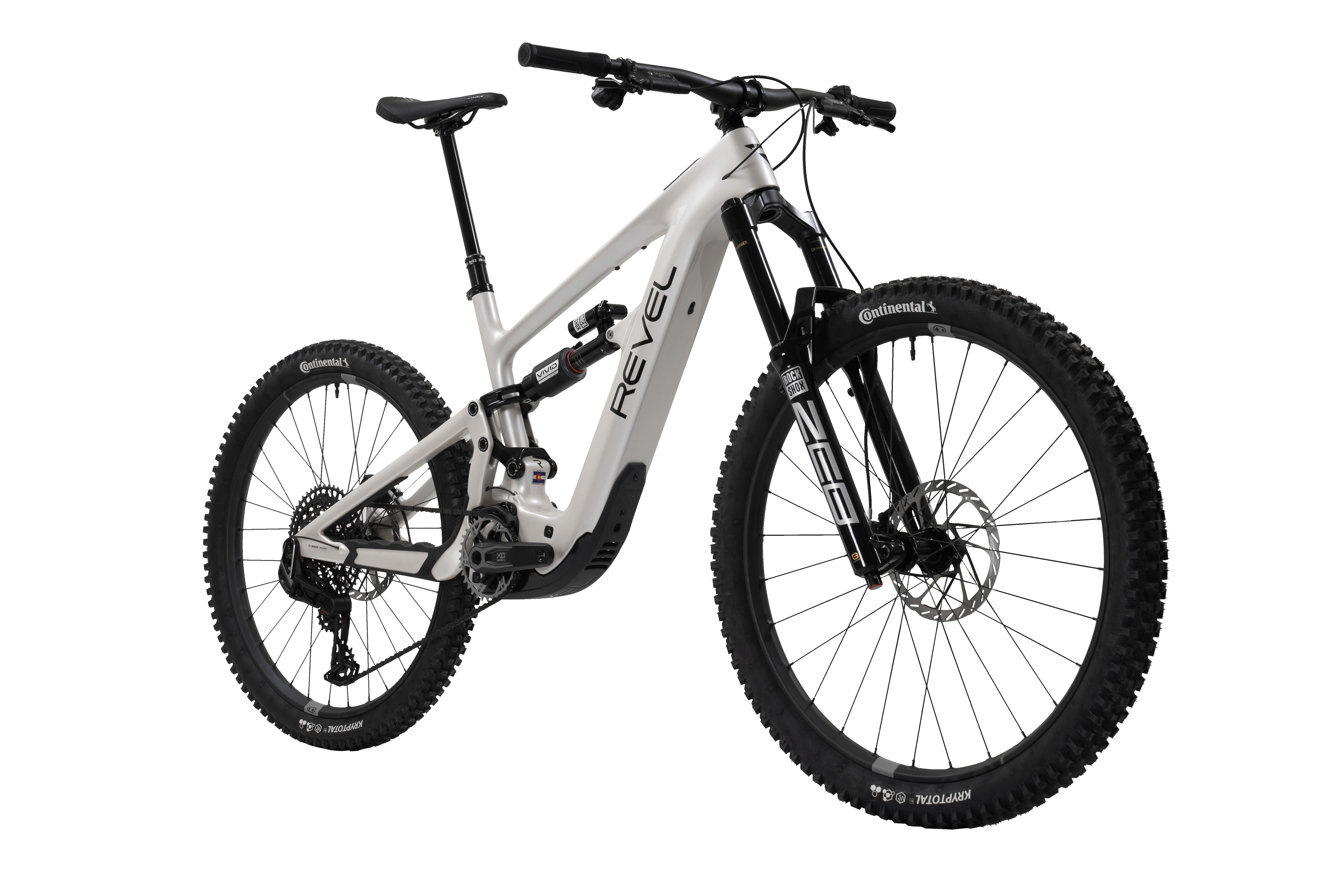

The Revel ReRun rewrites the script for what an e-enduro bike can be. Built around the lightweight Bosch Performance Line SX motor and a 400Wh battery, the ReRun delivers a natural-feeling, mid-power boost that's perfect for riders who want more trail time without the bulk of a full-power e-bike.
Mid Power and mid weight
PLAYFUL AND POPPY
170MM
FORK TRAVEL
BOSCH
KIOX 400c COMPATIBLE
REAR SHOCK
230X65
FRAME MOUNTS
BOTTLE AND POWERMORE
DURABLE PRECISION
ALLOY LINKS
12X148
BOOST SPACING
FULL LENGTH
DROPPER INSERTION
MID-POWER
BOSCH SX
BOSCH
400Wh BATTERY
STRETCH YOUR ADVENTURE FURTHER
LEAN. MEAN. ELECTRIFIED.
ReRun’s modern geometry and mixed-wheel setup give it nimble handling on tight tech and stable footing when the trail opens up. A robust CBF suspension platform keeps traction high and feedback consistent under power or pedal, making climbs feel efficient and descents inspiring. Bosch Powermore 250wh range extender compatible for more versatility.

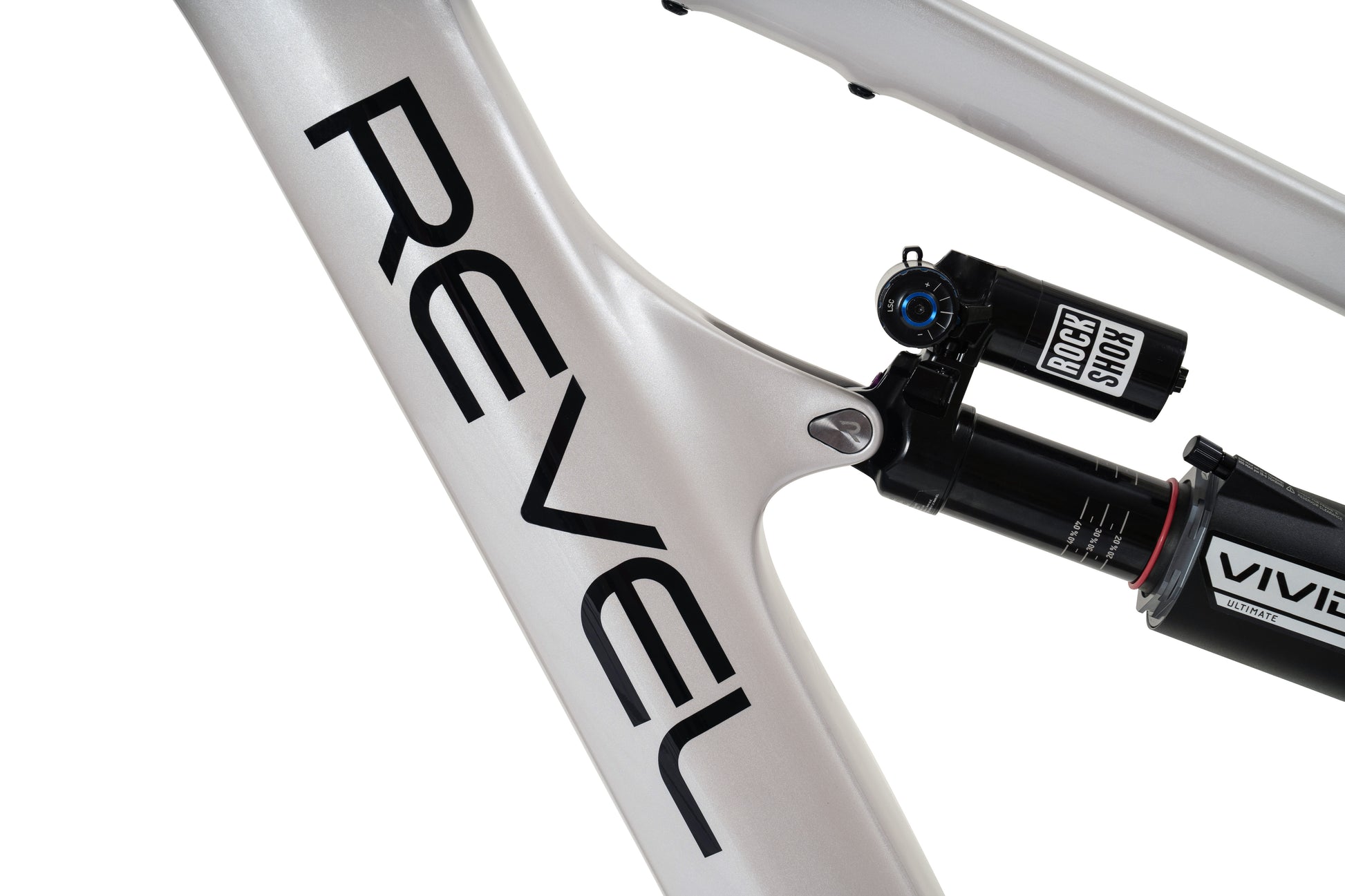

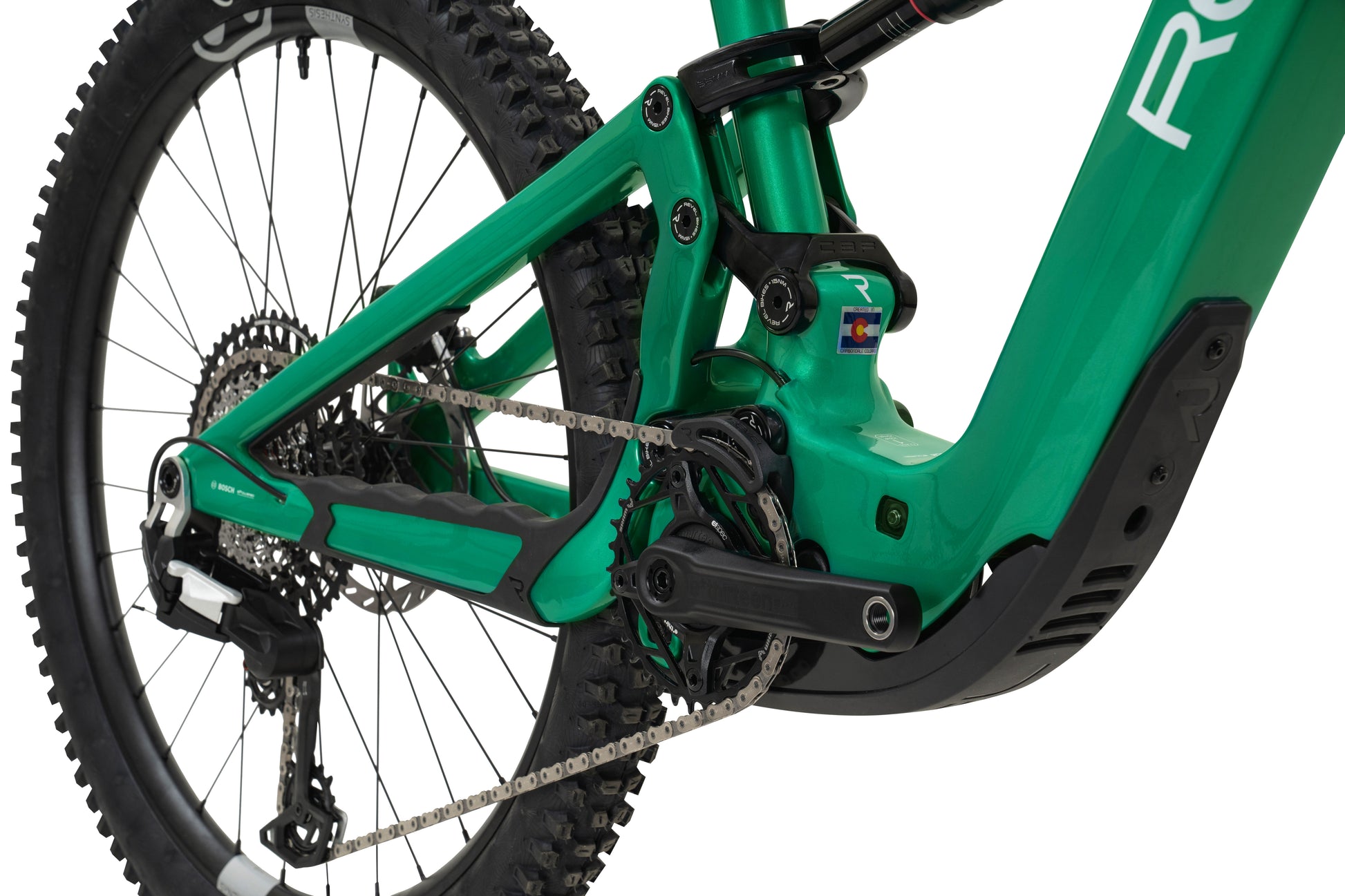

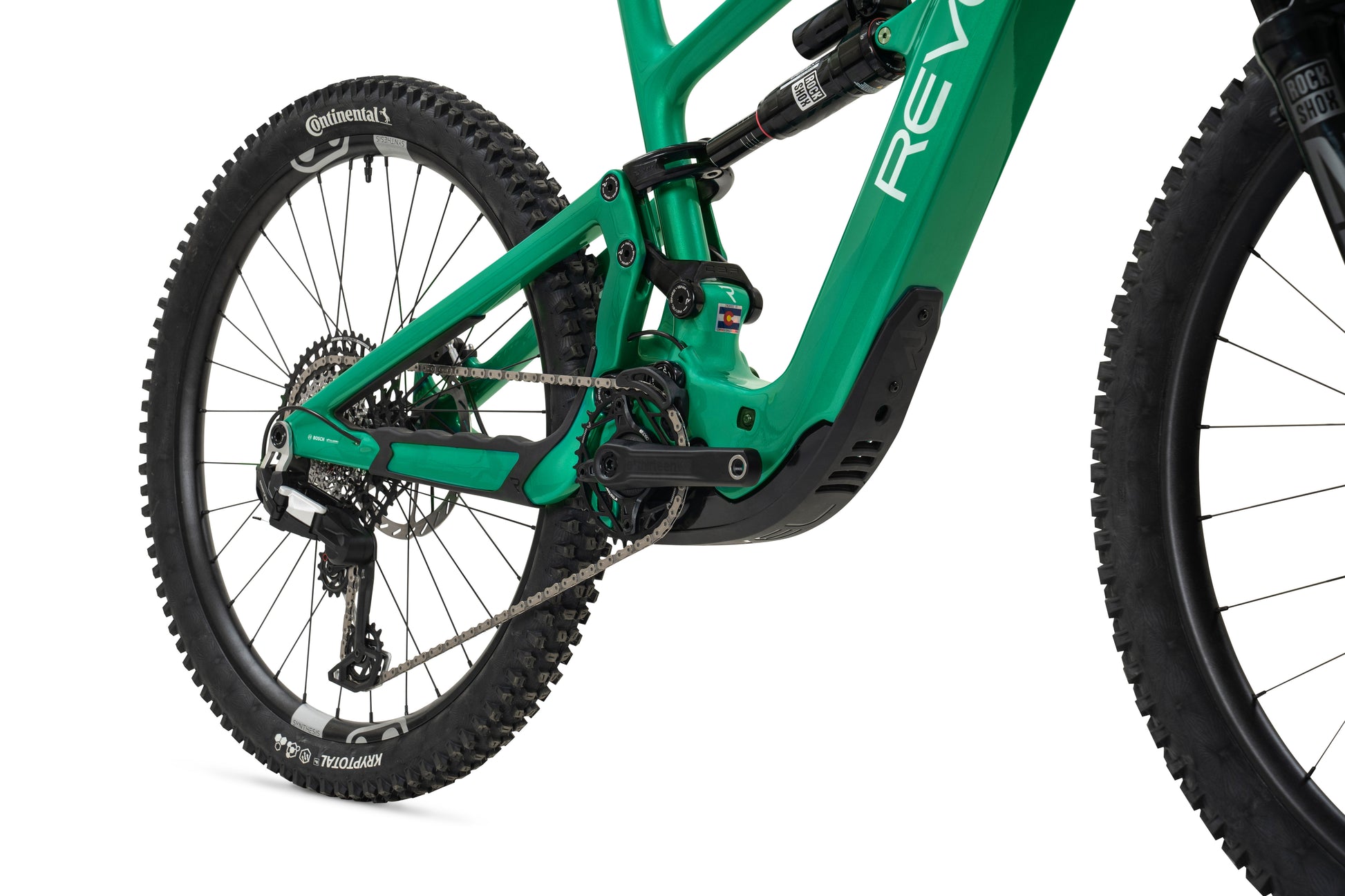

Suspension First, Motor Second
The ReRun was built as a MTB first with the motor integrated to enhance the ride, not define it. Thanks to CBF’s suspension independence, the ReRun delivers consistent, undisturbed suspension performance whether the motor is off, in eco mode, or full boost. It rides like a true MTB with a bit more power.

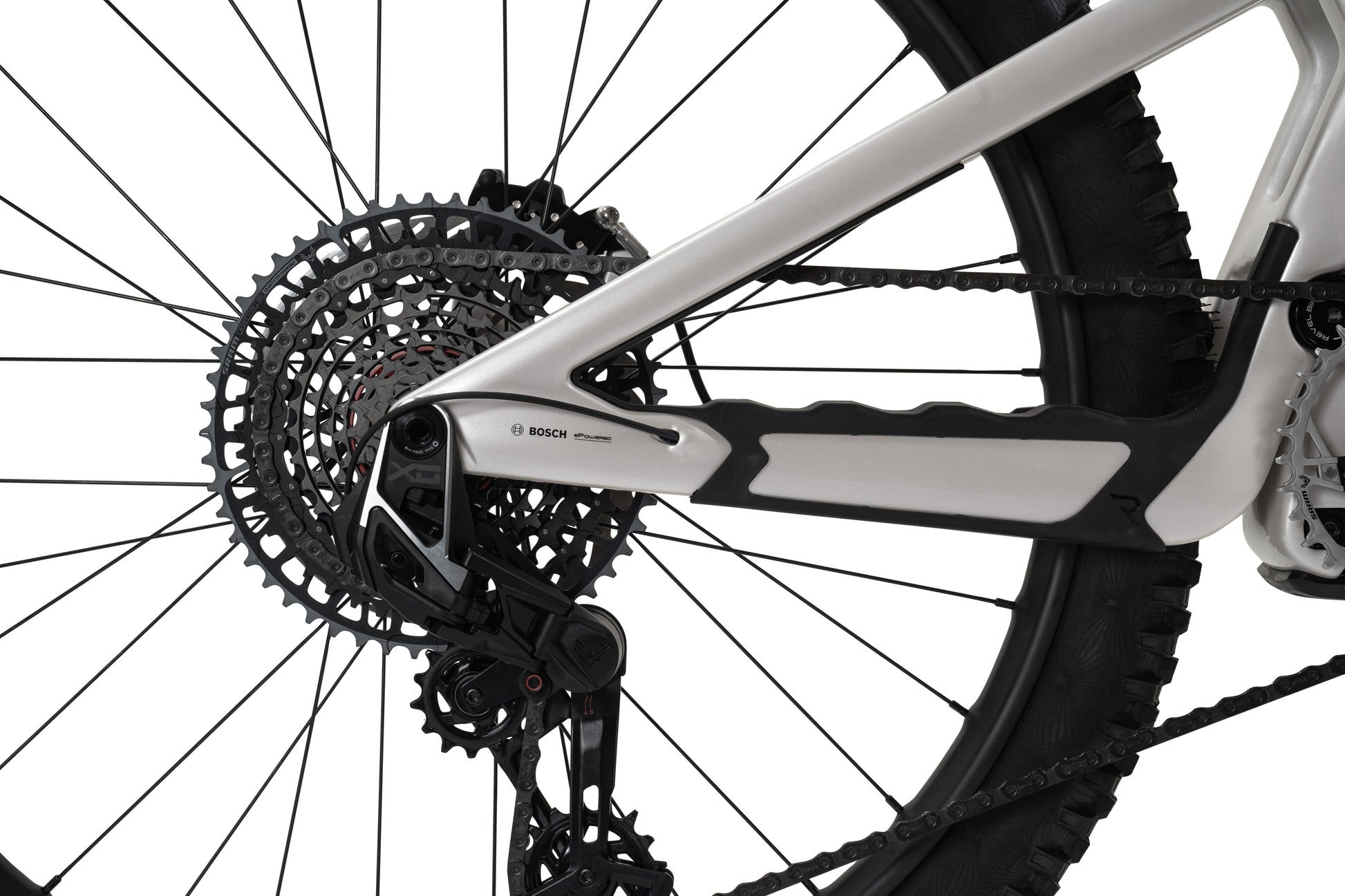

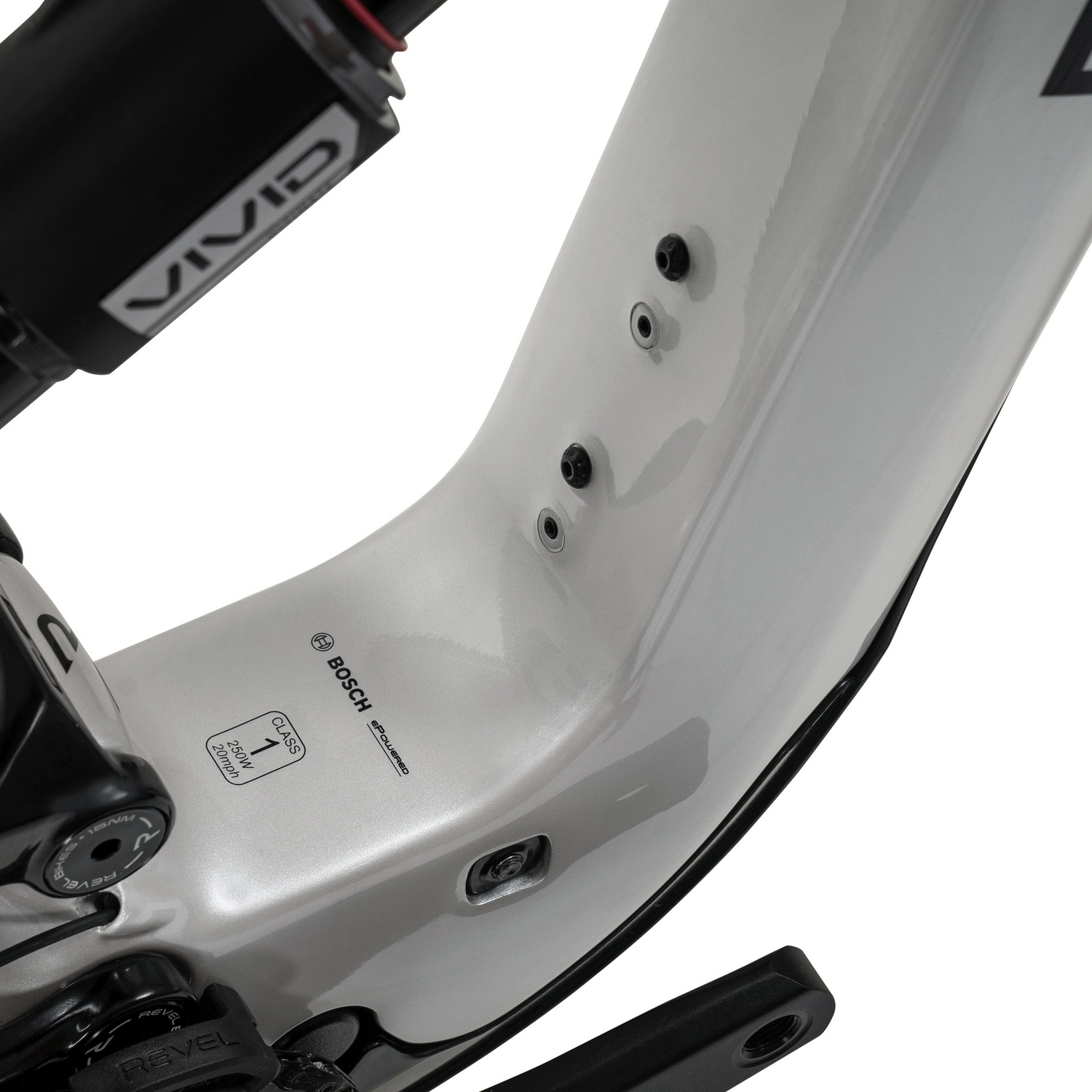

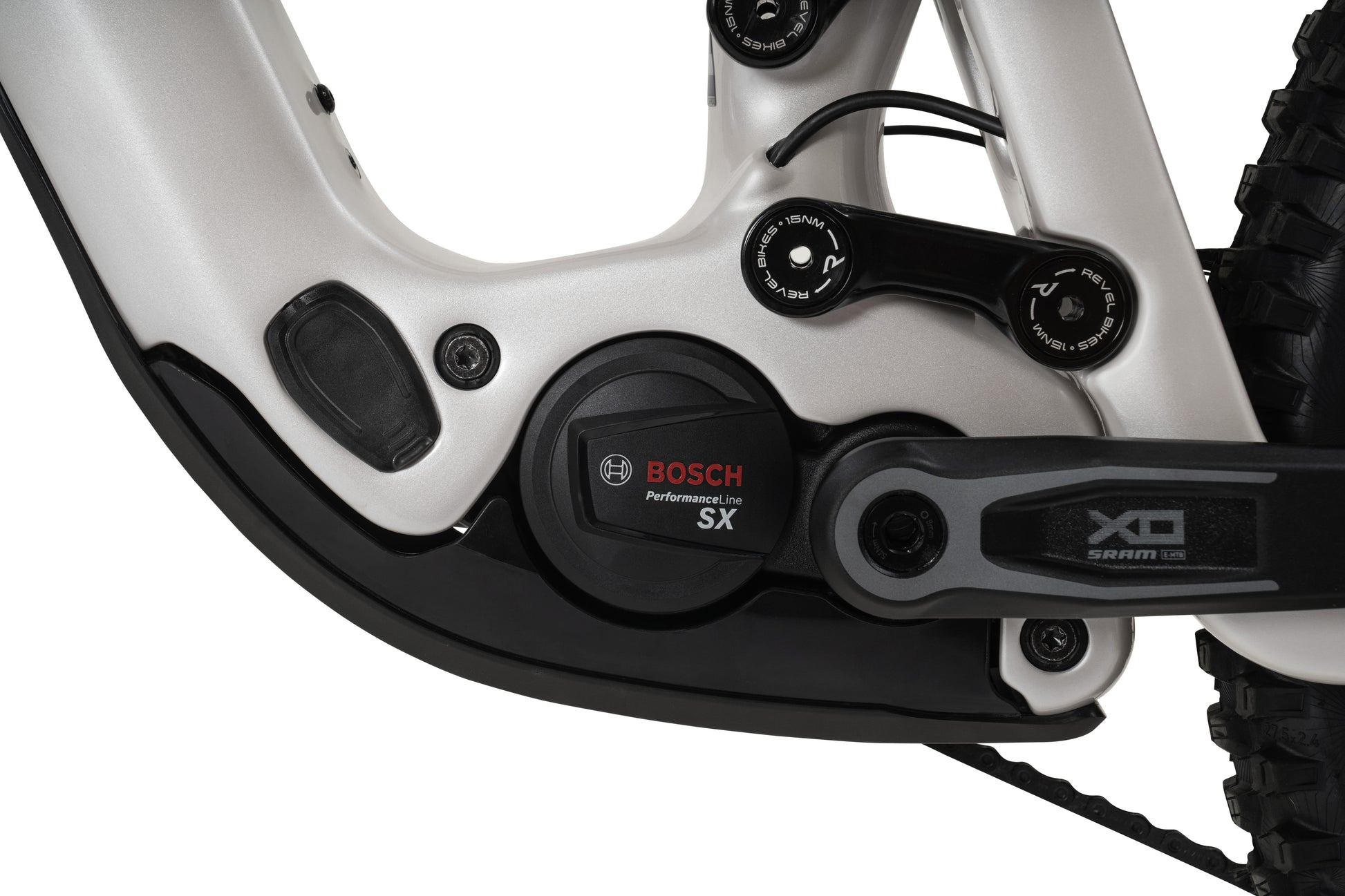

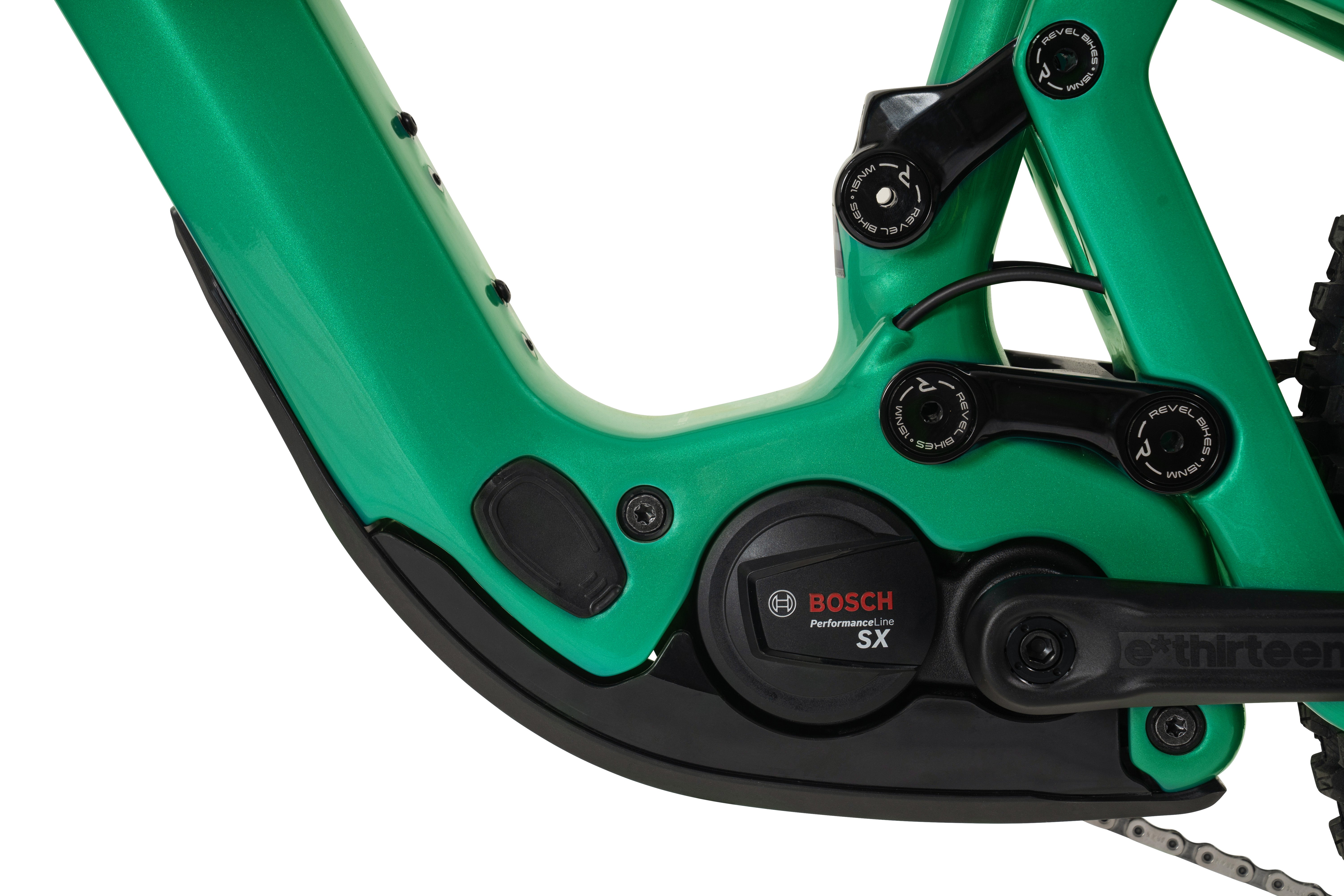

Powered by the Best of Bosch

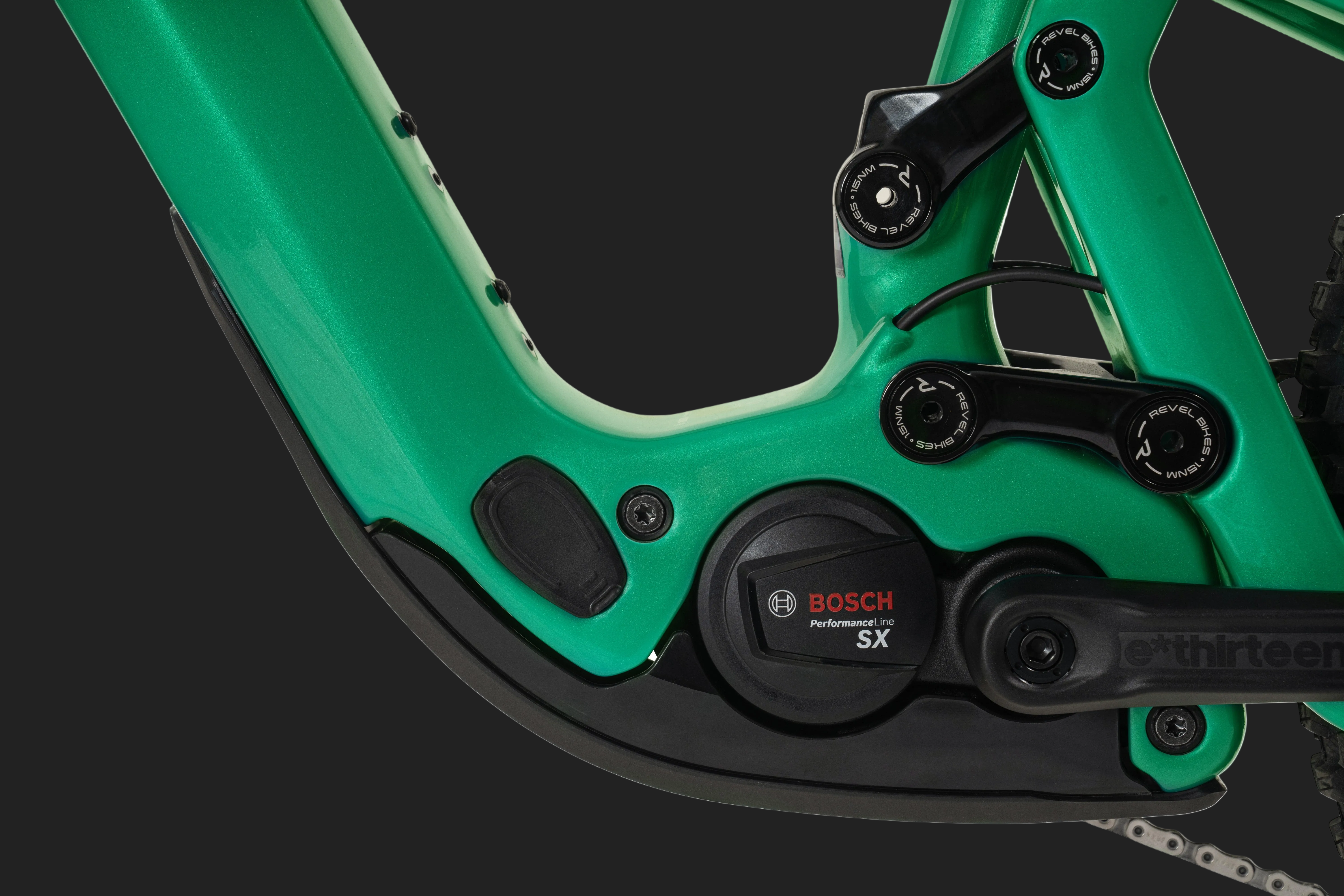

Using the Bosch SX Motor, the ReRun harnesses the capabilities and excellent service network of the Bosch System. Ensuring top-tier ride quality, reliability, and durability.

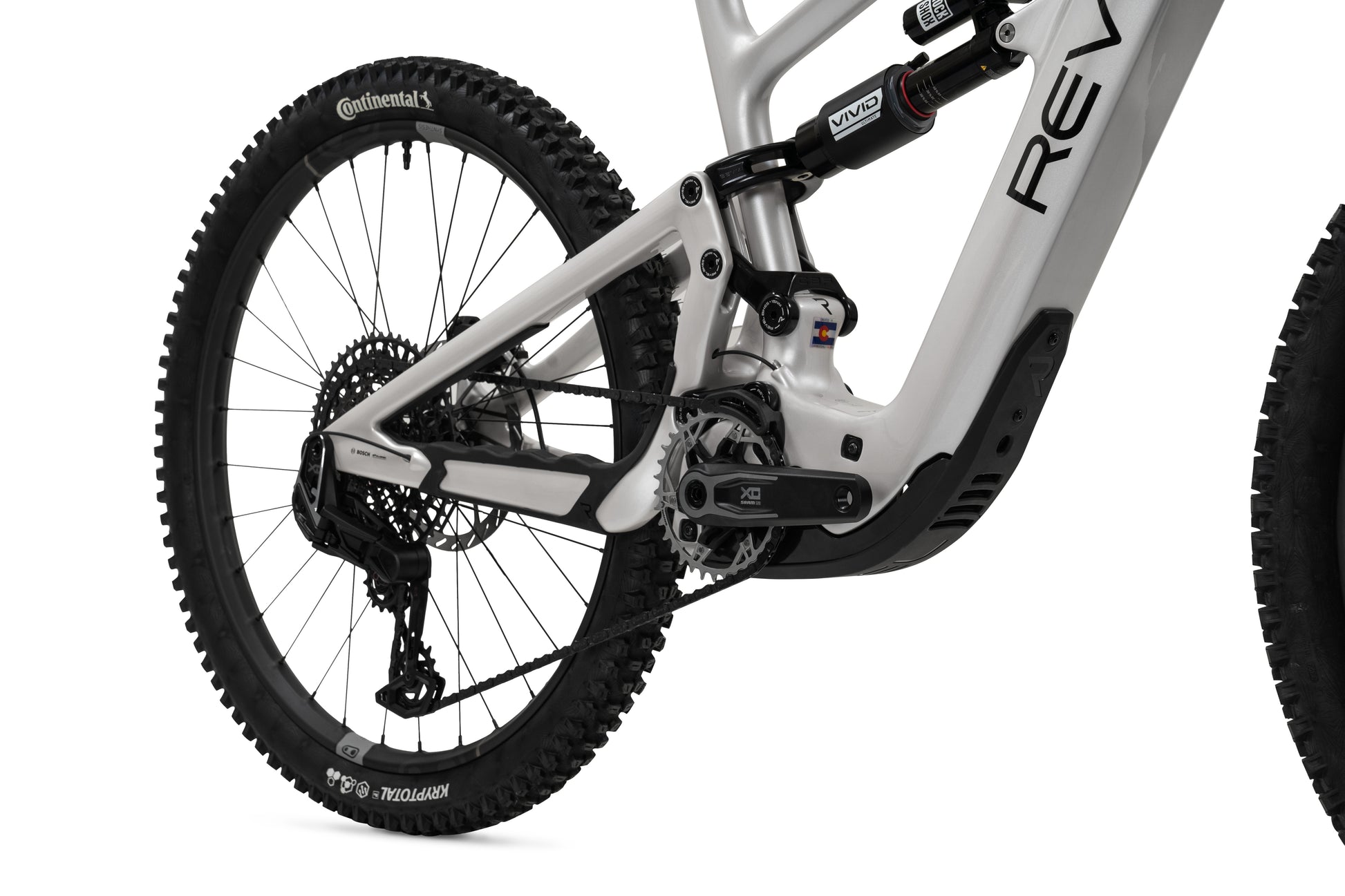

The Best of Both Worlds: Mixed Wheels
With the best of both worlds, the ReRun features a 29" front wheel for precision and a 27.5" rear wheel for agility and quick handling chainstay lengths.

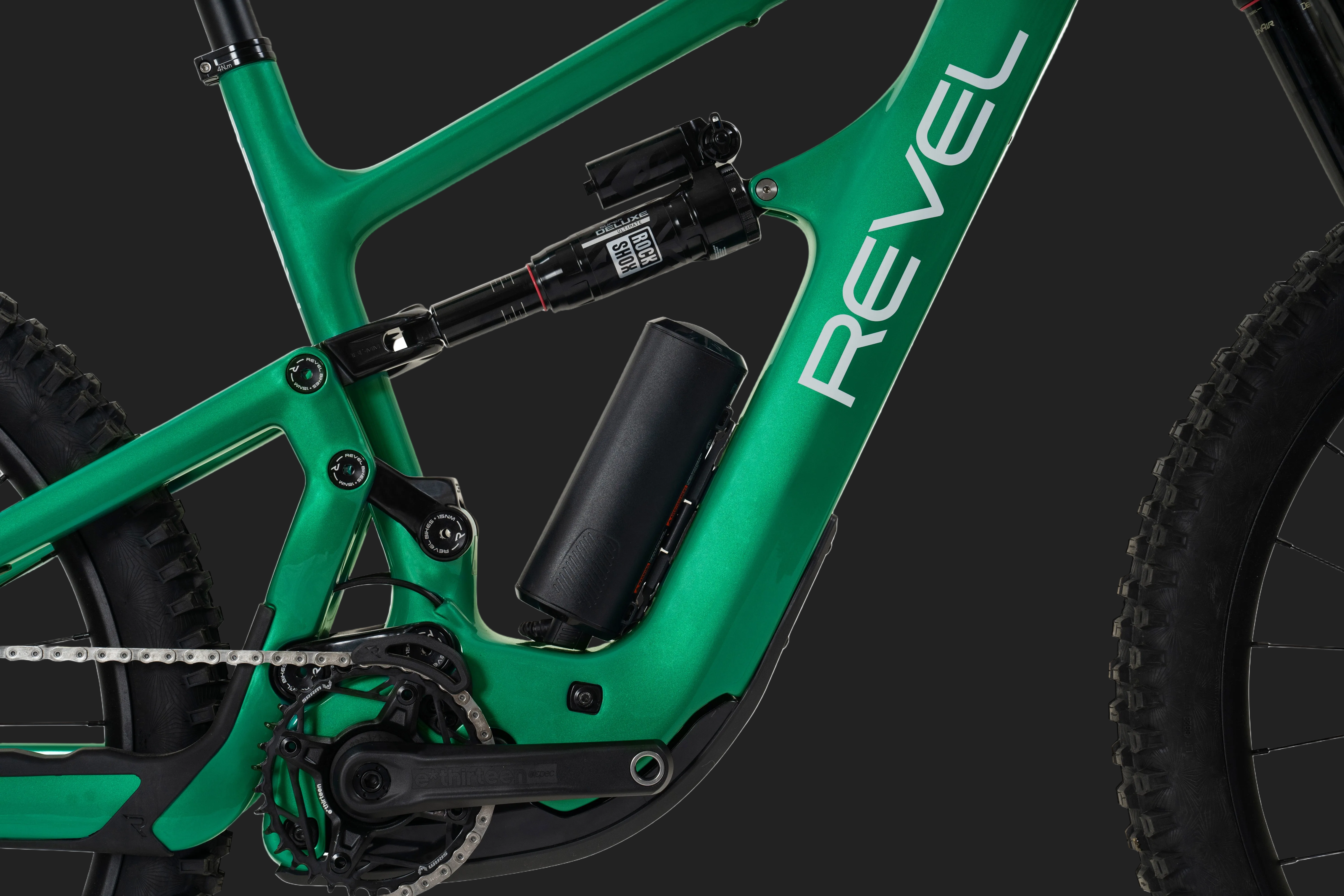

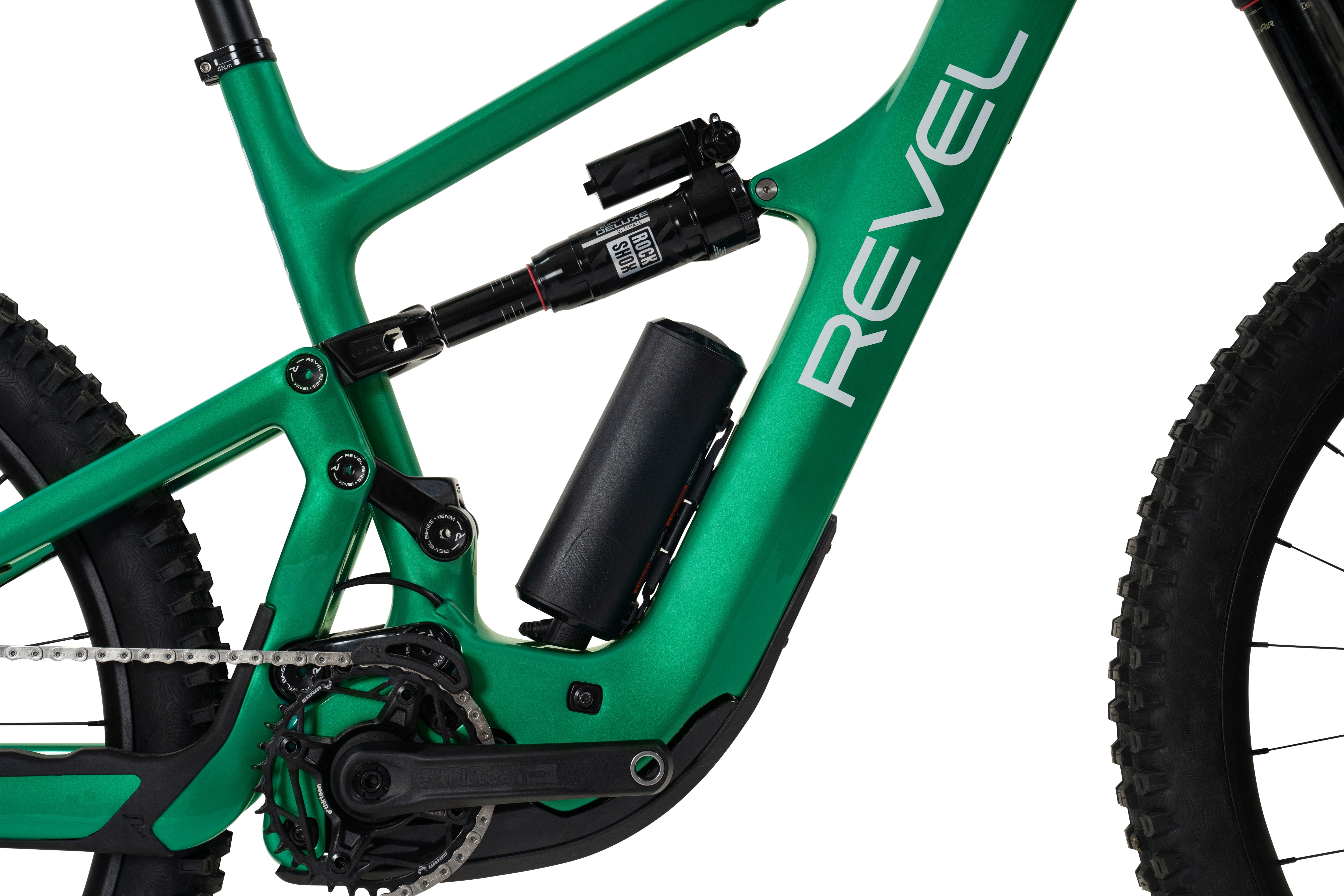

Bosch Powermore: Further and Longer
The Rerun’s compatibility with the PowerMore battery range extender allows riders to go farther and explore longer while still maintaining its lightweight design and exceptional ride capability.

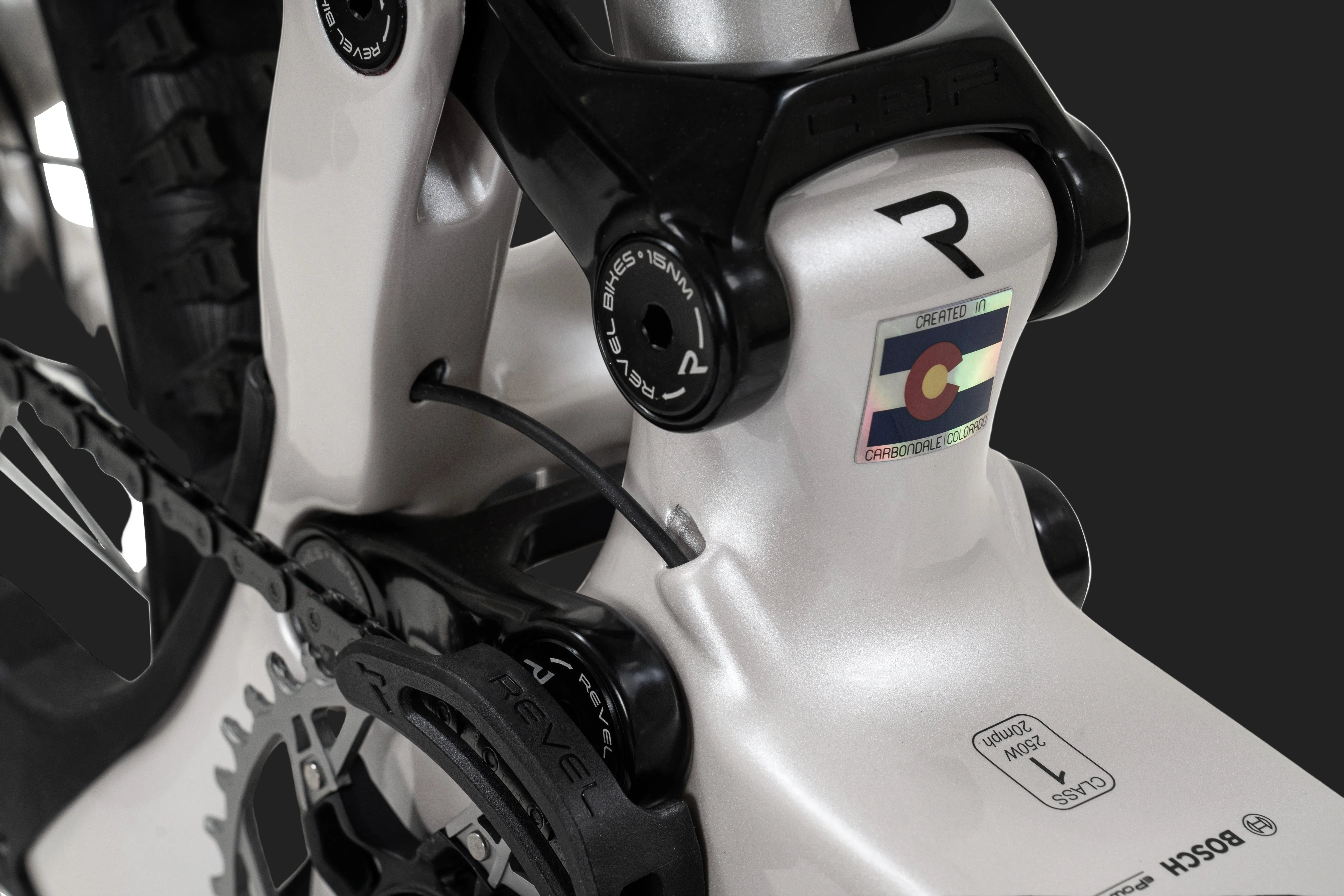

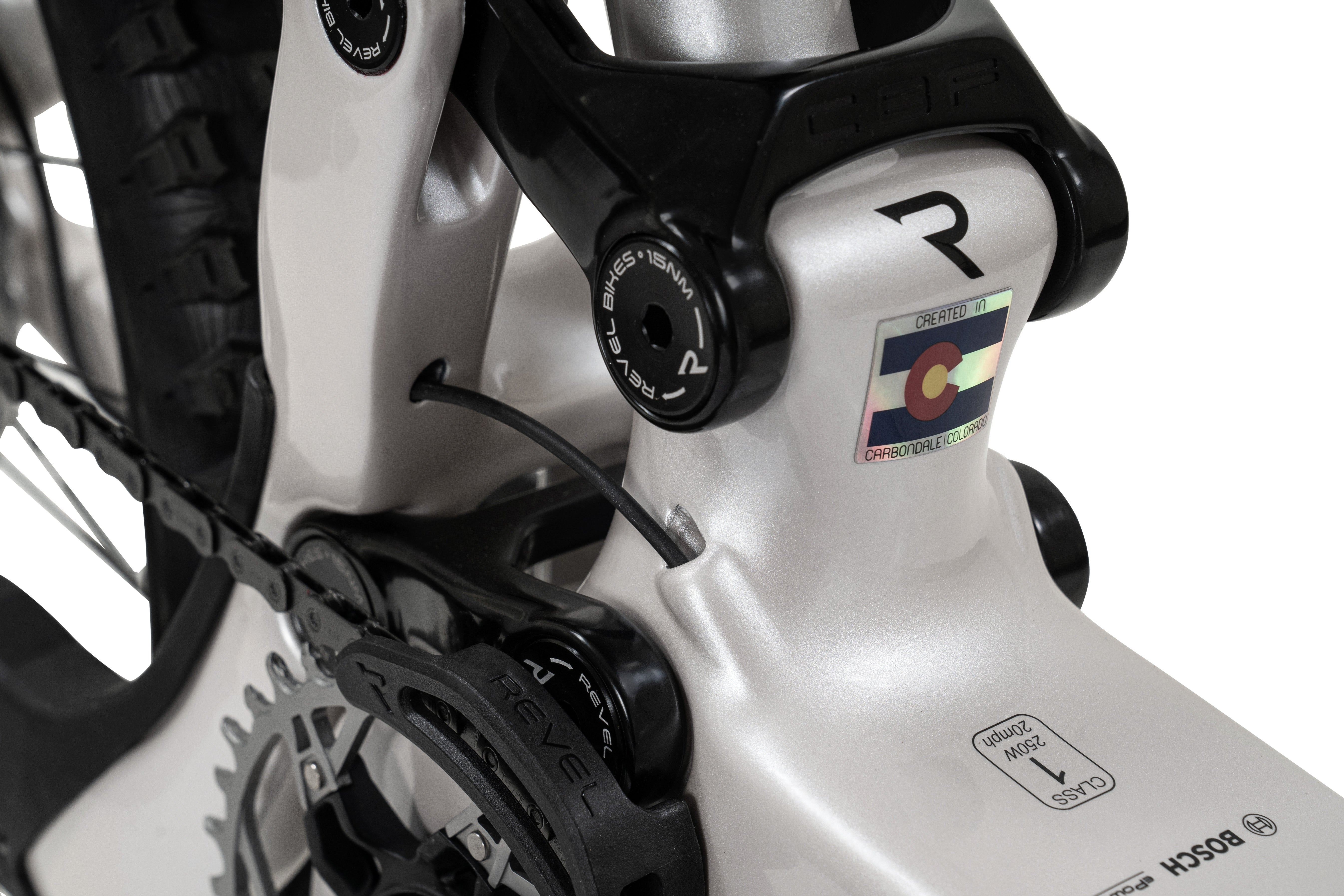

Clean and Easy, No-Mess, No-Stress Set-up
Cable routing over the bottom bracket keeps things quiet, clean, and protected, while a no-nonsense press-fit headset allows for easy rider customization and set-up flexibility.

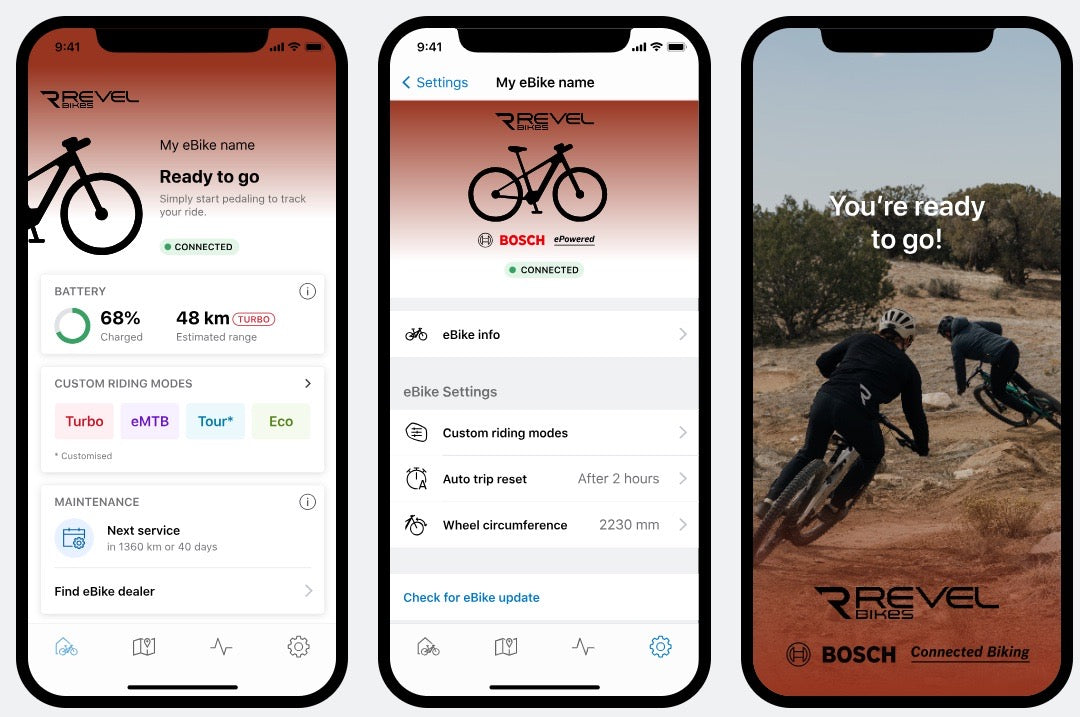

Make it Yours with the Bosch Flow App
The Bosch Flow app is a companion tool designed to enhance the riding experience. It allows riders to customize motor settings, track ride data, update software, and access navigation tools directly from their smartphone. With seamless Bluetooth connectivity, the app provides real-time information and control, making it easier to personalize and manage your eBike for every ride.
BUILD KITS
|
Bosch SX Frame Kit
$3,999 |
SRAM Eagle 90
$6,999 |
SRAM X0 Transmission
$8,999 | |
|---|---|---|---|
| Frame | ReRun Carbon | ReRun Carbon | ReRun Carbon |
| Drive Unit | Bosch Performance Line SX 55NM | Bosch Performance Line SX 55NM | Bosch Performance Line SX 55NM |
| Battery | Bosch Compact Power Tube 400Wh | Bosch Compact Power Tube 400Wh | Bosch Compact Power Tube 400Wh |

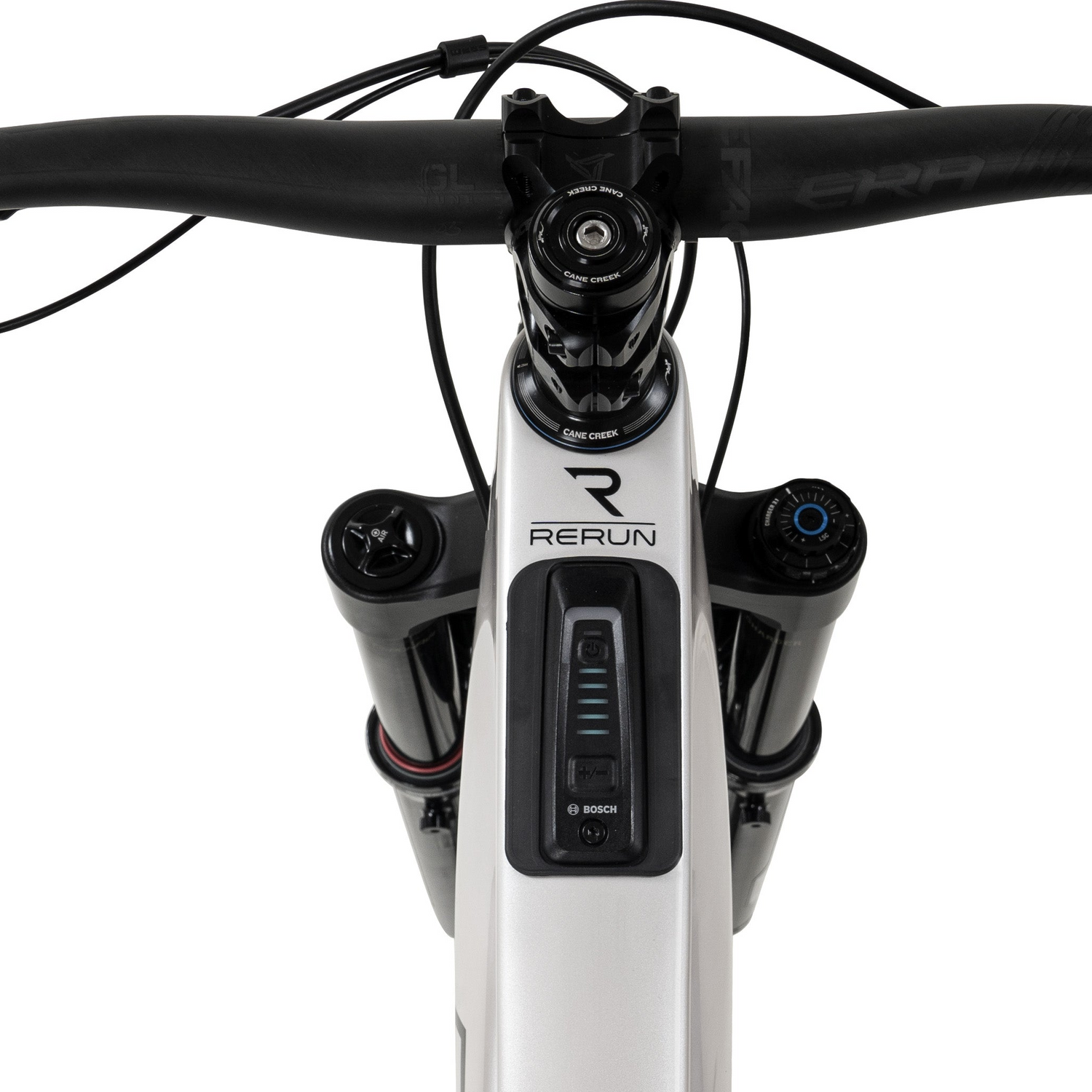

| Display | Bosch System Controller | Bosch System Controller | Bosch System Controller |
| Wheel Size | Mixed - 29"F/27.5"R | Mixed - 29"F/27.5"R | Mixed - 29"F/27.5"R |
| Headset | Cane Creek 40 Series ZS44/56 | Cane Creek 40 Series ZS44/56 | Cane Creek 40 Series ZS44/56 |

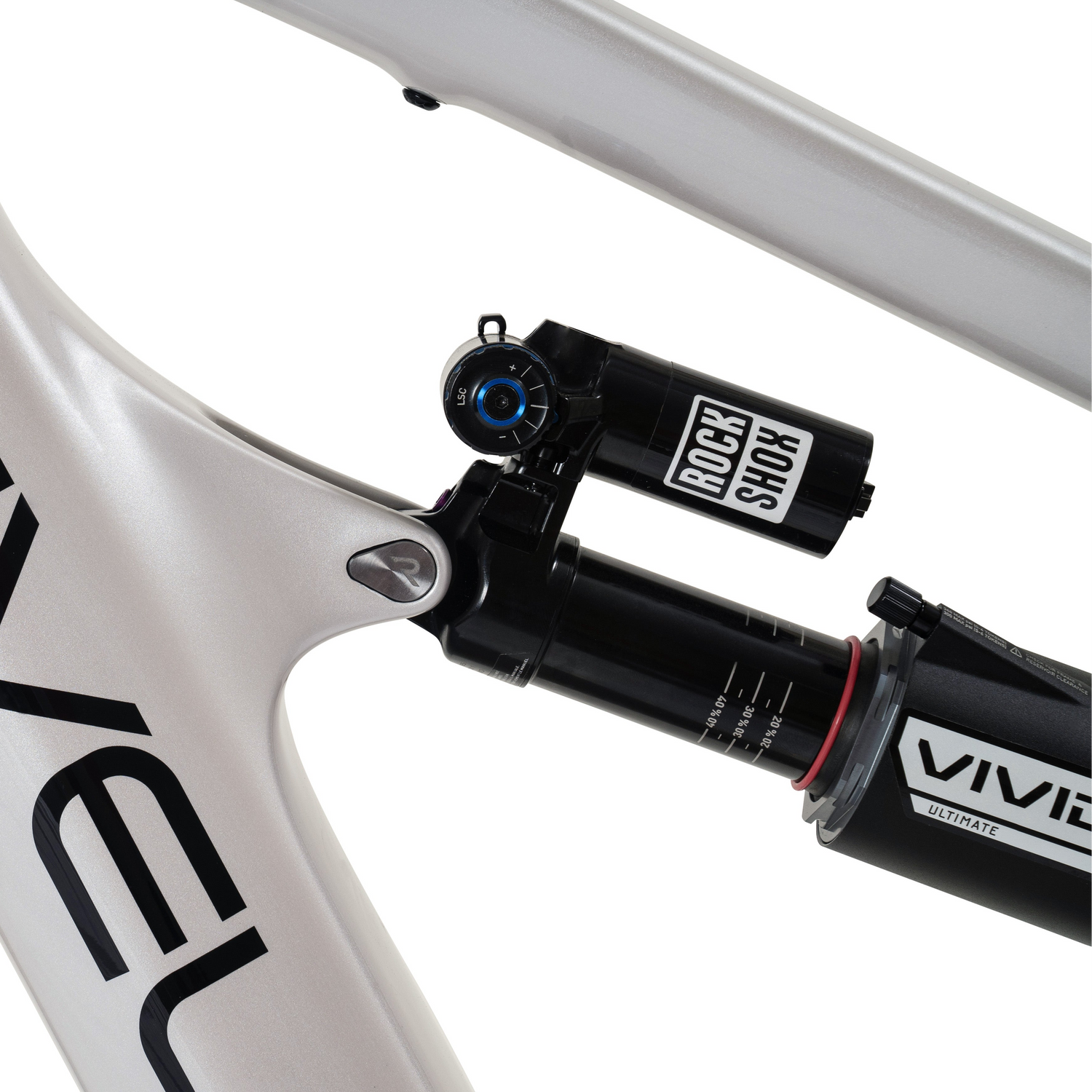

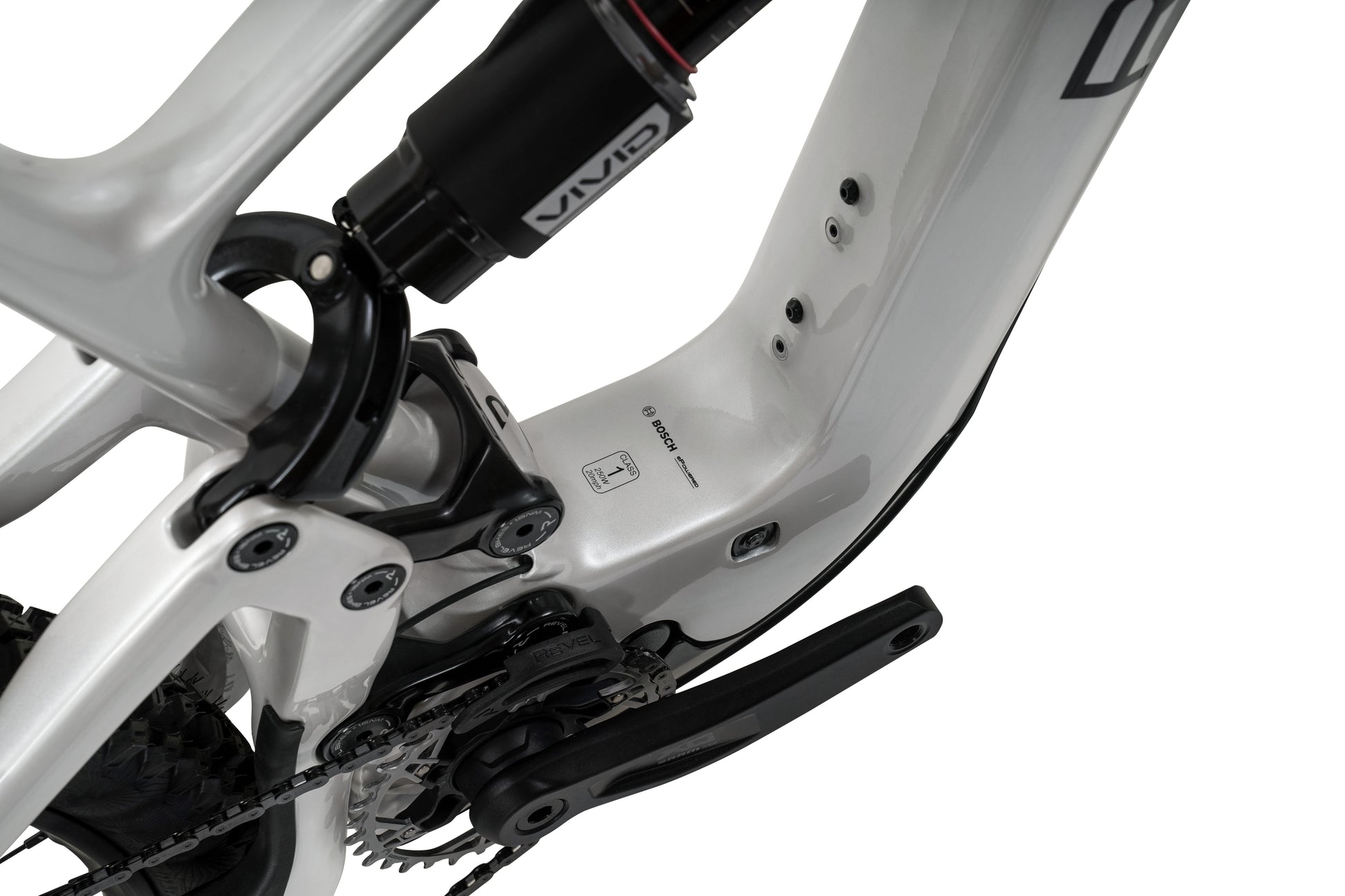

| Shock | RockShox Vivid Ultimate 230x65 165mm | RockShox SDLX Ultimate 230x65 165mm | RockShox Vivid Ultimate 230x65 165mm |
| Fork | RockShox ZEB SEL+ 170mm | RockShox ZEB Ultimate 170mm | |
| Wheelset | Crank Bros Synthesis Enduro V2 Alloy | Crank Bros Synthesis Enduro Carbon | |
| Hub | Crank Bros Ratchet 36t XD | Industry Nine 1/1 XD | |
| Tires | Continental Kryptotal F Enduro Soft 2.6 Front Continental Kryptotal R Enduro Soft 2.4 Rear | Continental Kryptotal F Enduro Soft 2.6 Front Continental Kryptotal R Enduro Soft 2.4 Rear | |
| Handlebar | RaceFace Turbine 35x780mm 20mm Alloy | RaceFace Era 35x780mm 20mm Carbon | |
| Stem | RaceFace Turbine 35x40mm | RaceFace Turbine 35x40mm | |
| Grips | RaceFace Chester | RaceFace Chester | |
| Saddle | SDG Bel-Air 3 MAX LUX | SDG Bel-Air 3 MAX LUX | |
| Seatpost | Crank Bros Highline 7: SM: 125mm MD: 150mm LG: 170mm XL: 200mm | BIke Yoke Revive 3: SM: 125mm MD: 160mm LG: 185mm XL: 213mm | |
| Dropper Lever | SRAM Dropper Lever | Bike Yoke Triggy Alpha Short | |
| Brakes | SRAM Maven Silver Centerline 200mm 6-bolt rotor | SRAM Maven Silver Centerline 200mm 6-bolt rotor | |
| Shifter | SRAM Eagle 90 | SRAM POD | |

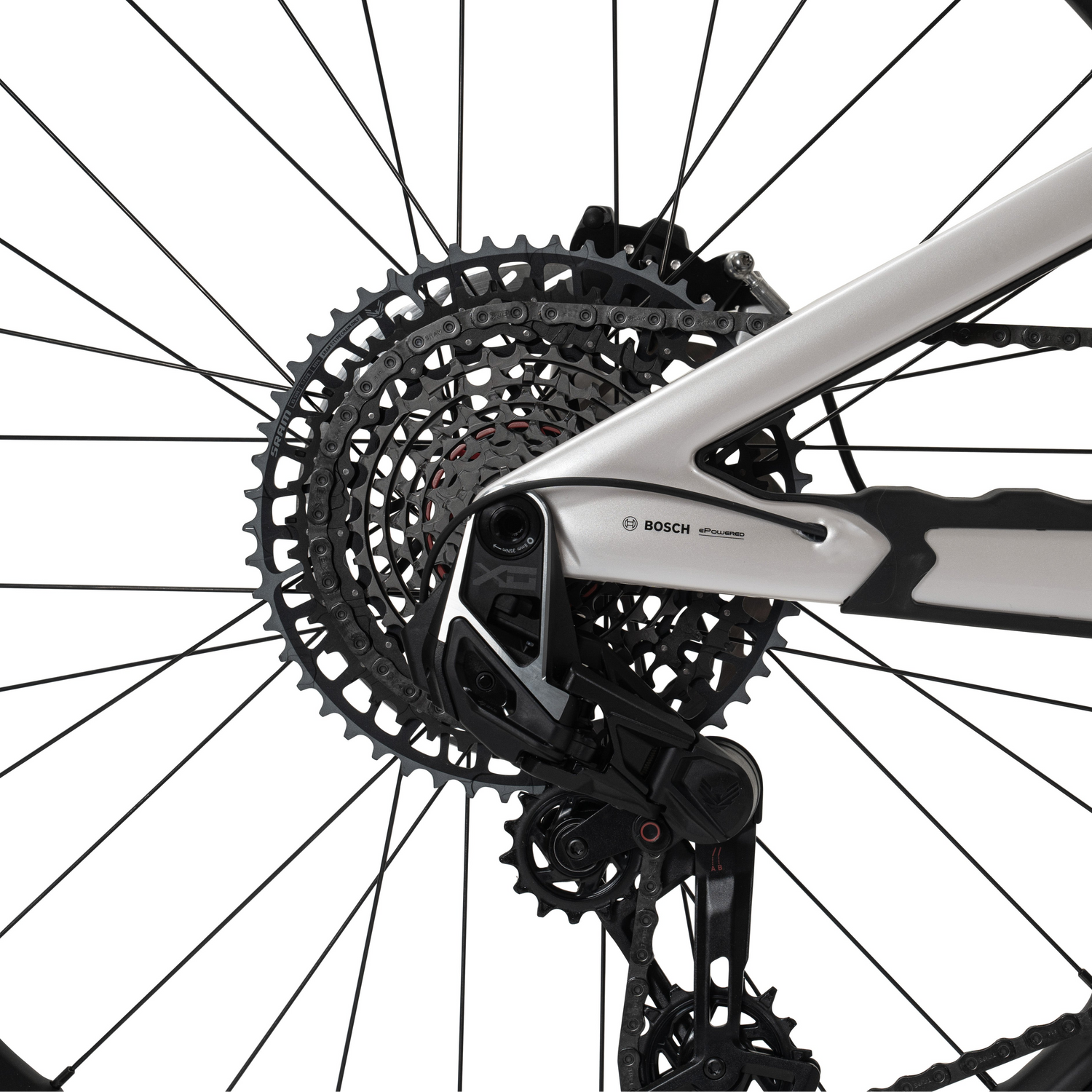

| Derailleur | SRAM Eagle 90 T-Type | SRAM X0 T-Type | |
| Chain | SRAM Eagle 90 T-Type 118L | SRAM X0 T-Type 118L | |
| Cassette | SRAM Eagle 90 T-Type XS1275 10-52t | SRAM Eagle X0 T-Type XS1295 10-52t | |
| Crankset | E13 Helix Core Espec 160mm Bosch ISIS | SRAM X0 160mm Bosch ISIS | |
| Chainring | SRAM T-Type 34t | SRAM XX T-Type 34t | |
| Weight Based on Size Large | 45.2lb/20.50kg | 44.6lb/20.25kg |
GEOMETRY
MEASUREMENT |
SMALL |
MEDIUM |
LARGE |
XL |
|
A |
Effective Top Tube Length |
588mm |
606mm |
627mm |
651mm |
B |
Seat Tube Length |
415mm |
425mm |
445mm |
475mm |
C |
Seat Tube Angle |
76°/71° |
76.5°/71.5° |
77°/71.5° |
77.5°/71.5° |
D |
Chain Stay Length |
440mm |
441mm |
442mm |
444mm |
E |
Bottom Bracket Drop |
29/11mm |
29/11mm |
29/11mm |
29/11mm |
F |
Bottom Bracket Height |
348mm |
348mm |
348mm |
348mm |
G |
Head Tube Angle |
64° |
64° |
64° |
64° |
H |
Wheel Base |
1211mm |
1237mm |
1266mm |
1301mm |
I |
Head Tube Length |
90mm |
95mm |
103mm |
114mm |
J |
Axle to Crown |
586mm |
586mm |
586mm |
586mm |
K |
Fork Offset |
44mm |
44mm |
44mm |
44mm |
L |
Trail |
136mm |
136mm |
136mm |
136mm |
M |
Stack |
622mm |
628mm |
635mm |
645mm |
N |
Reach |
433mm |
455mm |
480mm |
508mm |
O |
Standover |
732mm |
739mm |
742mm |
747mm |
FRAME SPECIFICATIONS
| Wheel Size | MX - 29"/27.5" |
| Front Travel | 170mm |
| Rear Travel | 165mm |
| Shock Spec | 230mm X 65mm |
| Axles | 177 x 12 x 1.0 |
| Seatpost Diameter | 31.6mm |
| Max Seatpost Insertion Depth | SM 260mm, MD 270mm, LG 300mm, XL 330mm |
| Rear Brake | 200mm post mount/223mm max rotor size |
| Rear Tire Clearance | 27.5” x 26” |
| Max Chainring | 36T Round / 34T Oval, 55mm Chainline |
| Tapered Headtube | ZS44 upper / ZS56 Lower |
| Color | Cashflow Green / TK-421 White |
| Size | S / M / L / XL |
FAQ
WHAT eMTB CLASS IS THE RERUN?
The ReRun is a Class 1 eMTB
WHAT IS A CLASS 1 eMTB?
Class 1: eBikes that are pedal-assist only, with no throttle, and have a maximum assisted speed of 20 mph.
DOES THE RERUN HAVE THE BOSCH SMART SYSTEM?

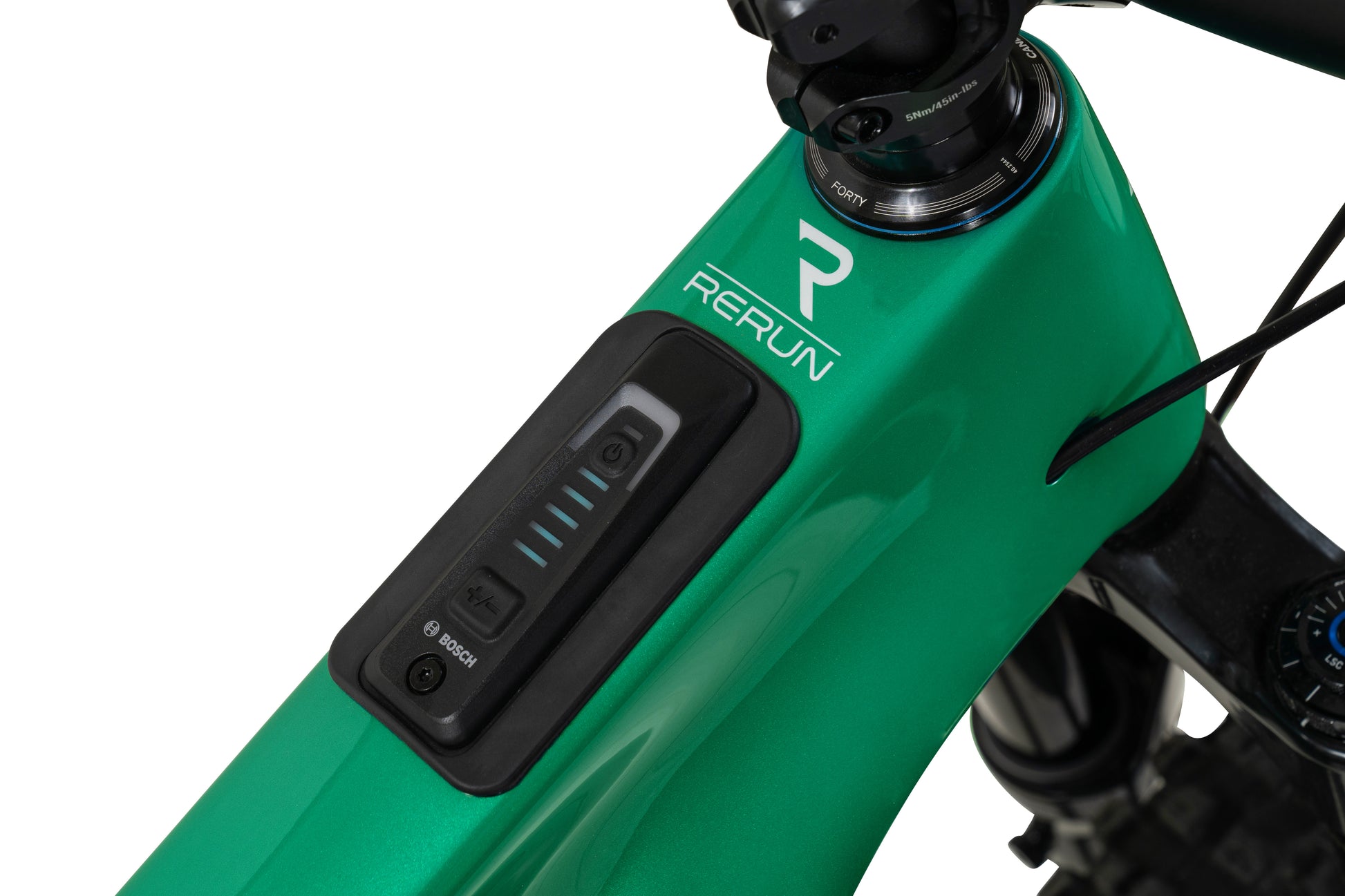

Yes, The Bosch Performance Line SX motor is part of the Bosch Smart System. This includes all other Bosch components on the bike like the battery, mini remote, and system controller display
DO ALL SIZES USE MX WHEELS?
Yes all sizes are designed to use MX wheelsets meaning a 29" front wheel and 27.5" rear wheel
WHAT SHOCK SIZE AND MOUNTING HARDWARE ARE USED ON THE RERUN?
The shock size is 230x65mm. The mounting hardware is 25x8mm.
CAN I USE A COIL SHOCK ON THE RERUN?
Yes, the ReRun can fit coil shocks and large air can shocks like the Rockshox Vivid Air and the Fox X2 Air.
CAN I USE A LONGER SHOCK TO GET MORE TRAVEL OUT OF THE RERUN?
No you cannot as the ReRun frame was designed specifically for a 165mm travel shock. Changing this will void the warranty.
CAN I USE AN ANGLE-ADJUSTABLE STYLE HEADSET WITH THE RERUN?
The ReRun is designed to perform optimally with its stock headset configuration. We have not tested it with angle-adjustable headsets, so we can’t guarantee proper fit or performance with those setups. Please note that installing an angle-adjustable headset will void the frame the frame warranty.
WHAT CHAINRING SIZE DOES THE RERUN ACCOMODATE?
The ReRun is designed to fit 32-36t round chainrings. 36T (round) max for all sizes.
CAN I USE AN AFTERMARKET CHAINGUIDE WITH THE RERUN?
The ReRun incudes a chainguide that is specifically designed for and direct mounts to the frame.
WHAT IS THE MAX TRAVEL FORK THAT I CAN PUT ON MY RERUN?
The ReRun is designed with a 170mm fork with a 596mm axle to crown length. The ReRun is compatible with a 180mm fork that does not exceed a 596mm axle to crown.
CAN I USE A DUAL CROWN FORK ON THE RERUN?
Yes, as long as the axle to crown measurement does not exceed 596mm.
HOW FAST DOES THE RERUN GO?
The Bosch SX motor on the ReRun will offer assistance up to 20mph (32kph) for North American markets.
WHERE IS THE SPEED SENSOR ON THE RERUN?
We use the DT Swiss rim magnet that can be found inside the tire attached to the bead of the rim using the valve.
IS THE BATTERY AN INTEGRATED OR REMOVABLE TYPE?
The Bosch CPT400 battery is an integrated type battery that is mounted into the downtube of the ReRun. Removal of the drive unit is required to remove the battery from the frame.
CAN I USE A RANGE EXTENDER WITH THE RERUN?
Yes! The Bosch PowerMore 250 range extender is available for purchase from your local bike shop. This will add 62.5% more watt hours bringing the total capcity to 600Wh.
WHAT IS THE WARRANTY OF THE BOSCH SYSTEM ON THE RERUN?
All Bosch products have a 2-year warranty.
TELL ME ABOUT THE POWER OUTPUT OF THE RERUN MOTOR
We use a 400Wh battery offering a rated continuous output of 250w and a max power output of 600w. The Performance Line SX motor will give you 340% support.
WHERE DOES THE PERFORMANCE LINE SX MOTOR FIT IN THE BOSCH LINEUP?
It offers 55Nm of torque at only 4.4 pounds in weight, the lightest drive unit in the Bosch range. Designed for lighter eMTBs, this motor line is designed for a mid-power experience but still offers peak assistance and power that rivals the heavier systems.
DOES THE RERUN HAVE A HILL START ASSIST/WALK ASSIST MODE?
Yes!
SERVICE MANUAL

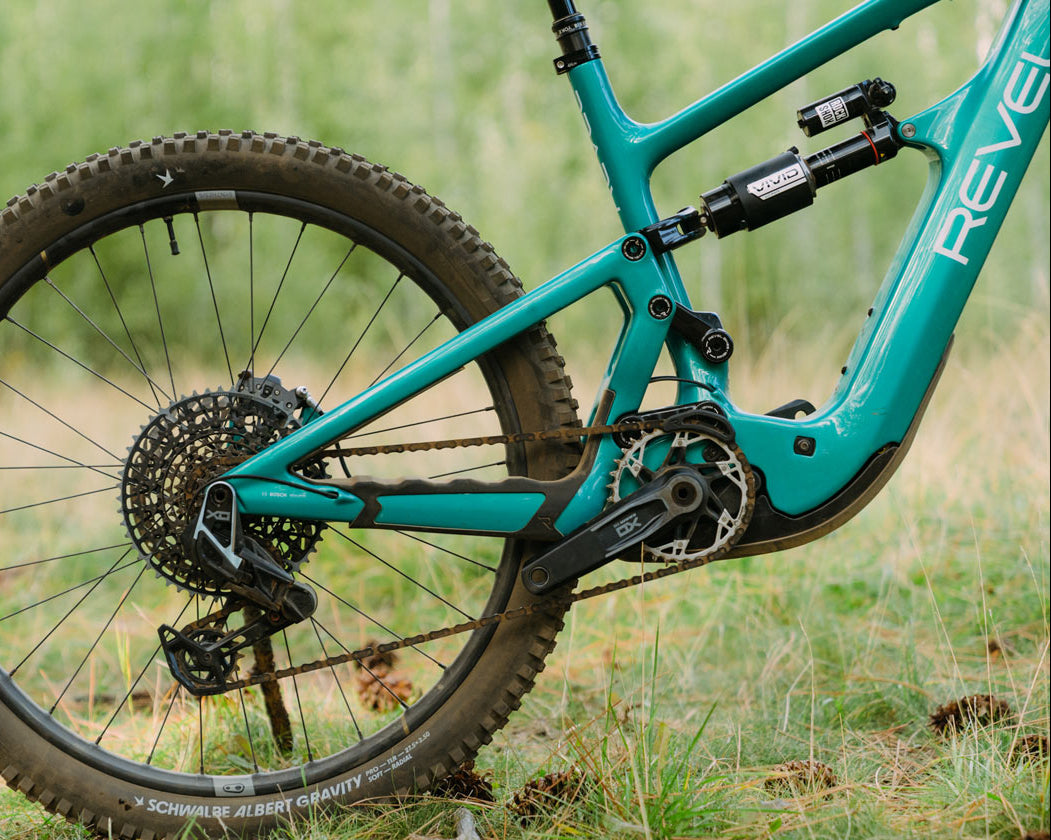

The Loam Wolf ReRun Review
Going down the hill is where the smiles really began to form on the Revel ReRun. Both Cole and Patrick stated that the Revel was the most playful long-travel eBike on test, even competing with some of the shorter-travel trail bikes for pure fun factor. Drew said the CBF suspension platform might just be his all-around favorite and was caught off guard by how much he liked it.
Blister Review - Revel ReRun
Revel’s bikes have often had a distinct ride quality that falls outside of the mainstream, and that has earned them a committed following. As their first eMTB, the ReRun keeps that trend going by merging unexpected quickness and efficiency with a long-travel platform. The lightweight motor and smaller battery bring some compromises, but the ReRun really stands out for how close it gets to the agility and playfulness of unassisted bikes.

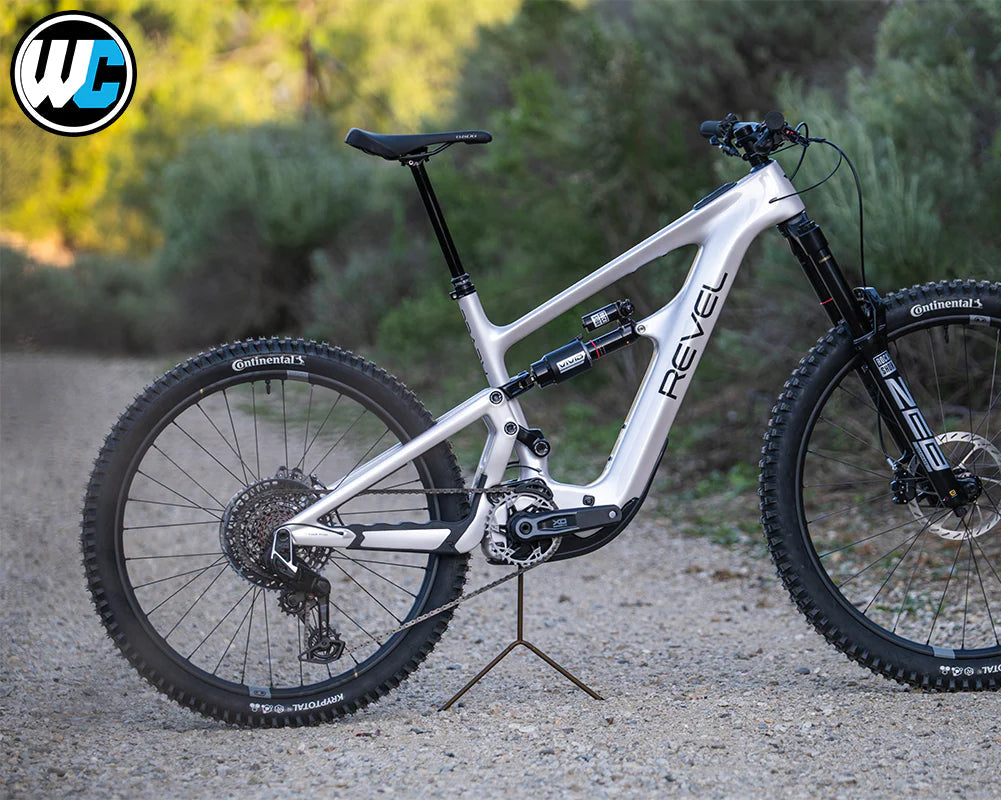

Worldwide Cyclery First Look At The ReRun
