Revel Bikes

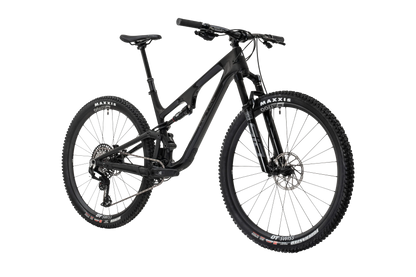

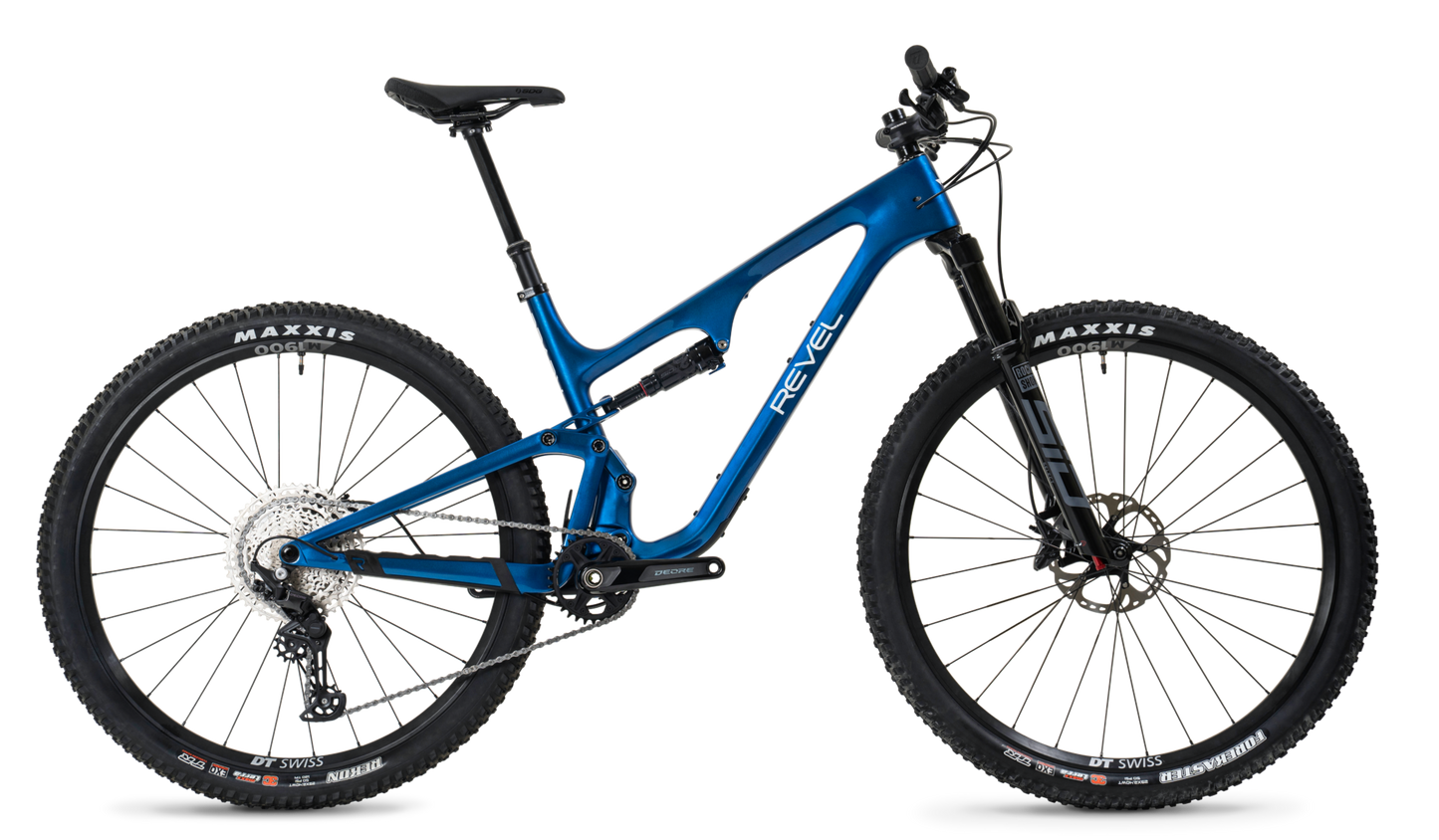

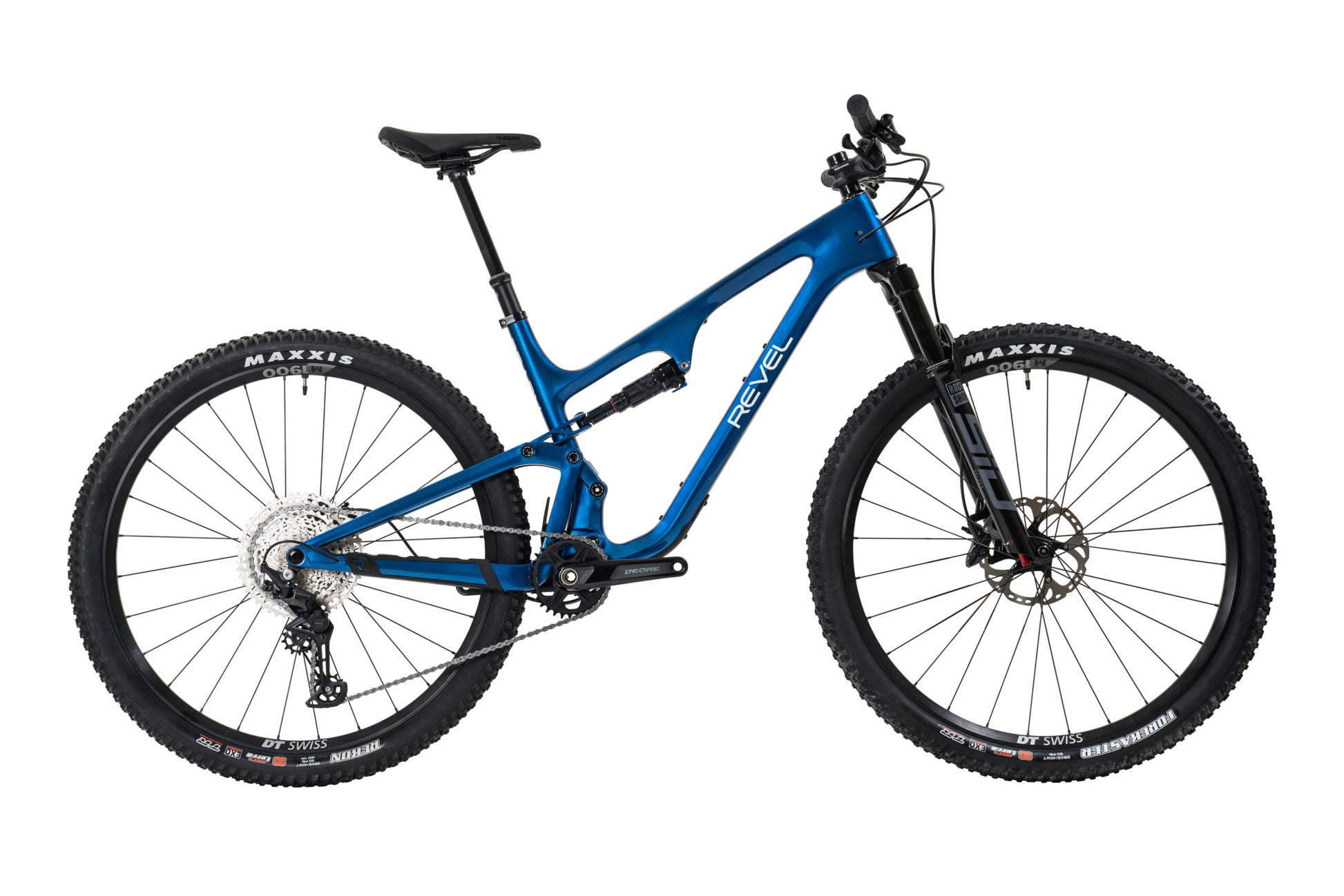

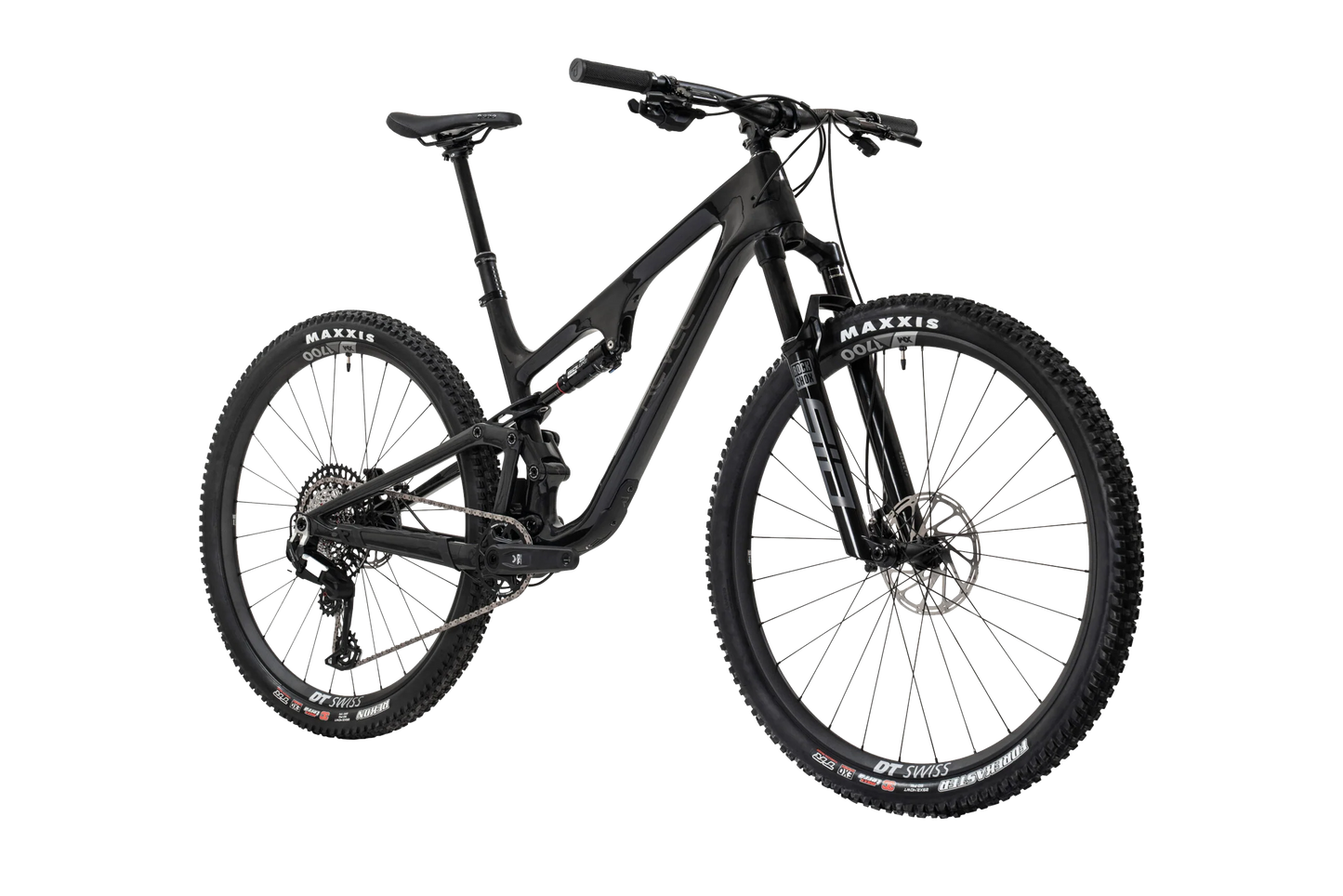

Ranger Shimano Deore
Couldn't load pickup availability
Key Attributes
Key Attributes
No compromises, no weak links - just trail-tested reliability
KEY COMPONENTS:
FRAME:
Ranger V2 Carbon
FORK:
RockShox SID SEL 120mm
SHOCK:
RockShox SID SEL+
DRIVETRAIN:
Shimano Deore M6100
BRAKES:
Shimano Deore M6120

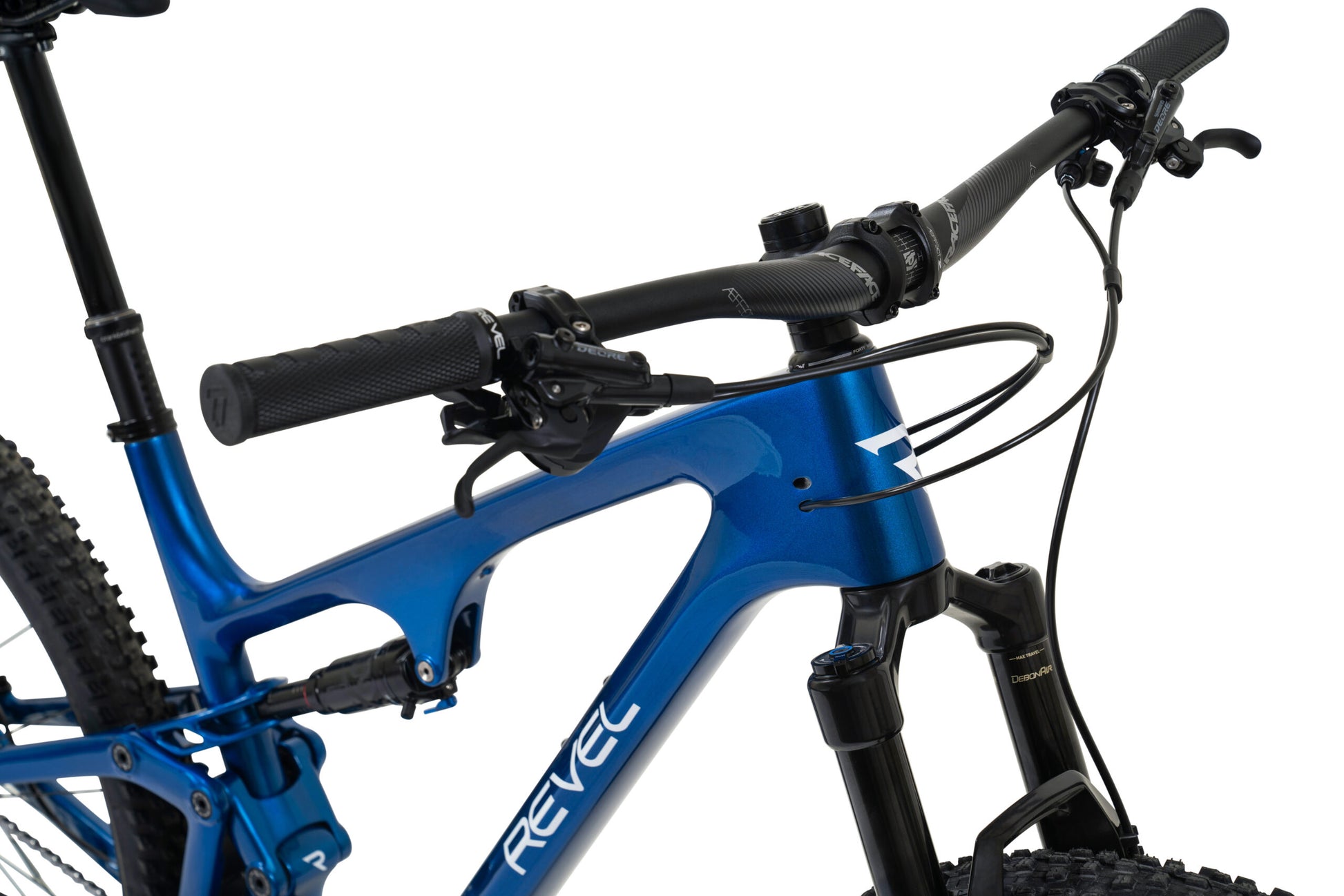

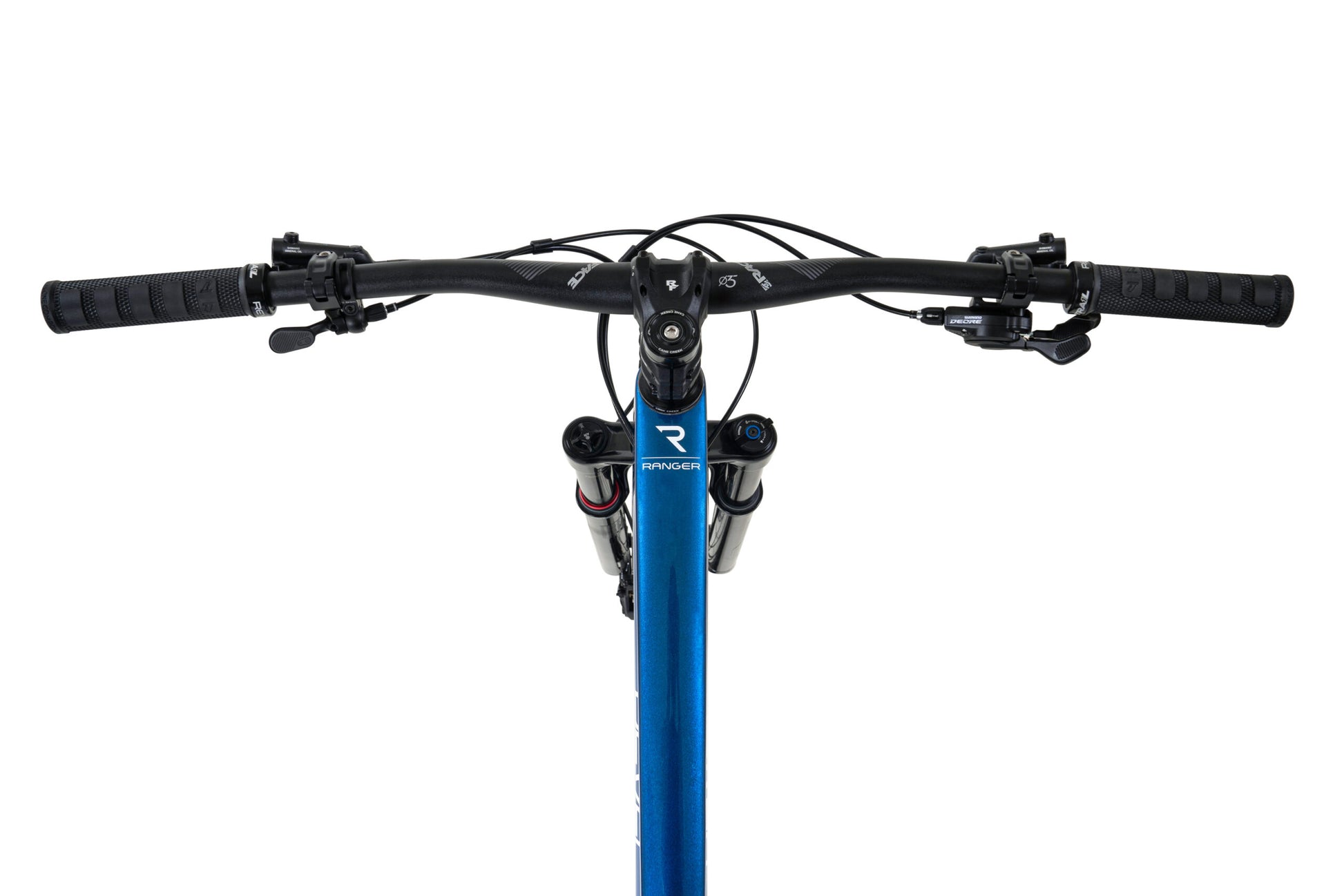

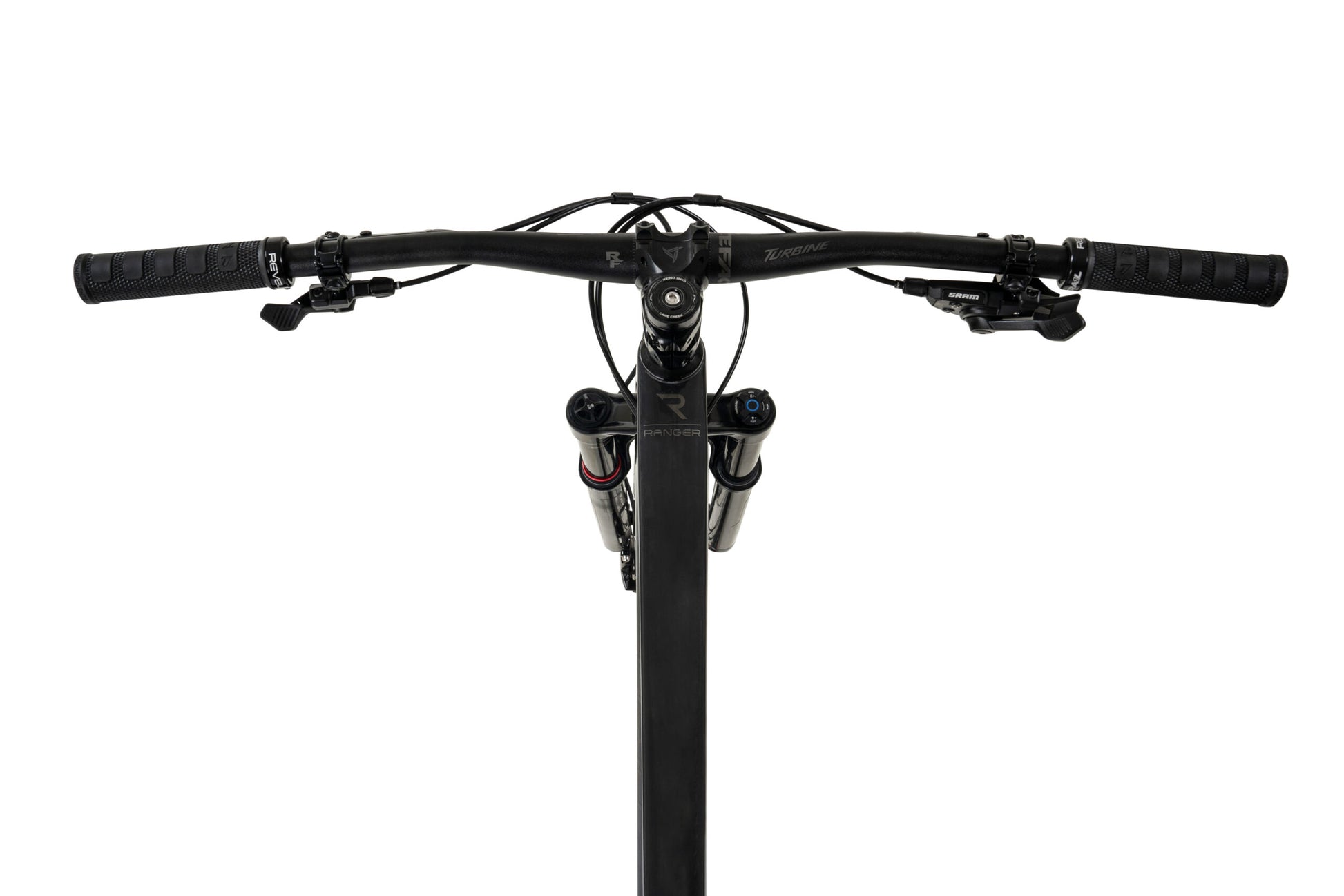

COCKPIT:
RaceFace Aeffect
DROPPER POST:
Crank Brothers Highline 7
WHEELSET:
DT Swiss M1900
TIRES:
Maxxis Forekaster EXO Maxx Terra 2.4 Front
Maxxis Rekon EXO Maxx Terra 2.4 Rear
Shipping and returns
Shipping and returns
Shipping and order processing times may fluctuate depending on order demand and the global shipping environment. Revel will notify the customer of our best estimated shipping lead time, however, these times are subject to change due to part availability and supply chain constraints. Complete bikes are fully assembled, test ridden, and then disassembled before they are carefully packed into our shipping cartons.
This process requires great attention to detail to ensure the best ride quality of our bikes right out of the box and we appreciate your patience with build timeframes.
Warranty
Warranty
Every Revel bicycle frame is covered by a limited warranty to the original owner and a lifetime crash replacement policy. Here’s the legal language:
The warranty covers defects in materials and craftsmanship, including manufacturing defects for the lifetime of the product. The warranty does not cover any damage or defects caused by abuse, accidents, or other incidents that are not the result of normal use of the product.
- 30 Days No-Questions-Asked Return Policy
Downcountry, dialed
115MM REAR 120MM FRONT 29"/29"
The Ranger delivers a true down-country ride, blending speed, precision, and trail capability. Its durable carbon frame and efficient suspension make quick work of climbs, while confident geometry and CBF traction keep it surprisingly capable for a bike of its size.
A fast yet capable ride
MODERN DOWNCOUNTRY PERFORMANCE
120MM
FORK TRAVEL
FRAME
UD CARBON
REAR SHOCK
190x45
FRAME MOUNTS
BOTTLE AND STORAGE
FEATHERWEIGHT
CARBON LINKS
12X148
BOOST SPACING
FULL LENGTH
DROPPER INSERTION
BSA
THREADED BOTTOM BRACKET
A FAST, DO IT ALL BIKE
SPEED AND VERSATILITY, PERFECTED
Whether you’re at the start line of a race or heading out for a long day in the high-country, this bike is sure to impress. With its balance of speed, agility, and durability. The Ranger is a highly capable, multi-dimensional bike that delivers extraordinary performance, efficiency, and versatility.
UDH
SRAM’s UDH derailleur hanger, because it just makes sense.

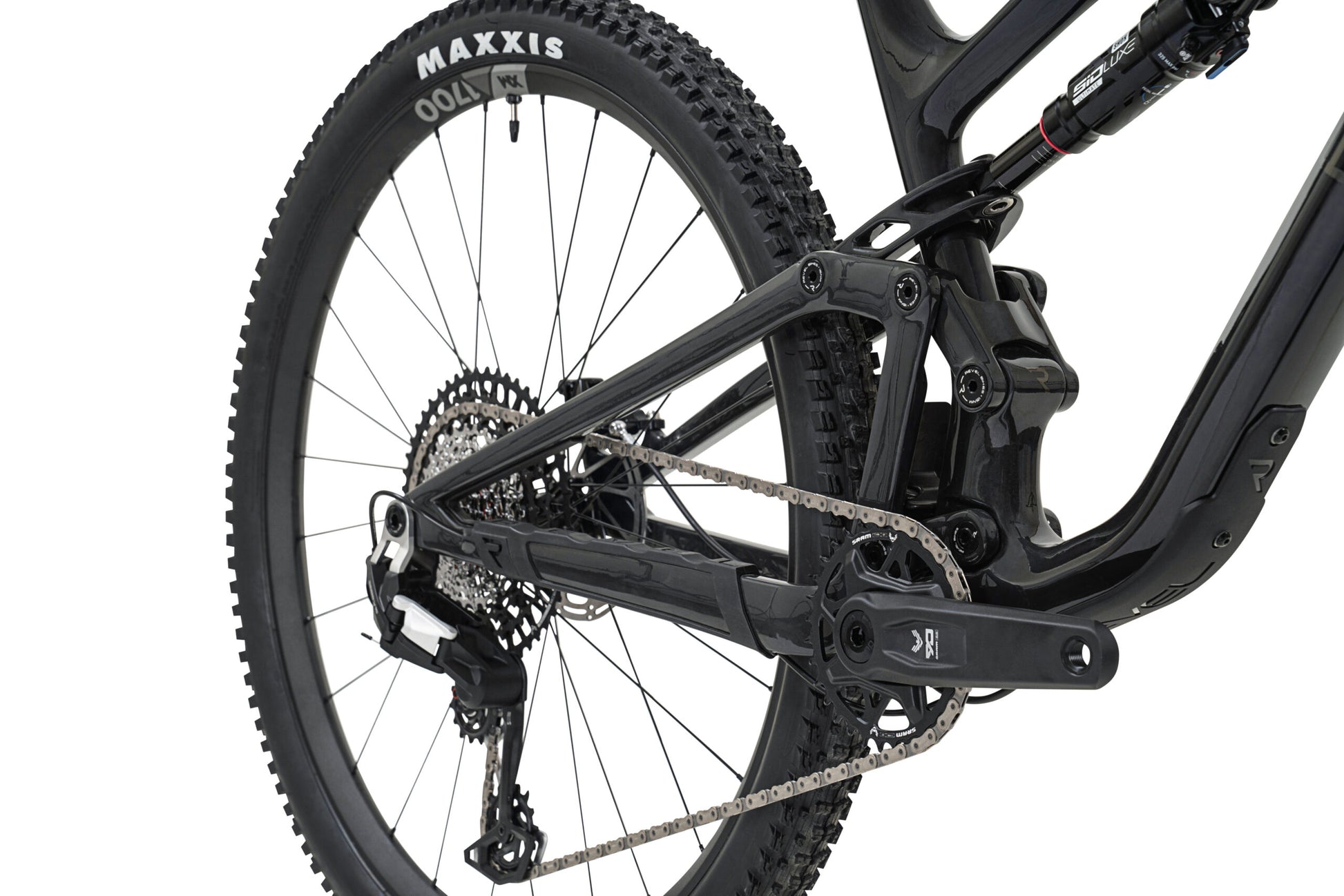

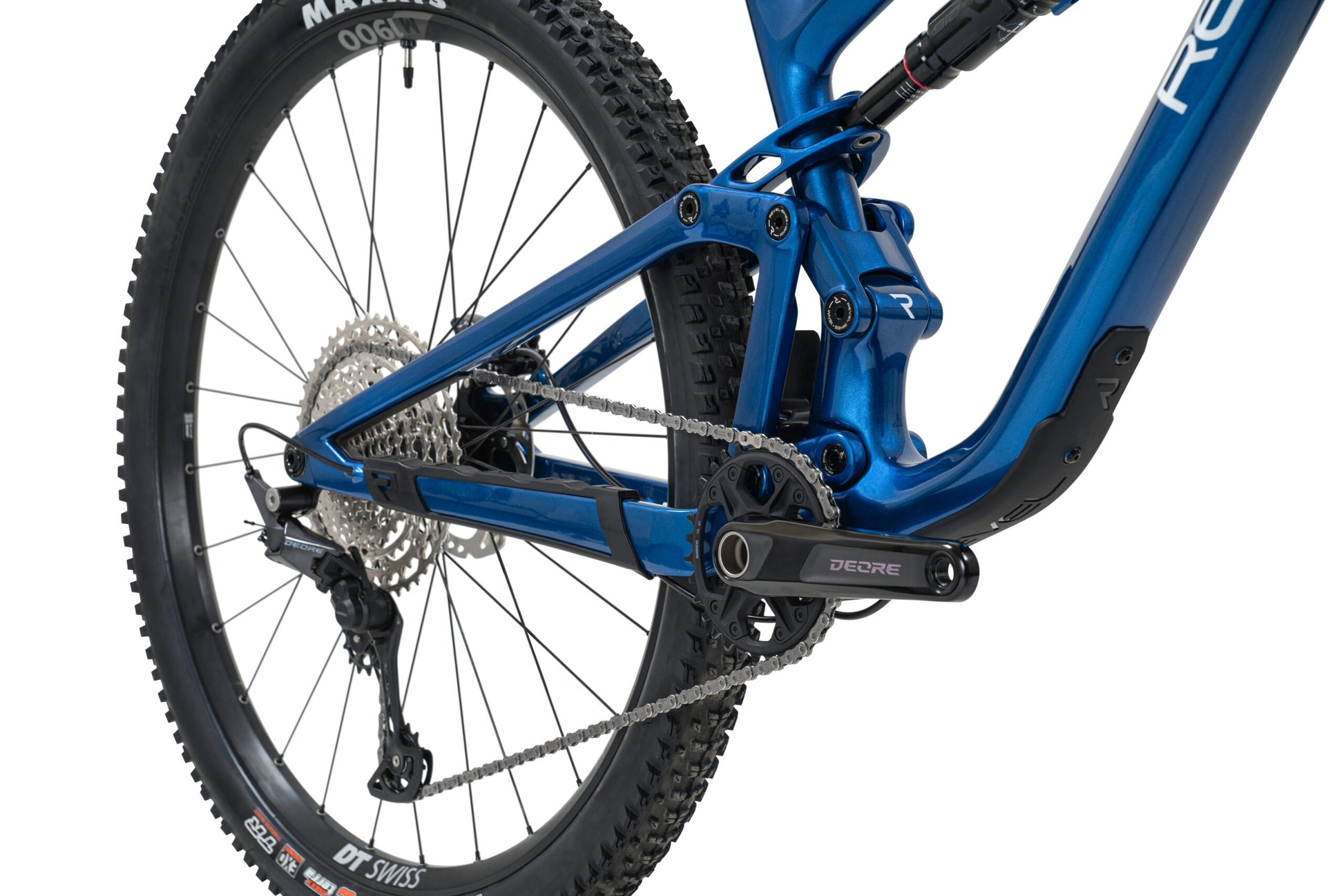

CBF™ Suspension
The CBF™ suspension design is what makes the positive uphill and downhill performance of the Ranger possible. A stable pedaling platform, controlled under braking, and a bottomless feel keep the Ranger from rarely feeling out-gunned.
Durable Links and Hardware
The Ranger shares the effective and simple hardware design that we introduced with Rail29. We've added a collet axle design with larger 15mm bearings on the lower rearward pivot for increased frame stiffness, more clearance, easier maintenance, and an even quieter ride.
Titanium Shock Hardware
Because Ti is fly. The Ranger frame comes tricked out with 6/4 titanium shock mount hardware.

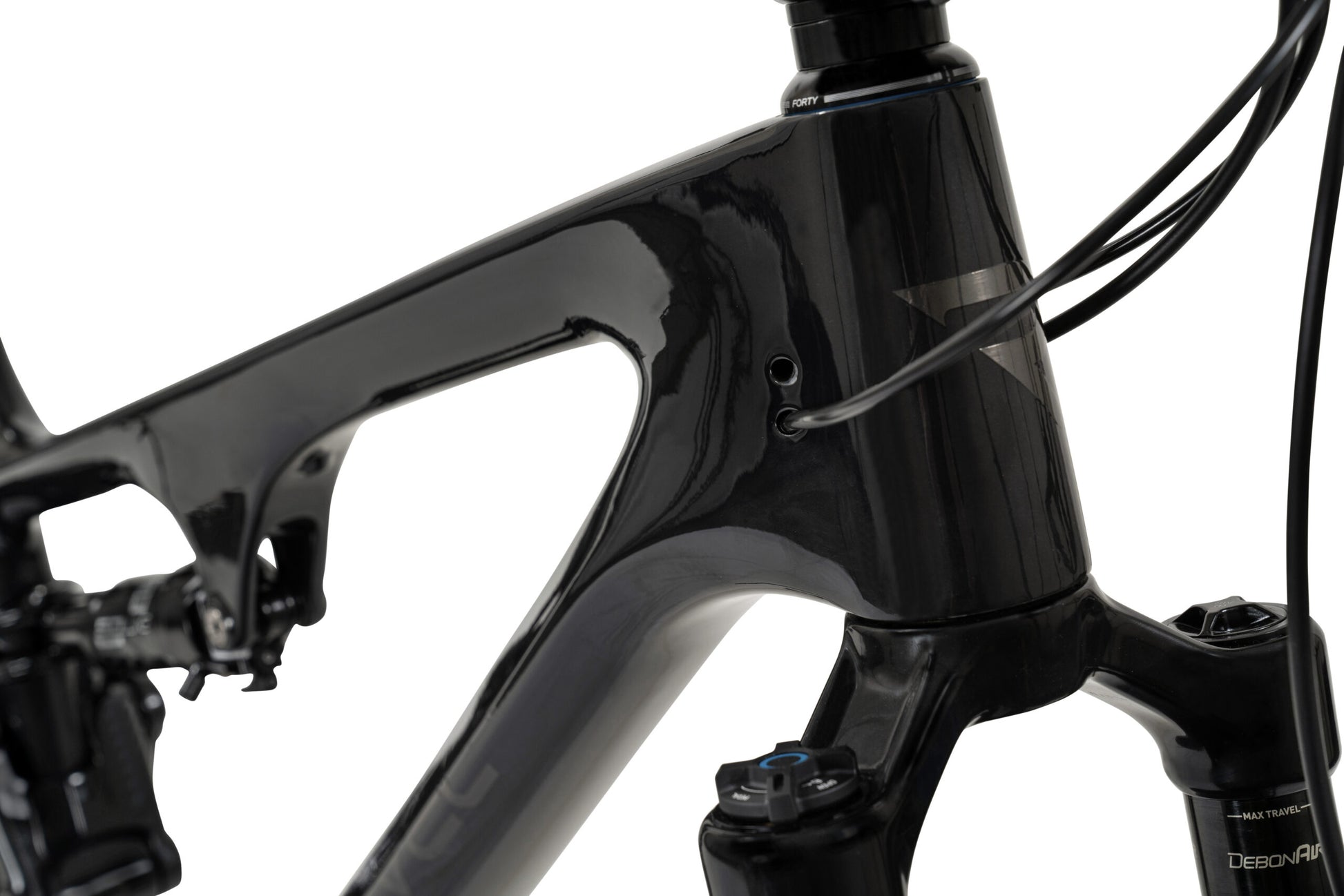

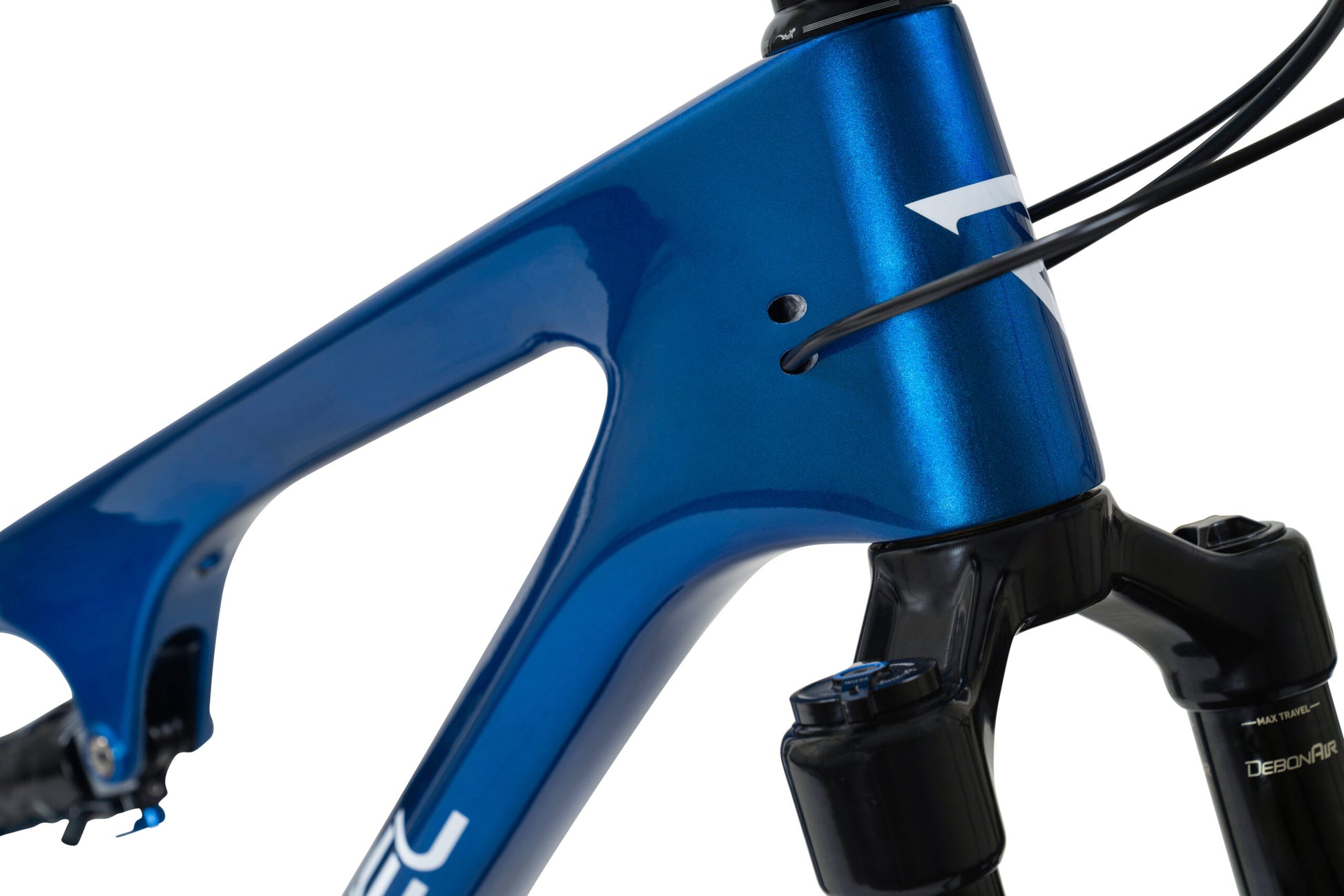

Fully Guided Internal Routing
Simple, quiet cable routing! Fully guided internal tubes make maintenance and replacing cables easy.
Bottles for Miles
Ranger frames are built with 3 sets of standard bottle and accessory mounts (2 for size small) so you never have to leave that extra water bottle or toolset at home.
Debris Guard
Keep those lower pivots and link clean and clear with our debris guard, included with all Ranger frames.
BUILD KITS
|
Frame Kit
$2,999 |
Shimano Deore
$4,999 |
SRAM Eagle 90
$4,499 | |
|---|---|---|---|
| Frame | Ranger Carbon | Ranger Carbon | Ranger Carbon |
| Wheel Size | 29" | 29" | 29" |
| Headset | Cane Creek 40 Series IS52/42 | Cane Creek 40 Series IS52/42 | Cane Creek 40 Series IS52/42 |
| Shock | RockShox SID Luxe Ultimate 115mm 190x45 | RockShox SID SEL+ 115mm 190x45 | RockShox SID Luxe Ultimate 115mm 190x45 |
| Seat Collar | Revel 34.9mm Dia | Revel 34.9mm Dia | Revel 34.9mm Dia |
| Fork | RockShox SID Select 3P 120mm | RockShox SID Ultimate 3P 120mm | |
| Wheelset | Novatec Diablo XL | Crank Brothers Synthesis Enduro Alloy | |
| Hubs | Novatec 641SB-B15 | Industry Nine 1/1 | |
| Tires | Maxxis Forekaster 29″ x 2.4″ 3C EXO Front Maxxis Rekon 3C EXO 29"x 2.4 Rear | Maxxis Forekaster 29″ x 2.4″ 3C EXO Front Maxxis Rekon 3C EXO 29"x 2.4 Rear | |
| Handlebar | RaceFace Aeffect 35x760 20mm Alloy (SM/MD) RaceFace Aeffect 35x780 20mm Alloy (LG/XL) | RaceFace Turbine 35x760 20mm Alloy (SM/MD) RaceFace Turbine 35x780 20mm Alloy (LG/XL) | |
| Stem | RaceFace Aeffect 35x50mm | RaceFace Turbine 35x50mm | |
| Grips | RaceFace Chester | Trail 1 x Revel Farlow Gap | |
| Saddle | SDG Bel-Air 3 LUX | SDG Bel-Air 3 LUX | |
| Seat Post | Crank Bros Highline 7 SM: 125mm MD: 150mm LG: 170mm XL: 200mm | Crank Bros Highline 7 SM: 125mm MD: 150mm LG: 170mm XL: 200mm | |
| Dropper Lever | Crank Bros. Premium | SRAM Dropper Lever | |
| Brakes | Shimano Deore M6120 4-Piston | SRAM Code Stealth Silver | |
| Rotors | Shimano SM-RT66 180mmF/160mmR 6-bolt | SRAM Centerline 180mmF/160mmR 6-bolt | |
| Shifter | Shimano Deore M6100 | SRAM Eagle 90 | |
| Rear Derailleur | Shimano Deore M6100 SGS | SRAM Eagle 90 T-Type | |
| Chain | Shimano Deore M6100 | SRAM Eagle 90 T-Type 116L | |
| Cassette | Shimano Deore M6100 10-51t | SRAM Eagle 90 T-Type XS1275 10-52t | |
| Crankset | Shimano Deore M6100 170mm 32t | SRAM Eagle 90 T-Type 170mm 32t | |
| Bottom Bracket | Shimano BB MT501 73mm Threaded | SRAM DUB 73mm MTB Wide Threaded | |
| Disclaimer | **Specifications subject to change without notice** | **Specifications subject to change without notice** | **Specifications subject to change without notice** |
GEOMETRY
MEASUREMENT |
SMALL |
MEDIUM |
LARGE |
XL |
|
A |
Effective Top Tube Length |
594mm |
616mm |
639mm |
667mm |
B |
Seat Tube Length |
373mm |
403mm |
439mm |
457mm |
C |
Seat Tube Angle |
75.3°/68.3° |
75.3°/68.3° |
75.3°/68.3° |
75.3°/68.3° |
D |
Chain Stay Length |
436mm |
436mm |
436mm |
436mm |
E |
Bottom Bracket Drop |
38mm |
38mm |
38mm |
38mm |
F |
Bottom Bracket Height |
338mm |
338mm |
338mm |
338mm |
G |
Head Tube Angle |
67.5° |
67.5° |
67.5° |
67.5° |
H |
Wheel Base |
1146mm |
1170mm |
1194mm |
1223mm |
I |
Head Tube Length |
95mm |
105mm |
116mm |
127mm |
J |
Axle to Crown |
531mm |
531mm |
531mm |
531mm |
K |
Fork Offset |
44mm |
44mm |
44mm |
44mm |
L |
Trail |
108mm |
108mm |
108mm |
108mm |
M |
Stack |
600mm |
609mm |
619mm |
629mm |
N |
Reach |
430mm |
453mm |
473mm |
498mm |
FRAME SPECIFICATIONS
| Wheel Size | 29" |
| Front Travel | 120mm |
| Rear Travel | 115mm |
| Shock Spec | 190 x 45 - 22.2 x 8 Mounting Hardware Spec |
| Axles | 177mm x M12 x P1.0 |
| Seatpost Diameter | 31.6mm, 34.9mm Seat Collar |
| Max Seatpost Insertion Depth | SM 236mm, MD 252mm, LG 285mm, XL 305mm |
| Rear Brake | Post Mount: 160mm direct / 180mm max |
| Rear Tire Clearance | 29" x 2.6" |
| Bottom Bracket | 73mm English Threaded |
| Max Chainring | 36T Round / 34T Oval, 52mm Chainline |
| Tapered Headtube | IS42 Upper / IS52 Lower |
| Color | Red Rocket / Steezy |
| Size | S / M / L / XL |
FAQ
WHAT'S NEW WITH THE RANGER FOR 2026?
Long story short:
UDH? WHAT IS THAT?
The Ranger V3 offers SRAM UDH (Universal Derailleur Hanger) compatibility, so replacement hangers are easier to find and your bike's drivetrain is more future-proof against manufacturer updates down the line.
CAN I GET A DEBRIS GUARD FOR MY RANGER?
Great news - the Ranger now comes standard with Revel's debris guard!
CAN I STILL RUN A PUSH ELEVENSIX MICRO-COIL ON RANGER?
Yes! We no longer sell ElevenSix shocks ourselves, but you can order one directly from pushindustries.com
CAN I MULLET THE RANGER?
We did not the design the Ranger to be ridden as a mullet so we don't recommend it.
WHAT IS THE LARGEST CHAINRING I CAN RUN ON MY RANGER?
36T Round / 34T Oval
CAN I RUN A BASHGUARD ON MY RANGER?
The Ranger is NOT compatible with any chainguides or bashguards currently on the market. The new SRAM transmission cranks have built in bashguards to keep your chainring fresh.
CAN I BUY A RANGER V3 REAR TRIANGLE FOR MY RANGER V1/V2?
No, the new V3 rear triangle is not backwards compatible with Ranger V1/V2.
IS THE RANGER GOOD AT CLIMBING?
It is the BEST!
IS THE RANGER GOOD AT DESCENDING?
You betcha!
