Revel Bikes
Wayward Frame Only
Couldn't load pickup availability
Key Attributes
Key Attributes

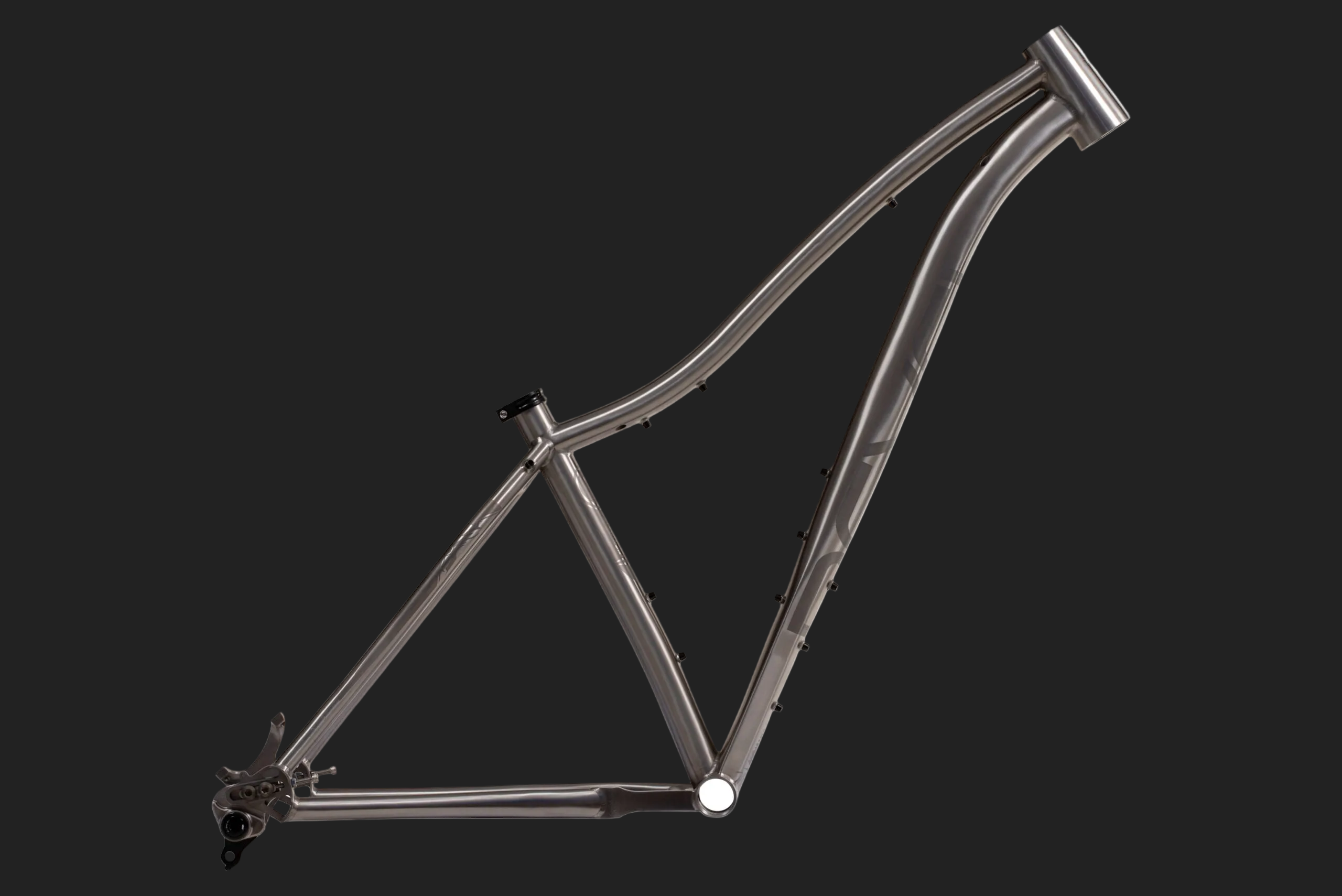

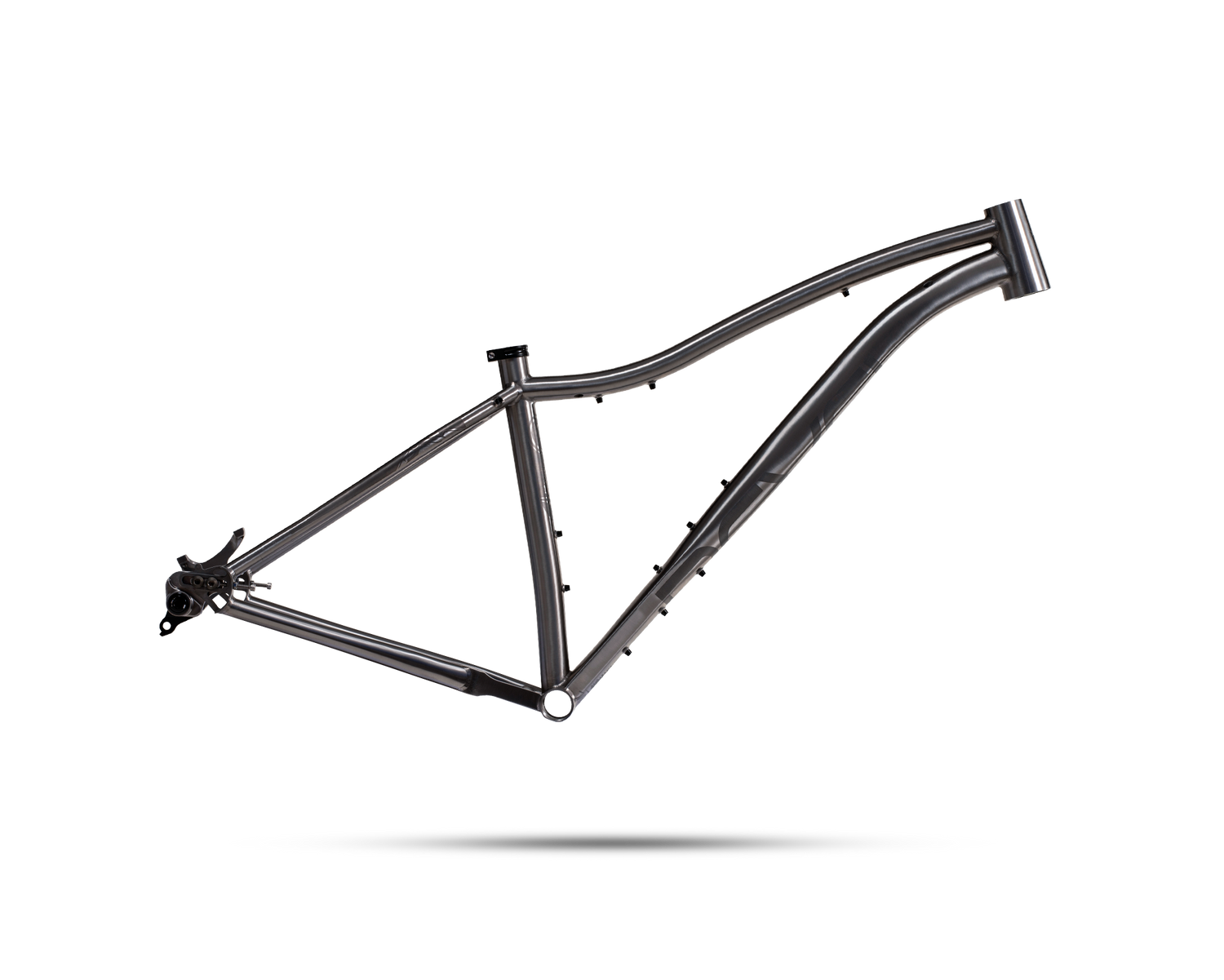

A versatile 29+ adventure frame with sliding titanium dropouts, belt-drive compatibility, and dialed geometry for loaded bikepacking or XC-ready builds. Built for the long way home.
Shipping and returns
Shipping and returns
Shipping and order processing times may fluctuate depending on order demand and the global shipping environment. Revel will notify the customer of our best estimated shipping lead time, however, these times are subject to change due to part availability and supply chain constraints. Complete bikes are fully assembled, test ridden, and then disassembled before they are carefully packed into our shipping cartons.
This process requires great attention to detail to ensure the best ride quality of our bikes right out of the box and we appreciate your patience with build timeframes.
Warranty
Warranty
Every Revel bicycle frame is covered by a limited warranty to the original owner and a lifetime crash replacement policy. Here’s the legal language:
The warranty covers defects in materials and craftsmanship, including manufacturing defects for the lifetime of the product. The warranty does not cover any damage or defects caused by abuse, accidents, or other incidents that are not the result of normal use of the product.
- 30 Days No-Questions-Asked Return Policy

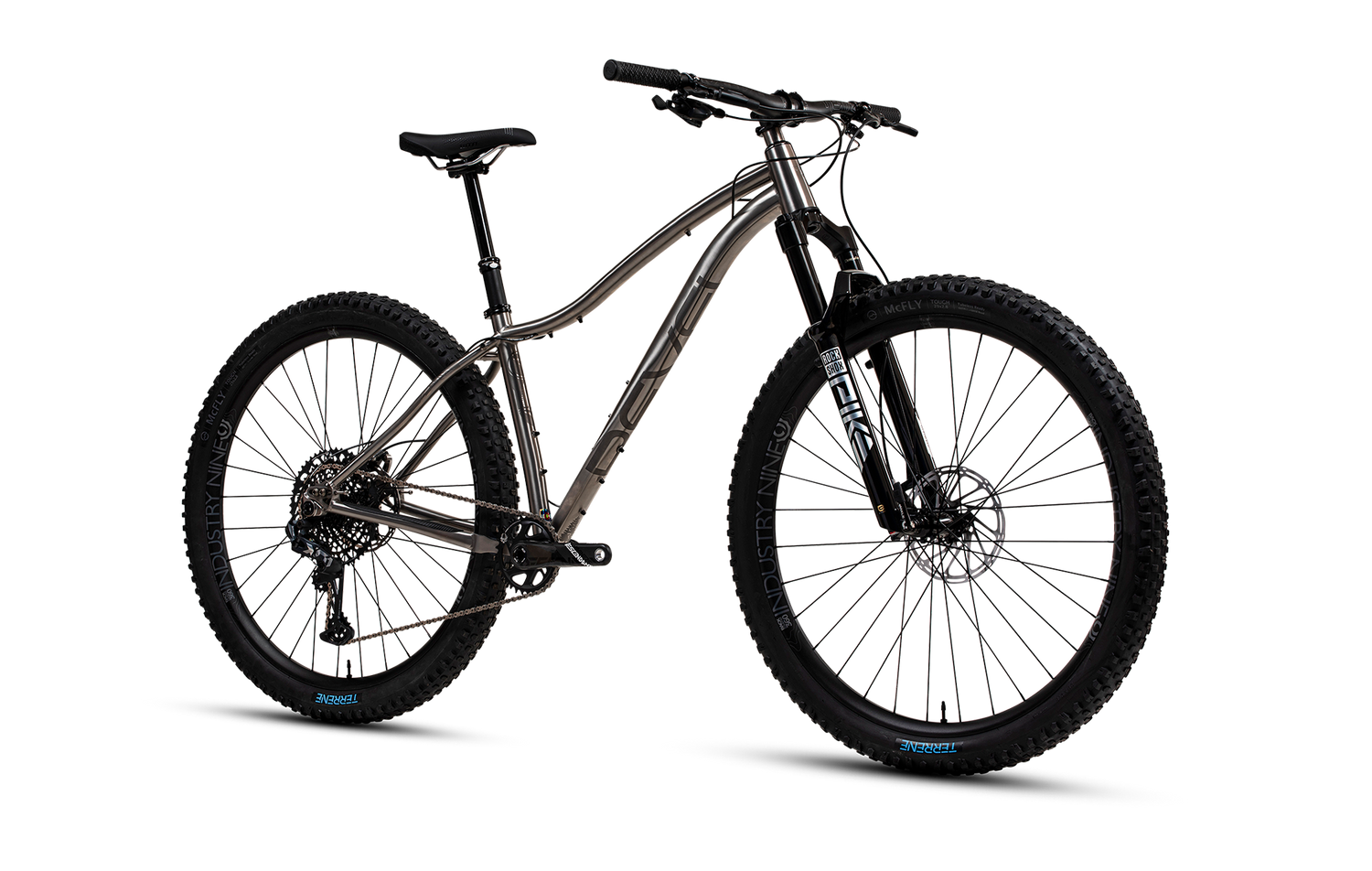

29+ ADVENTURE MACHINE
120MM FRONT 29 OR 29+
From the Baja Divide to the Colorado Trail and thousands of miles of singletrack all over the world, the Wayward sure has made a name for itself. And this is just a small sample of epic outings that this bike absolutely thrives on. The Wayward V2 leads the way as the ultimate 29+ adventure machine.
OVERLAND ADVENTURE
BIKEPACKING PERFECTED
FORK TRAVEL
120MM
FRAME
COLD-FORMED TITANIUM
CLEAN
INTERNAL CABLE ROUTING
FRAME MOUNTS
BOTTLE AND STORAGE
29X3.0
Tire Clearance
12X148
ADJUSTABLE DROPOUTS
FULL LENGTH
SEAT POSTS
BSA
THREADED BOTTOM BRACKET
DISCOVER YOUR NEXT ADVENTURE
FULLY LOADED OR XC FAST

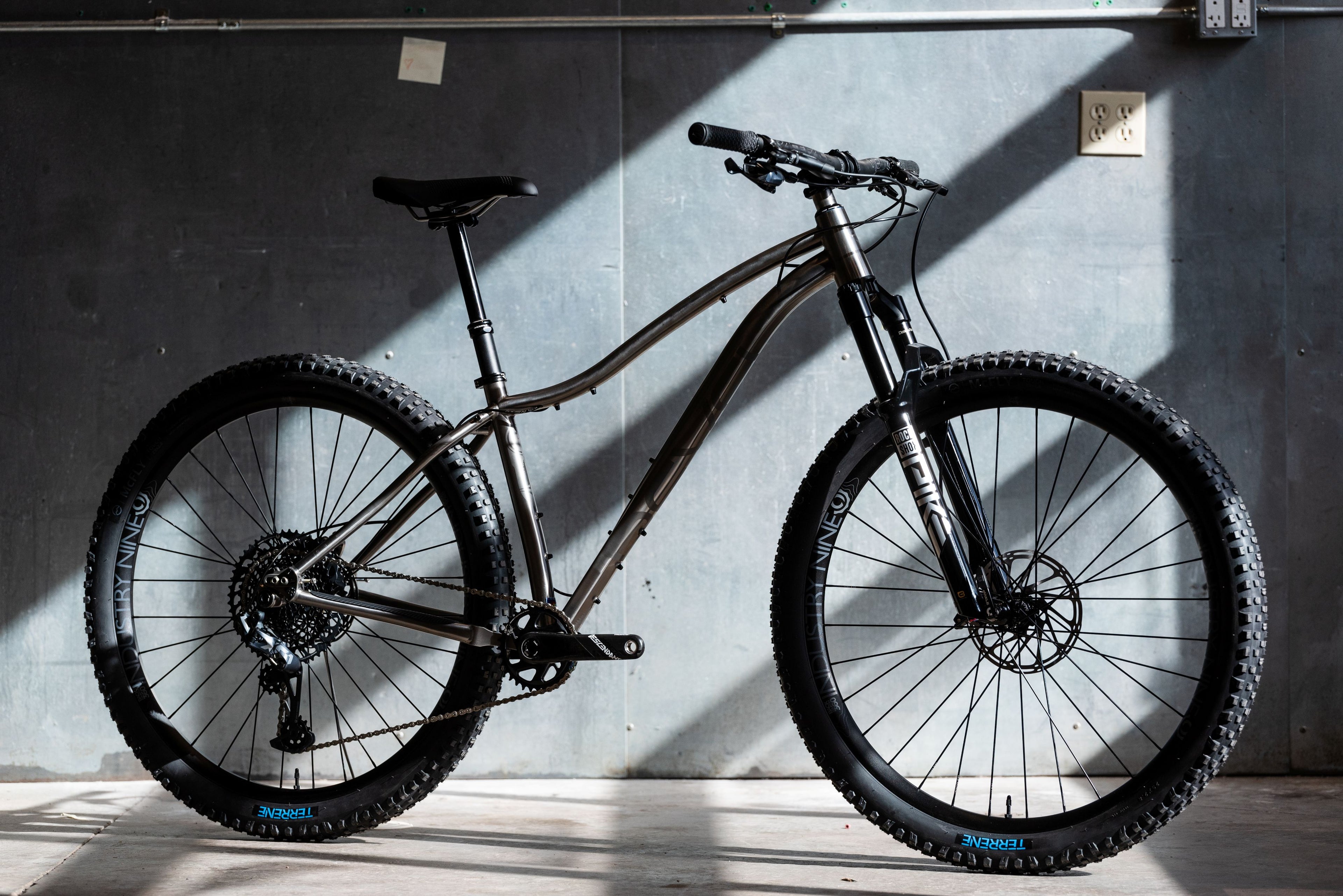

This bike was designed for epic bikepacking and adventures and it thrives fully loaded. Or, ride it as a normal XC/all-mountain hardtail, and the 29+ tires will have you smiling for miles with their capability and comfort. Belt drive compatible, sliding titanium dropouts, lots of mounting points, and perfect geometry for long days in the saddle make this a truly versatile adventure machine.

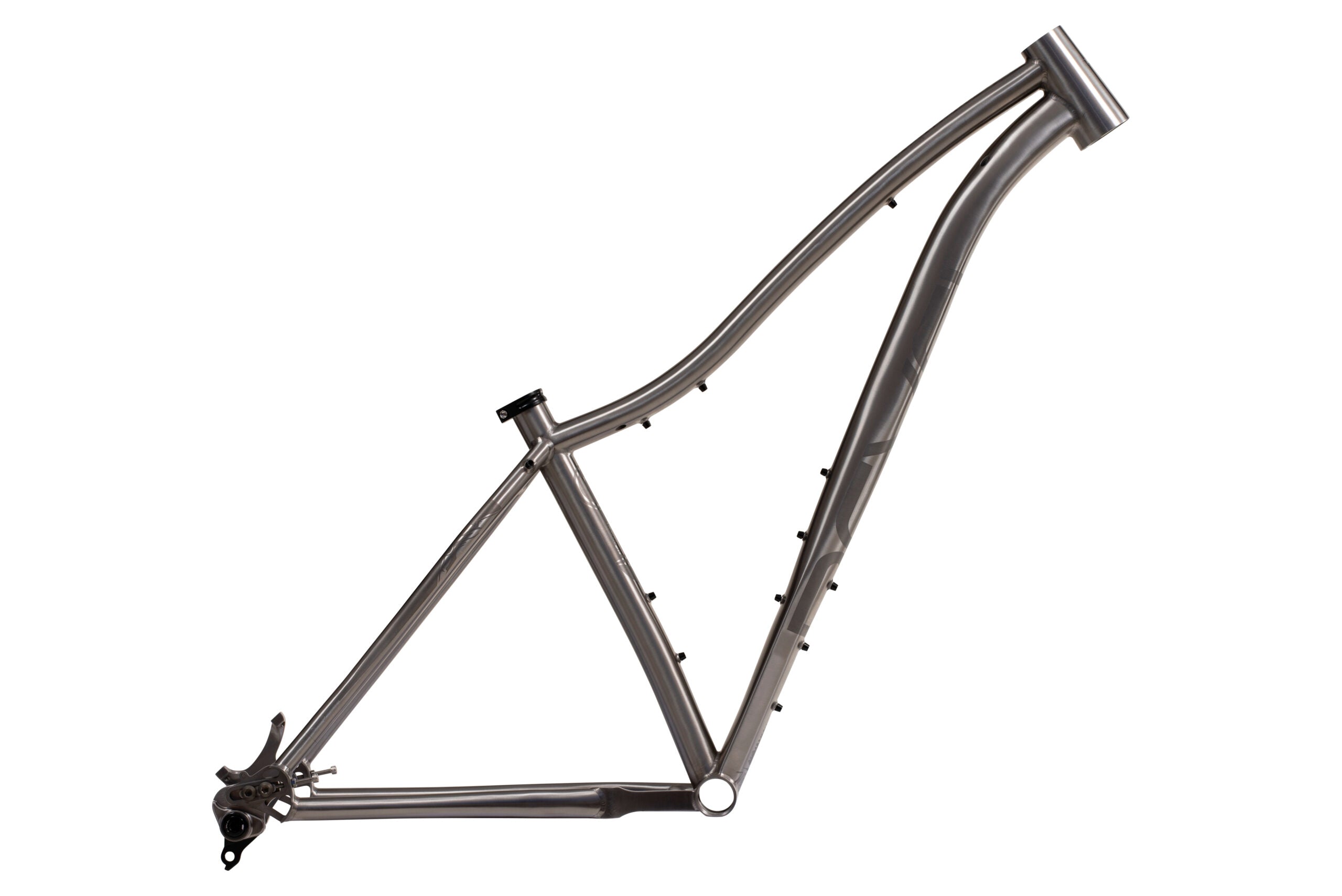

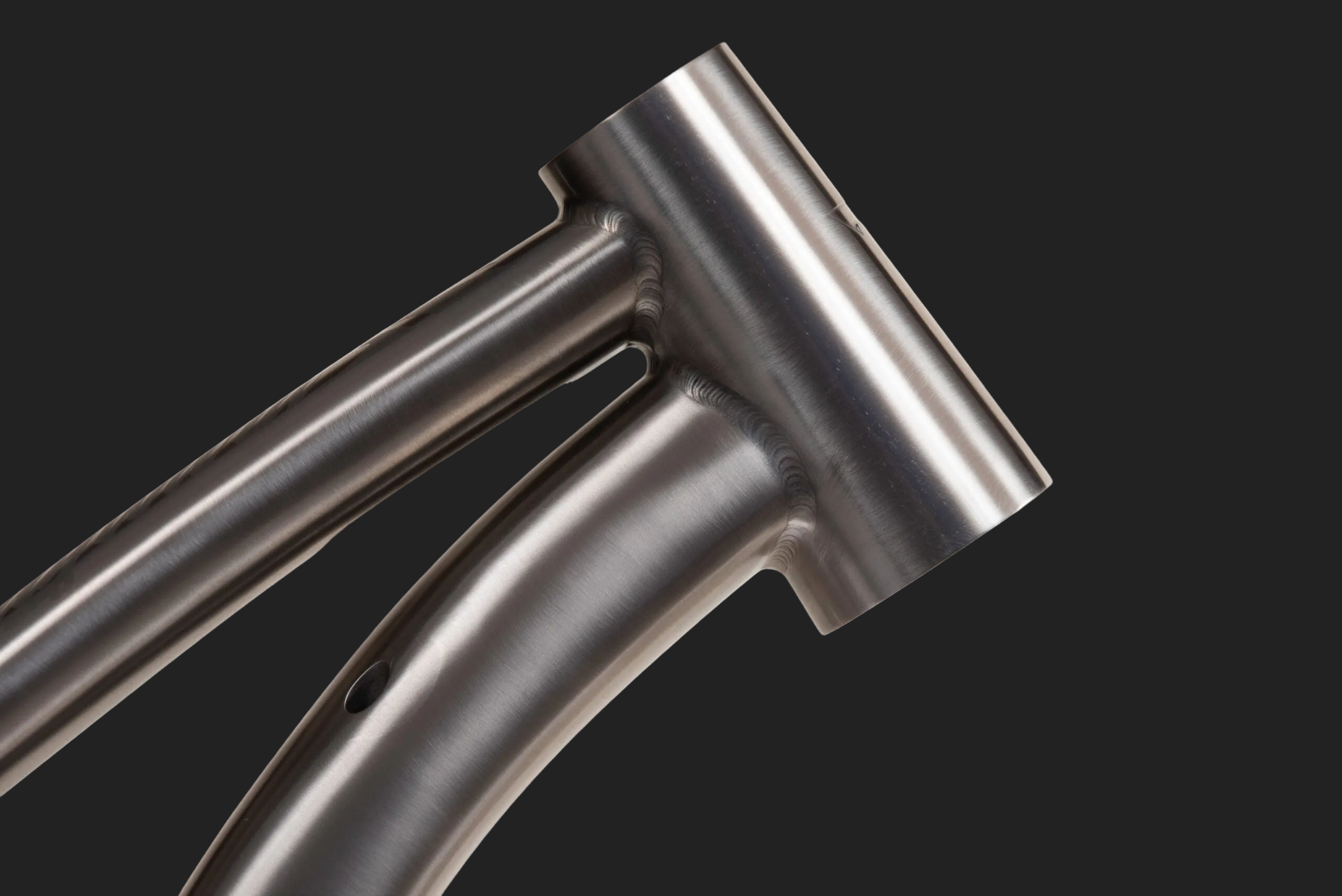

Cold-formed 3/2.5 Titanium Tubing
Our modern take on traditional titanium- these tube shapes optimize stiffness and compliance.

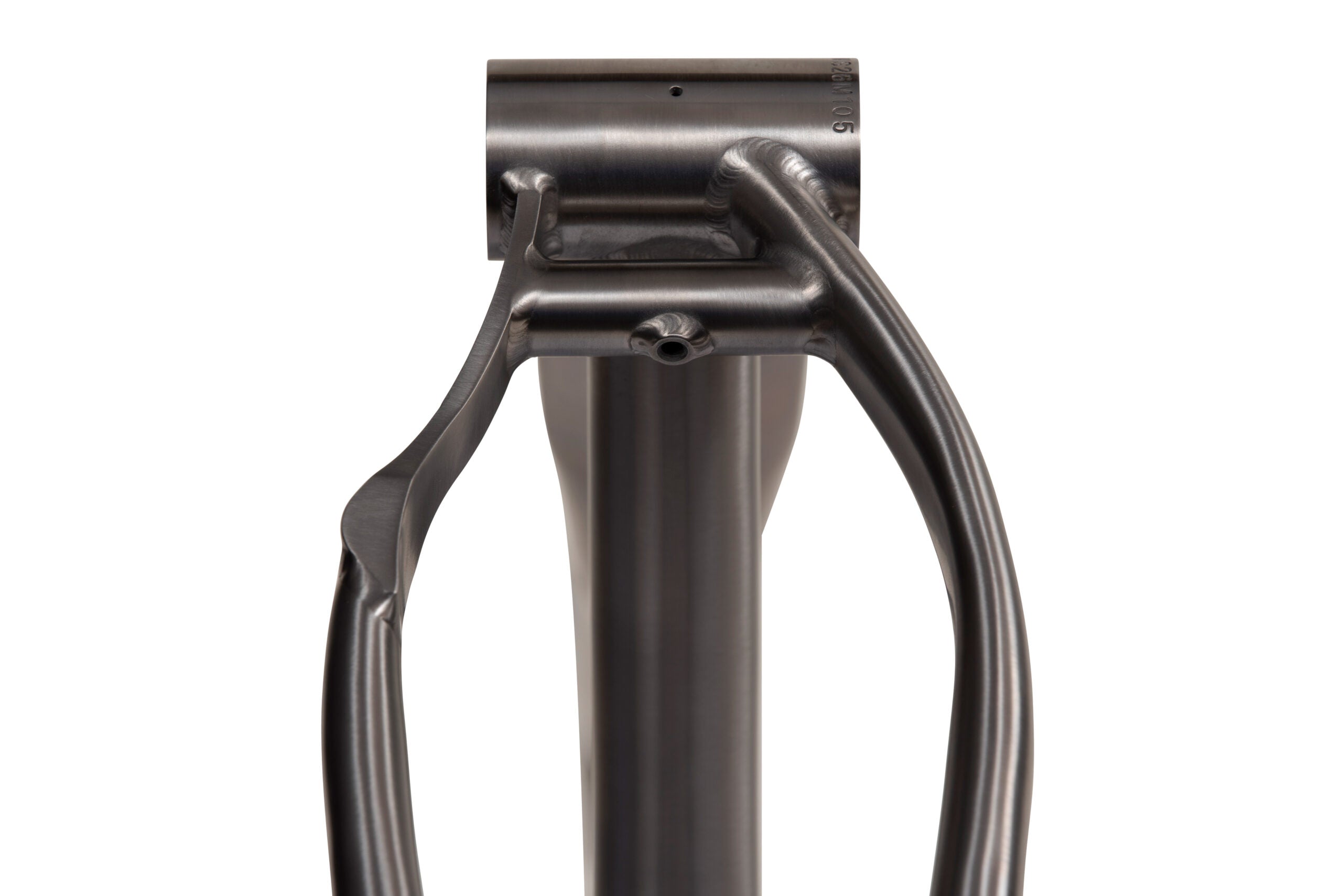

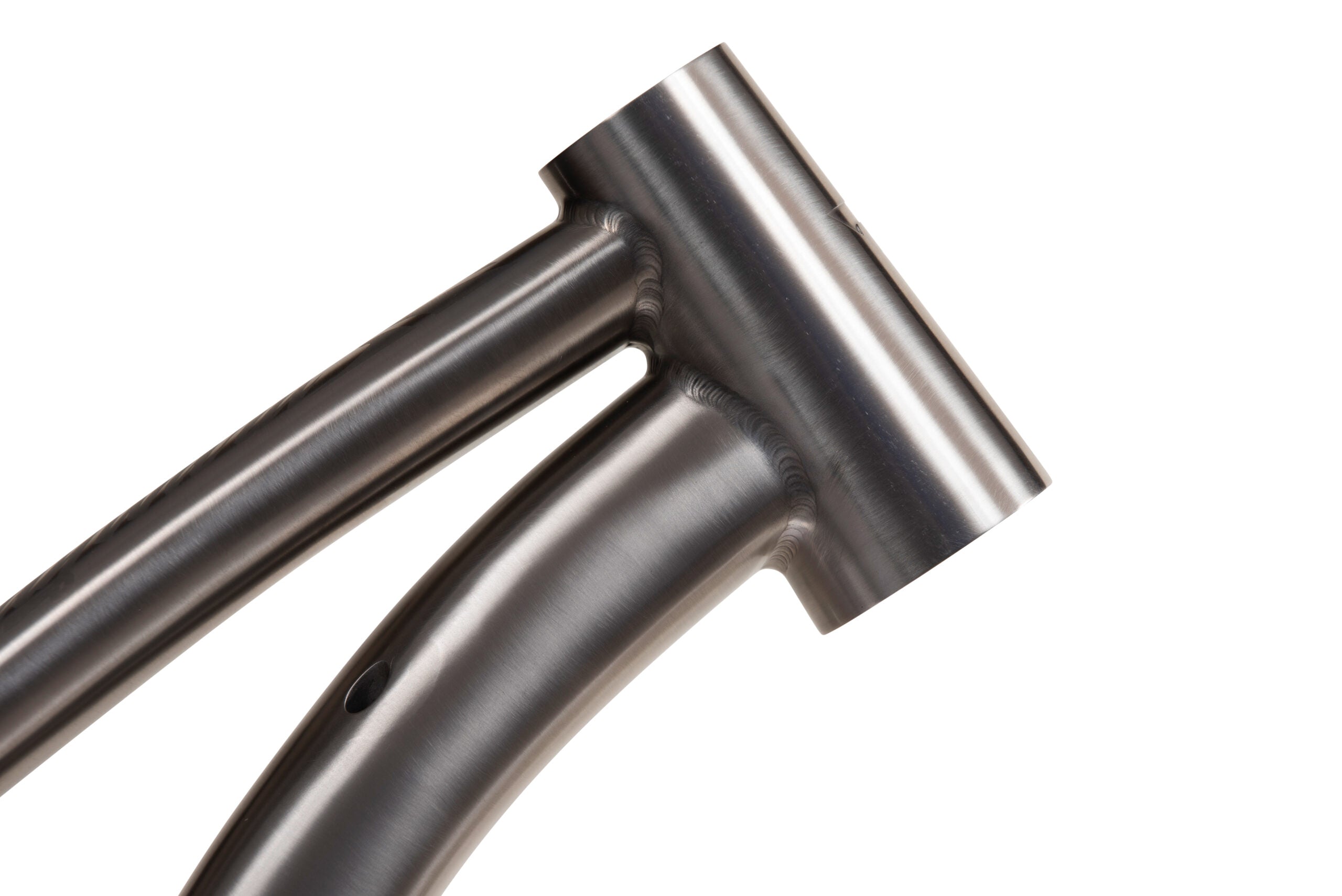

CNC Machined 6/4 Titanium
Headtube, BB, dropouts, and inserts.

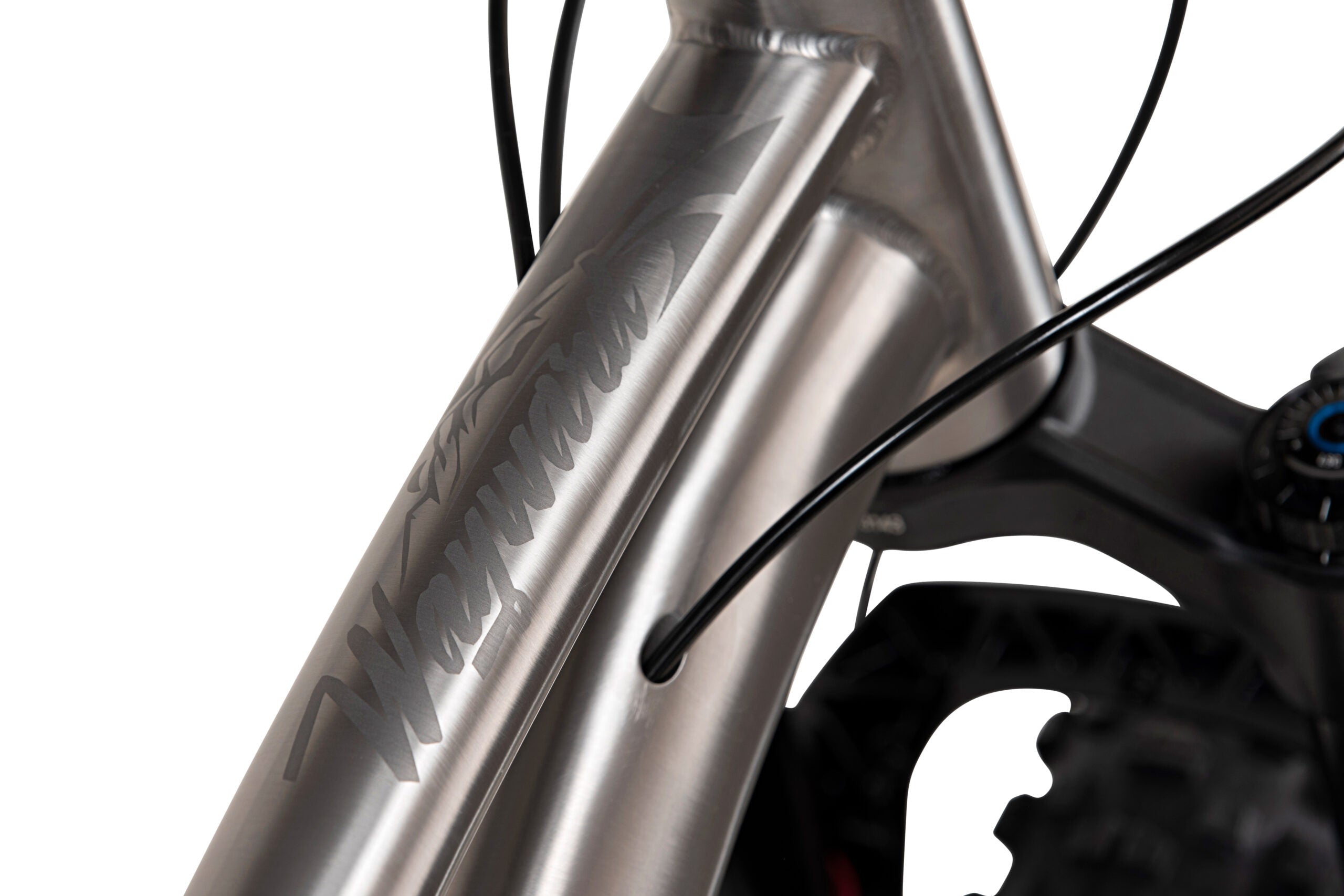

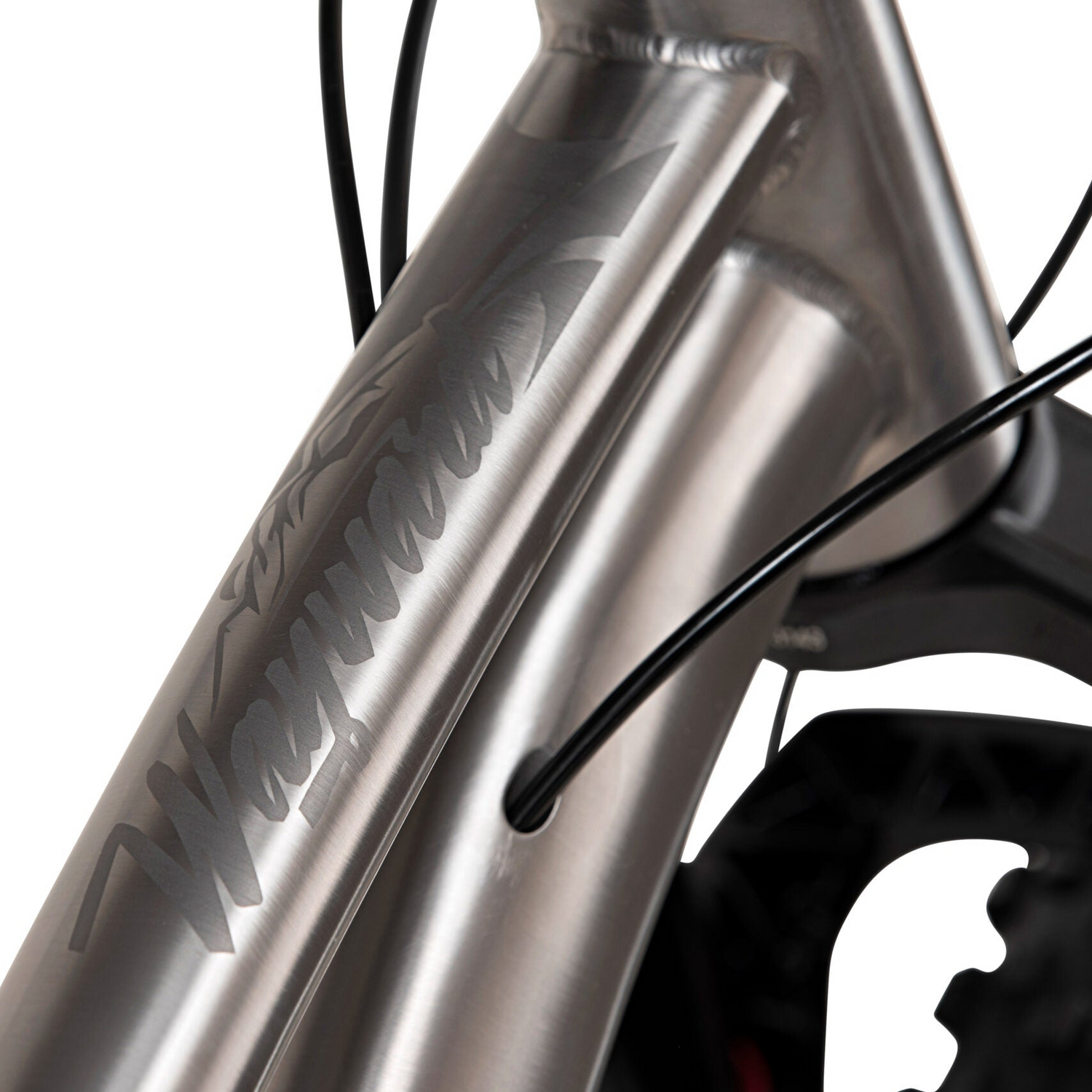

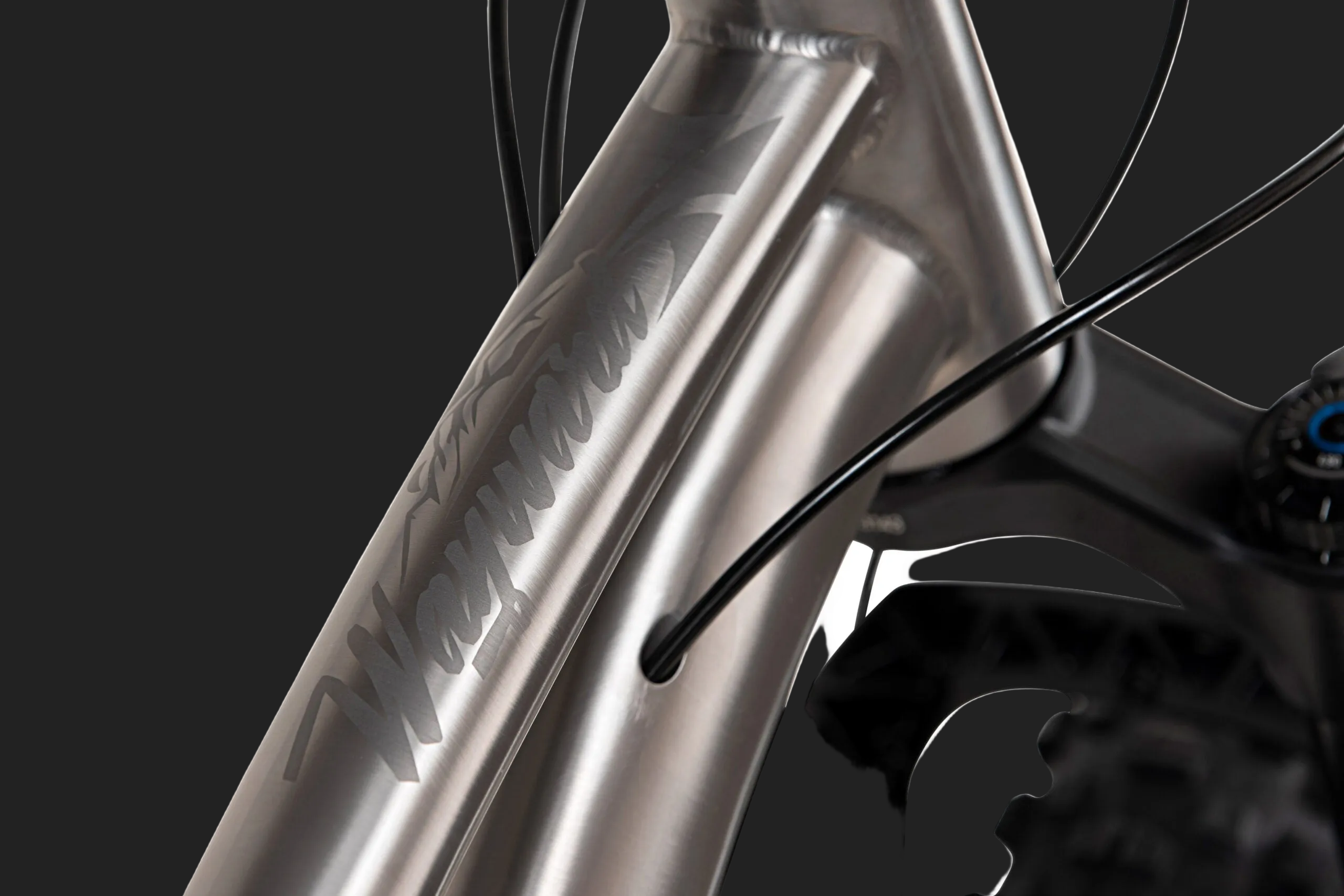

Internal Cable Routing
Clean, quiet, and simple.

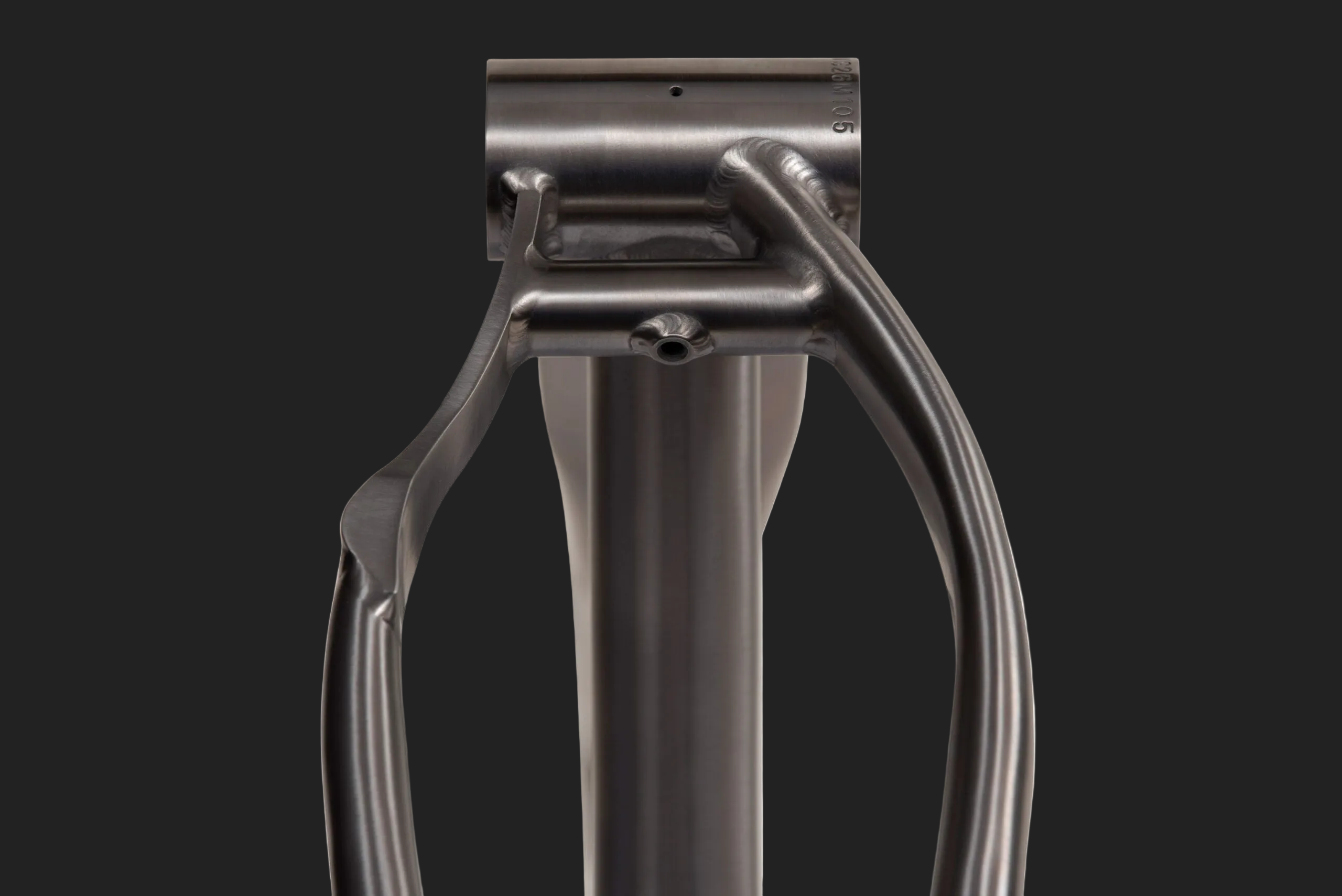

Threaded BB
Simple, easy, functional.

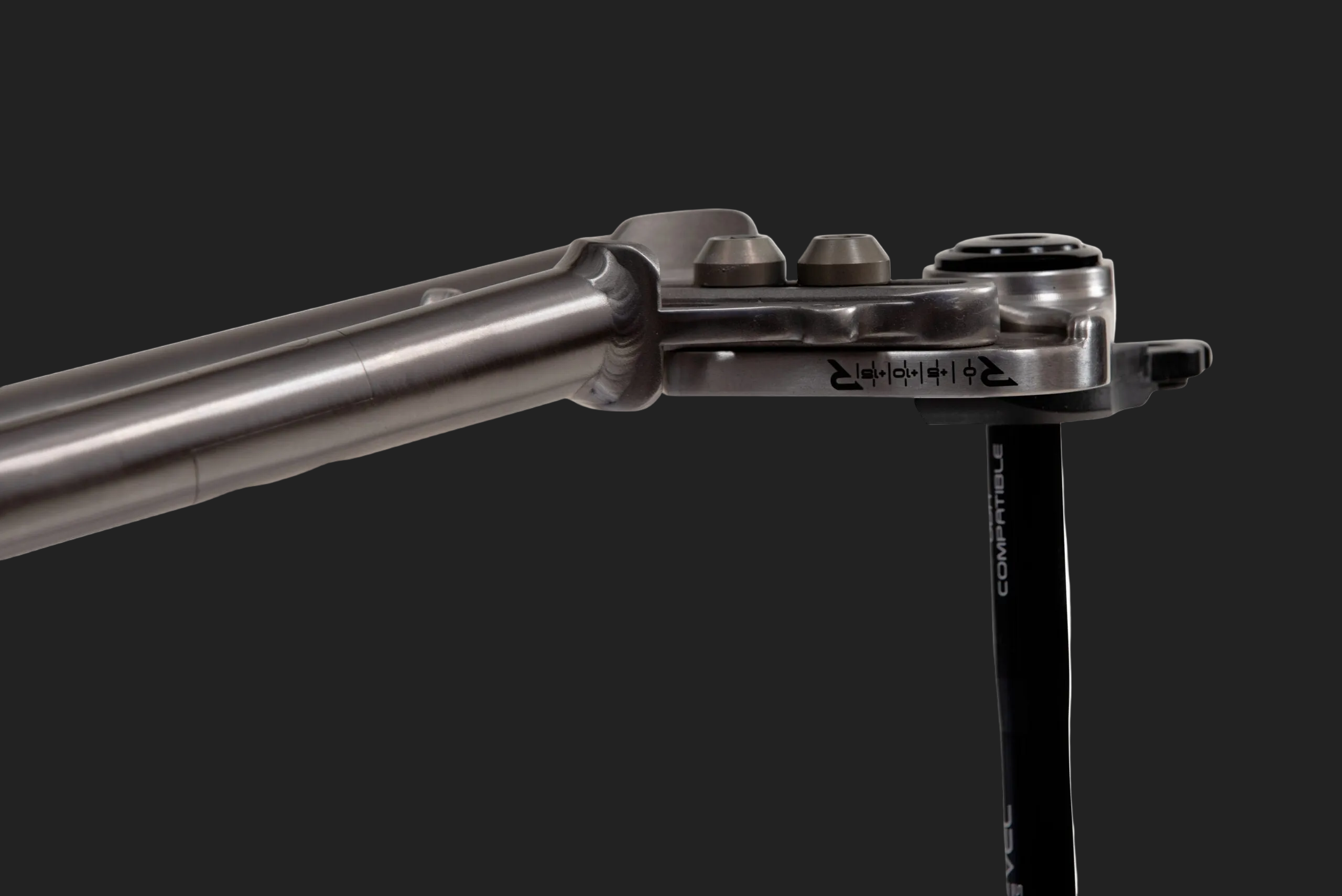

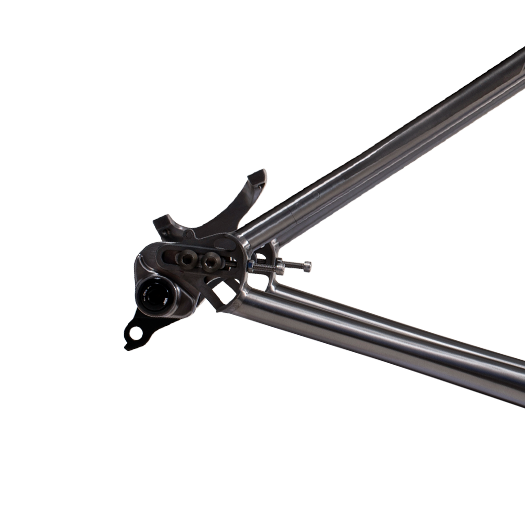

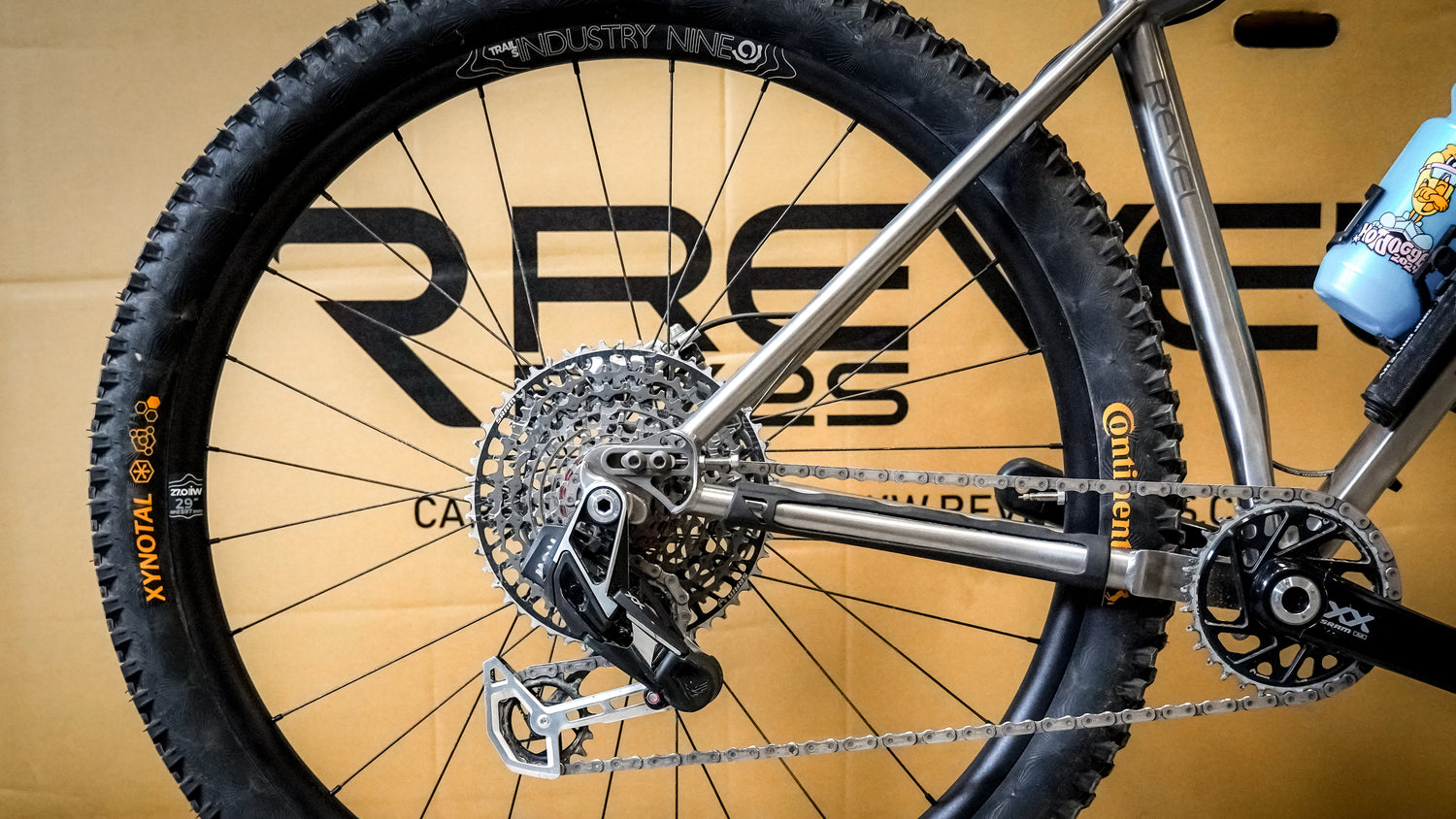

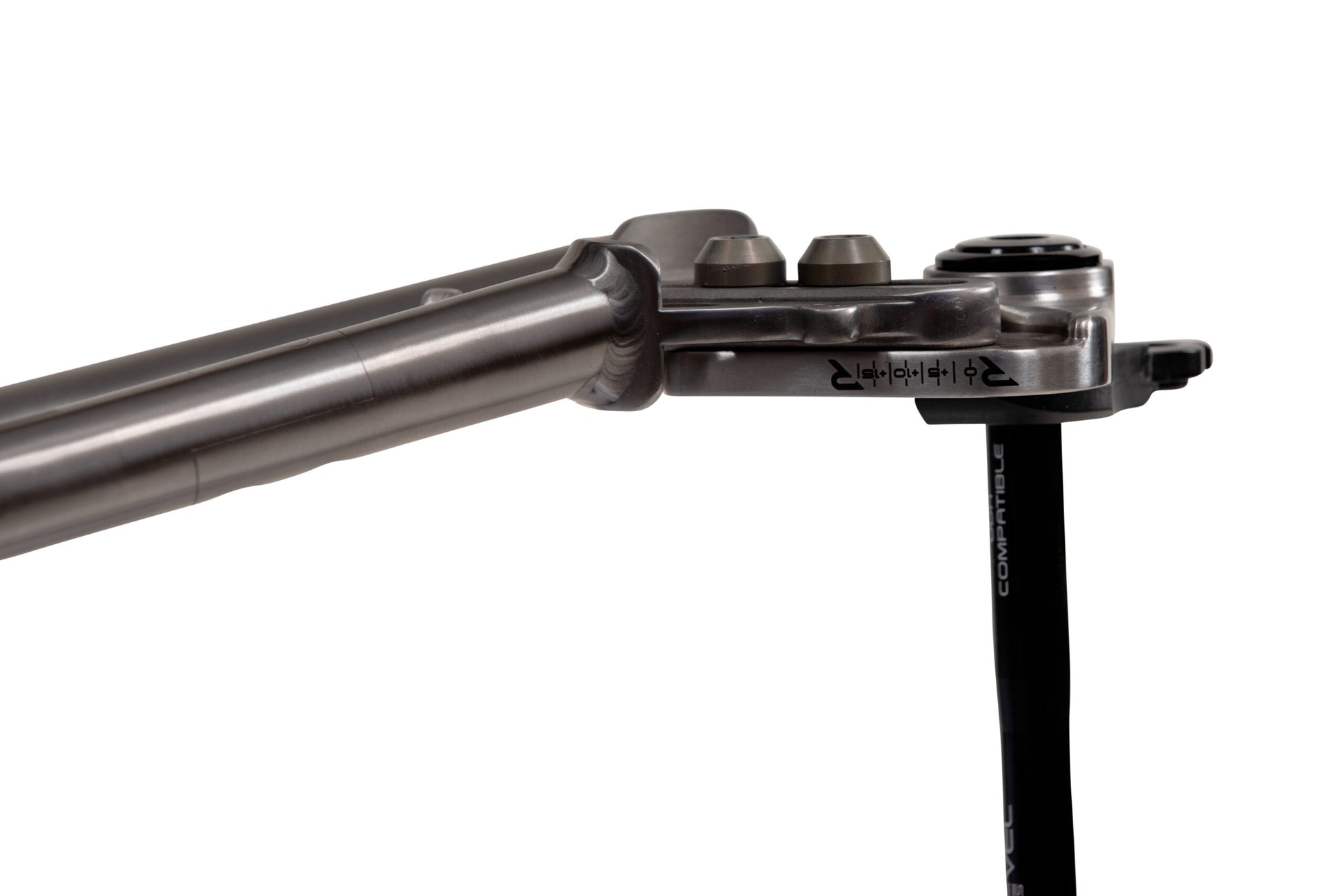

Sliding UDH Dropouts
Future proofing for all drivetrains and chainstay length adjustability.

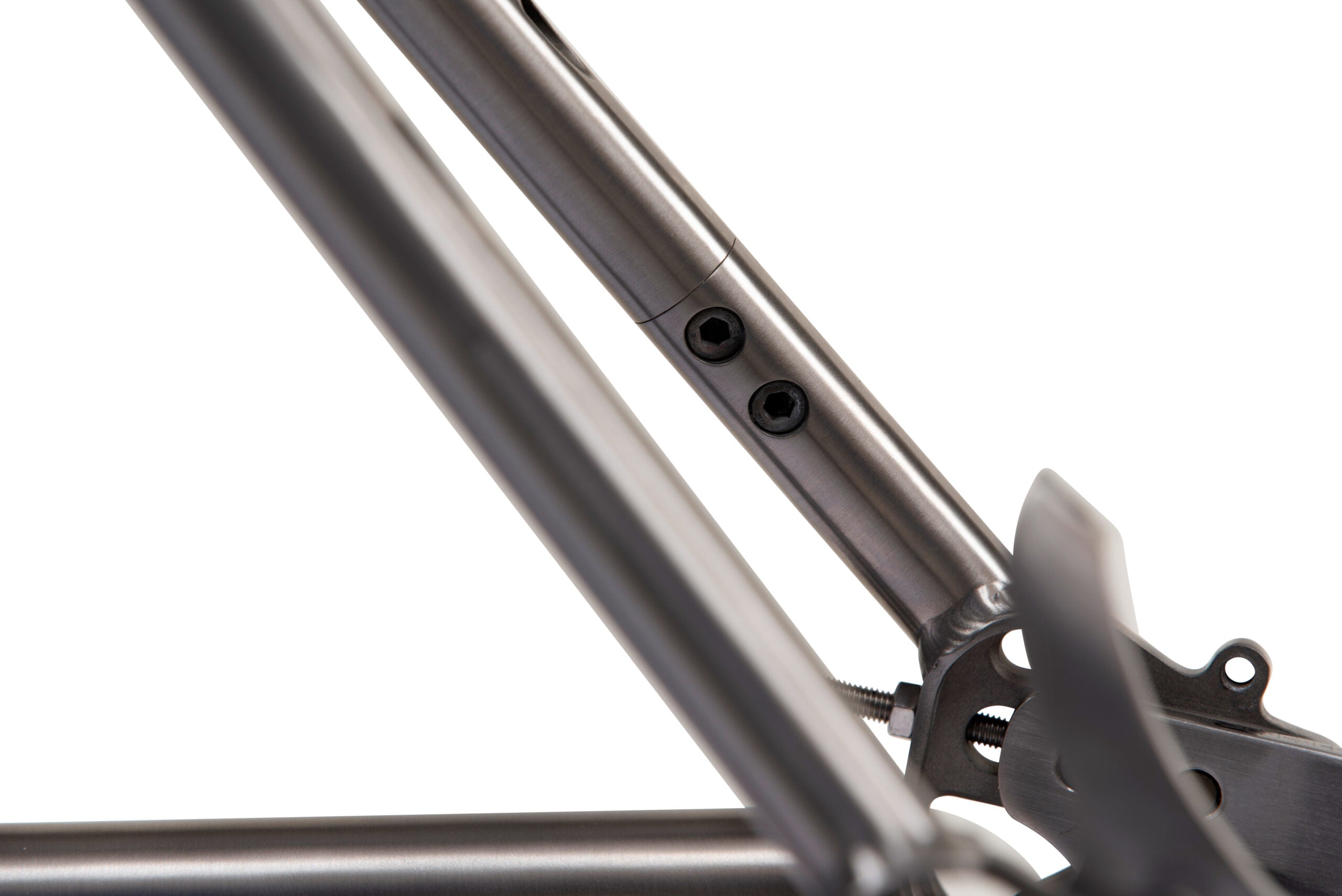

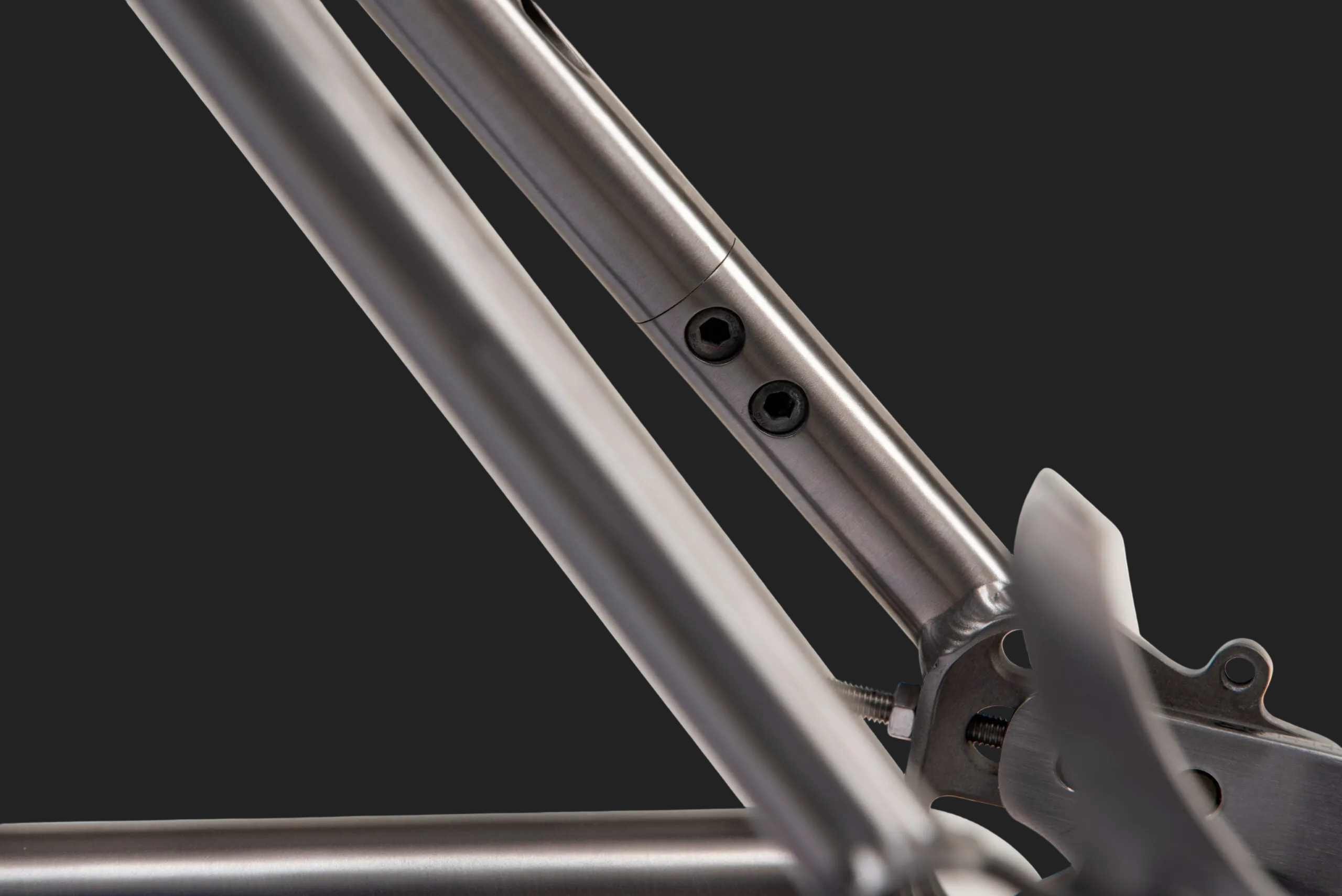

Belt Drive Split
Our unique 6/4 titanium machined puzzle-piece dropout makes for a stealthy, functional, and hidden design if you don't want to run chains.

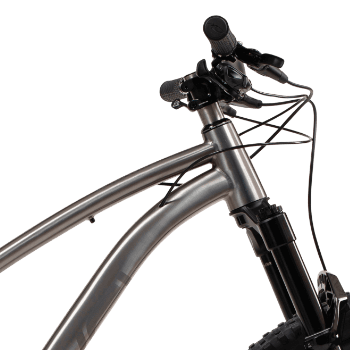

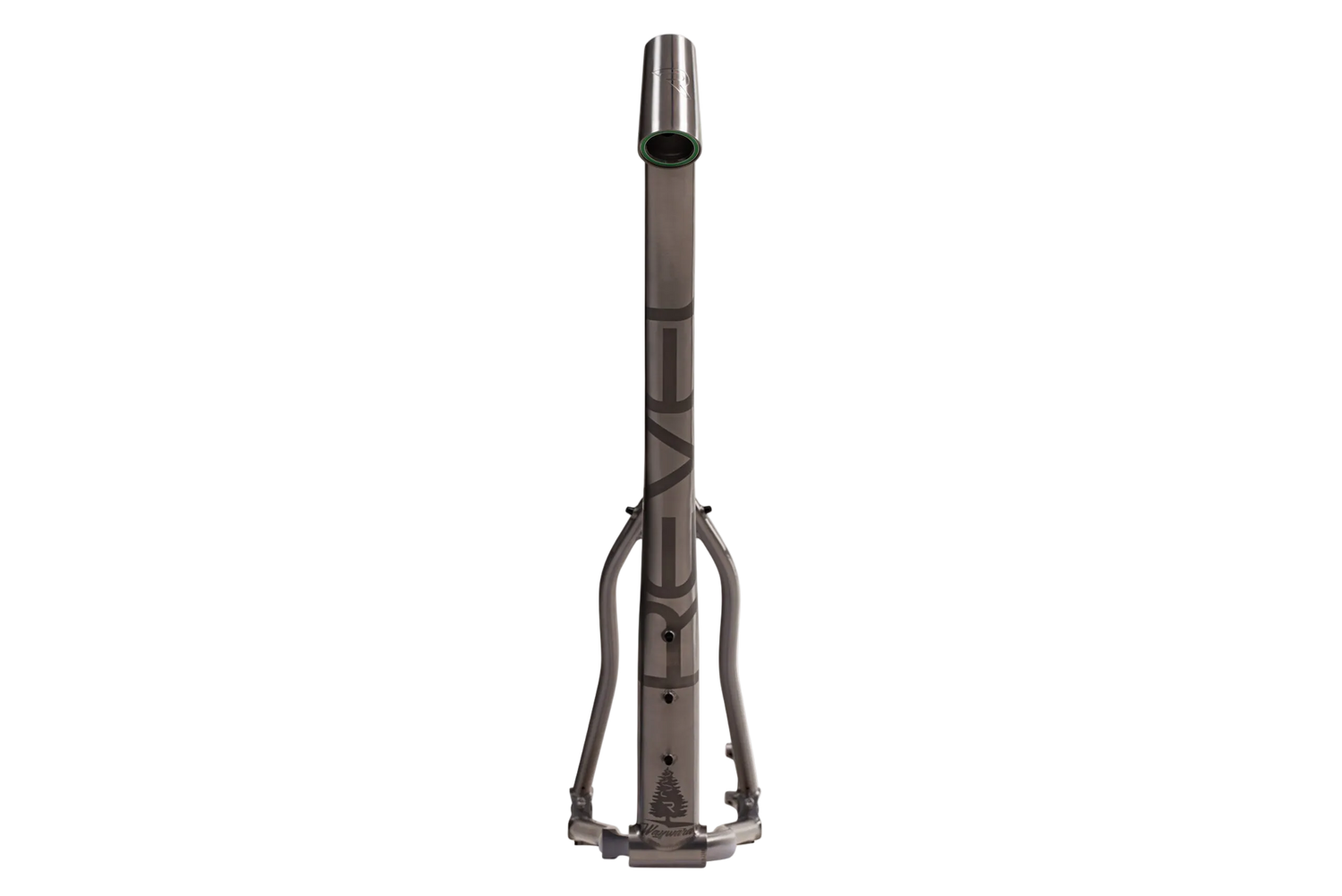

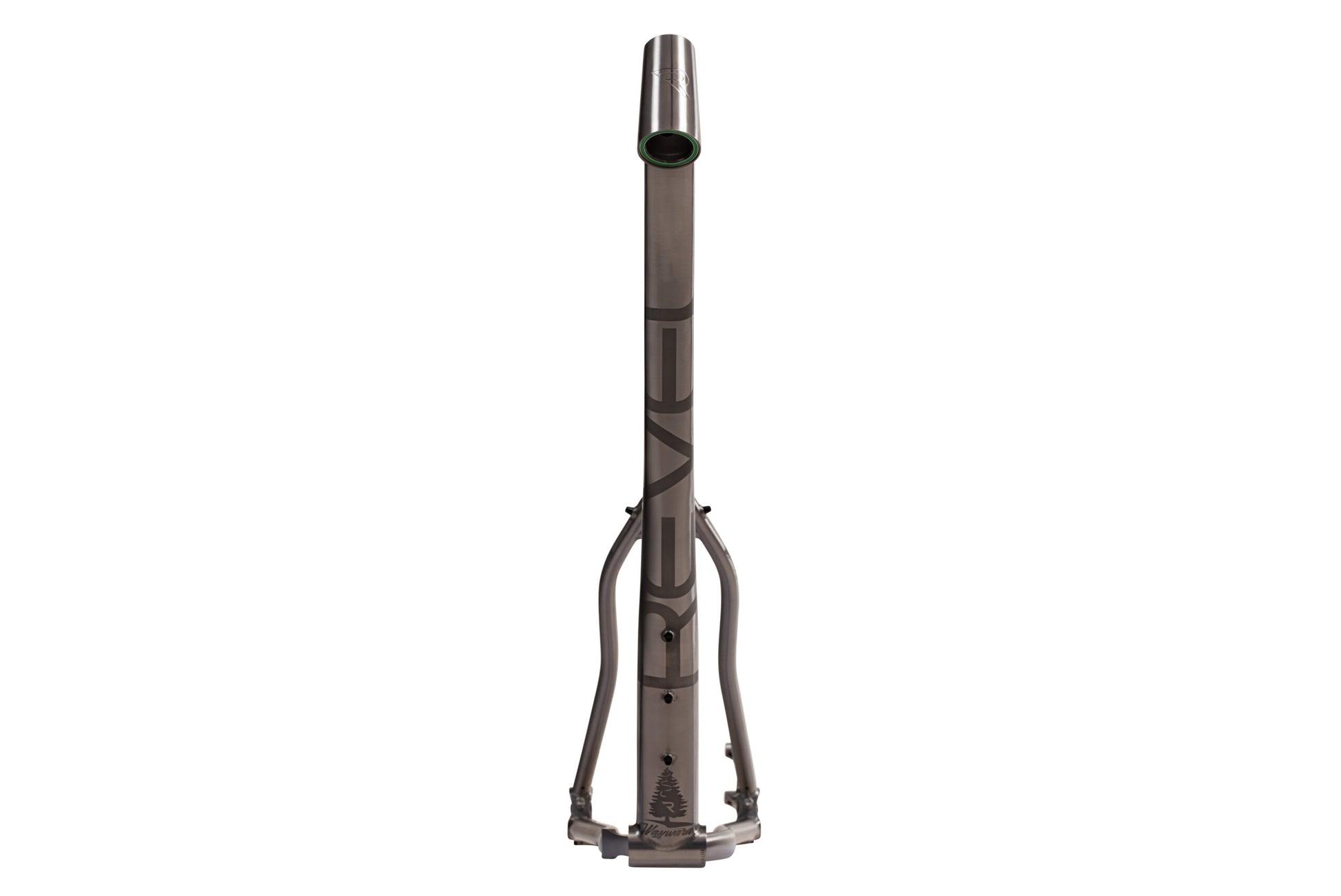

Tapered Headset
IS 42/52 integrated headset for easy installation.
BUILD KITS
|
Frame Only
$2,799 | |
|---|---|
| Frame | Wayward Titanium |
| Headset | Canecreek 40 Series |
GEOMETRY
MEASUREMENT |
MEDIUM |
LARGE |
XL |
||
A |
Effective Top Tube Length |
621mm |
643mm |
664mm |
|
B |
Seat Tube Length |
420mm |
460mm |
485mm |
|
C |
Seat Tube Angle |
74° |
74° |
74° |
|
D |
Chain Stay Length |
440-455mm |
440-455mm |
440-455mm |
|
E |
Bottom Bracket Drop |
75mm |
75mm |
75mm |
|
F |
Bottom Bracket Height |
307mm |
307mm |
307mm |
|
G |
Head Tube Angle |
68.5° |
68.5° |
68.5° |
|
H |
Wheel Base |
1160mm |
1183mm |
1203mm |
|
I |
Head Tube Length |
110mm |
116mm |
118mm |
|
J |
Axle to Crown |
510mm |
510mm |
510mm |
|
K |
Fork Offset |
51mm |
51mm |
51mm |
|
L |
Trail |
92mm |
92mm |
92mm |
|
M |
Stack |
636mm |
639mm |
642mm |
|
N |
Reach |
455mm |
475mm |
499mm |
|
O |
Standover |
720mm |
745mm |
760mm |
FRAME SPECIFICATIONS
| Wheel Size | 29" |
| Front Travel | 120mm min/max |
| Rear Travel | 00mm |
| Hub Spacing | Boost 148mm rear / 110mm front |
| Axles | 177 x 12 x 1.0 |
| Seatpost Diameter | 31.6mm, 34.9mm Seat Clamp |
| Max Seatpost Insertion Depth | MD 220mm, LG 260mm, XL 287mm |
| Rear Brake | Post mount, Belt drive compatible |
| Rear Tire Clearance | 29 x 3.0" (rear) |
| Bottom Bracket | 73mm BSA English Threaded |
| Max Chainring | 36T Round, 55mm chainline |
| Tapered Headtube | IS42 Upper / IS52 Lower |

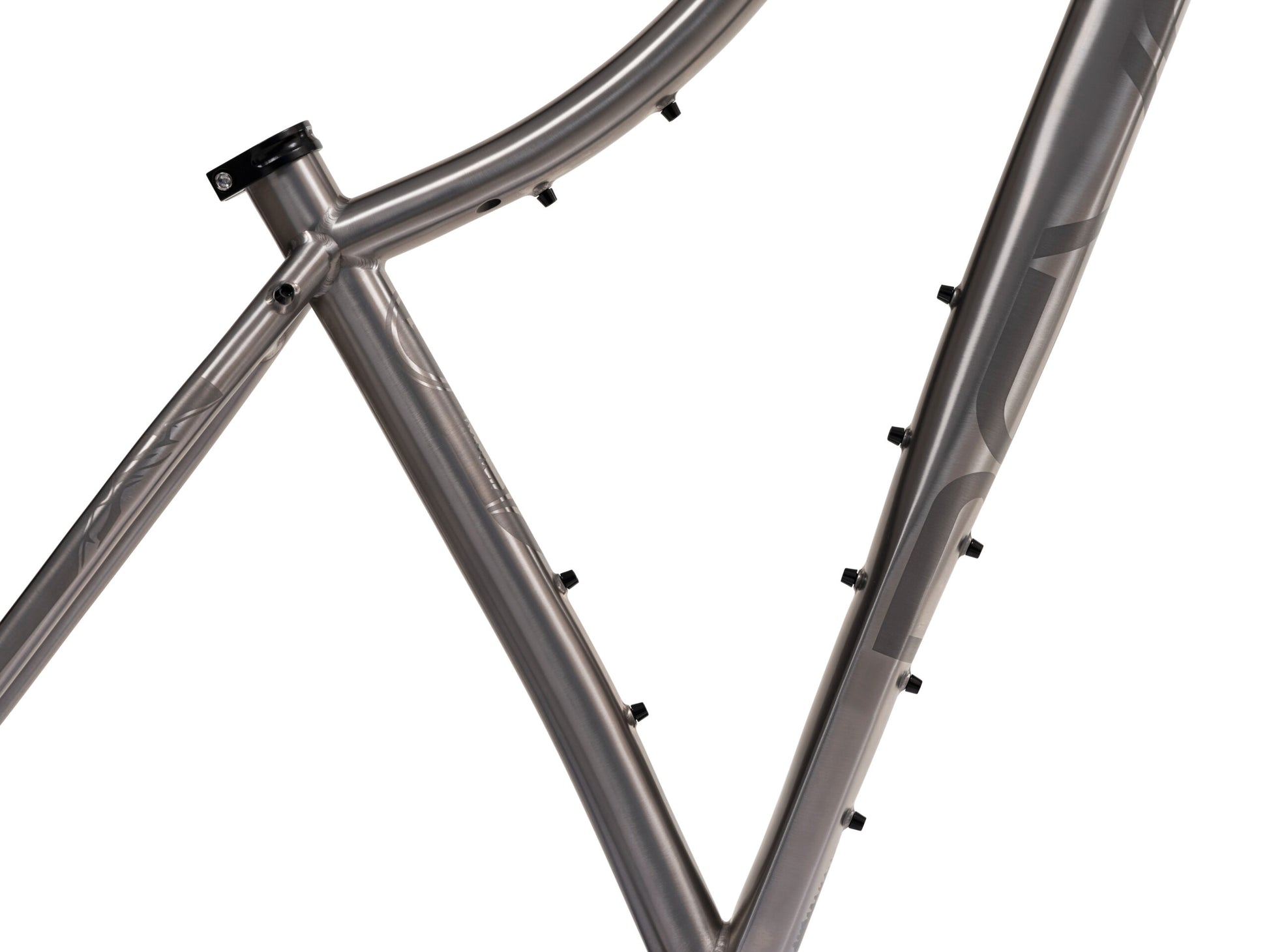

| Bottle Bosses | 4 complete sets, 3 sets in front triangle, 1 set under downtube |
FAQ
REVEL MAKES TITANIUM BIKES?!
We do now! Well, in a way, we always have… our sister company, Why Cycles, has been manufacturing the most advanced titanium bikes in the world since 2016. We're retiring the Why Cycles brand, so now you can find the most advanced carbon and titanium bikes on the market under one name - Revel Bikes.
WHERE ARE REVEL TI BIKES MADE?
Revel titanium frames are lovingly hand-built in the same family-owned and operated factory in northern China used by Why Cycles for a half-decade. All Revel bikes are then assembled and shipped from our facility in Carbondale, CO.
WHY AREN'T THERE ANY COMPLETE BUILDS AVAILABLE FOR THE WAYWARD?
The Wayward is an incredible platform for your ultimate custom adventure build. We've found that most riders going on epic rides with the Wayward prefer to build their bike up by selecting every part to suit their needs. If picking every part sounds daunting, just reach out to any Revel dealer for advice on parts or a pro mechanic to do the build.
SHOULD I GET THE WAYWARD OR THE EL JEFE?
It depends. Get the Wayward if you're looking for a bikepacking-first rig that can comfortably handle hefty loads on rugged backcountry excursions. Get the El Jefe if you're looking for a ripping fast hardtail that can bikepack when it needs to.
UDH COMPATIBLE? WHAT DOES THAT MEAN?
We've updated all Revel Ti bikes with SRAM UDH (Universal Derailleur Hanger), so replacement hangers are easier to find and your bike's drivetrain is more future-proof against manufacturer updates down the line.

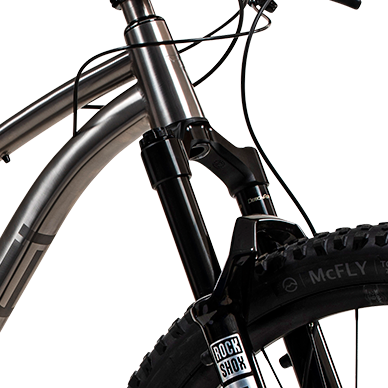

WHAT FORK DO YOU RECOMMEND FOR THE WAYWARD?
Any 29" fork with clearance for plus tires will work. We recommend a minimum of 2.8" but it depends on the tires you'd like to run. The Rockshox Pike is a great choice that fits 29x3.0" tires. A suspension corrected rigid fork is a great option for more mounting and bikepacking features.
CAN I RUN A RIGID FORK ON THE WAYWARD?
Yes! Just make sure that you've got enough tire clearance and the axle-to-crown length is as close to 510mm as possible.
CAN I RUN A BELT DRIVE ON THE WAYWARD?
Yes! Check with the belt drive manufacturer for specifications.
WHAT TIRE SIZE CAN I RUN ON THE WAYWARD?
Up to 29" x 3.0.
WHAT IS THE TORQUE FOR THE TI SLIDING DROPOUT BOLTS?
15-18Nm for the dropout bolts, 3-4Nm for the tensioner bolt.
IS THE WAYWARD'S HEADTUBE ANGLE MEASURED AT SAG?
Yes!
WHAT IS THE SPECIFICATION OF THE LONGITUDINAL TENSIONER BOLT?
M5 x 0.8 x 35mm Stainless steel cap screw.
WHAT'S THE BEST FRAME BAG FOR MY WAYWARD?
We love the bags we've seen and used from companies like Rogue Panda, Oveja Negra and Good Busy Gear.
WHAT IS THE BEST WAY TO POLISH MY TITANIUM FRAME?
We recommend using some rubbing alcohol and a Scotch Brite pad and scrubbing gently in a "shoe-shine" motion (one direction or back and forth, not circular), then wiping down and finishing with a light coat of furniture polish like Pledge. This should work for both oxidation and light scratches. The graphics are sand-blasted into the frame, so you won't hurt them if you use a soft touch.
IS MY WHY CYCLES BIKE STILL COVERED UNDER WARRANTY?
Absolutely! All Why Cycles and Revel Bikes frames come with lifetime warranties and a generous crash replacement program for the original purchaser. If anything does happen and you need a replacement frame, it will most likely be replaced with a Revel branded titanium frame, but we’ll get you back to riding ASAP!
